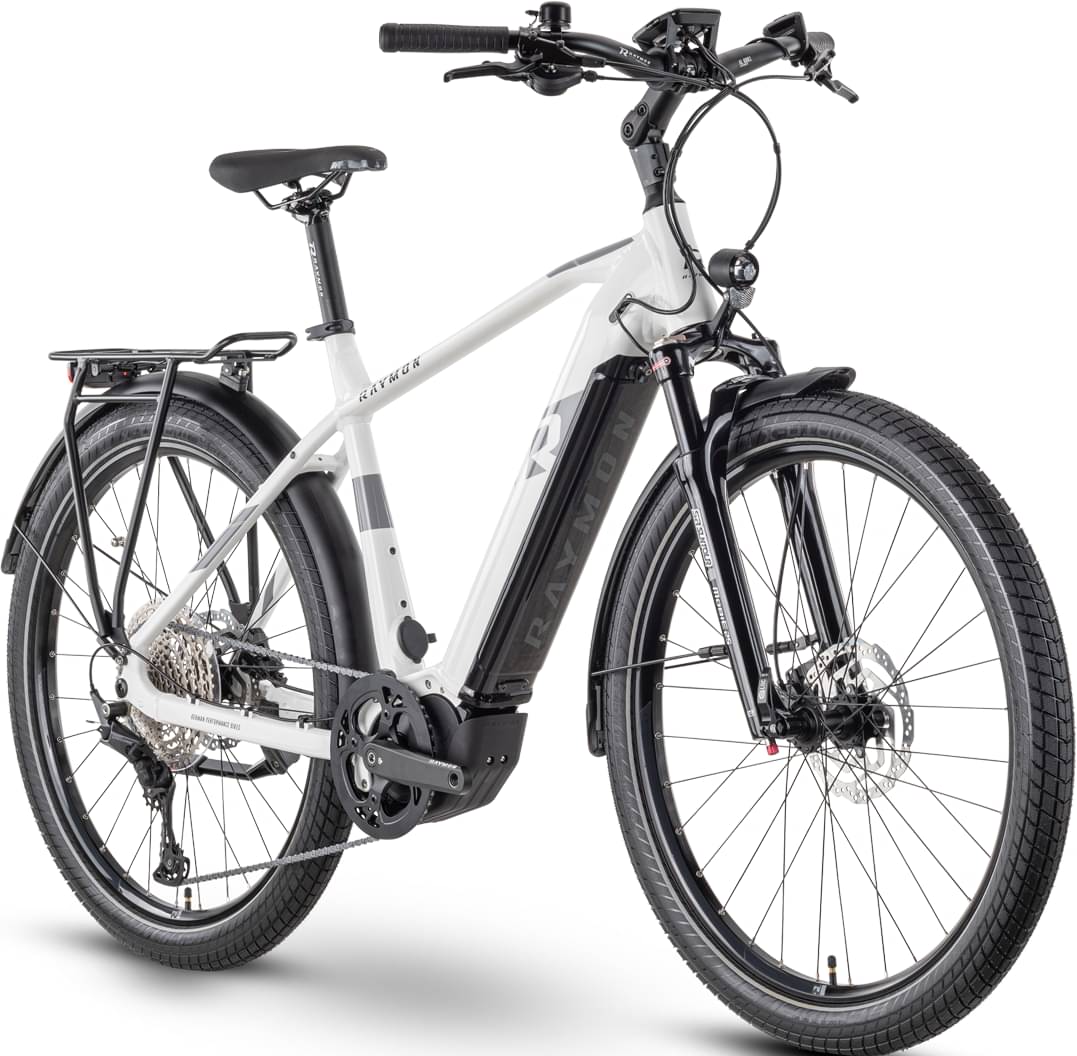

rraymon R RAYMON TourRay E 7.0 2022
2022 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour MOBIE -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 80Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR Mobie25 LOR, Coil, 63 mm, tapered
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus, 11-S
Shift Levers
Yamaha C
Cassette
Shimano CS-M5100, 11-51 T
Crank
R Raymon, Narrow Wide, 44 T
Chain
KMC e11S
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-M5100, 11-51 T
Tires
Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5x2.4
Brakes
Brakes
Shimano BR-MT410, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-X2, 250 W, 80 Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Micro-USB
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.39 mm | 1.38 mm | 1.37 mm |
| Front Center | 696 mm | 710 mm | 723 mm | 737 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 435 mm | 445 mm | 455 mm | 465 mm |
| Top Tube Length | 611 mm | 624 mm | 636 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1174 mm | 1187 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TourRay E 7.0 is part of the Rraymon E Tourray model. R RAYMON launched 16 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
R RAYMON TourRay E 1.0 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, R RAYMON TourRay E 8.0 2022, is the most expensive and costs 4777$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring e-bikes average price
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 4246$. If we compare this with the average Touring e-bike cost we notice that the price is 74.8% more expensive.
Overview of components
Fork
The TourRay E 7.0 comes factory-installed with the Suntour MOBIE fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the TourRay E 7.0 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON TourRay E 7.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
R RAYMON TourRay E 7.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
