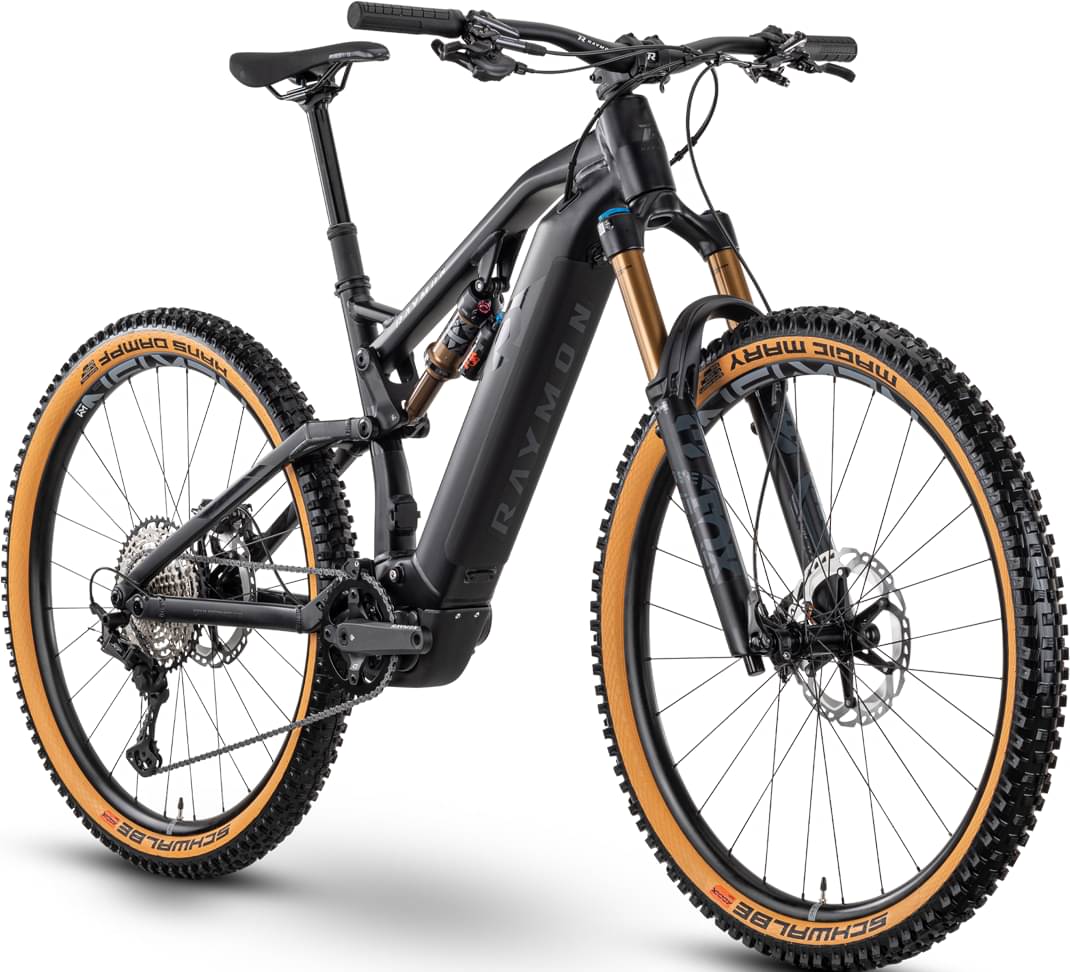

rraymon R RAYMON TrailRay 140E 11.0 2022
2022 E-bike
Estimate price |
7,913$
Weight | 25.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Simplo, 720 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 140 mm
Suspension Fork
FOX Float 38 Factory, Grip 2, E-Optimized, Air, 150 mm, tapered
Rear Shock
FOX Float X Factory, Air
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-S
Shift Levers
SRAM GX Eagle, Single Click
Cassette
SRAM PG-1230, 11-50 T
Crank
SRAM X-Sync Eagle, 38 T
Chain
SRAM GX Eagle
Chain Guide
ISCG-05
Pedals
R Raymon, aluminum
Wheels
Rims
NEWMEN Evolution A.30, Tubeless ready, Center lock, 15x110/12x148 mm, thru axle
Tires
Schwalbe Magic Mary, Evolution, 62-622, 29x2.4, Tubeless ready
Brakes
Brakes
Front: SRAM Code R, 4-piston, Hydraulic disc brake, Rear: SRAM Code R, 4-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 35, 0 °, Ahead
Handlebar
R Raymon Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
R Raymon MTB, Lock-on grips
Headset
FSA Orbit ZS56/ZS56
Seat
Saddle
R Raymon MTB
Seatpost
R Raymon, 34.9 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-X3, 250 W, 85 Nm
Battery
Simplo, 720 Wh, 36 V
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.409 mm | 1.343 mm | 1.286 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 753 mm | 775 mm | 802 mm | 829 mm |
| Rake | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 130 mm | 132 mm | 132 mm | 132 mm |
| Stack | 629 mm | 634 mm | 638 mm | 643 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 564 mm | 585 mm | 611 mm | 638 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1211 mm | 1233 mm | 1260 mm | 1287 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TrailRay 140E 11.0 is part of the Rraymon E Trailray model. There are 14 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON TrailRay 140E 7.0 2022 is the most economical model, with a starting price of 4565$. R RAYMON TrailRay 140E 11.0 2022 on the other hand costs 7325$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 7325$. Doing a quick comparison, we notice that TrailRay 140E 11.0 price is 117.68% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 25.1 kg (55.34 lbs), the TrailRay 140E 11.0 model is a bit heavier than average. To sum up, it’s 5.91% heavier than the average weight of Trail e-bikes.
TrailRay 140E 11.0 components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float X Factory rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on TrailRay 140E 11.0 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON TrailRay 140E 11.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
TrailRay 140E 11.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
