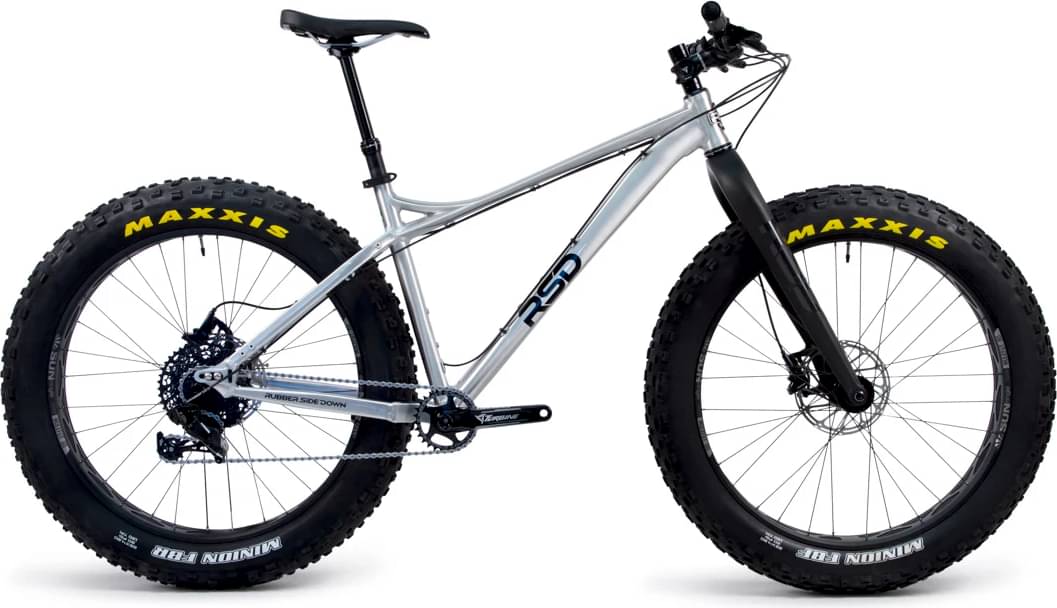

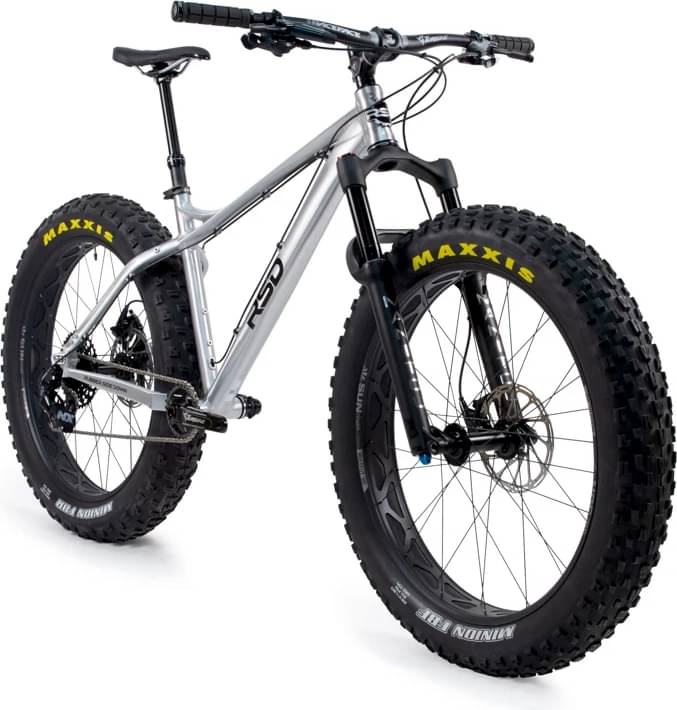

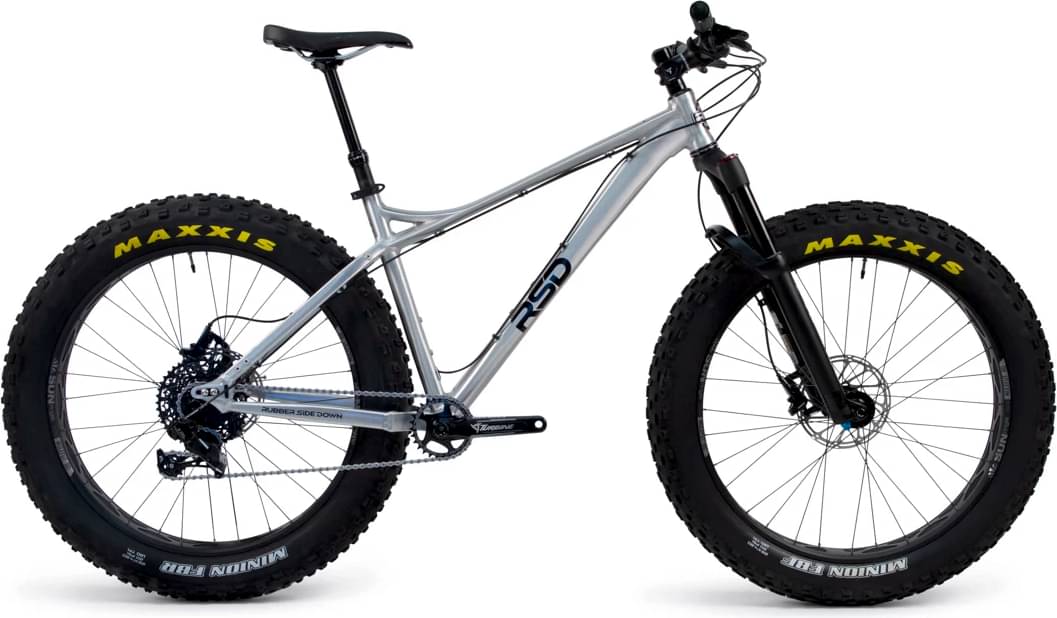

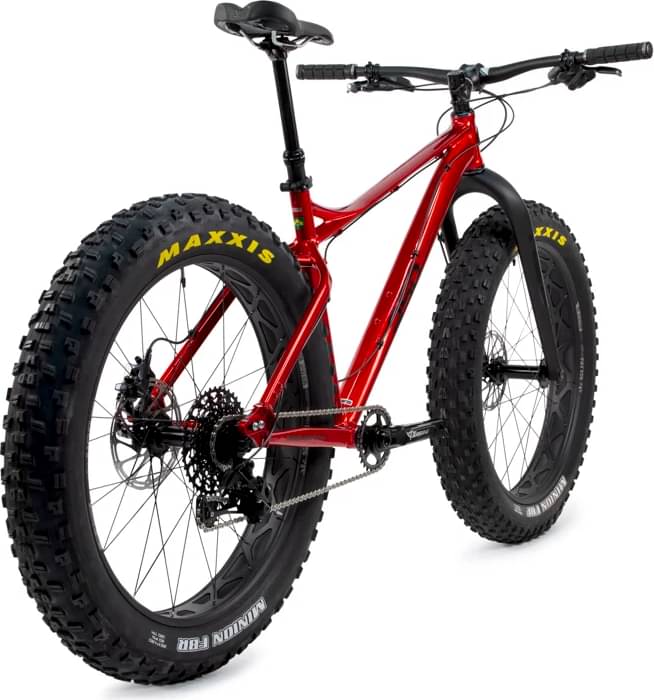

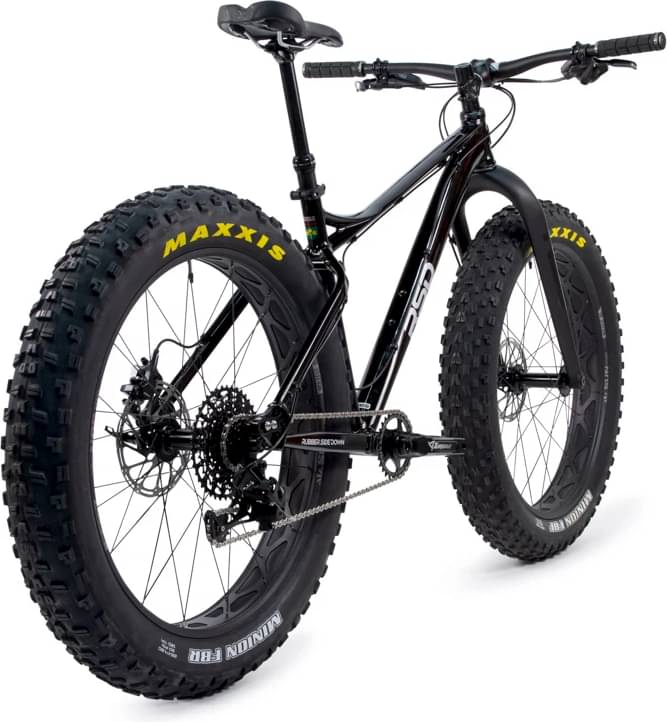

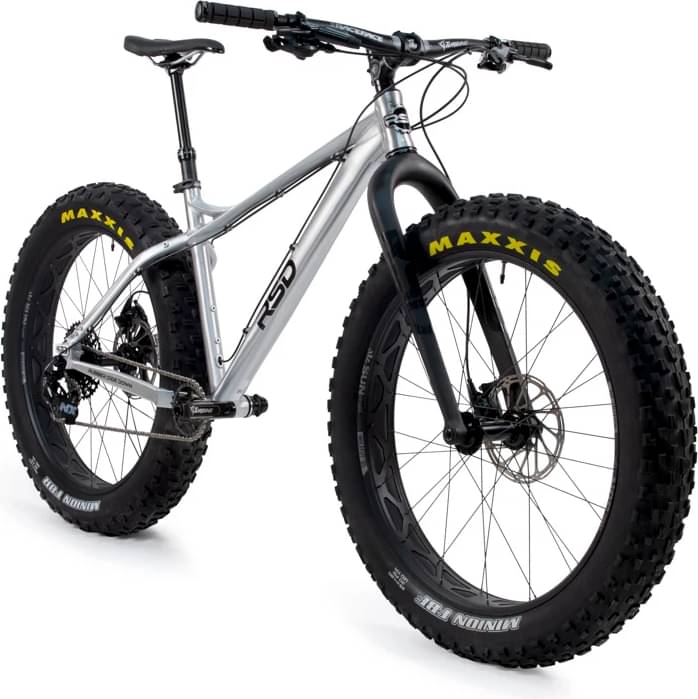

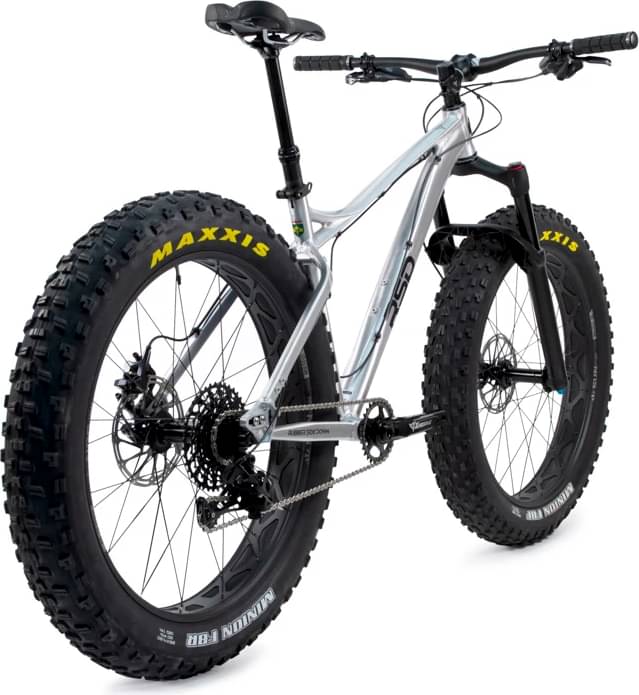

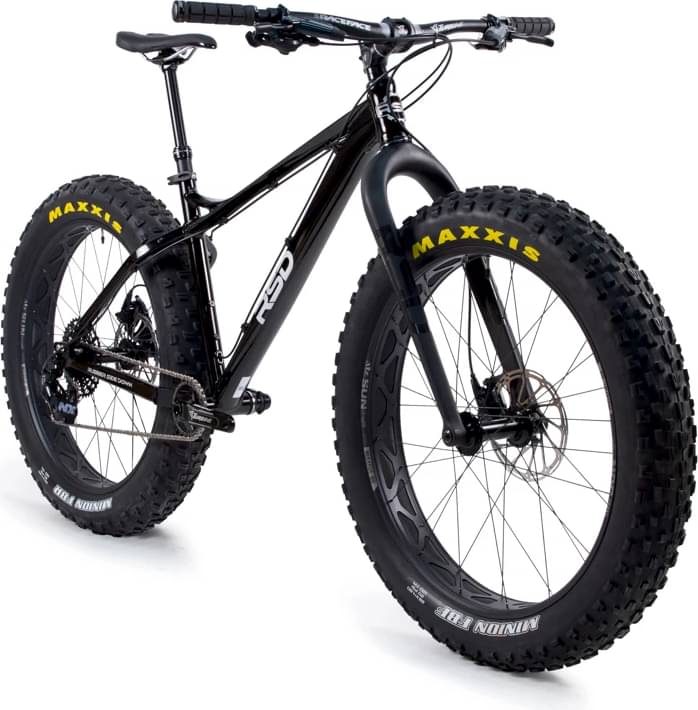

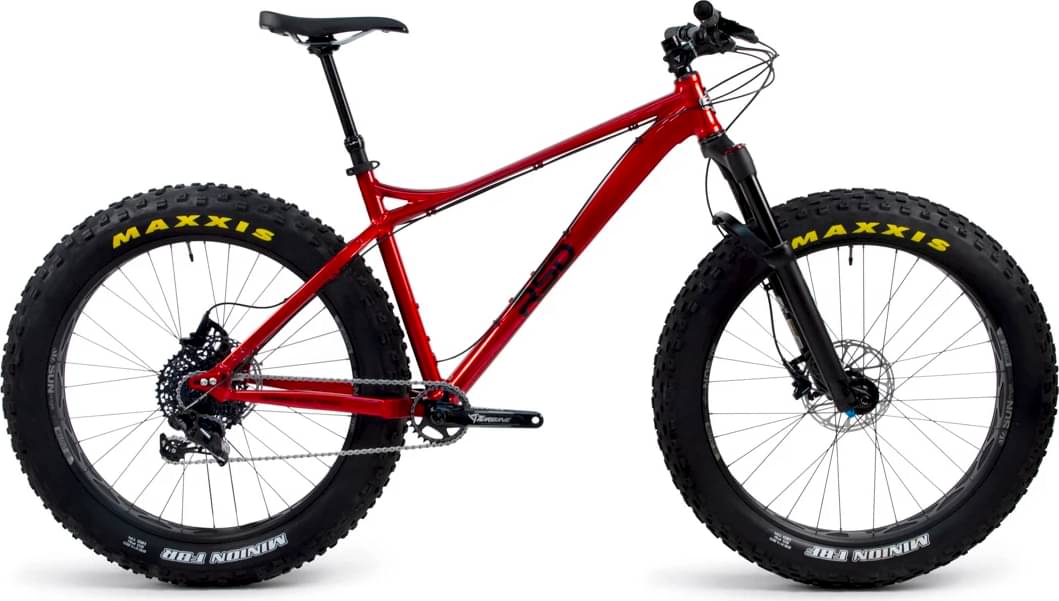

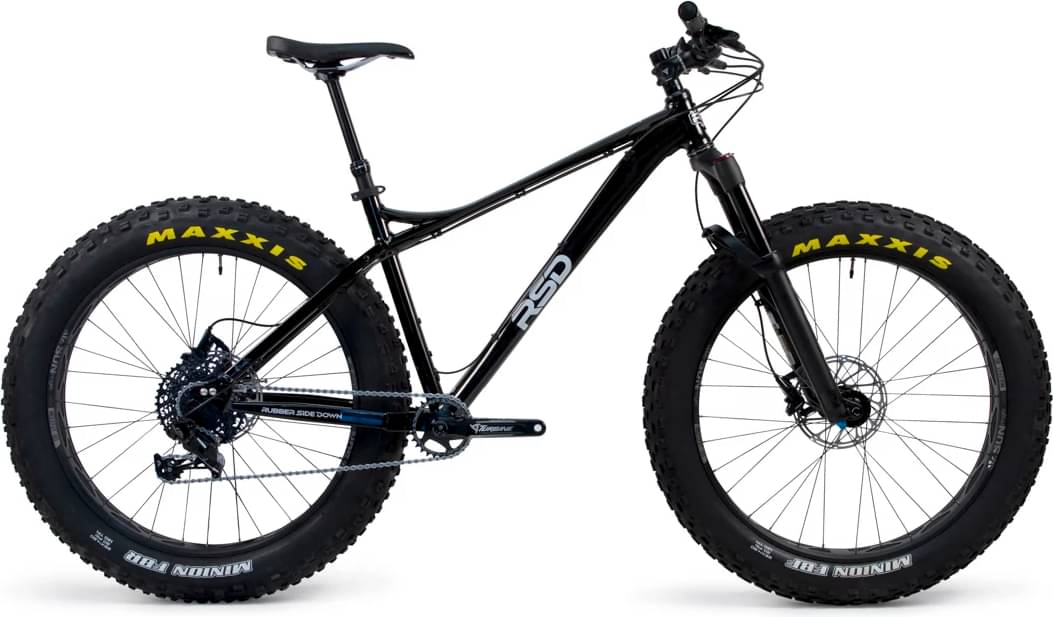

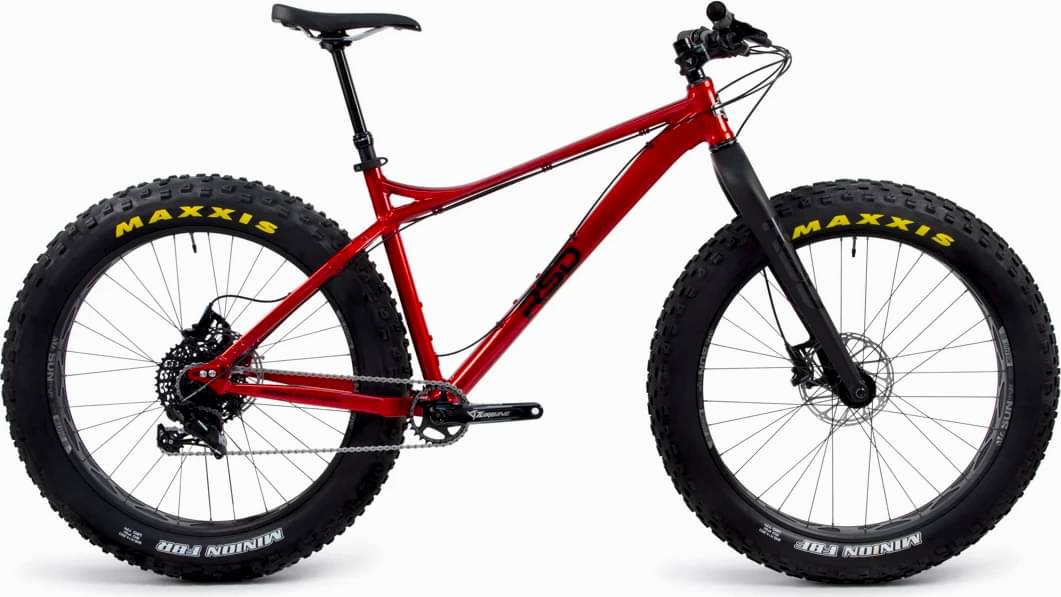

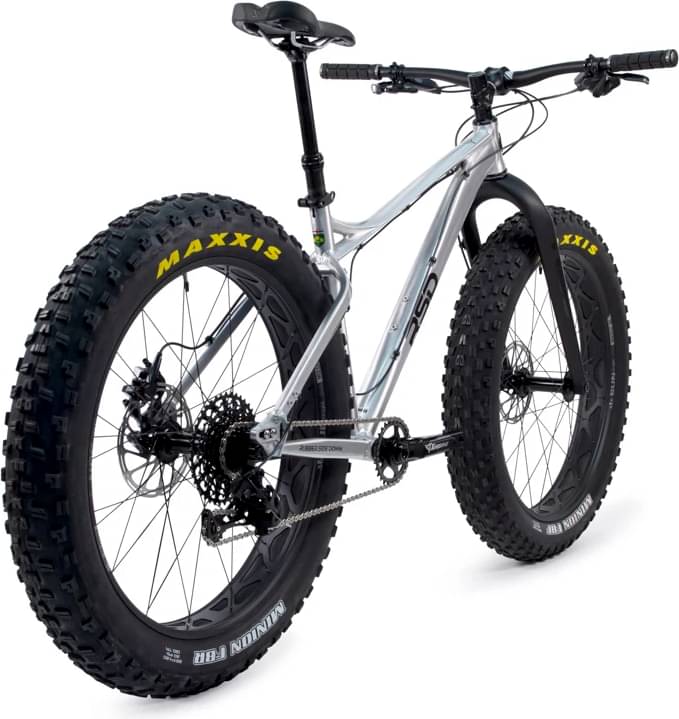

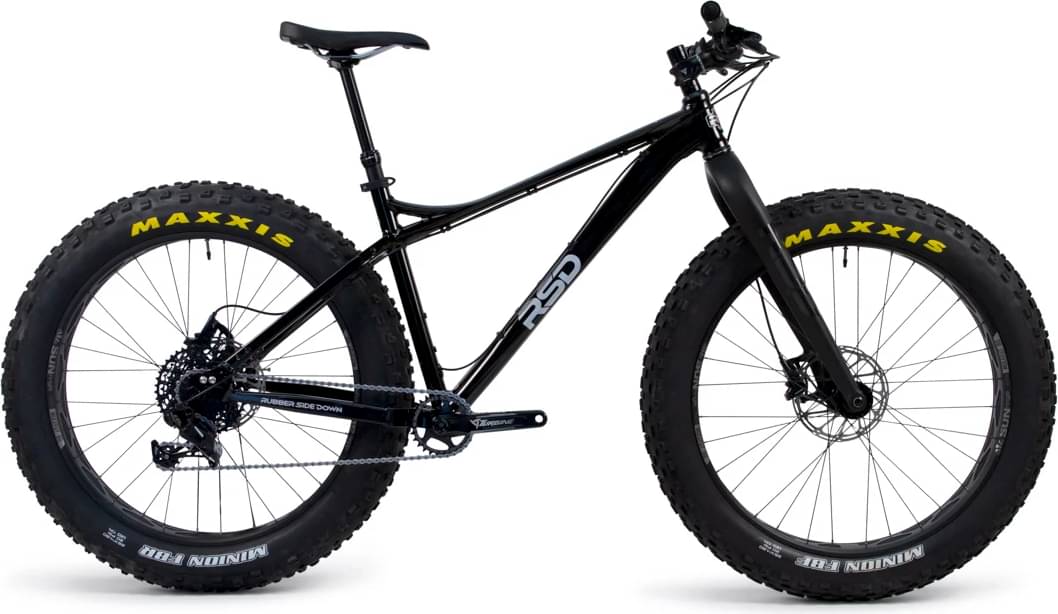

RSD MAYOR V5 Aluminum 1x11NX CF 2023
2023 Mountain
Estimate price |
2,399$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset NX, Race Face -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

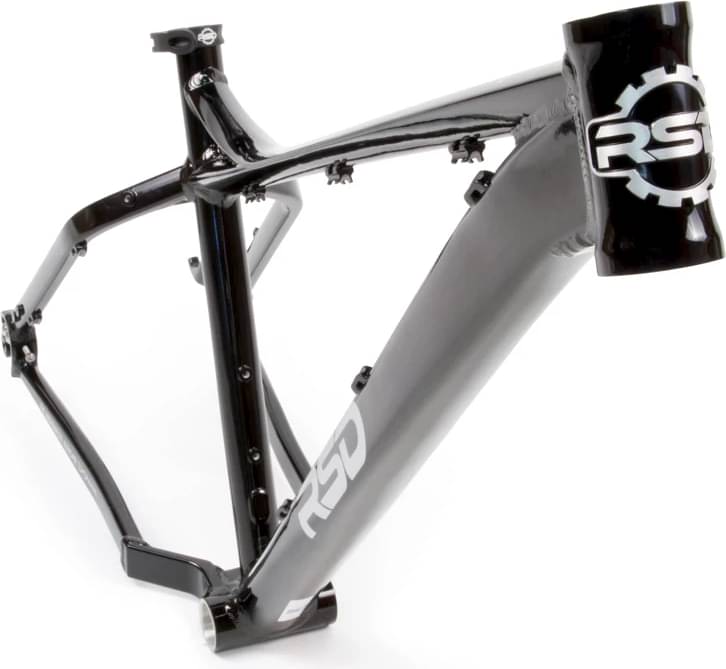

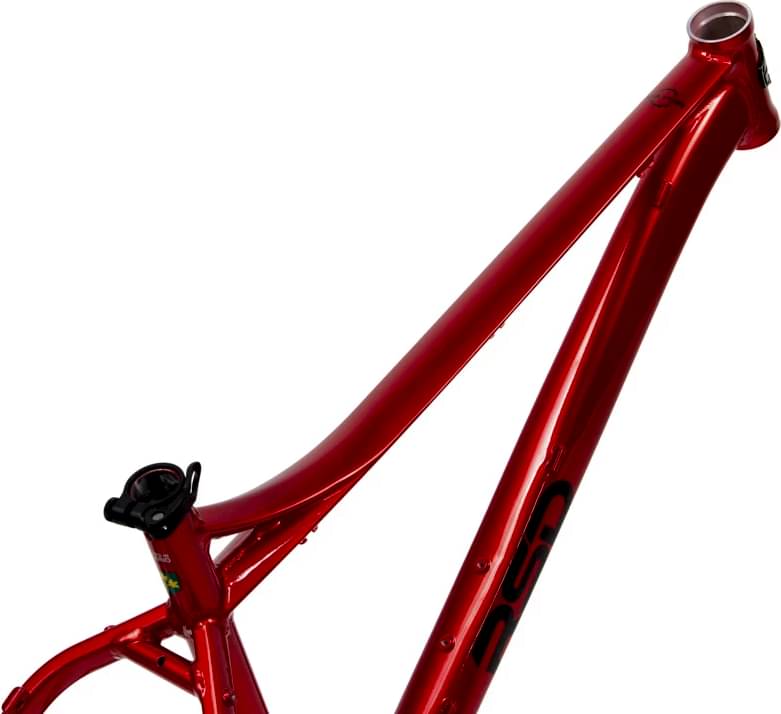

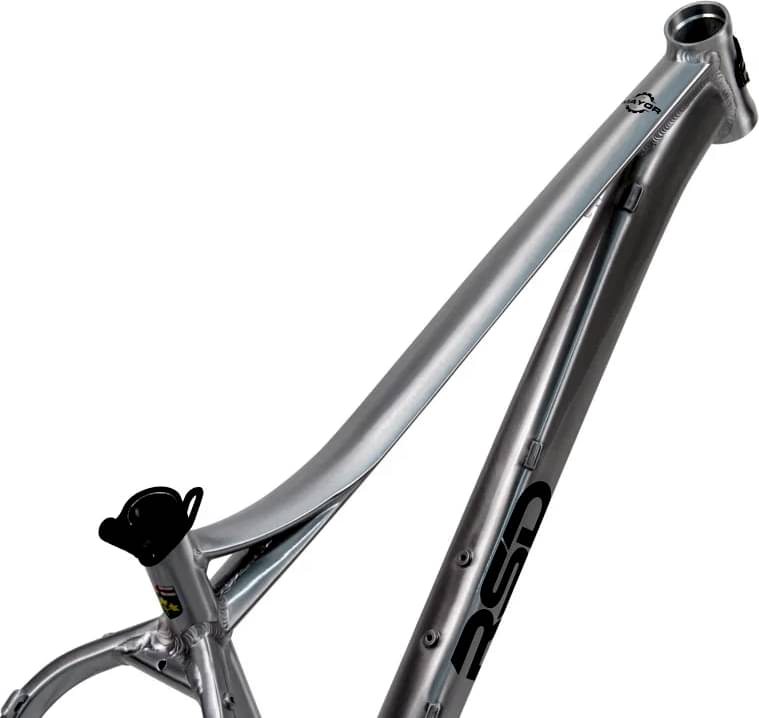

Frame

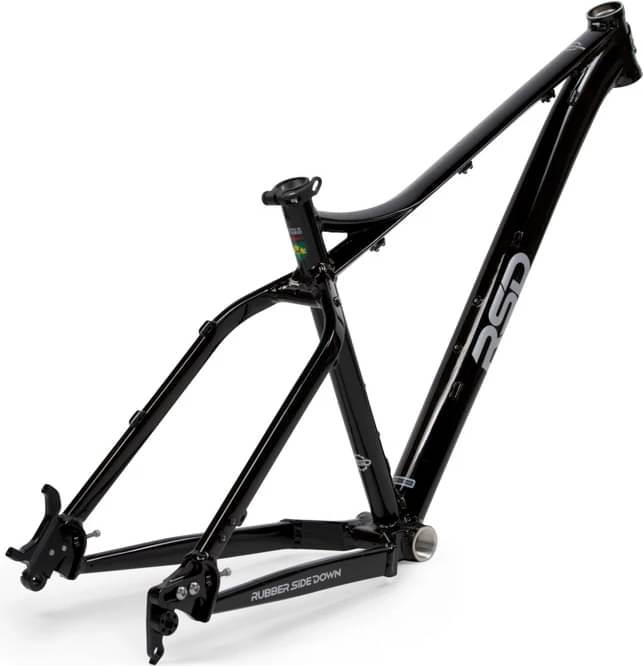

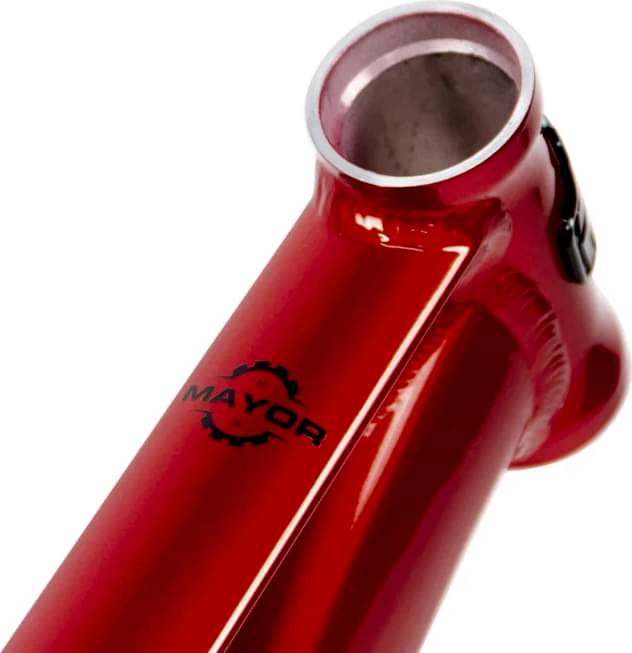

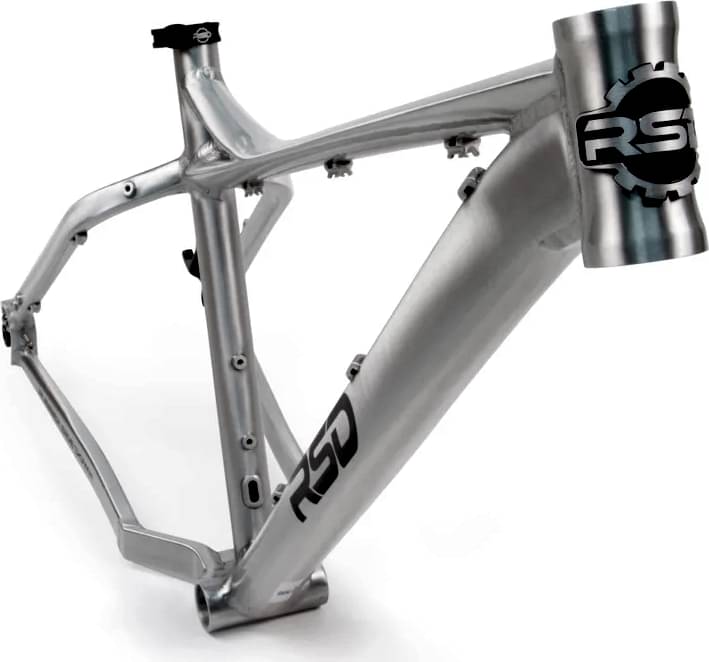

Frame

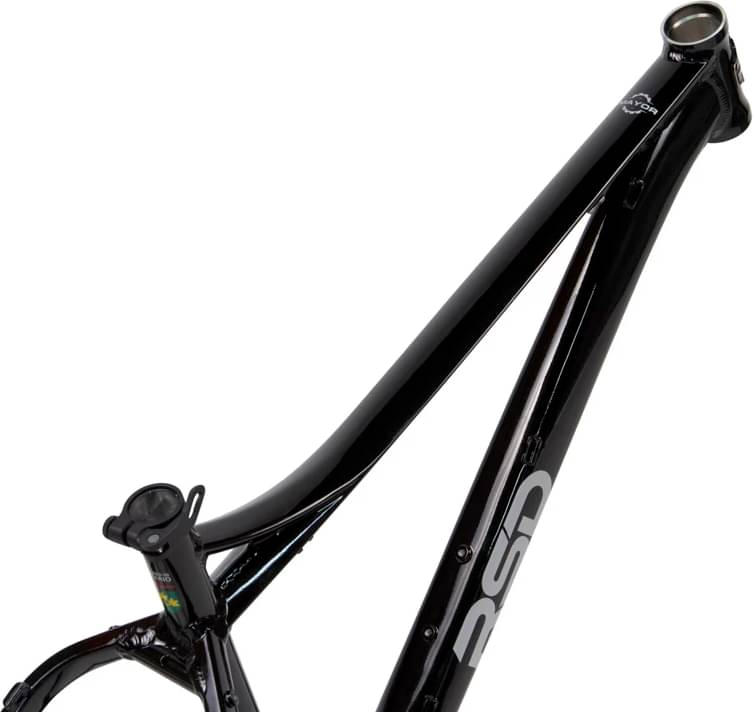

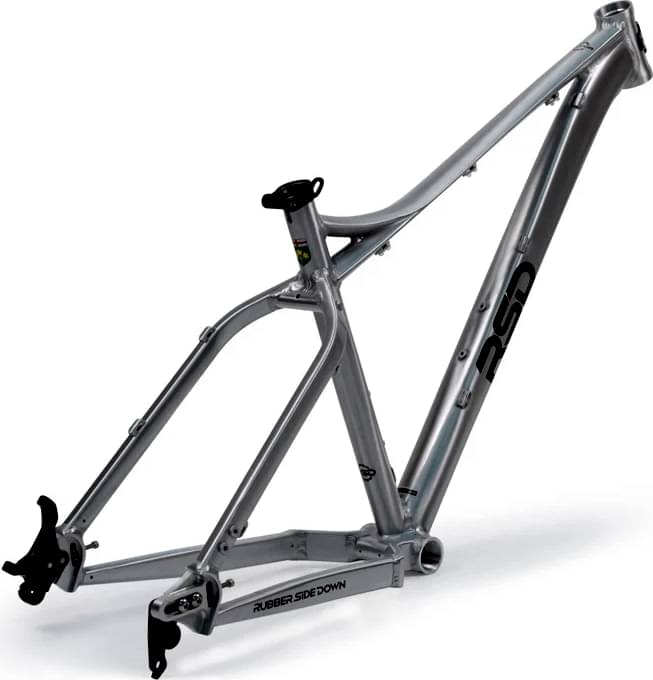

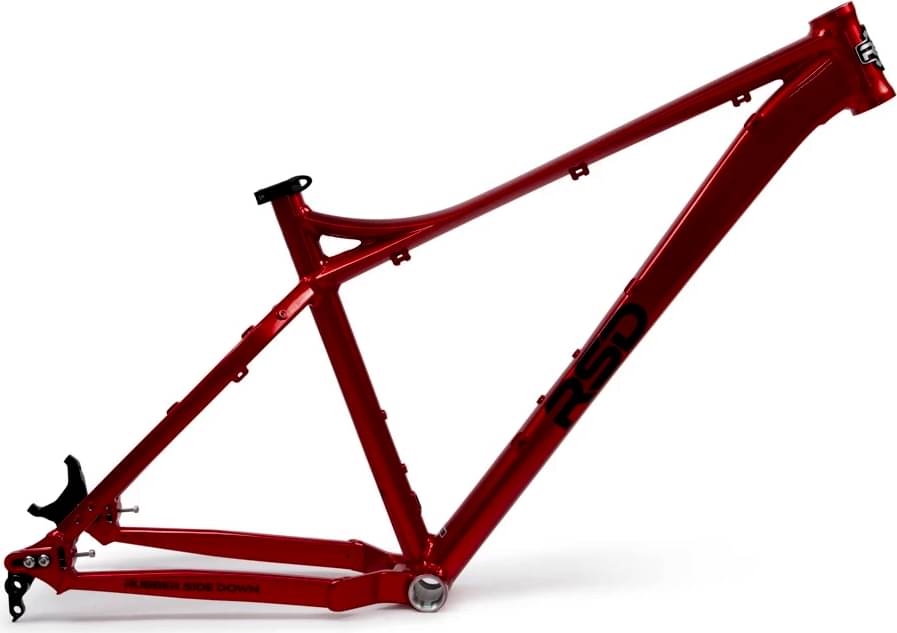

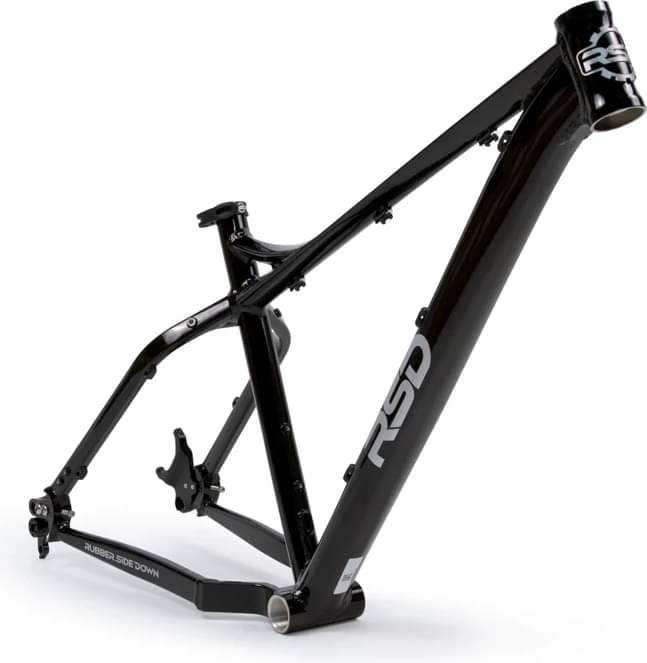

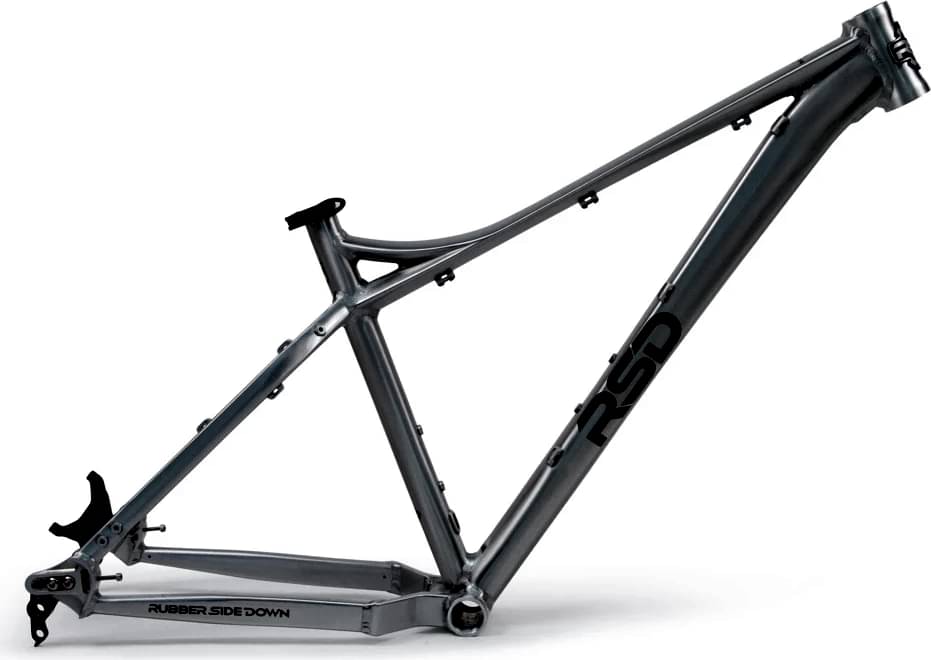

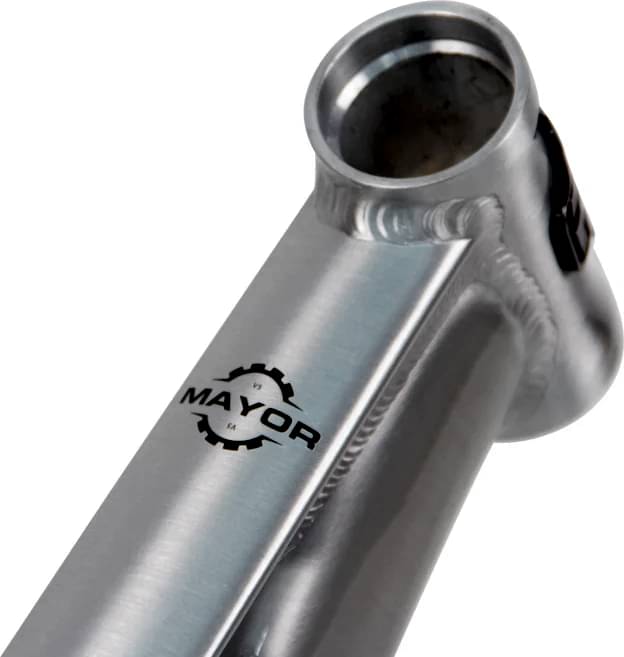

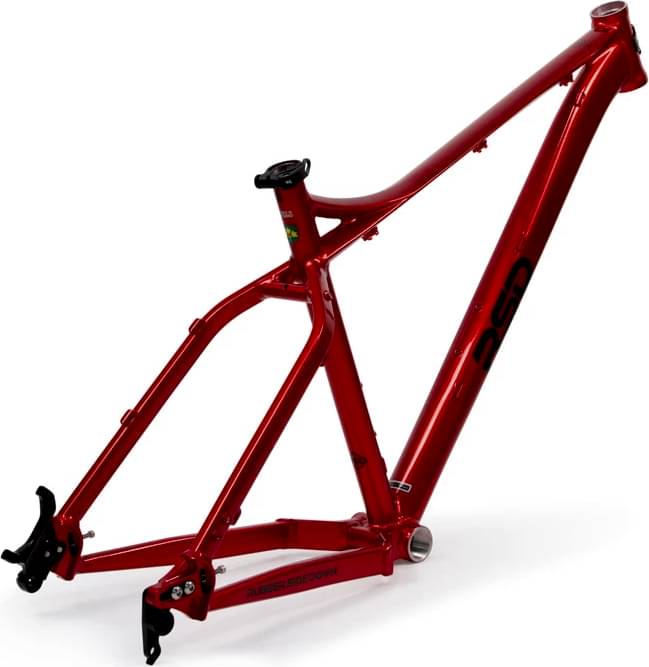

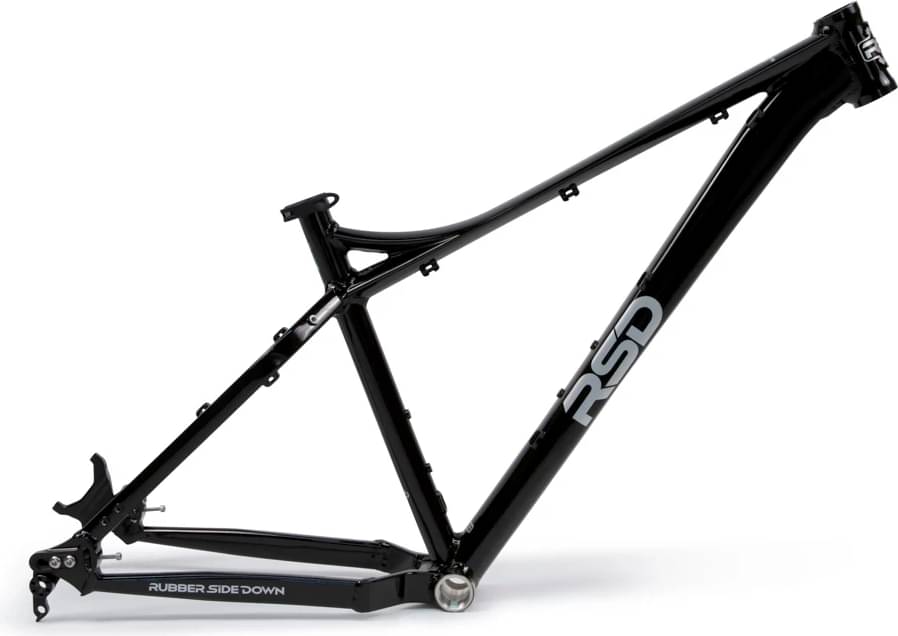

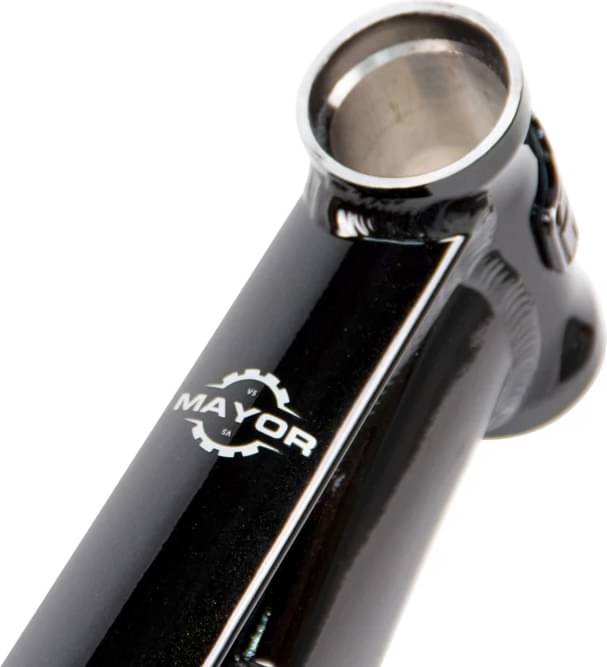

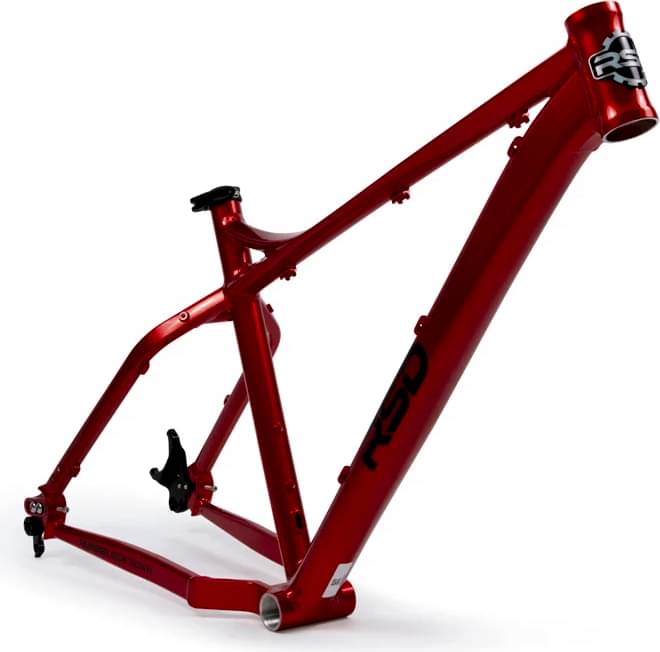

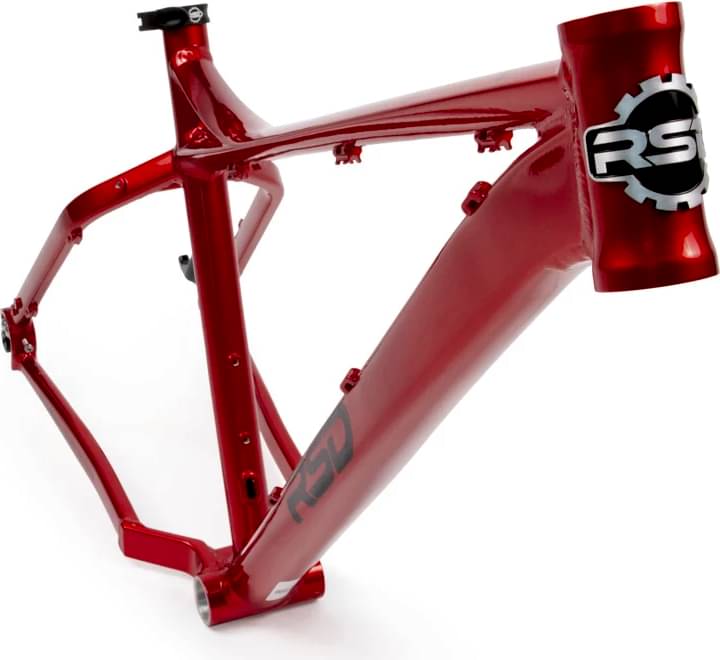

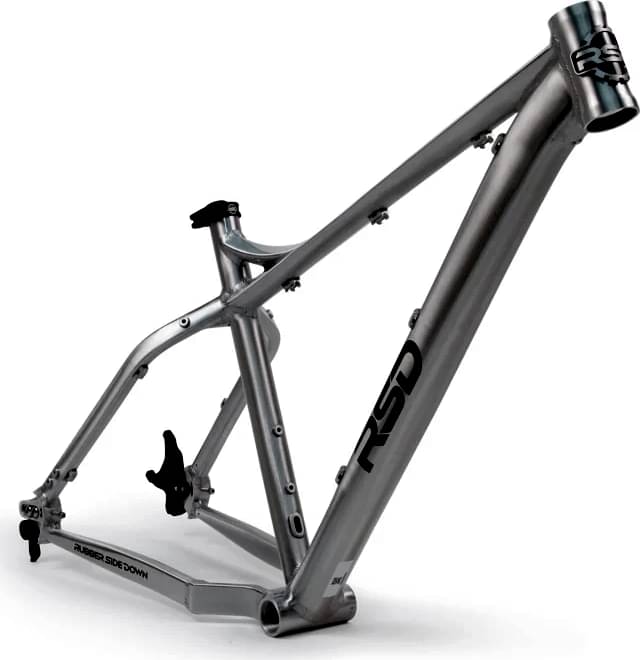

Version 5 FAT Bike Custom Hydroform AL6061
Suspension Fork
RSD Custom 490mm Carbon w/15x150mm Axle 51mm Offset with Black Decals
Drivetrain
Rear Derailleur
: SRAM NX Type 2 11spd
Shift Levers
: SRAM NX 11spd
Cassette
: SRAM PG-1130 11/42T 11spd
Crank
Race Face 175mm CINCH DM
Bottom Bracket
: Race Face 100mm BSA
Chain
: KMC 11SL
Wheels
Rims
Front: Sun Ringle Mulefüt V2 Fat 26x80mm Front 15x150mm, Rear: : Sun Ringle Mulefüt V2 Fat 26x80mm Rear 12x197mm
Tires
Maxxis Minion FBF and FBR 4.8
Brakes
Brakes
: Avid Level T Hydraulic
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Chester 35 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
WTB Volt Comp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.3 mm | 1.27 mm | 1.26 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 689 mm | 715 mm | 737 mm | 763 mm | 786 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 565 mm | 575 mm | 584 mm | 603 mm | 621 mm |
| Reach | 419 mm | 441 mm | 459 mm | 478 mm | 493 mm |
| Top Tube Length | 583 mm | 608 mm | 628 mm | 653 mm | 673 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 470 mm | 490 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1111 mm | 1137 mm | 1159 mm | 1186 mm | 1209 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 678 mm | 708 mm | 723 mm | 740 mm | 763 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview
MAYOR V5 Aluminum 1x11NX CF is a Rsd Mayor model. There are 29 bikes that carry this model name. Take a sneak peek at all Rsd Mayor bikes models from 2023, by clicking here.
Model range prices
The most economical model, the RSD MAYOR V5 Aluminum 1x11NX MF 2023 has a starting price of 2399$. RSD Mayor V5 Titanium 1x11NX CF 2023 on the other hand is the most expensive at 4199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. Doing a quick comparison, we notice that MAYOR V5 Aluminum 1x11NX CF price is 37.64% more expensive than the average cost of a Fatbike bike.
Fatbike bikes average weight
If we make a quick analysis of the average weight of a Fatbike bike, we get 13.2 kg (29.1 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
RSD MAYOR V5 Aluminum 1x11NX CF it’s weighing 13.61 kg (30 lbs). At this weight, is slightly heavier than average. In other words, this model is 3.11% heavier than the average Fatbike bike.
MAYOR V5 Aluminum 1x11NX CF components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The MAYOR V5 Aluminum 1x11NX CF 2023 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MAYOR V5 Aluminum 1x11NX CF comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
