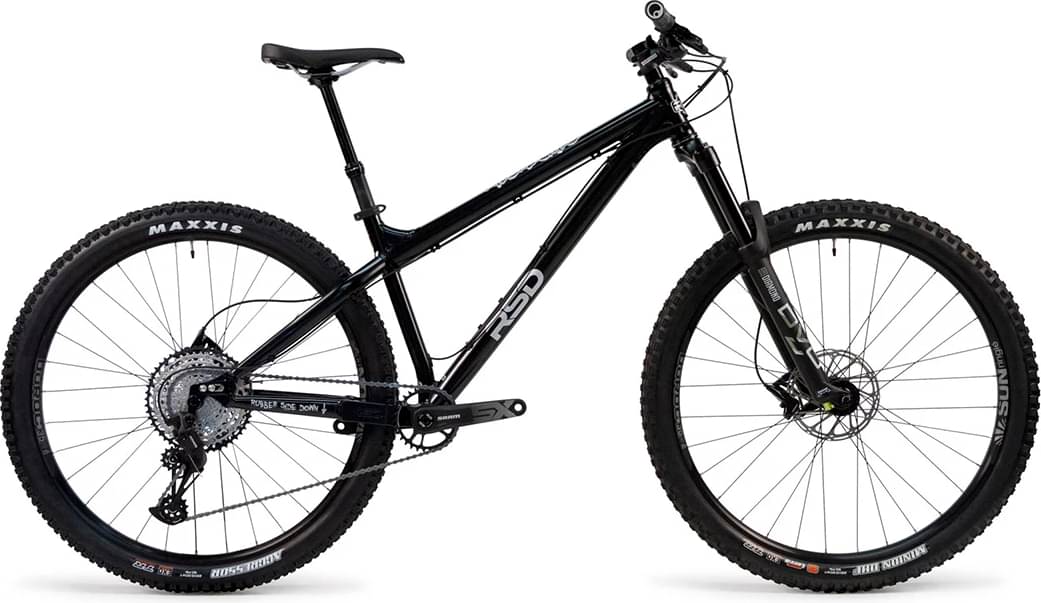

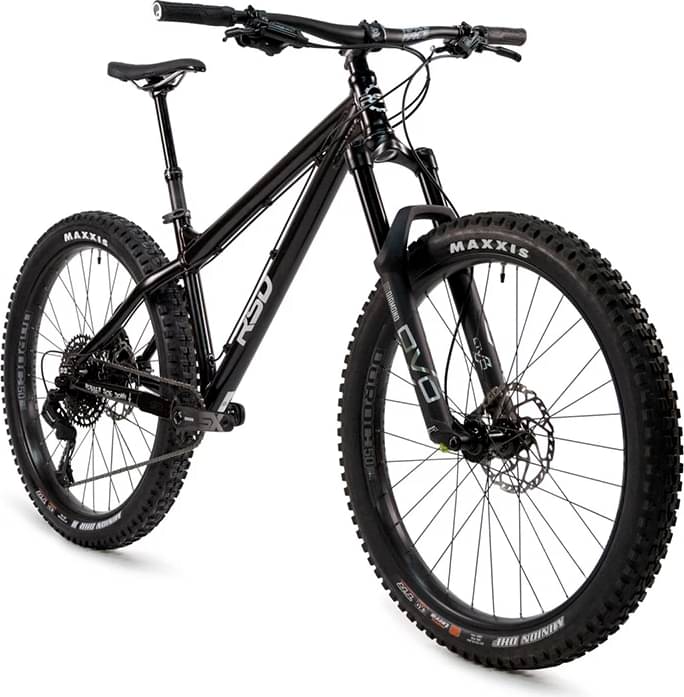

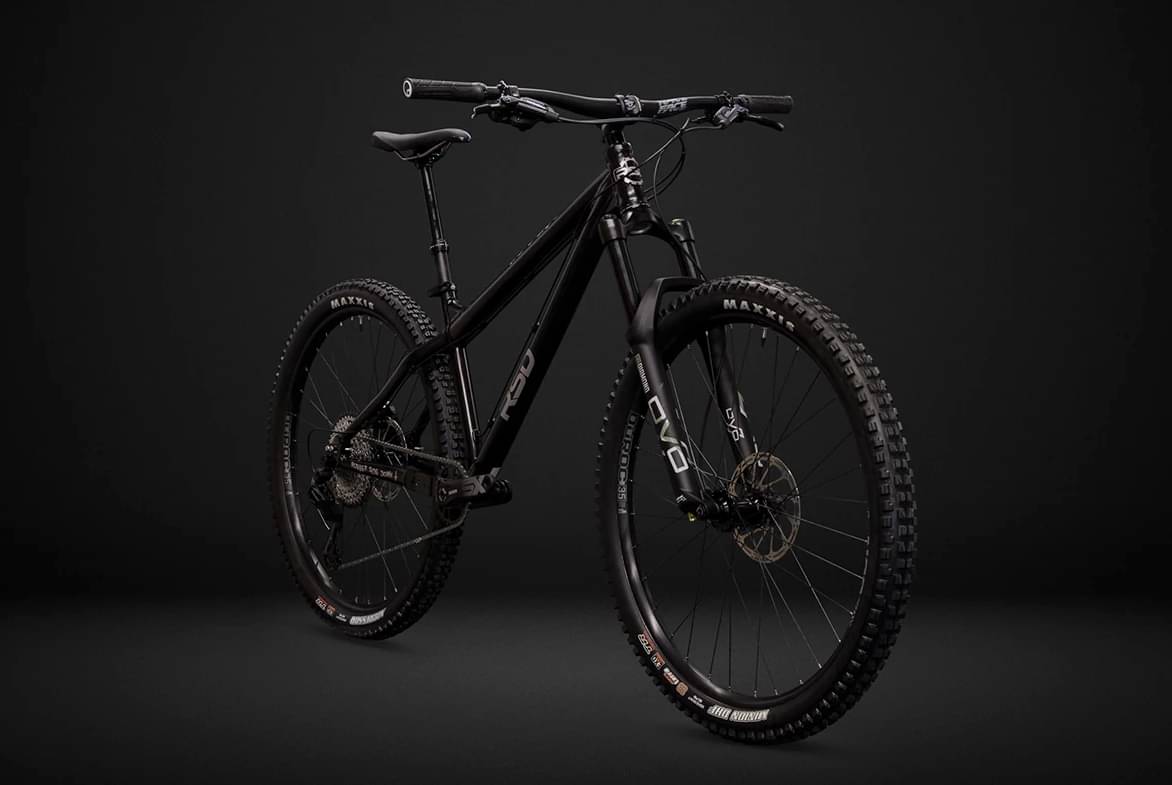

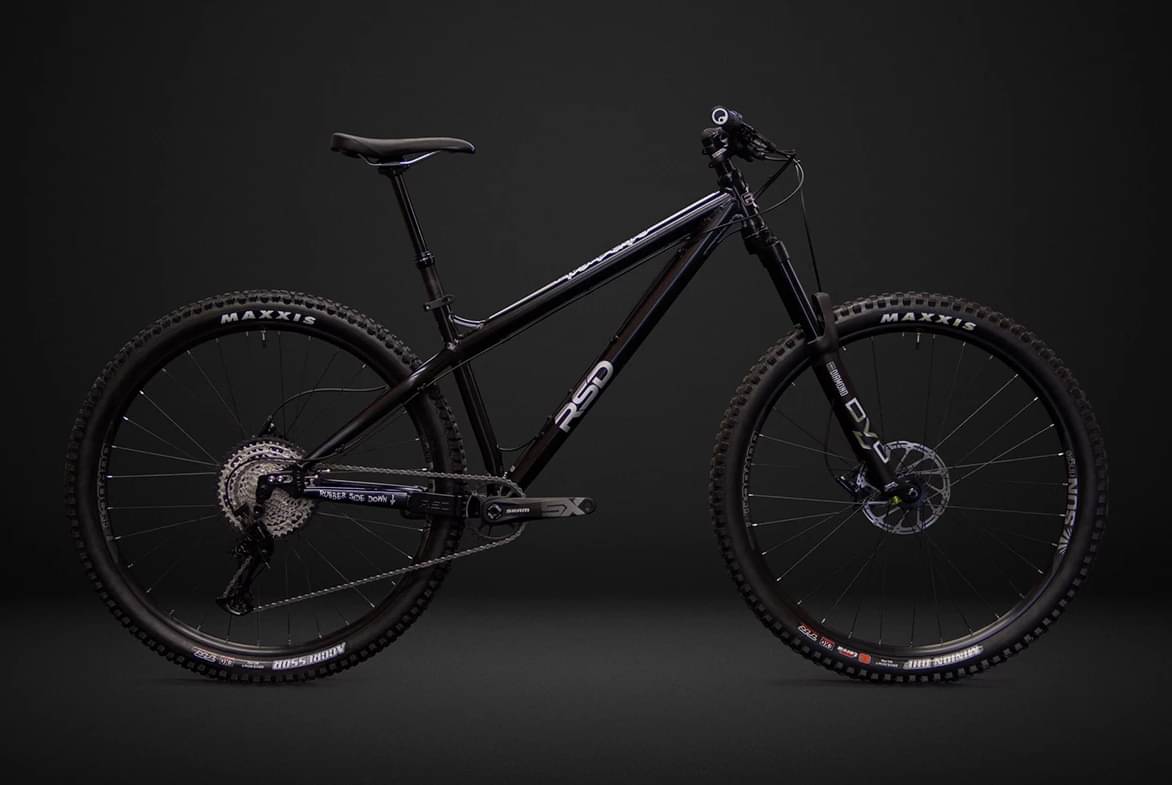

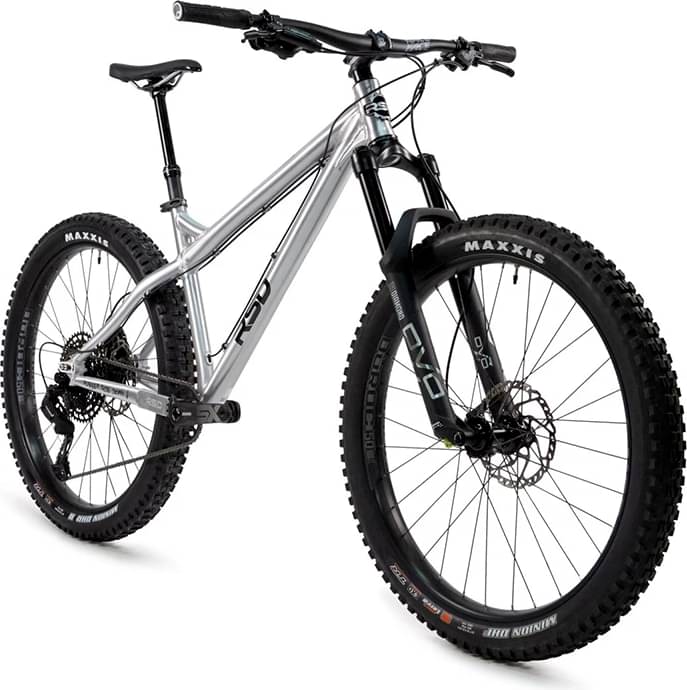

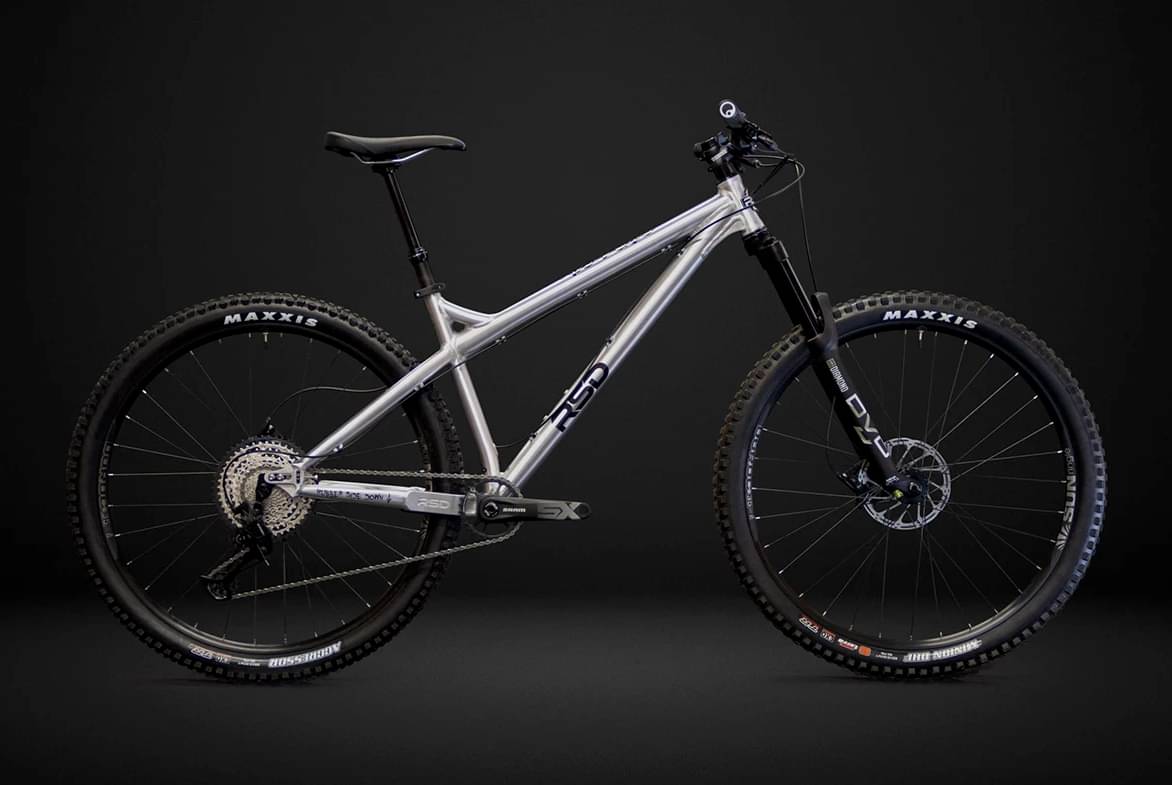

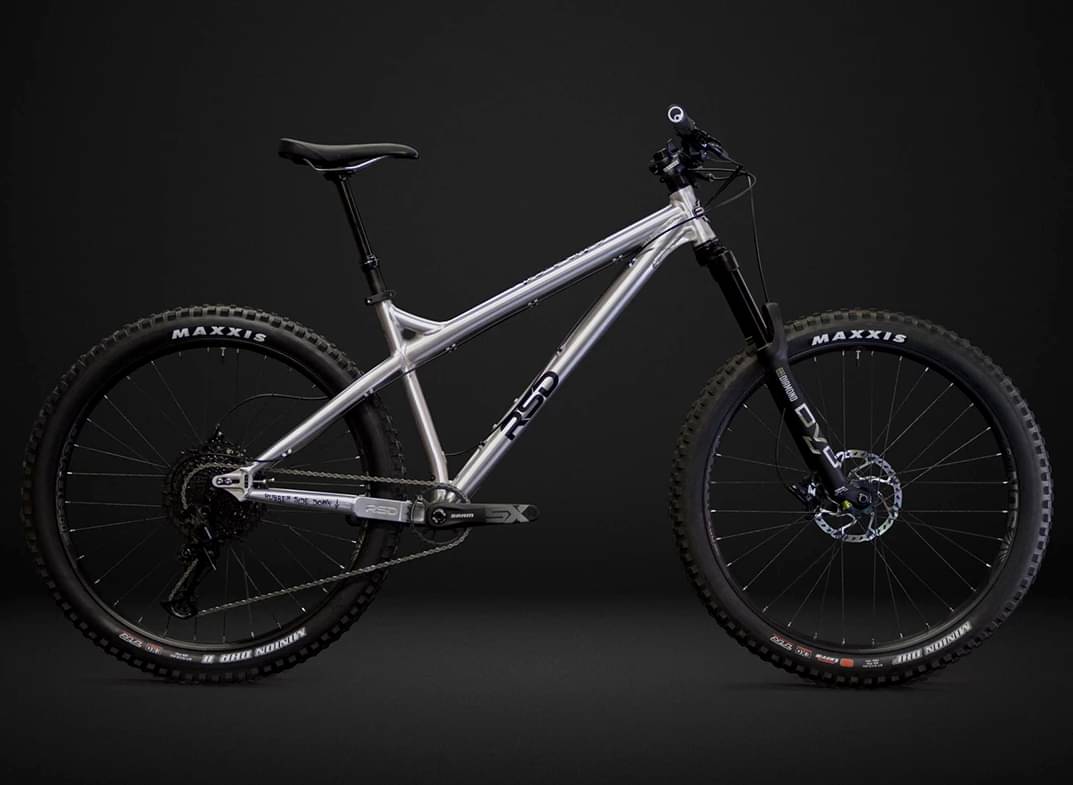

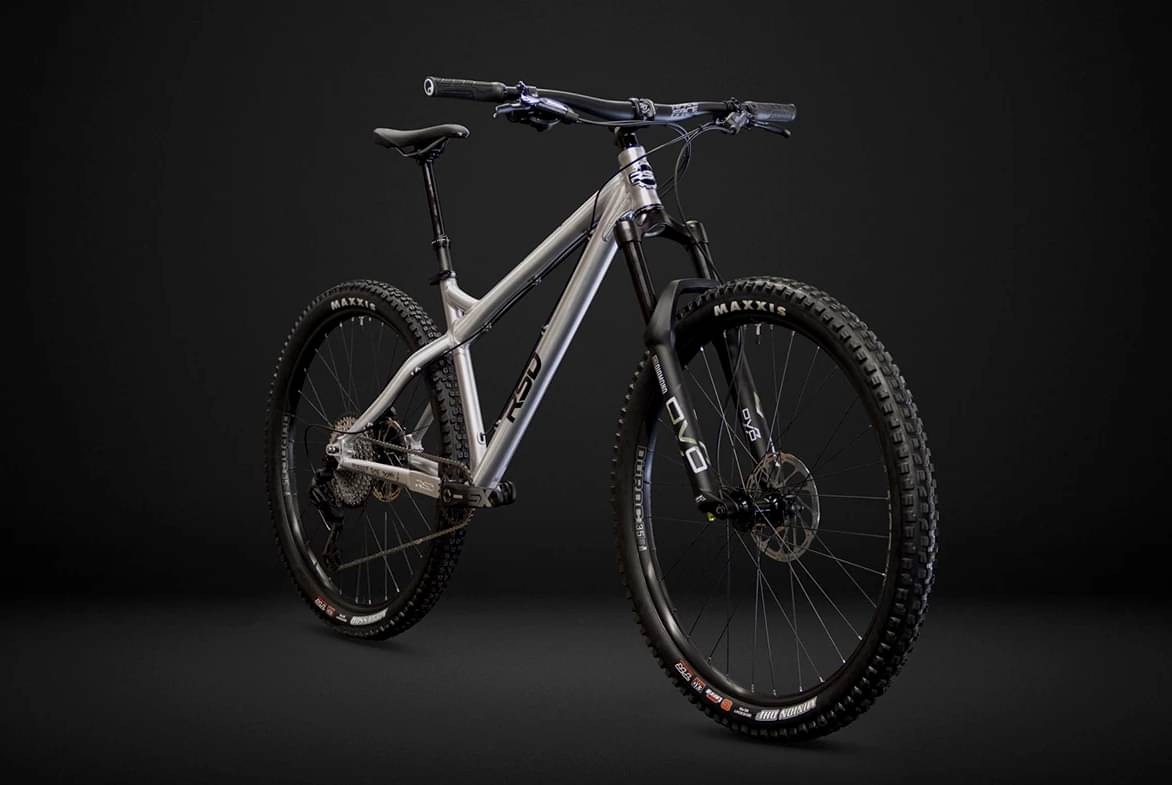

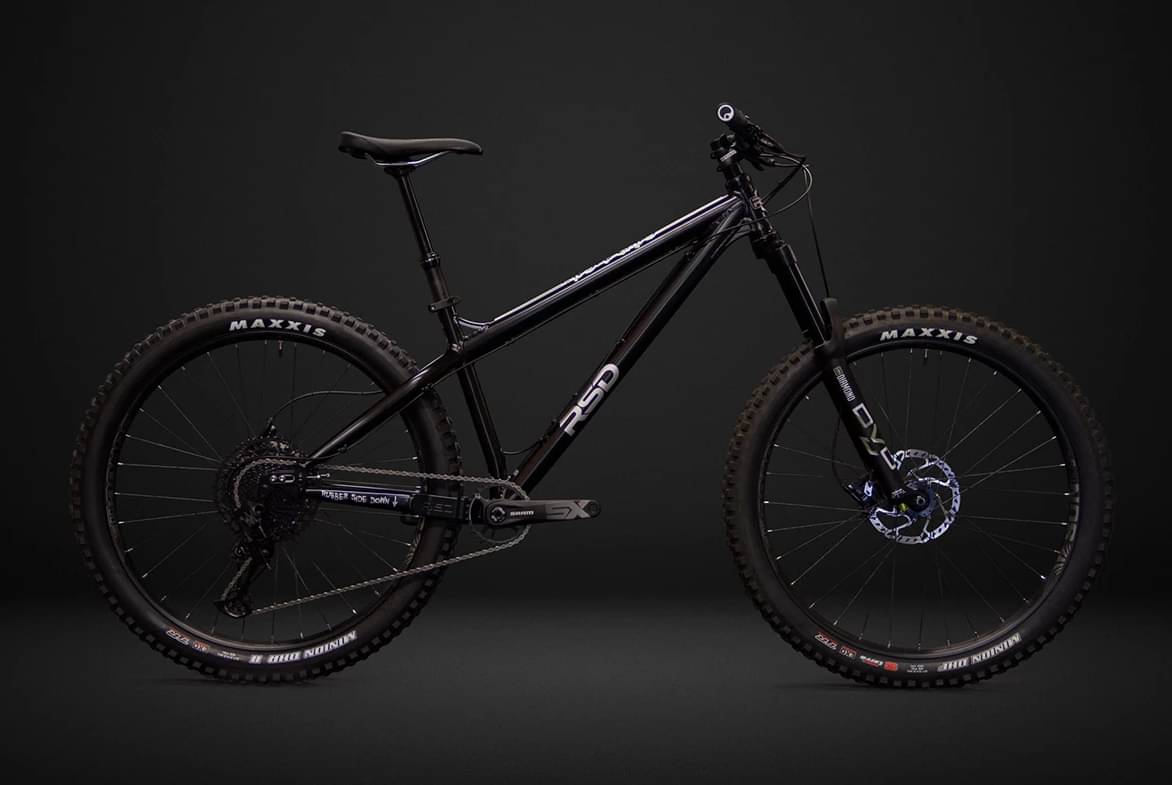

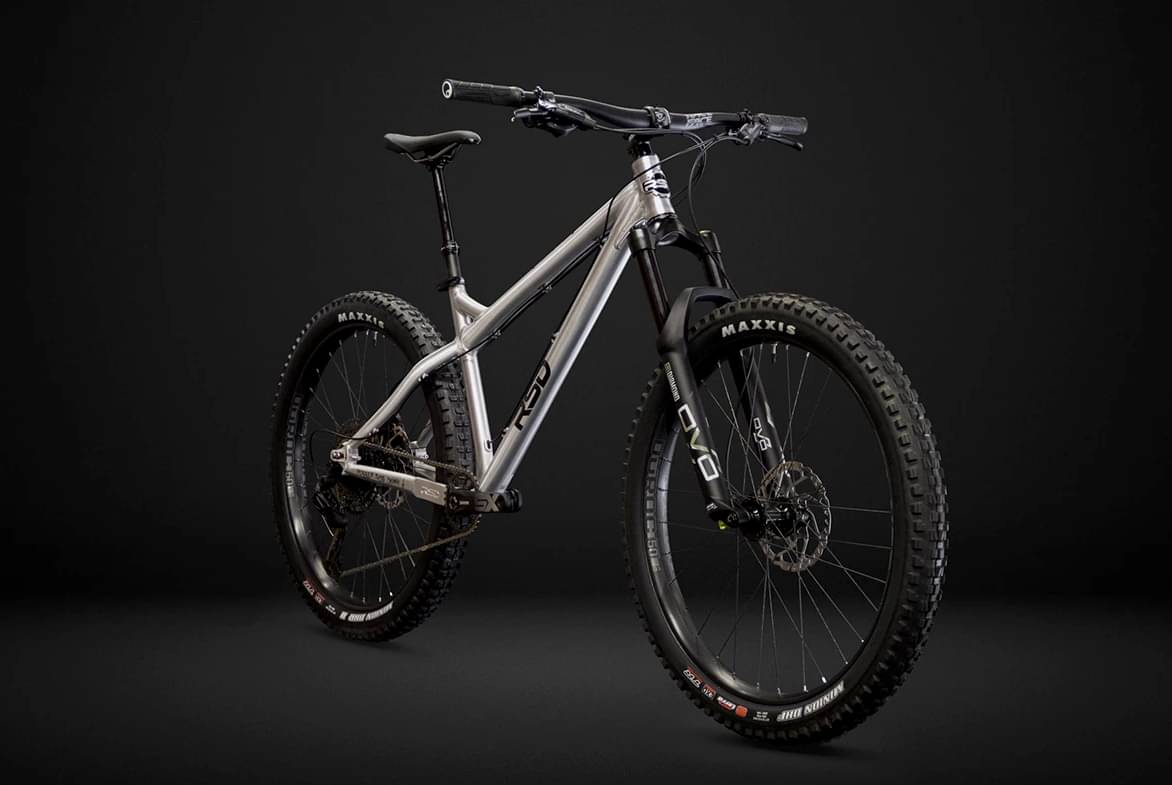

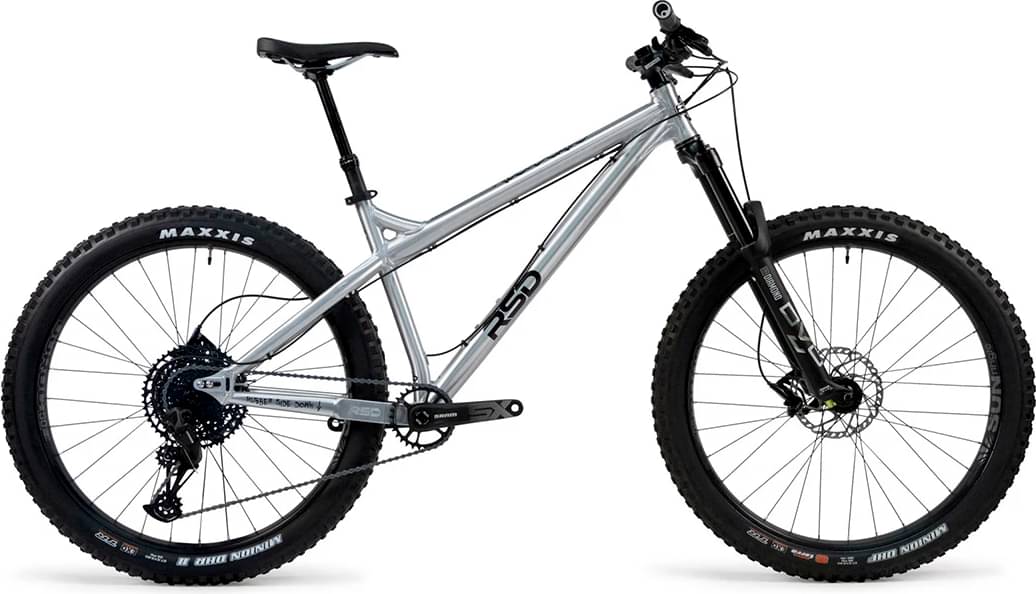

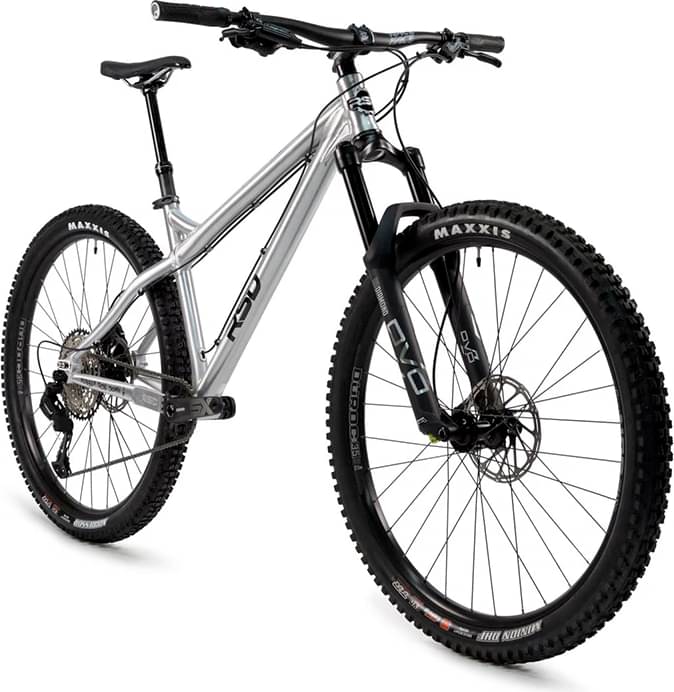

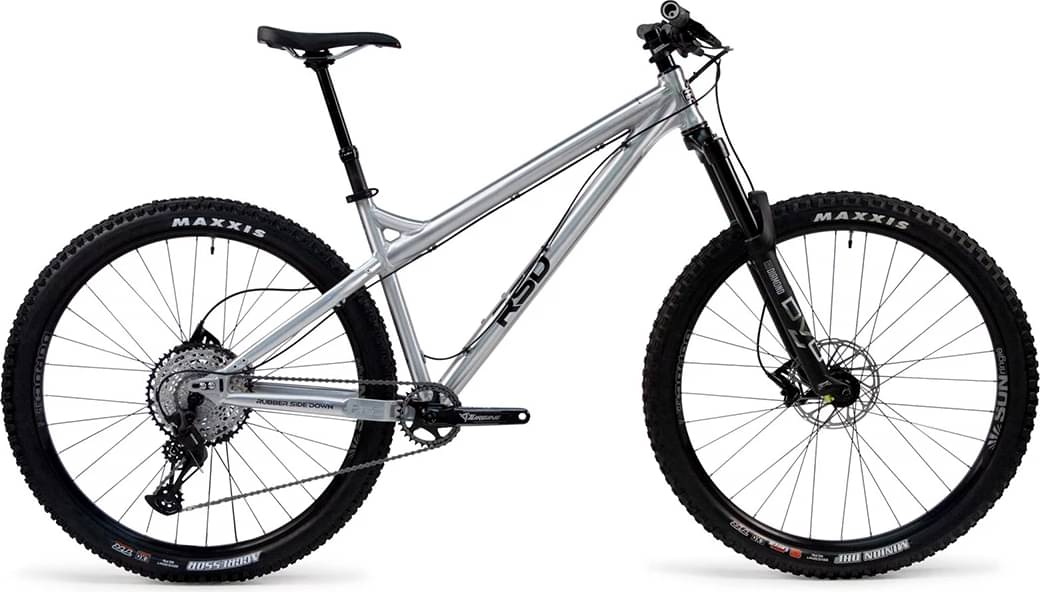

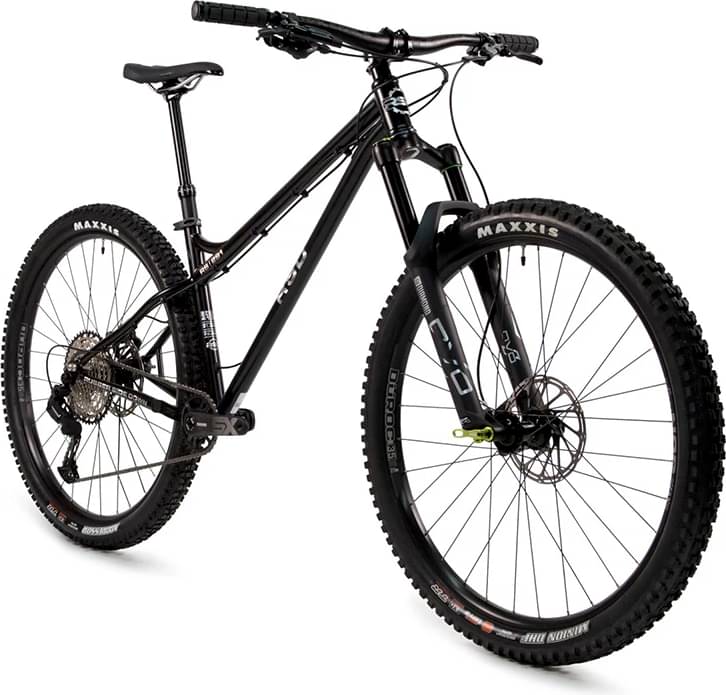

RSD MiddleChild V2 Aluminum GX/D3 Build 2023
2023 Mountain
Estimate price |
2,899$
Weight | 14.12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

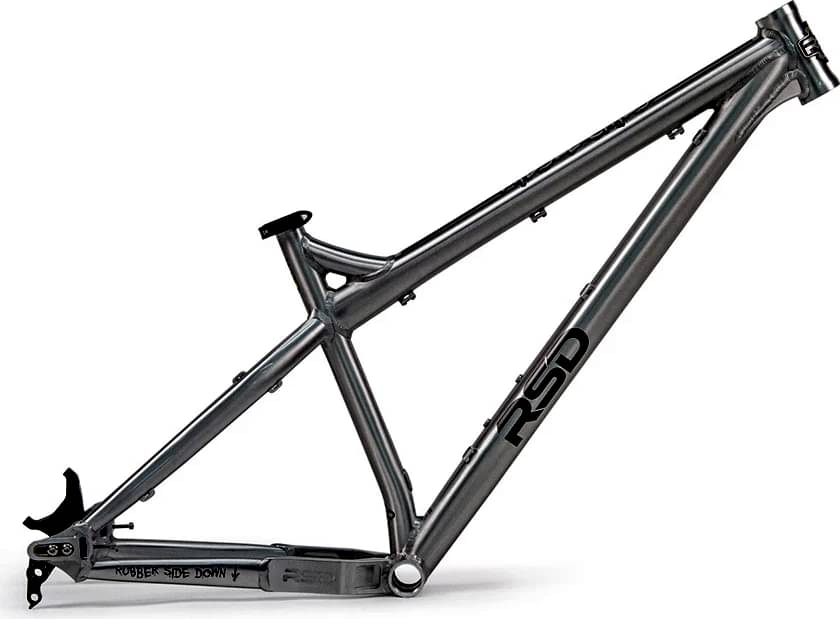

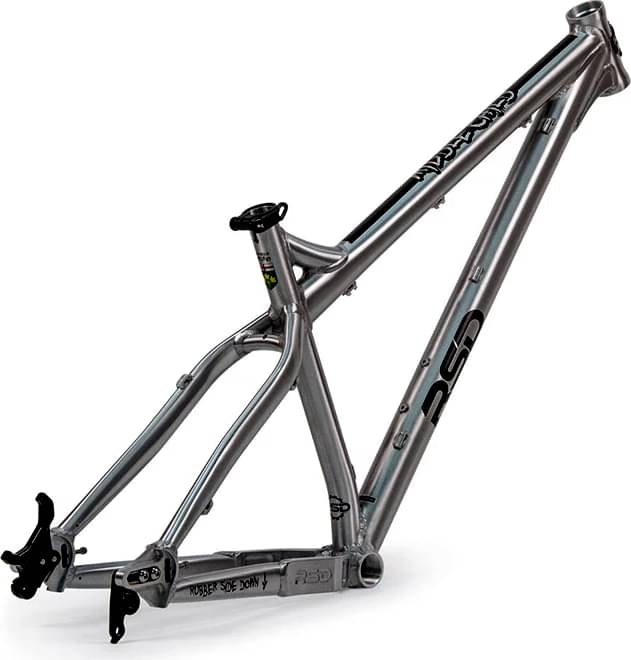

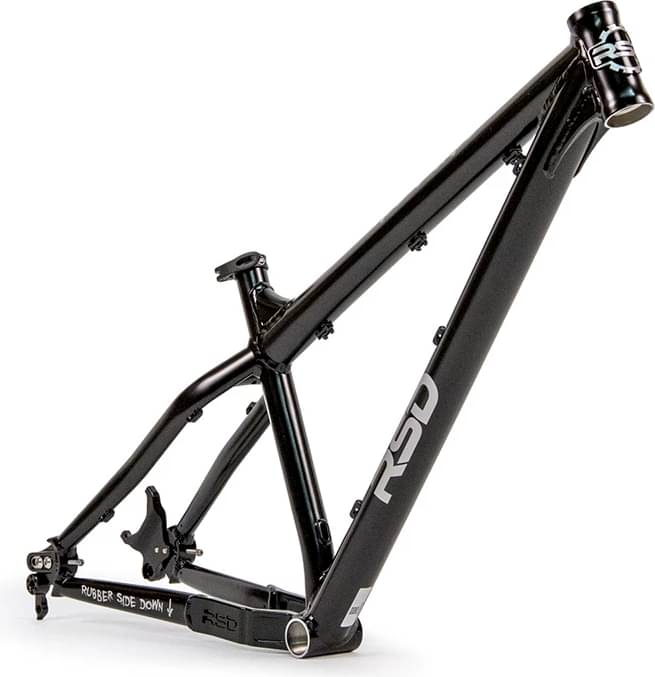

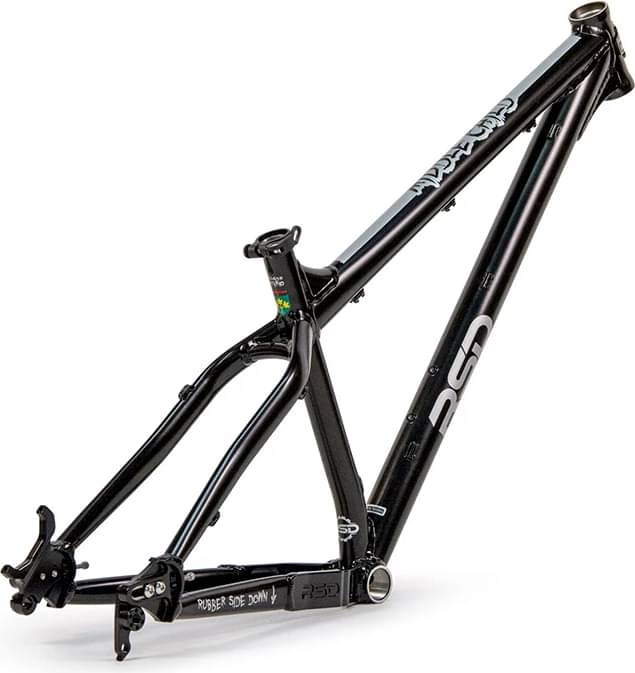

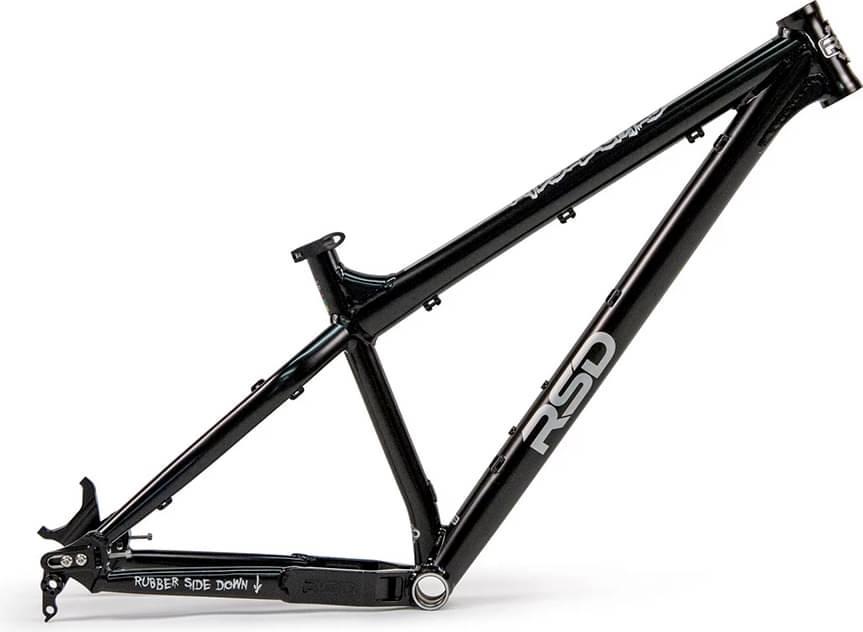

Frame
27.5+/29 Aluminum 6061
Suspension Fork
DVO Diamond D3 27.5+/29 140mm 44mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Long Cage 12spd
Shift Levers
SRAM GX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM GX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Race Face Aeffect 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
FSA Orbit ITA ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 130 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 614 mm | 614 mm | 624 mm |
| Reach | 405 mm | 443 mm | 460 mm | 484 mm |
| Top Tube Length | 581 mm | 620 mm | 637 mm | 664 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1147 mm | 1188 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 705 mm | 709 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MiddleChild V2 Aluminum GX/D3 Build is a Rsd Middlechild model. There are 42 bikes that carry this model name. You can easily view all of the Rsd Middlechild bikes models from 2023, here.
Model range prices
RSD MiddleChild V2 Aluminum Deore/D2 Build 2023 is the most economical model, with a starting price of 2899$. RSD MIDDLECHILD V2 Titanium Deore Build 2023 on the other hand costs 4649$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 2899$. Comparing this to the average Trail bike price, we see that the price is 4.96% more expensive.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.12 kg (31.13 lbs), RSD bike is a bit heavier than average. In short, the average Trail bike weight is 8.78% lower than this one.
Overview of components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the MiddleChild V2 Aluminum GX/D3 Build model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
