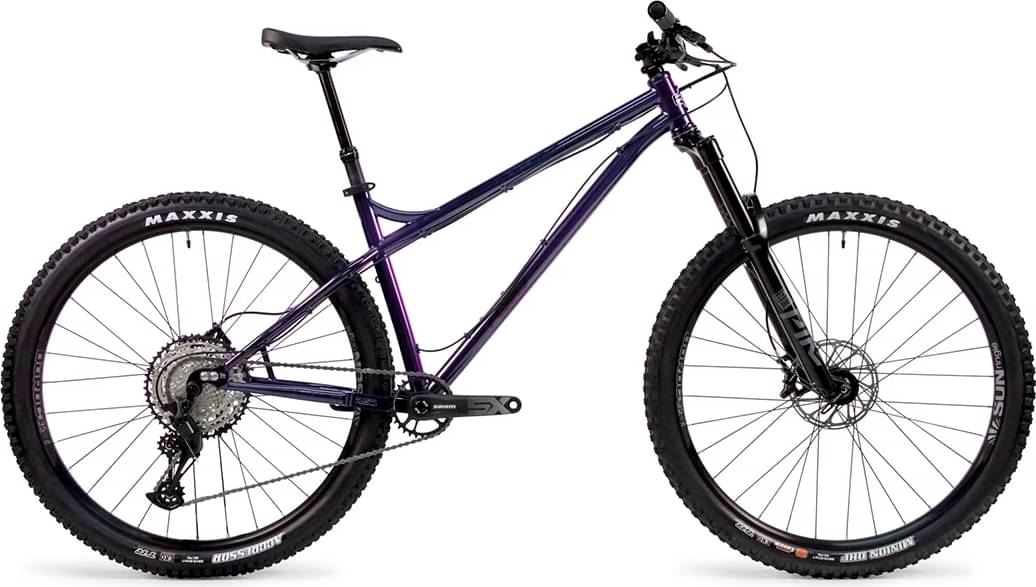

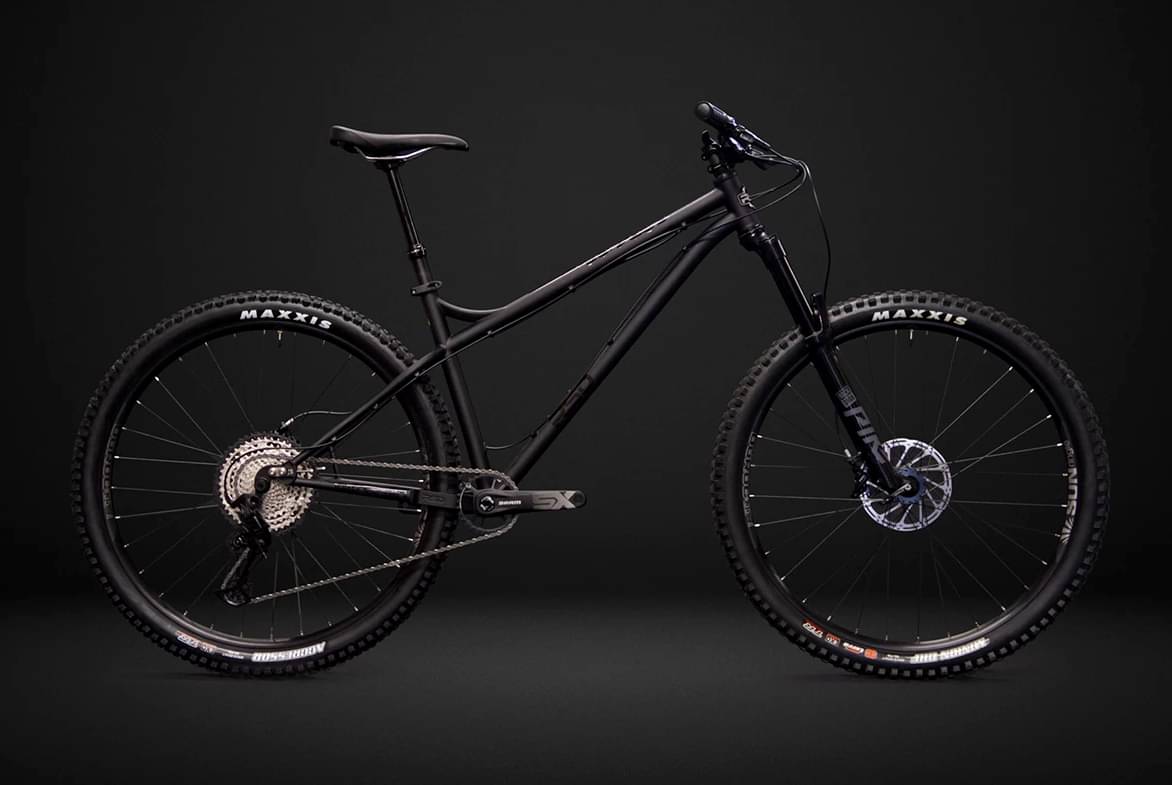

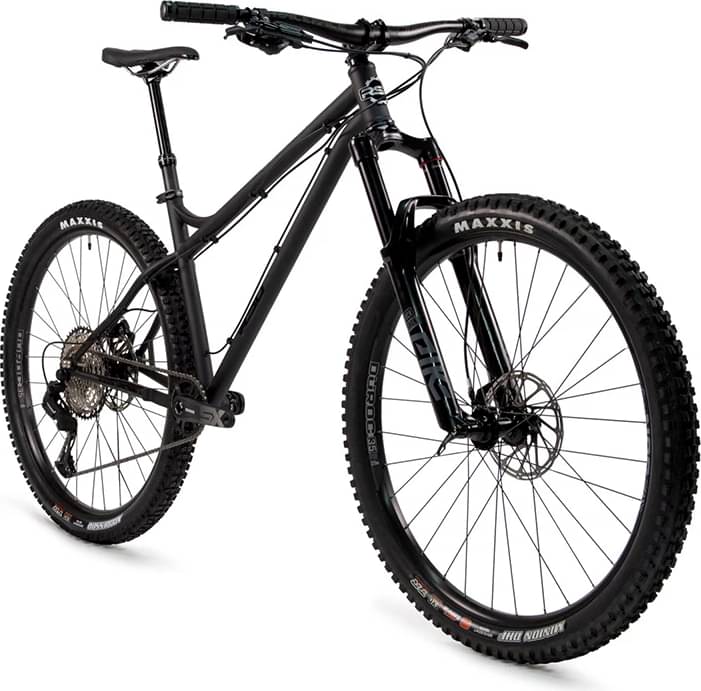

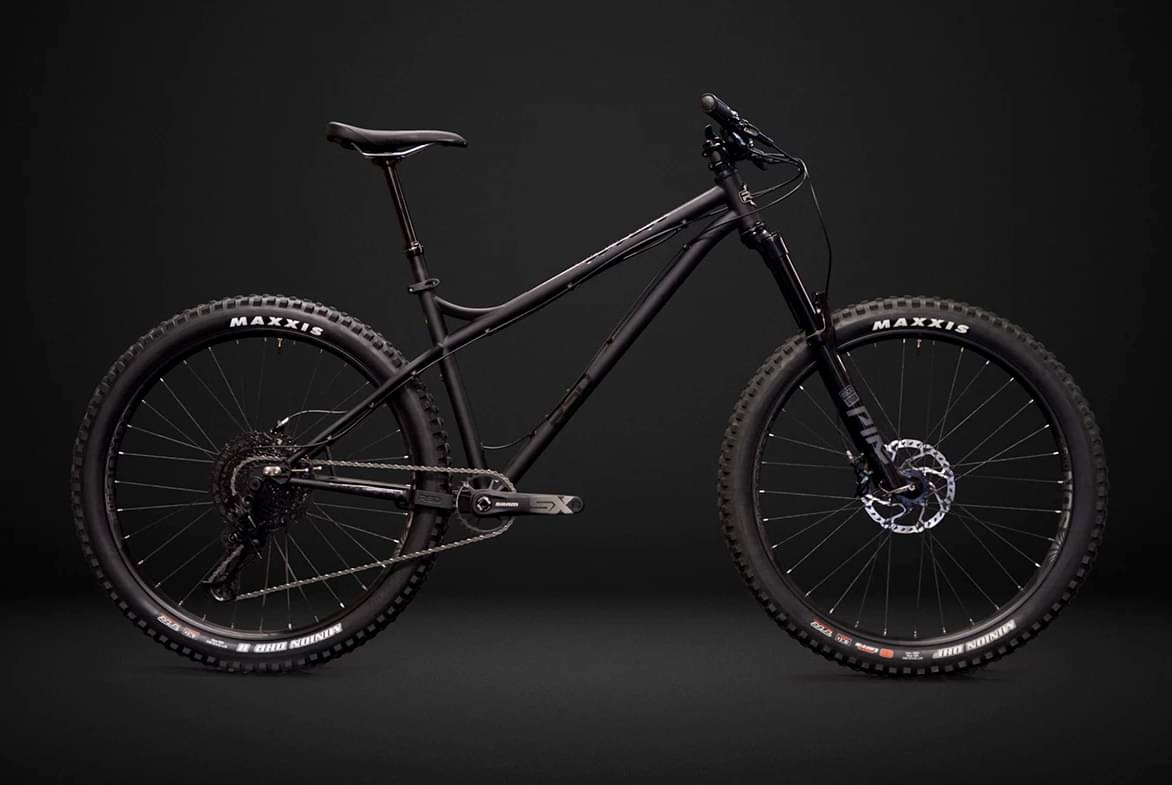

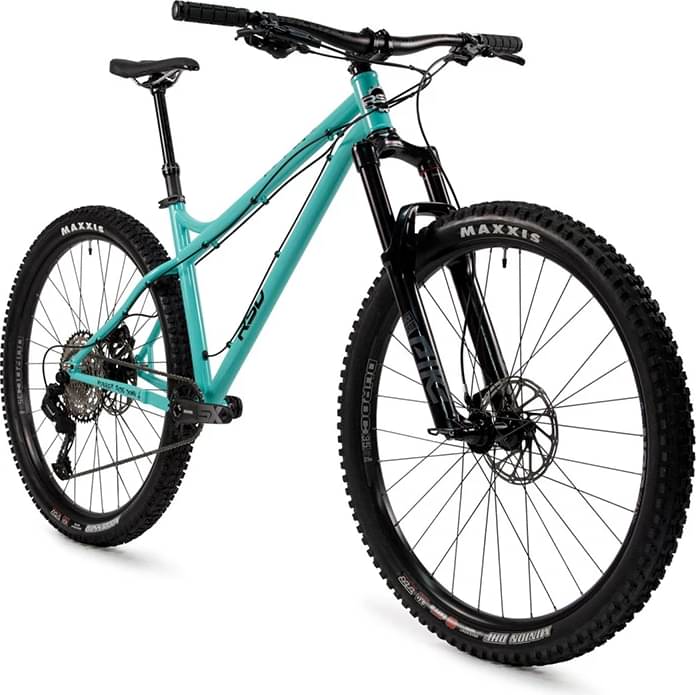

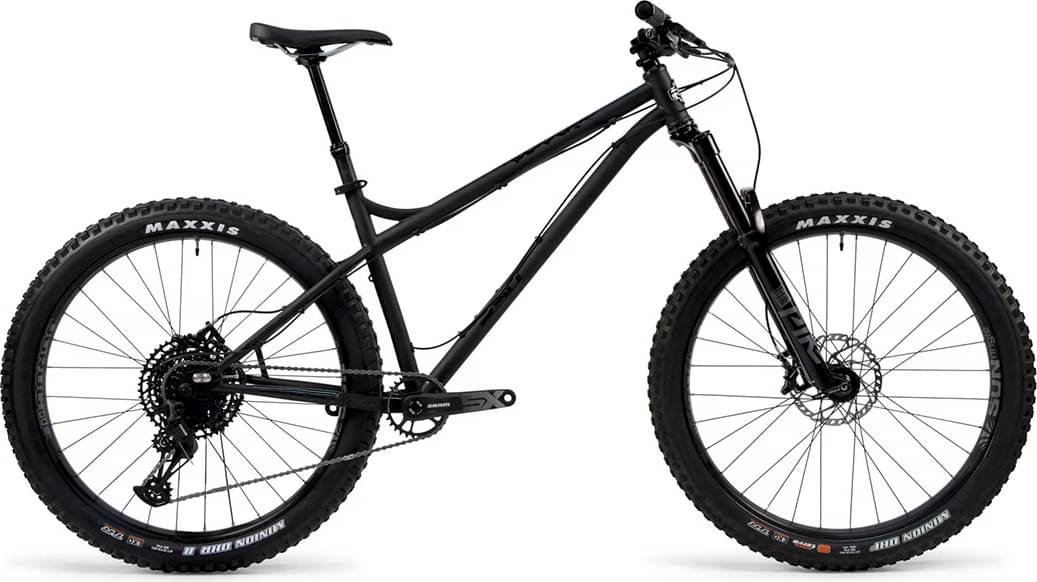

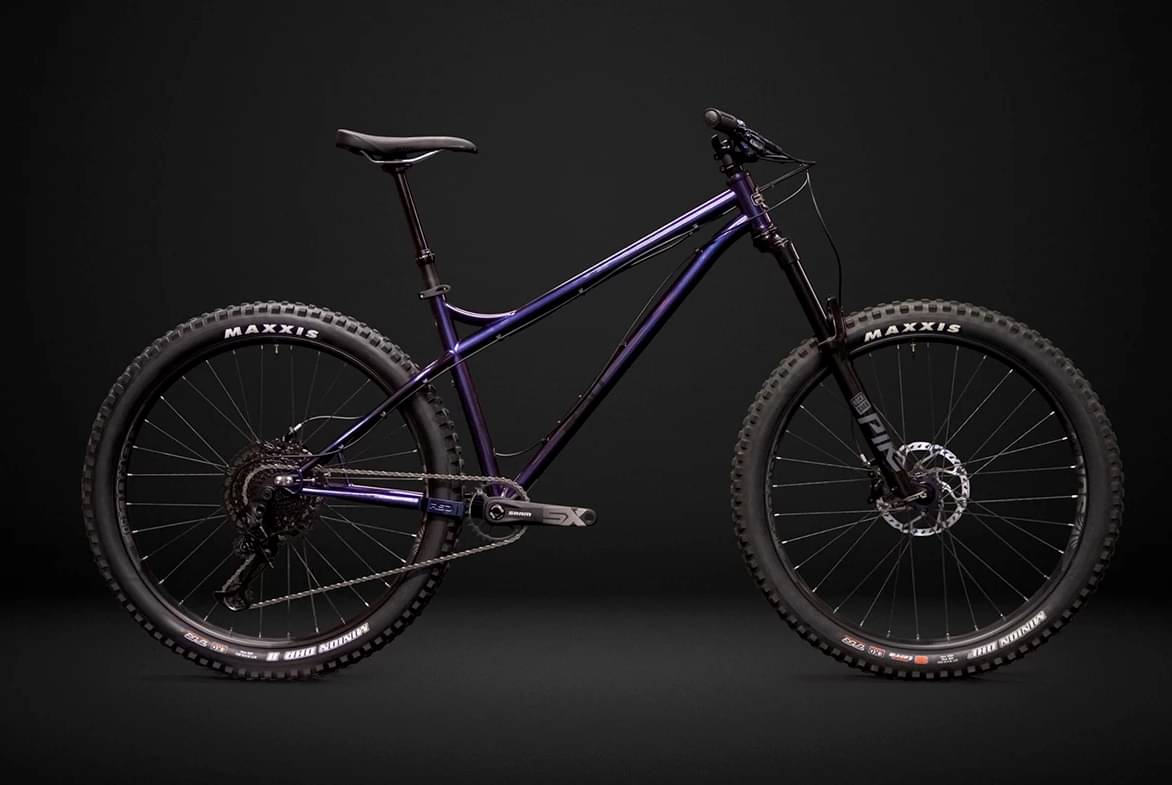

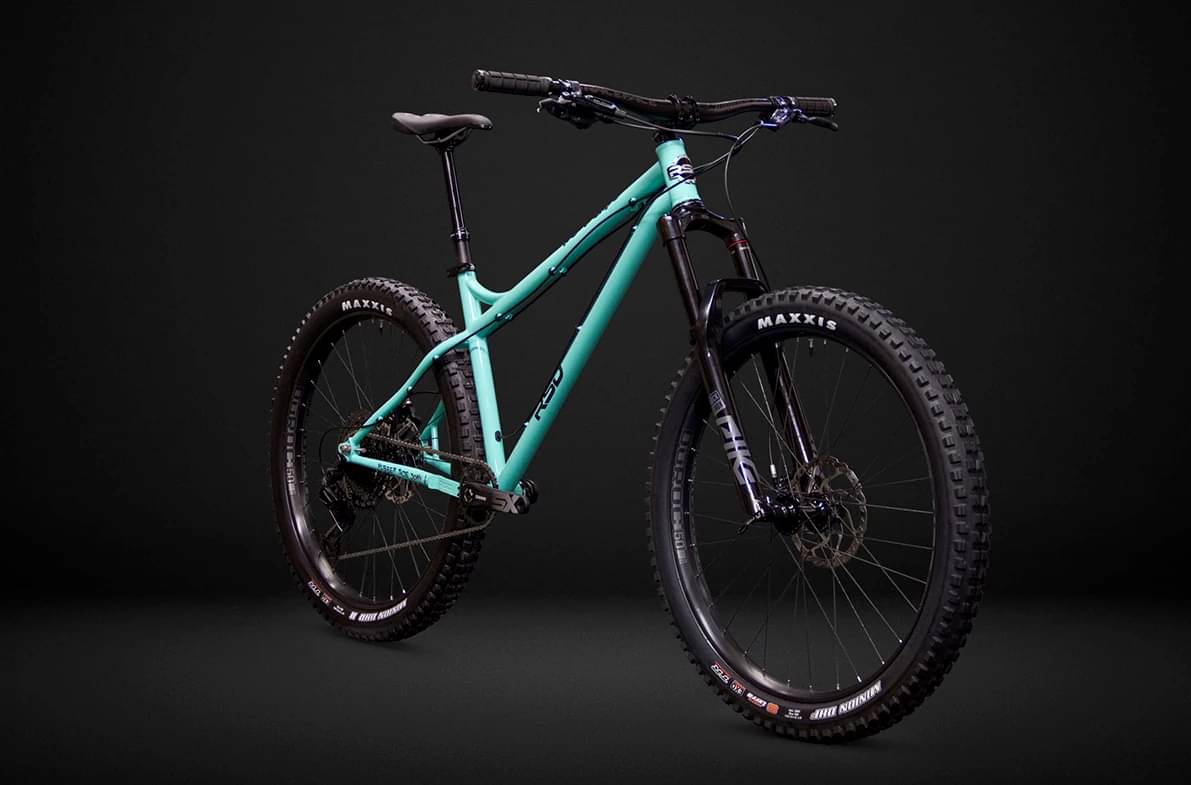

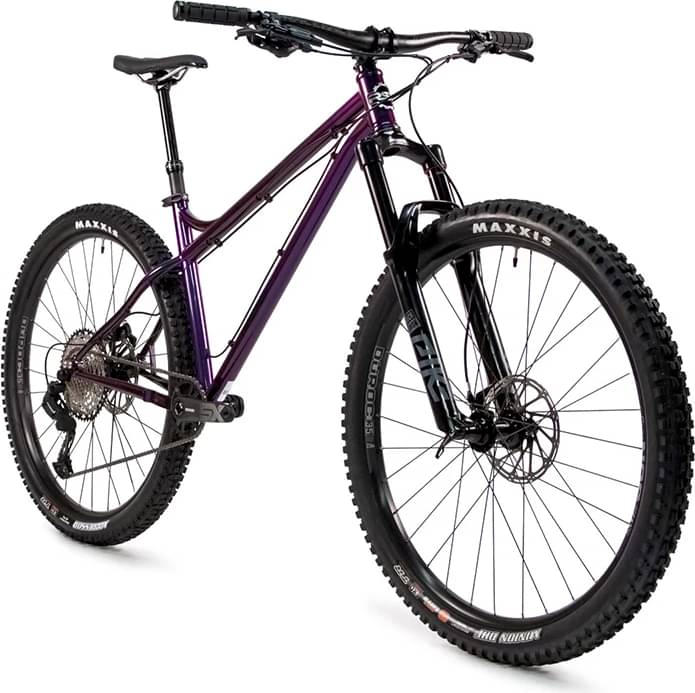

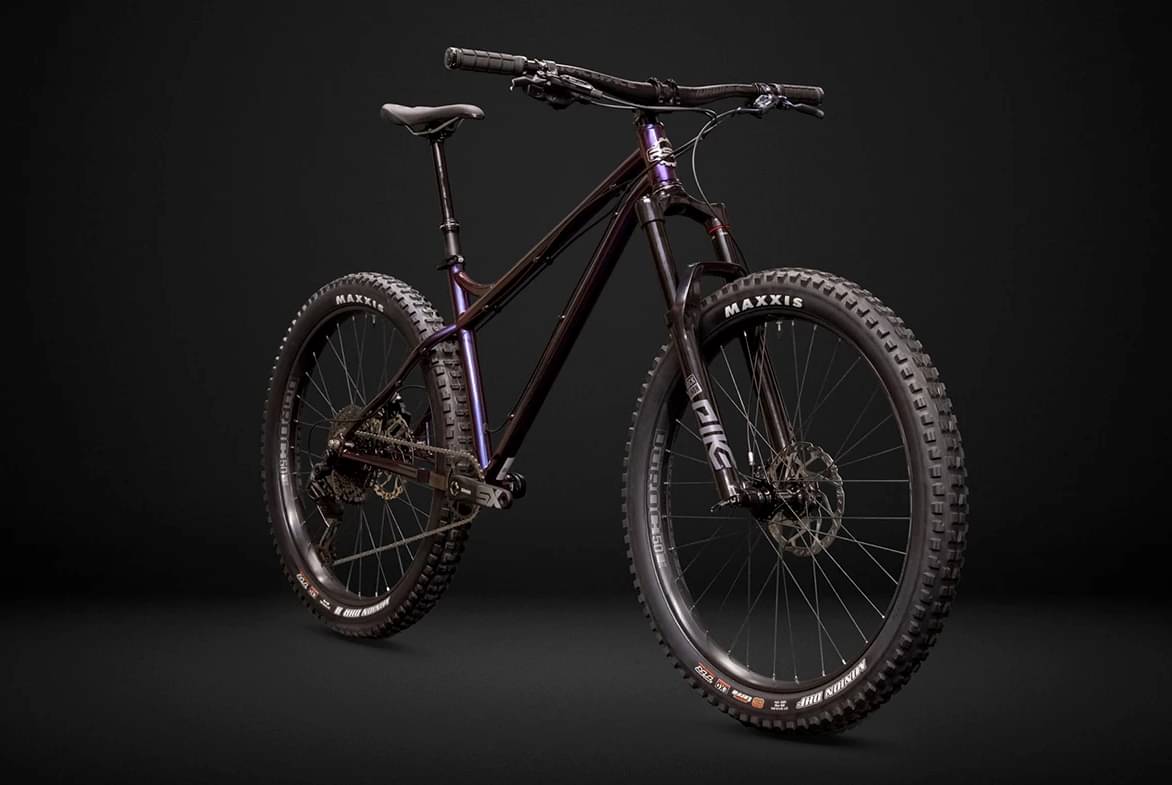

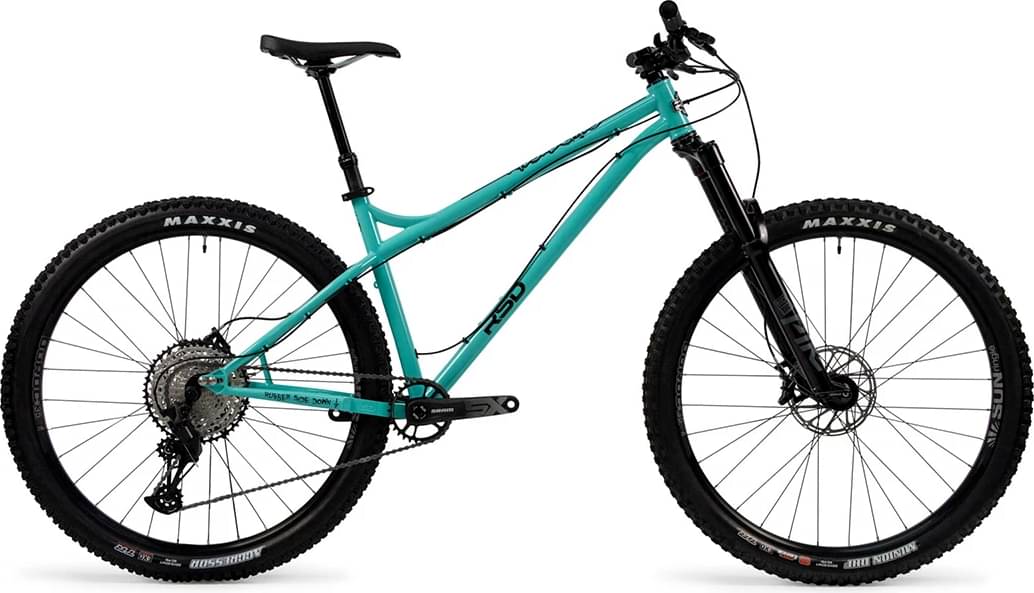

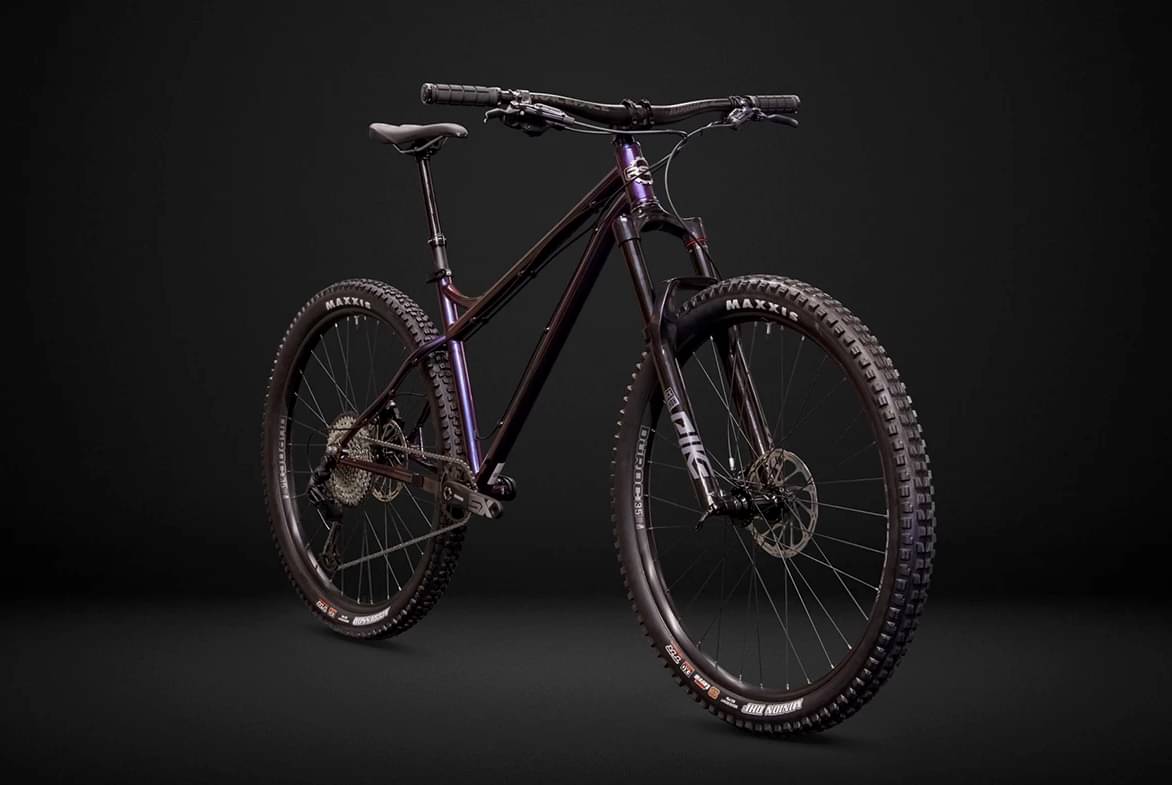

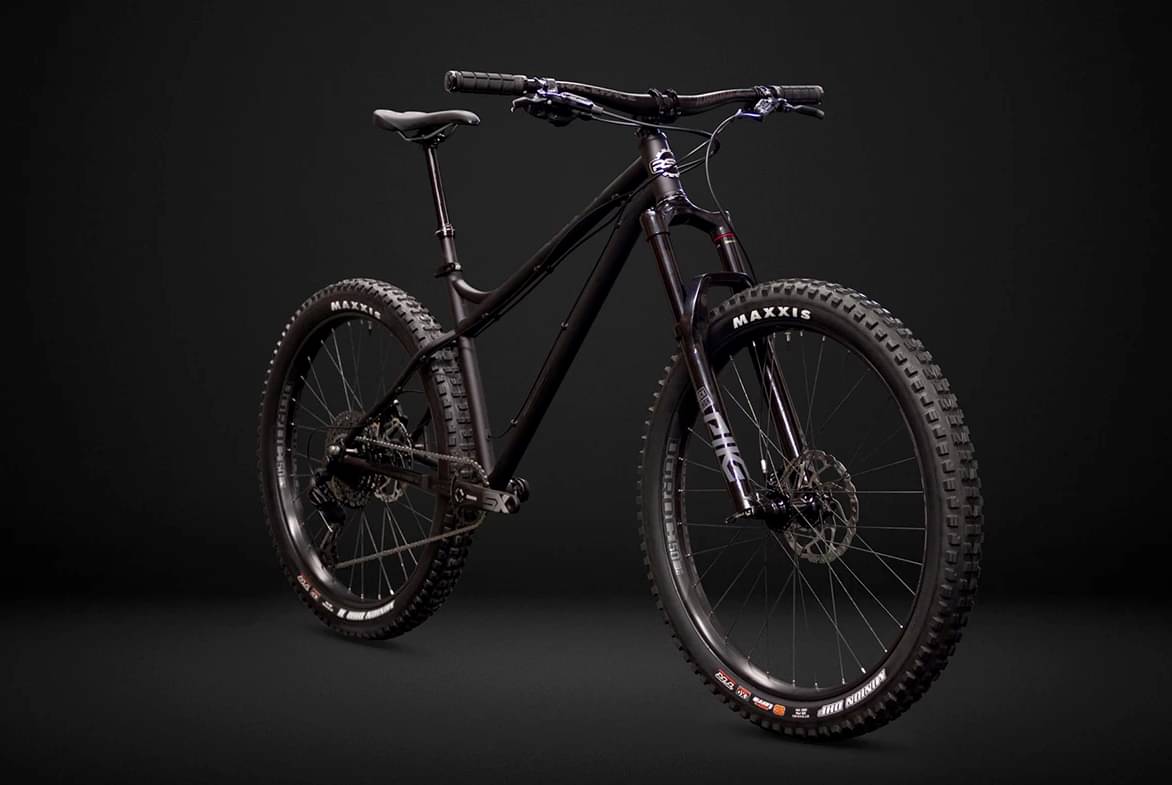

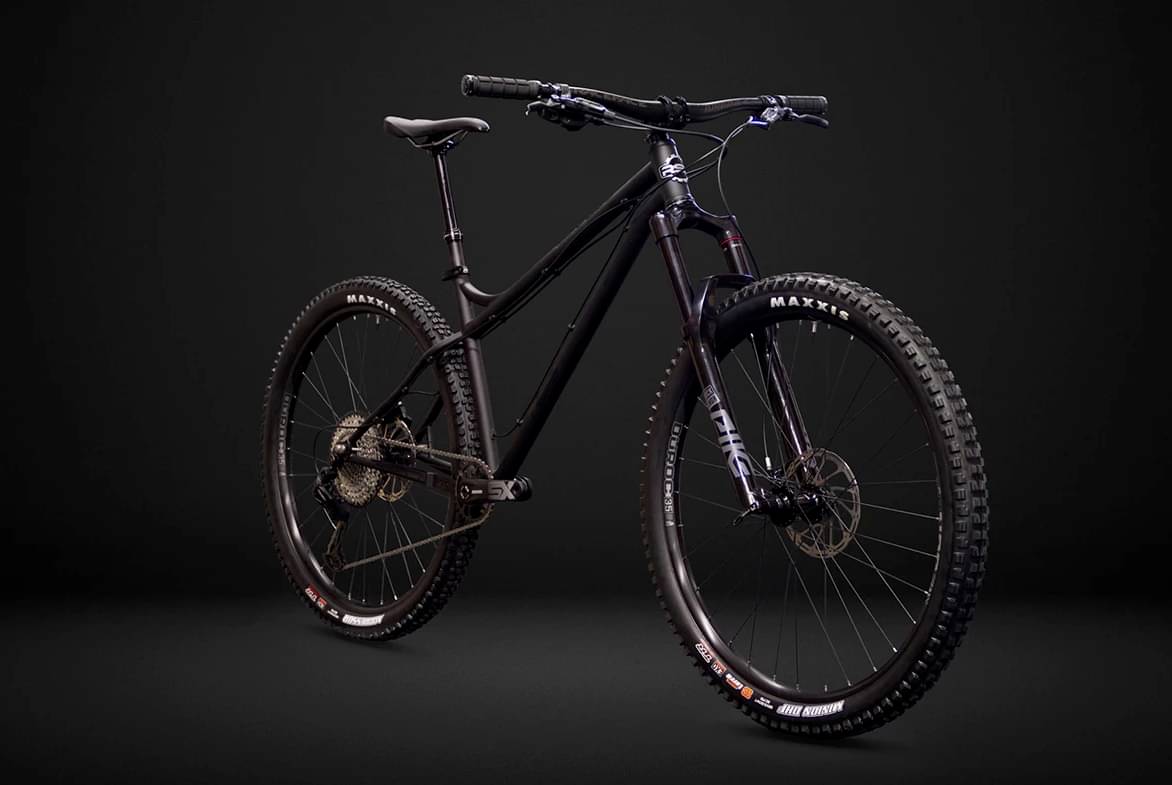

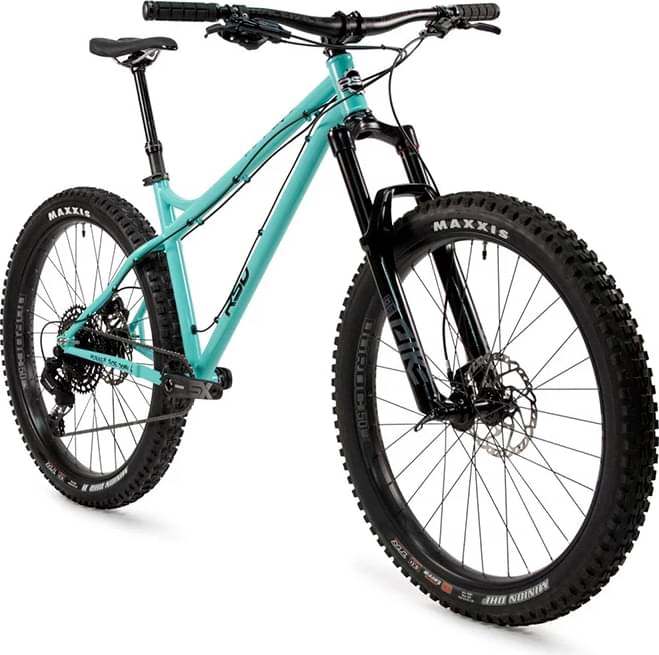

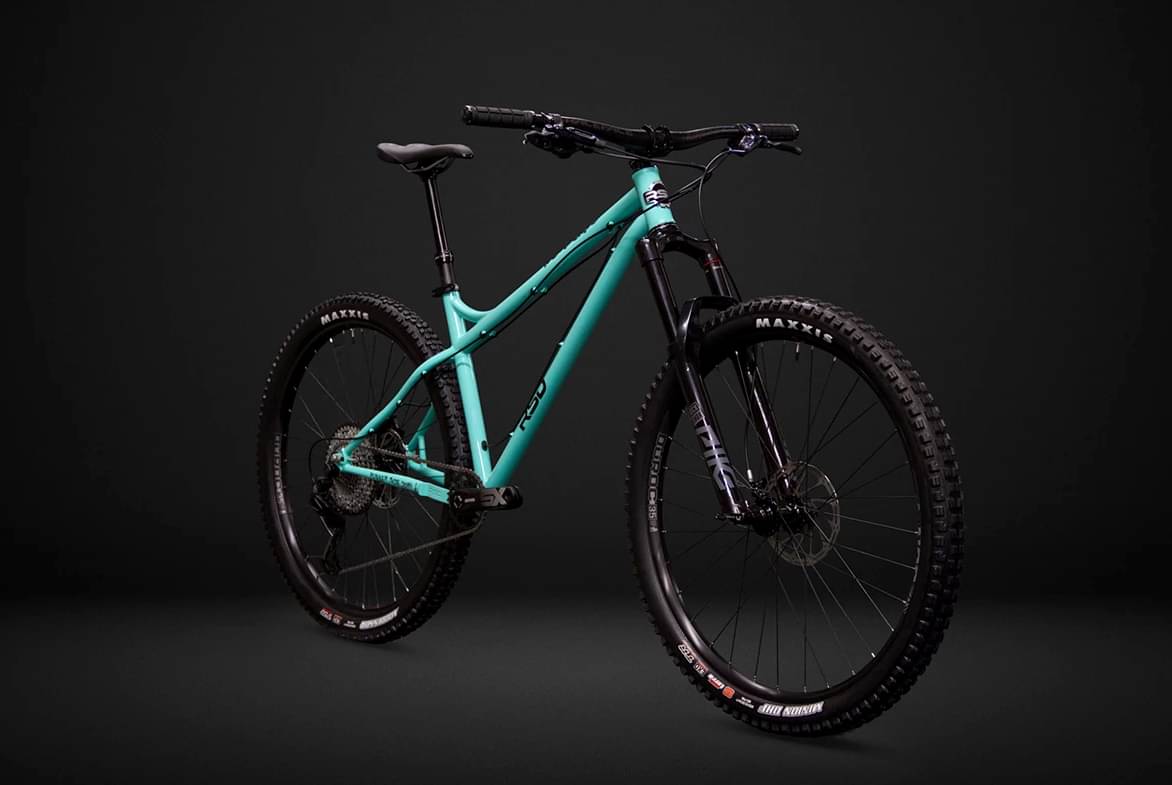

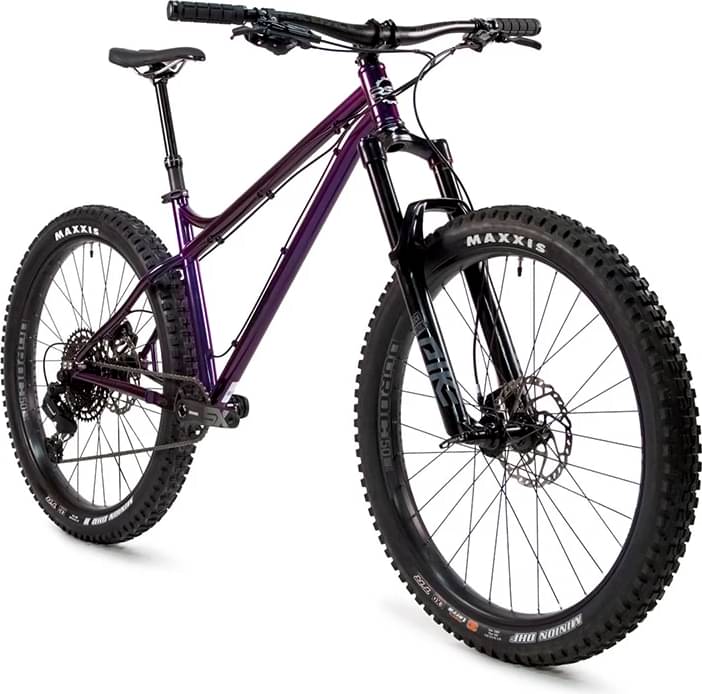

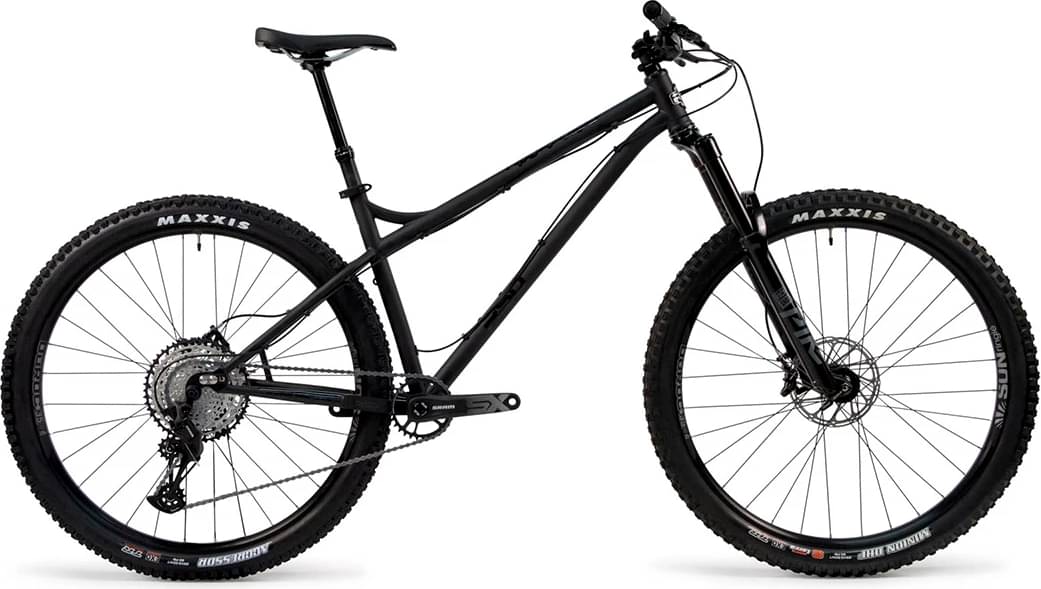

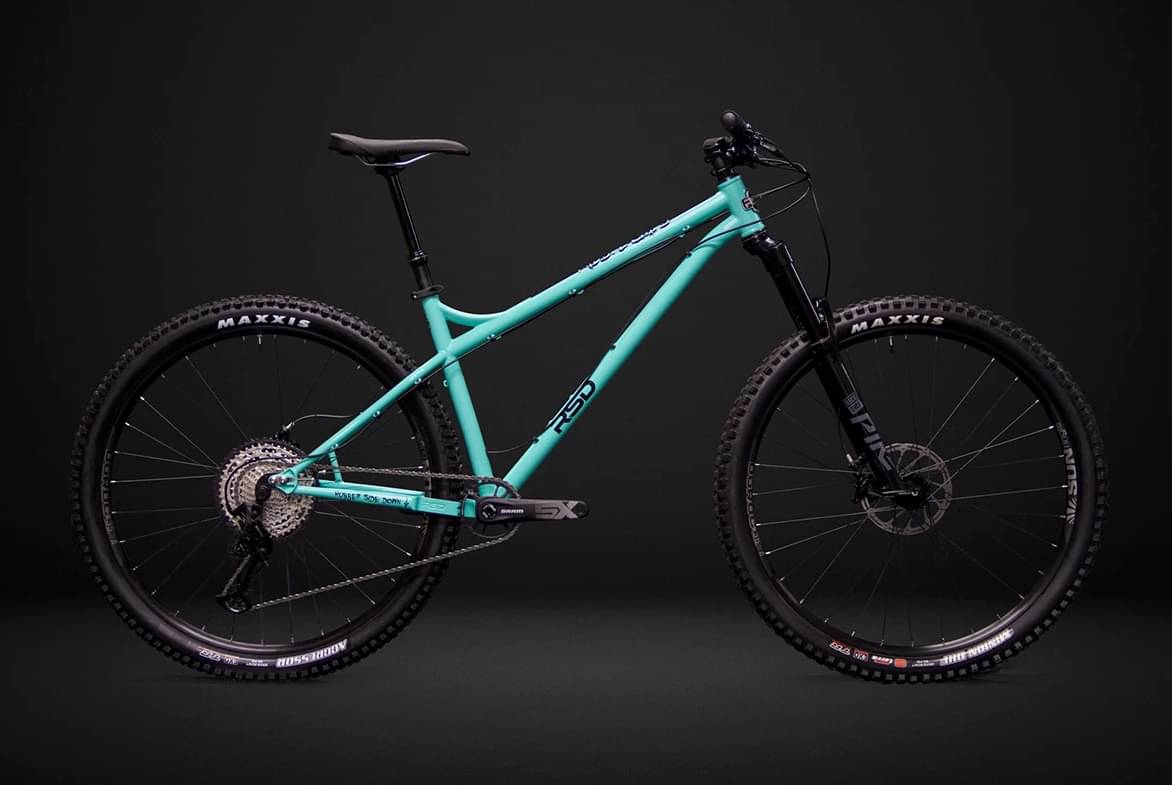

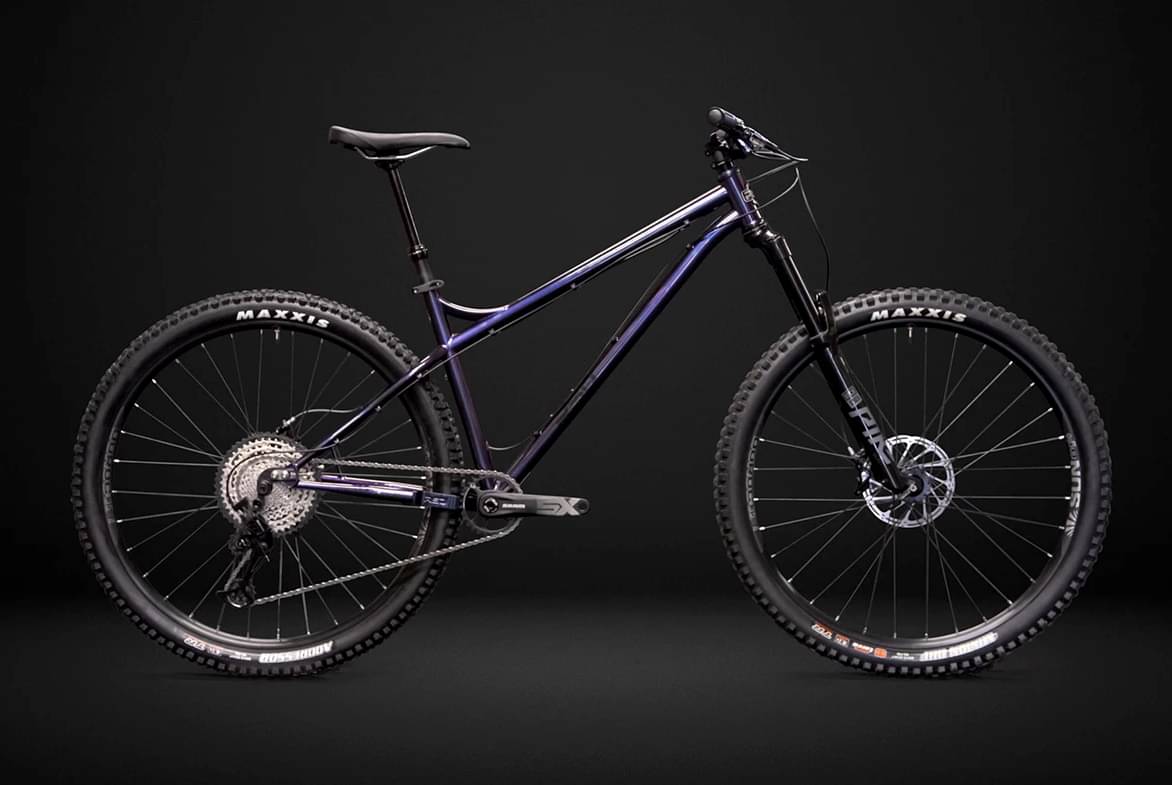

RSD MIDDLECHILD V2 Chromoly Deore Build 2023
2023 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset Deore, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

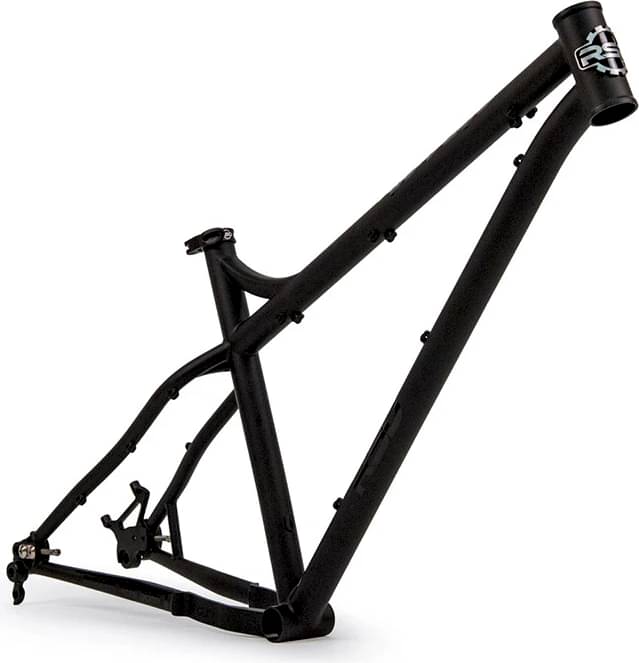

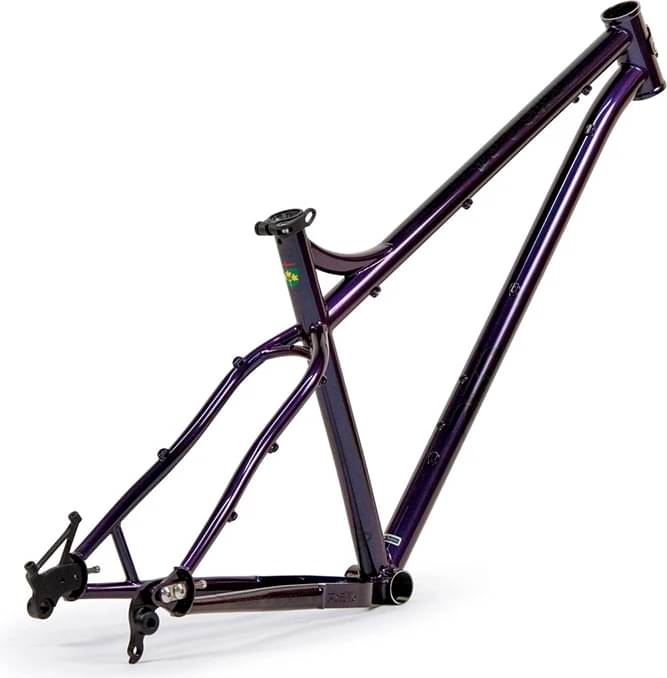

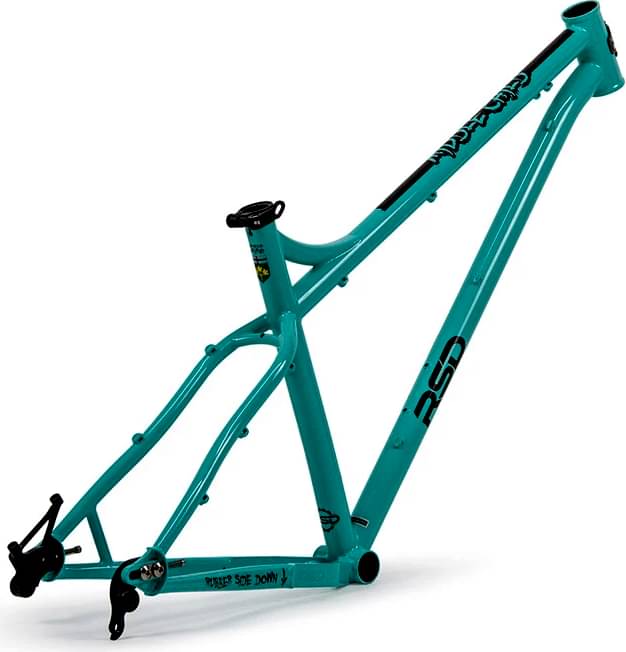

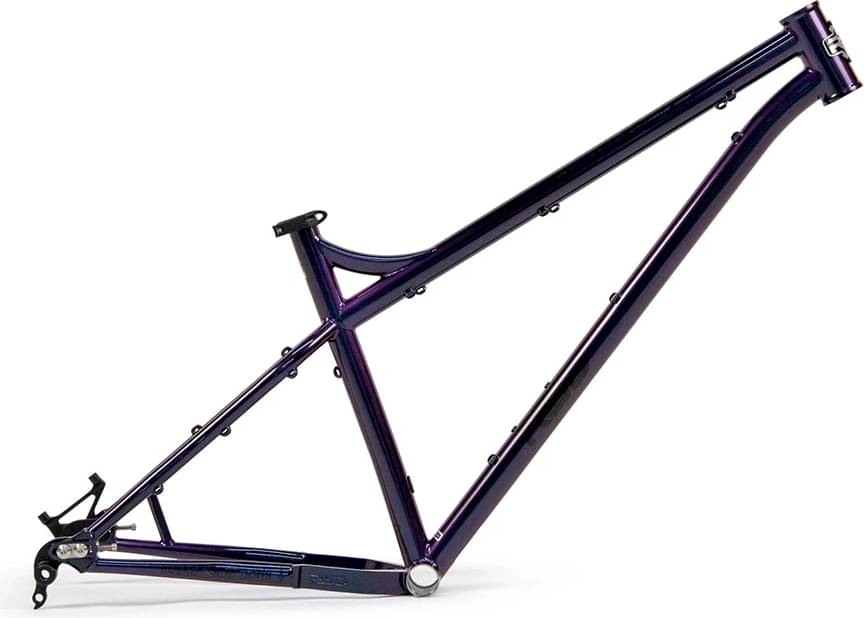

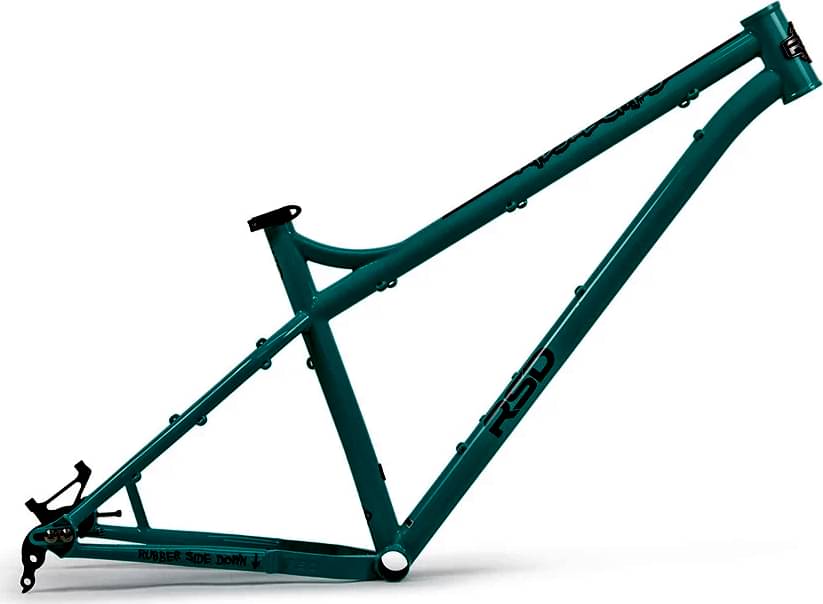

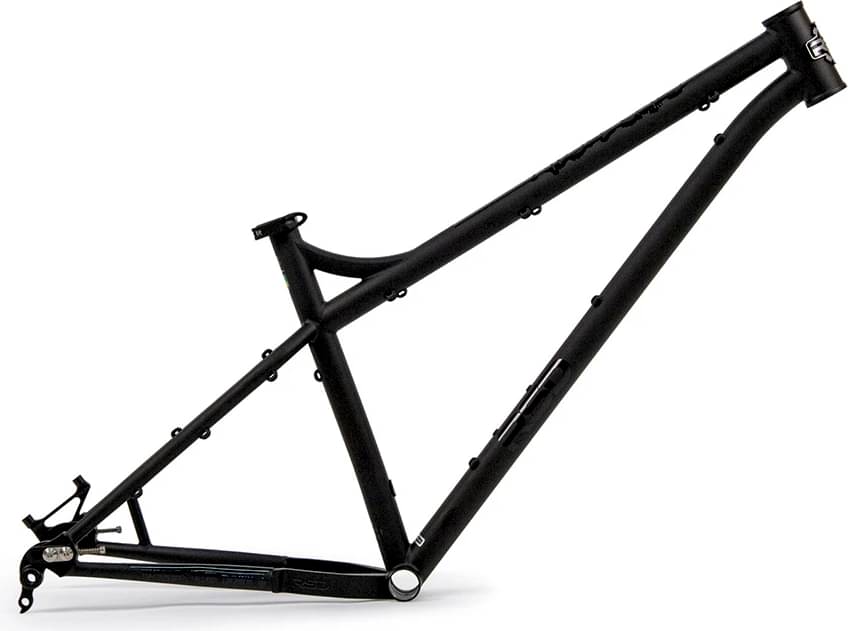

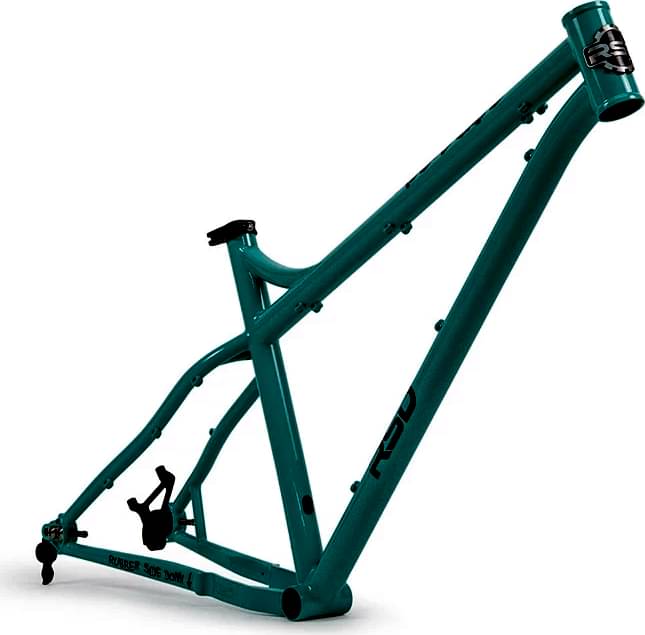

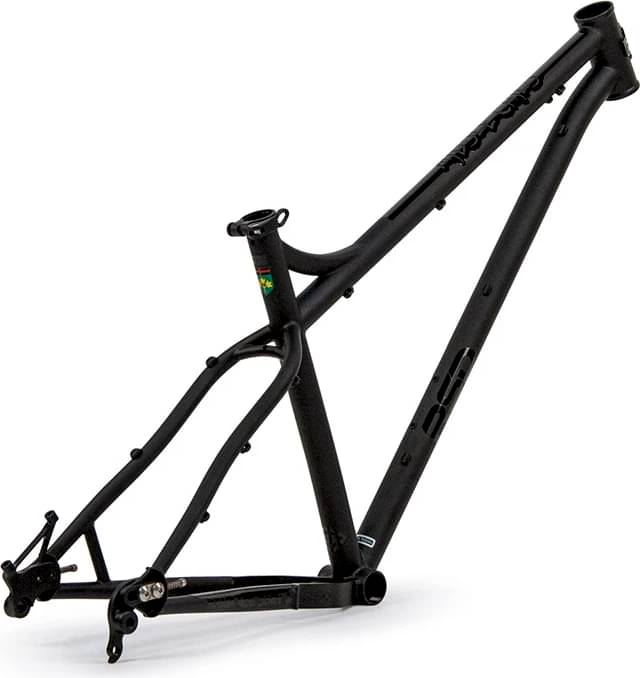

27.5+/29 Cr-Mo 4130 Double Butted and Heat Treated
Suspension Fork
DVO Diamond D2 27.5+/29 140mm 44mm
Drivetrain
Rear Derailleur
Shimano Deore Trigger M6100 Long Cage 12spd
Shift Levers
Shimano Deore Trigger M6100 12spd
Cassette
Shimano Deore M6100 10-51T 12spd
Crank
Race Face Turbine 73mm 175mm
Bottom Bracket
Race Face 73mm BSA
Chain
Shimano Deore M6100 126L 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
Shimano SLX M7120 4 Pistons
Cockpit
Stem
Race Face Turbine R 35 50mm
Handlebar
Race Face 35mm Turbine R 20mm 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek 40 Series ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 130 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 614 mm | 614 mm | 624 mm |
| Reach | 405 mm | 443 mm | 460 mm | 484 mm |
| Top Tube Length | 581 mm | 620 mm | 637 mm | 664 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1147 mm | 1188 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 705 mm | 709 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MIDDLECHILD V2 Chromoly Deore Build is a Rsd Middlechild model. 42 bikes variations carry this model name so far. Take a sneak peek at all Rsd Middlechild bikes models from 2023, by clicking here.
Model range prices
RSD MiddleChild V2 Aluminum Deore/D2 Build 2023 is the most affordable bike of this model and has a price of 2899$. On the other hand, RSD MIDDLECHILD V2 Titanium Deore Build 2023, is the most expensive and costs 4649$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. Doing a quick comparison, we notice that MIDDLECHILD V2 Chromoly Deore Build price is 8.58% higher than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the MIDDLECHILD V2 Chromoly Deore Build model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. RSD MIDDLECHILD V2 Chromoly Deore Build has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
RSD MIDDLECHILD V2 Chromoly Deore Build bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
