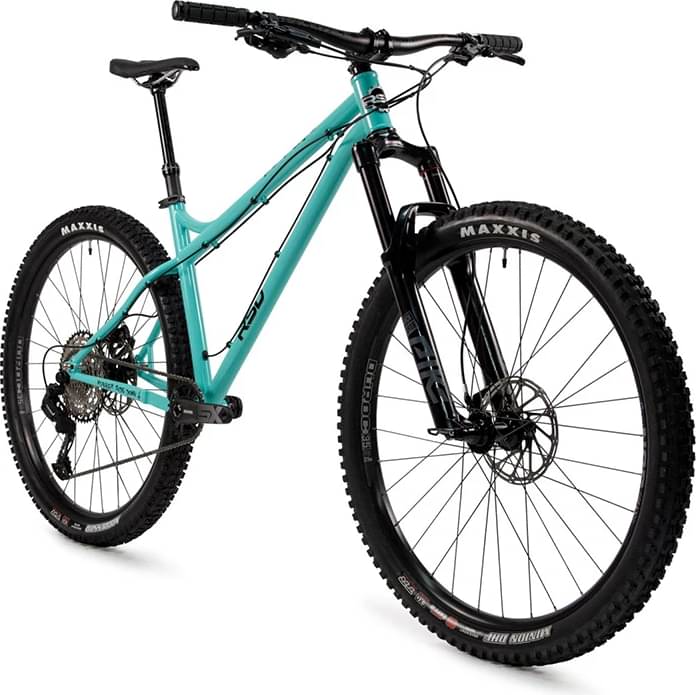

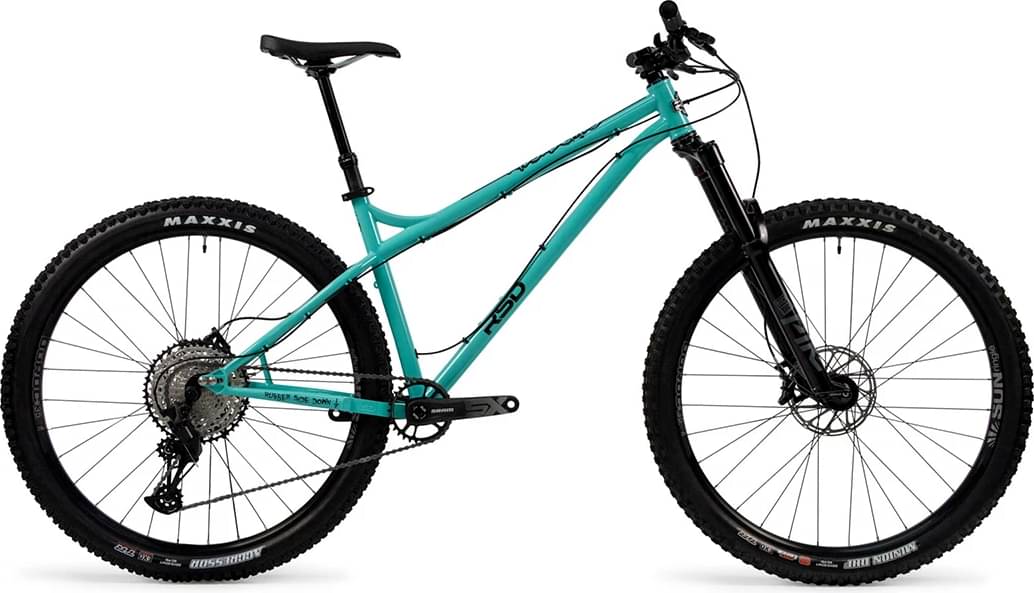

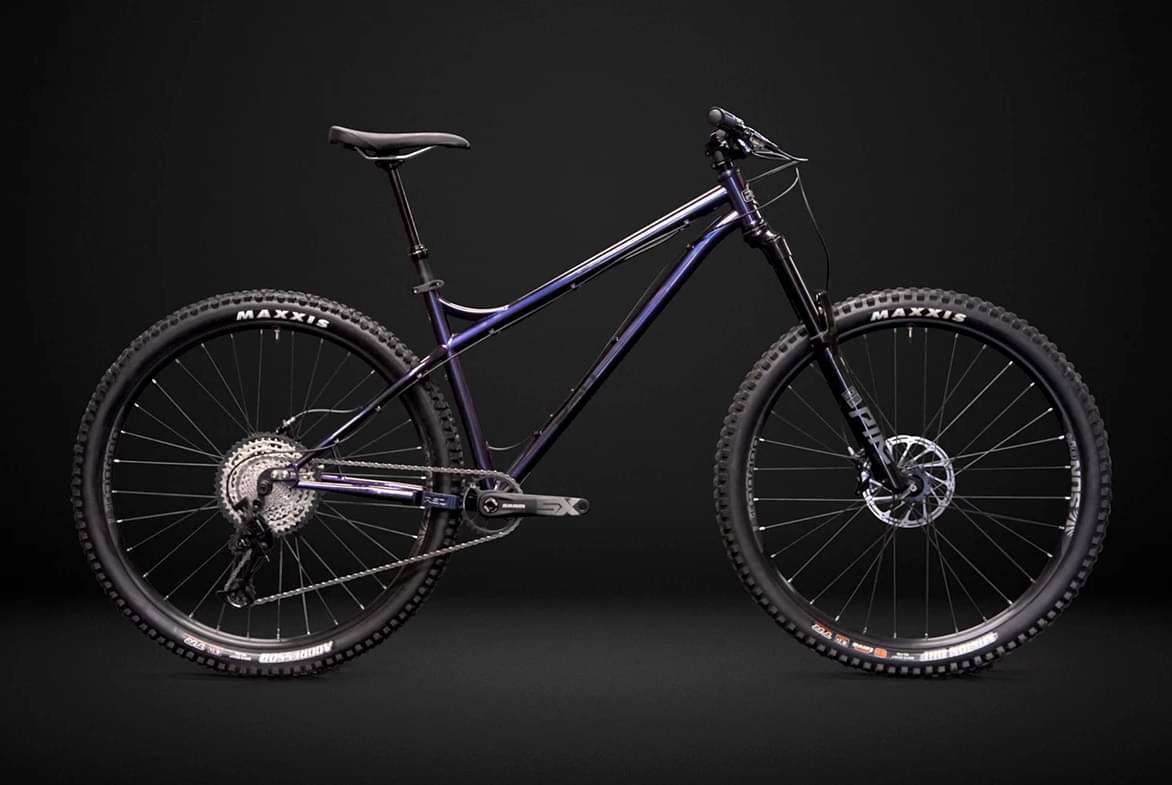

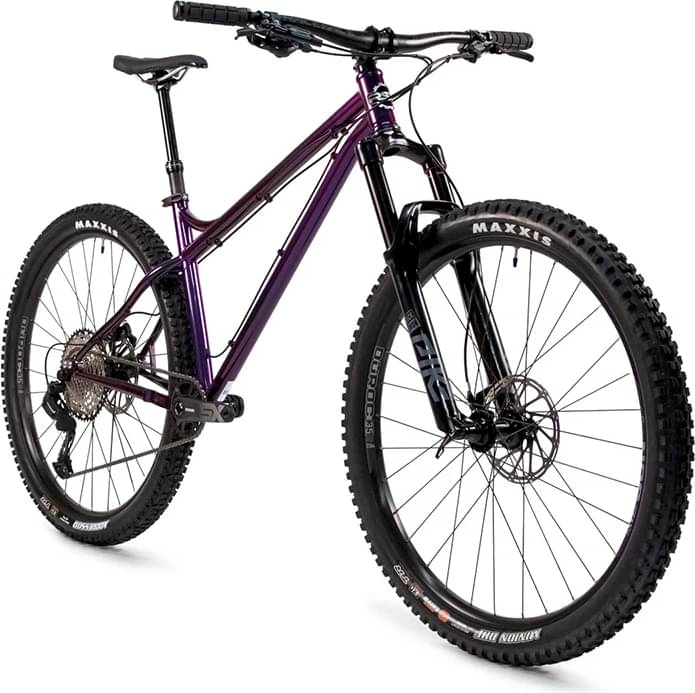

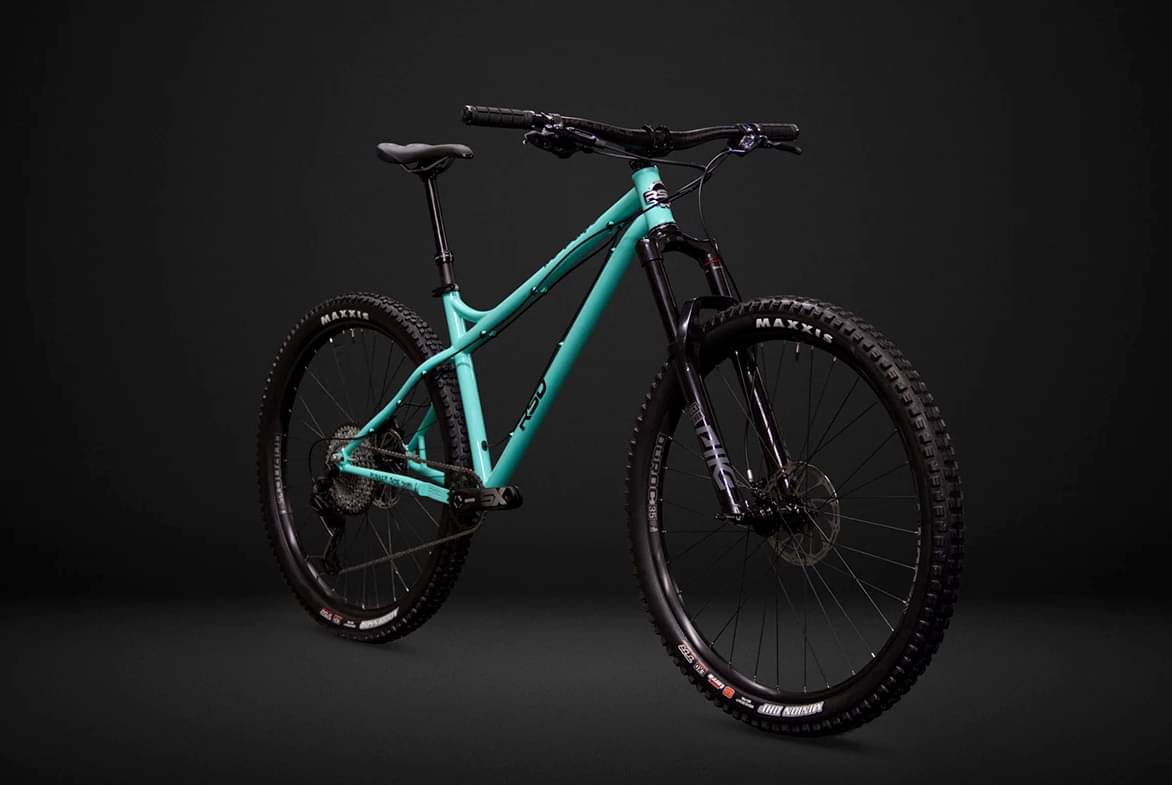

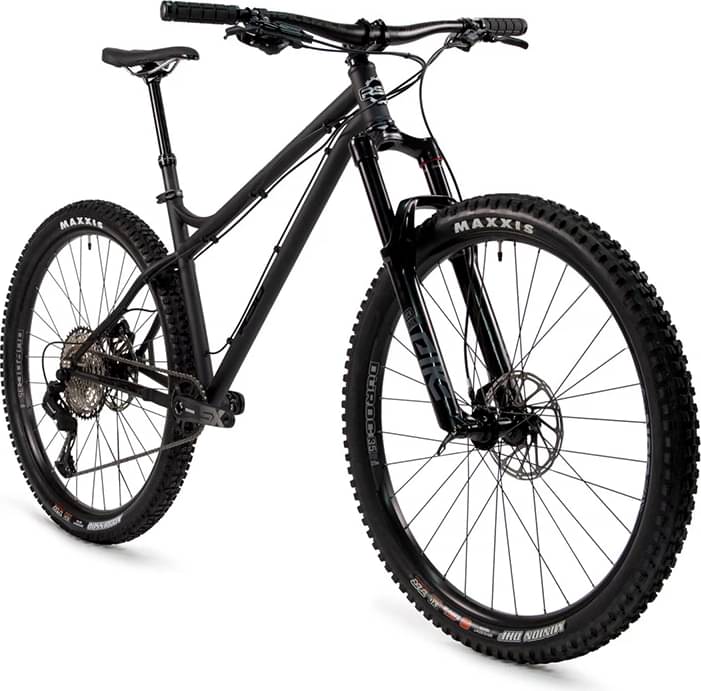

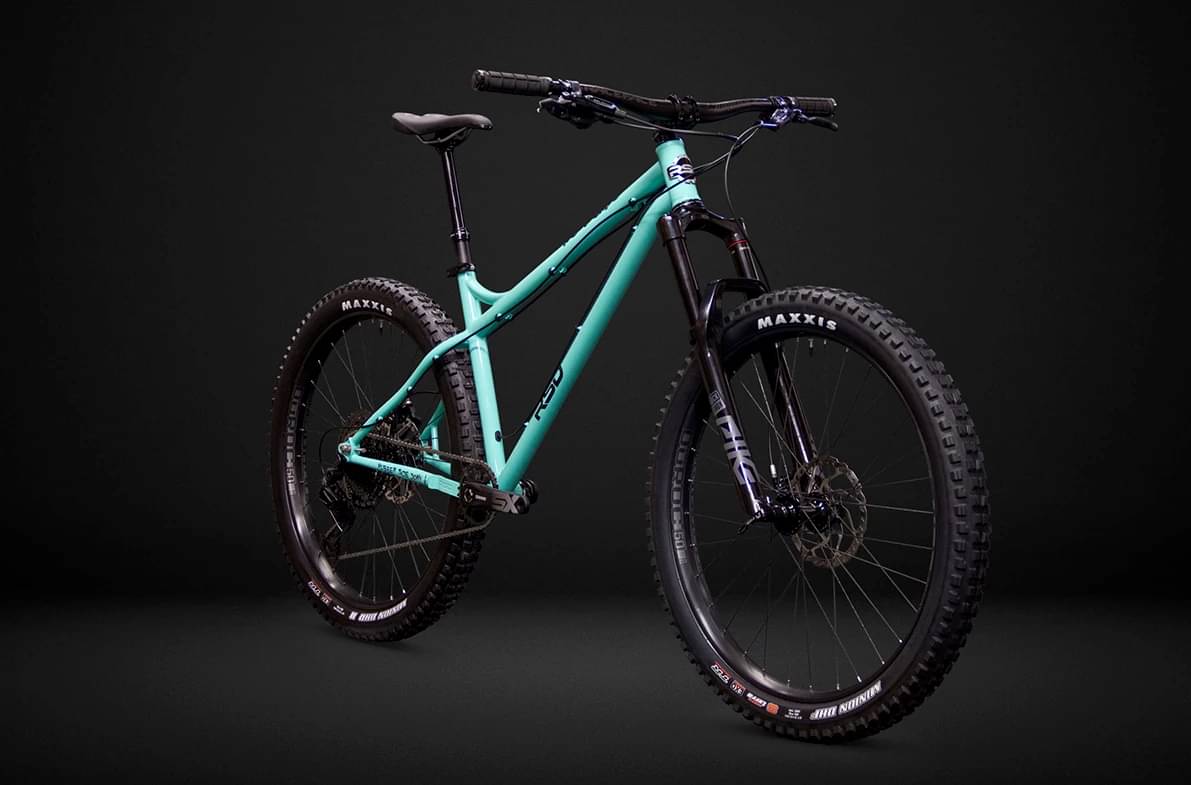

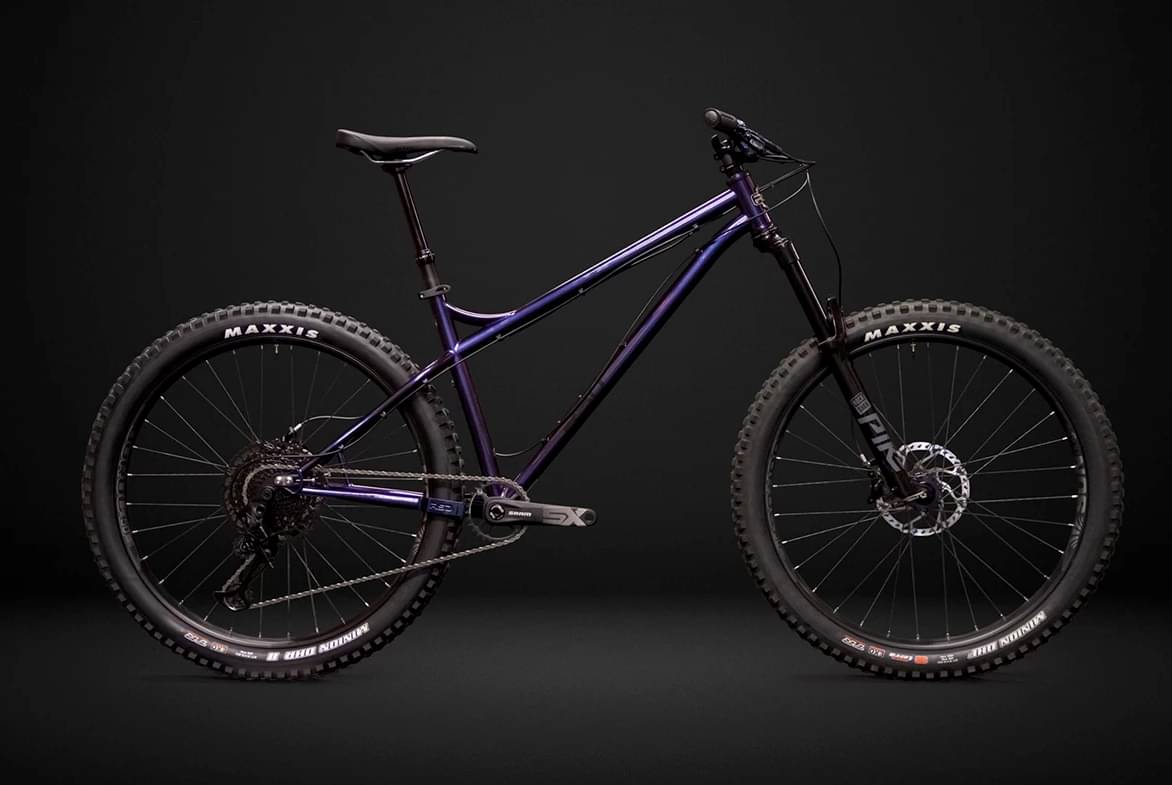

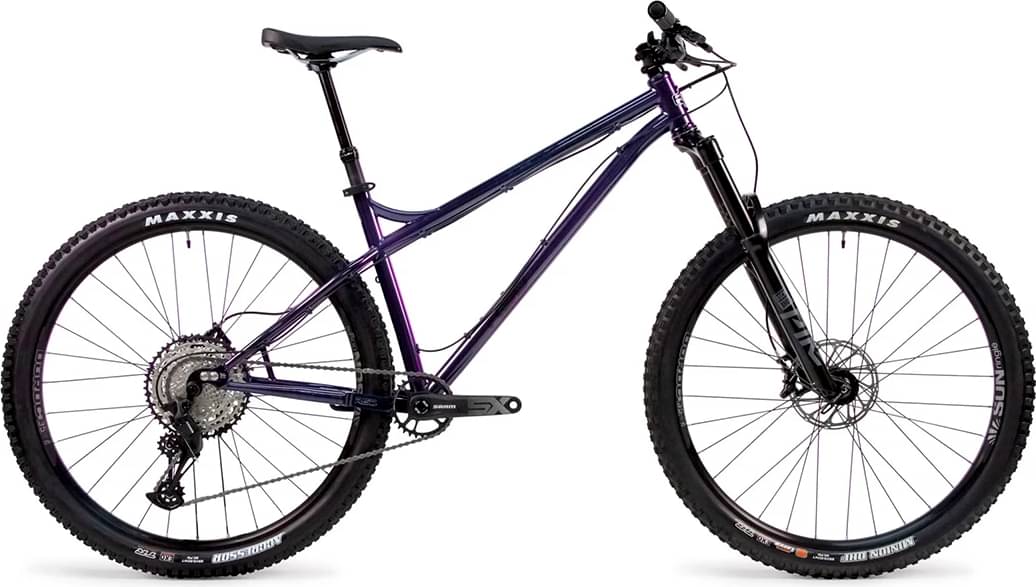

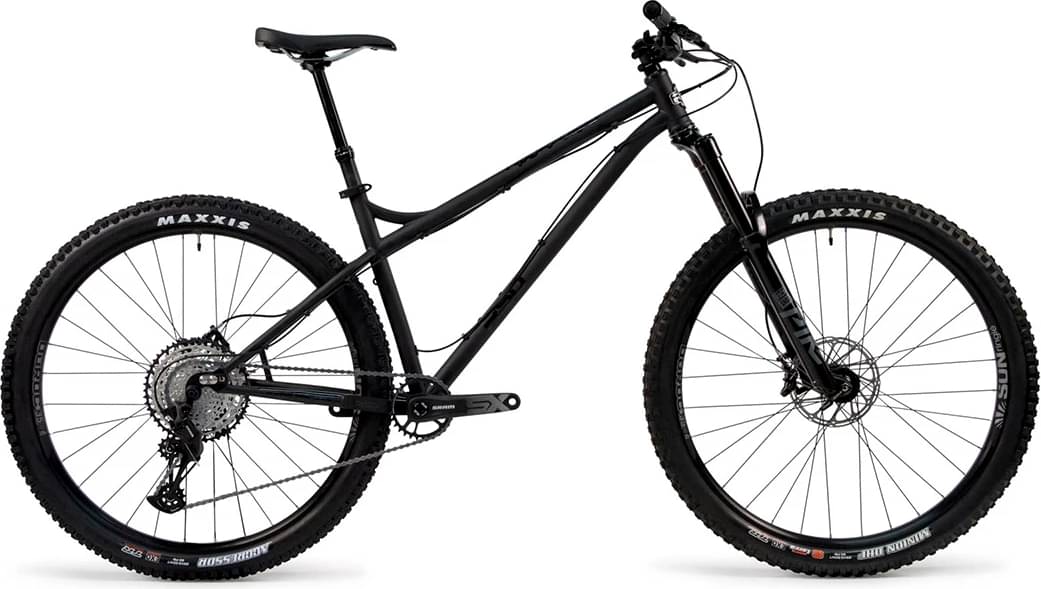

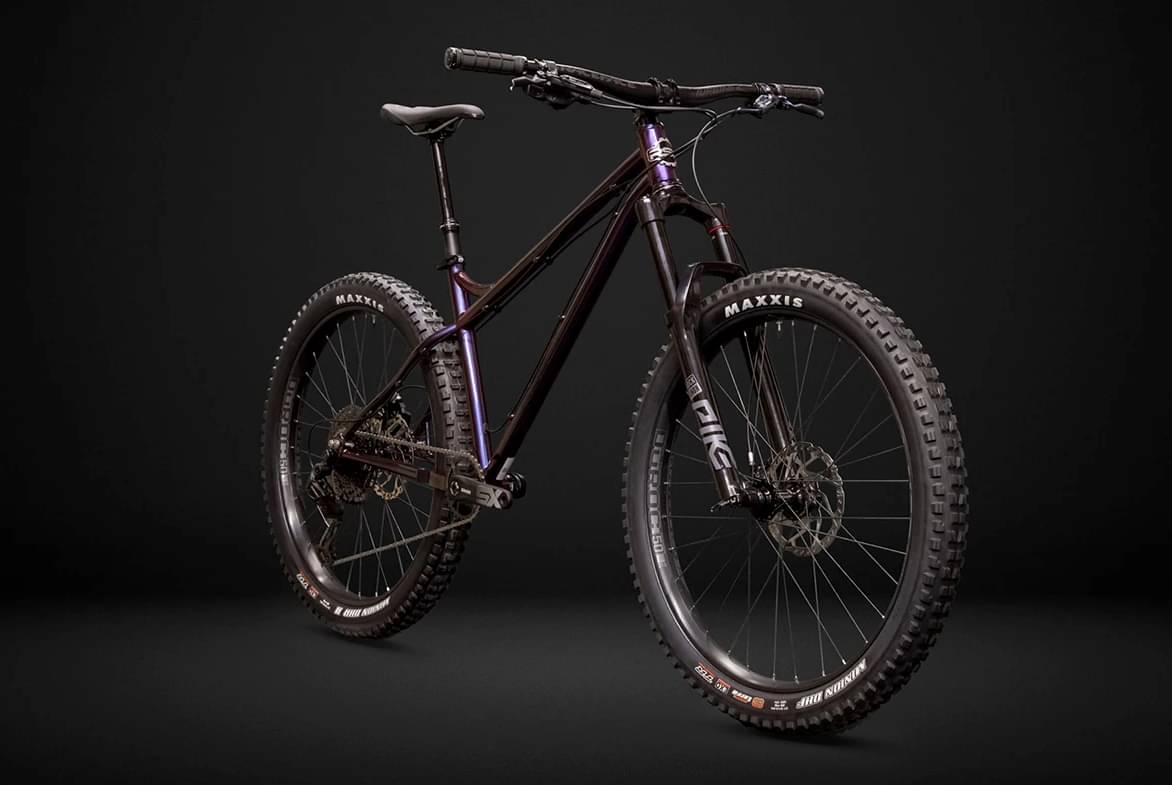

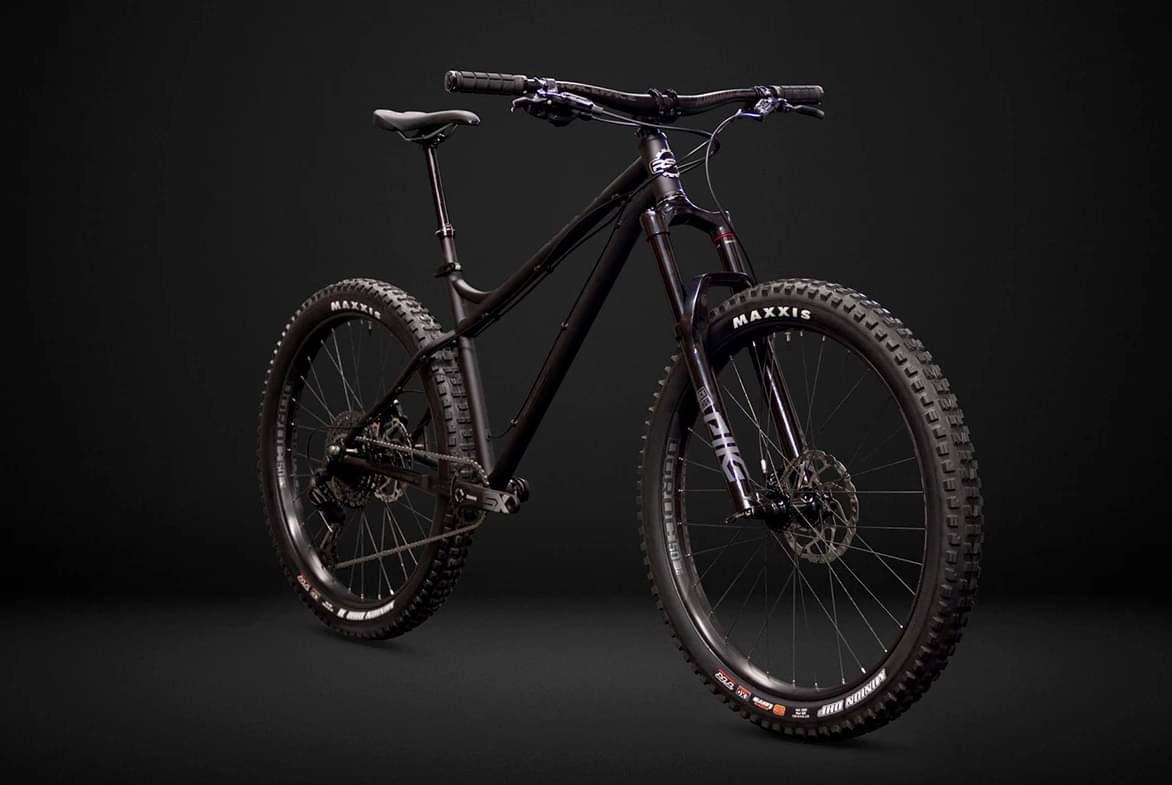

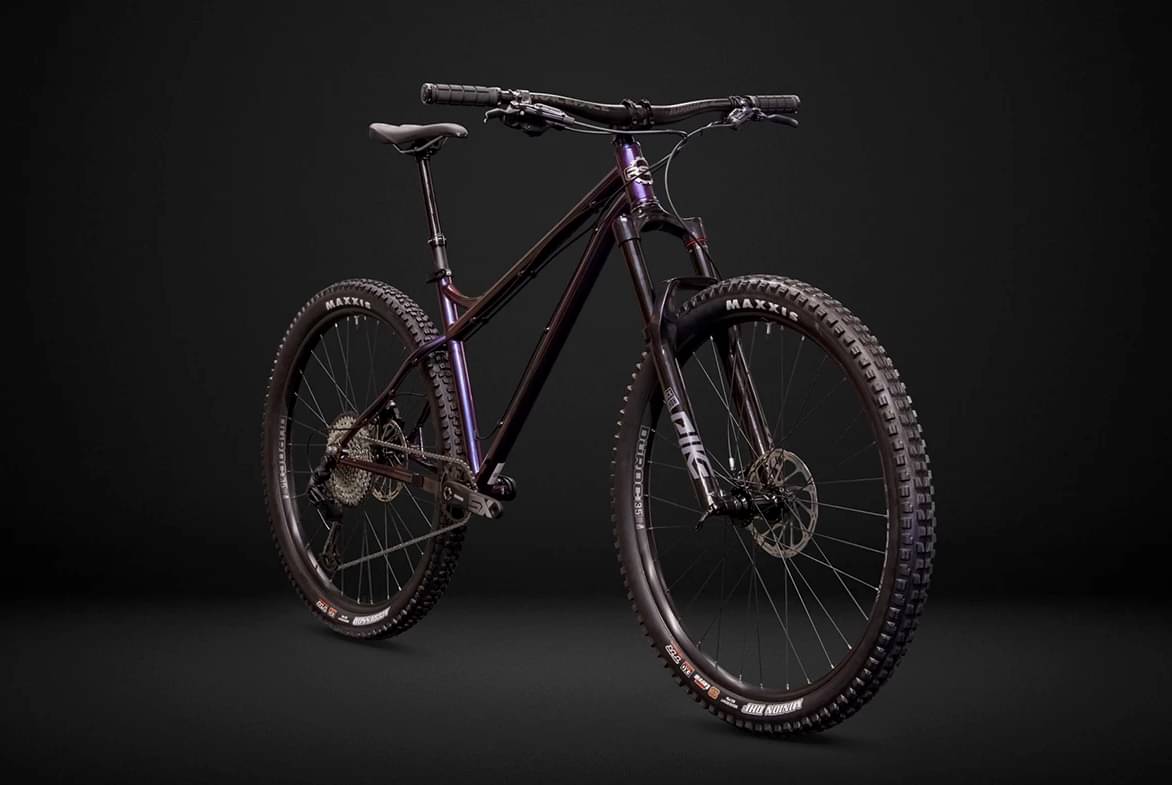

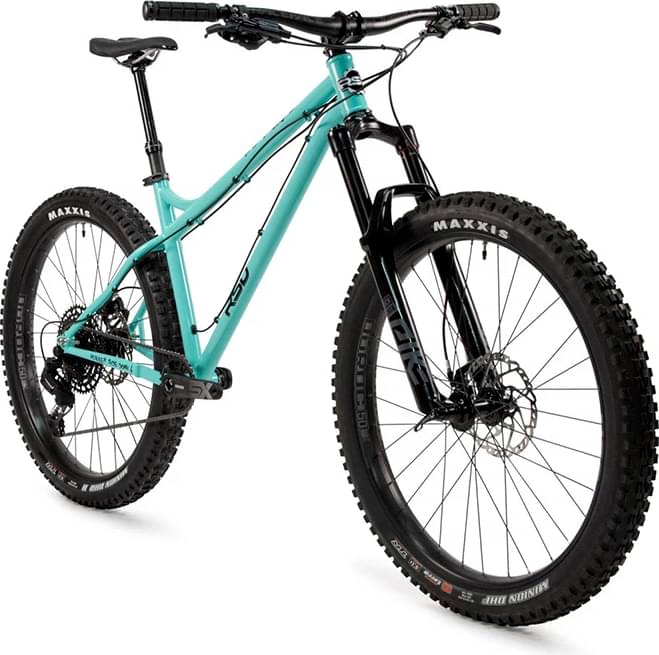

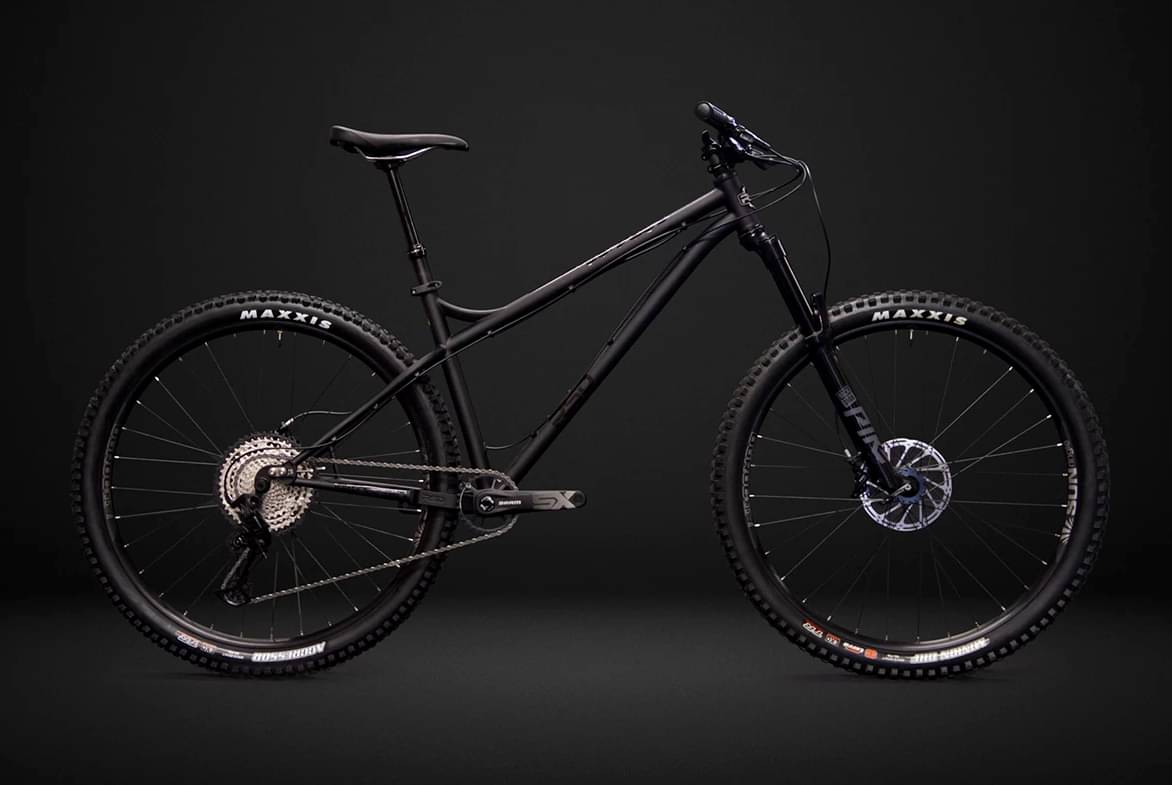

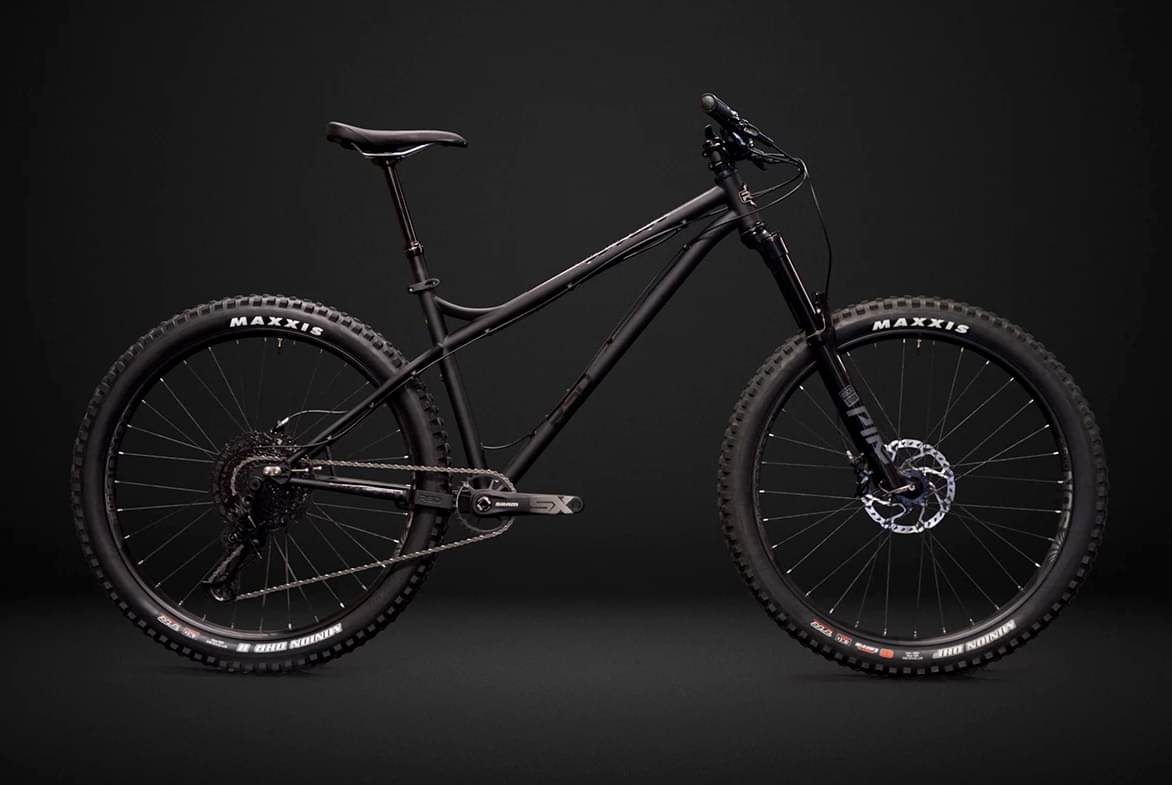

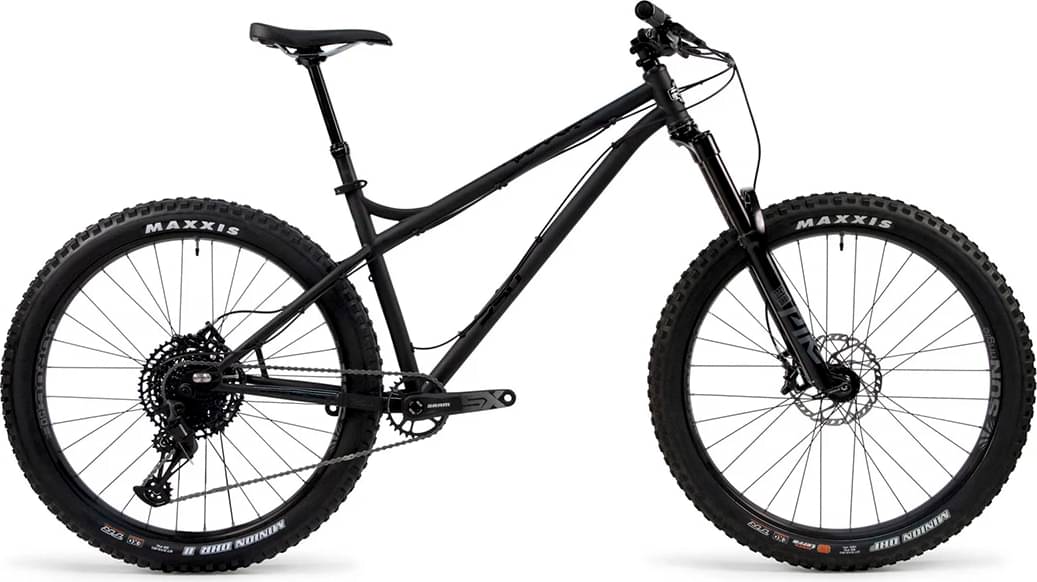

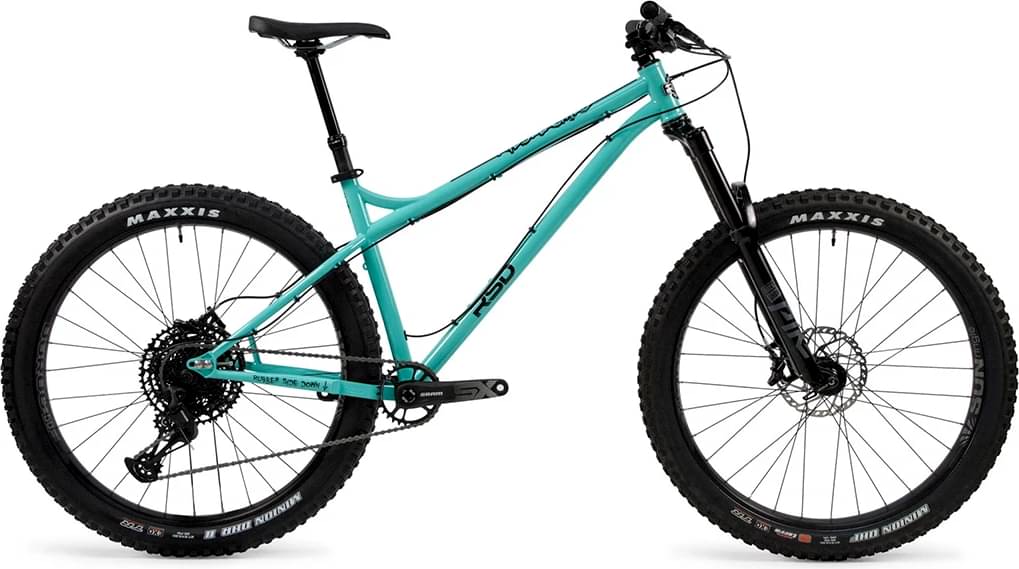

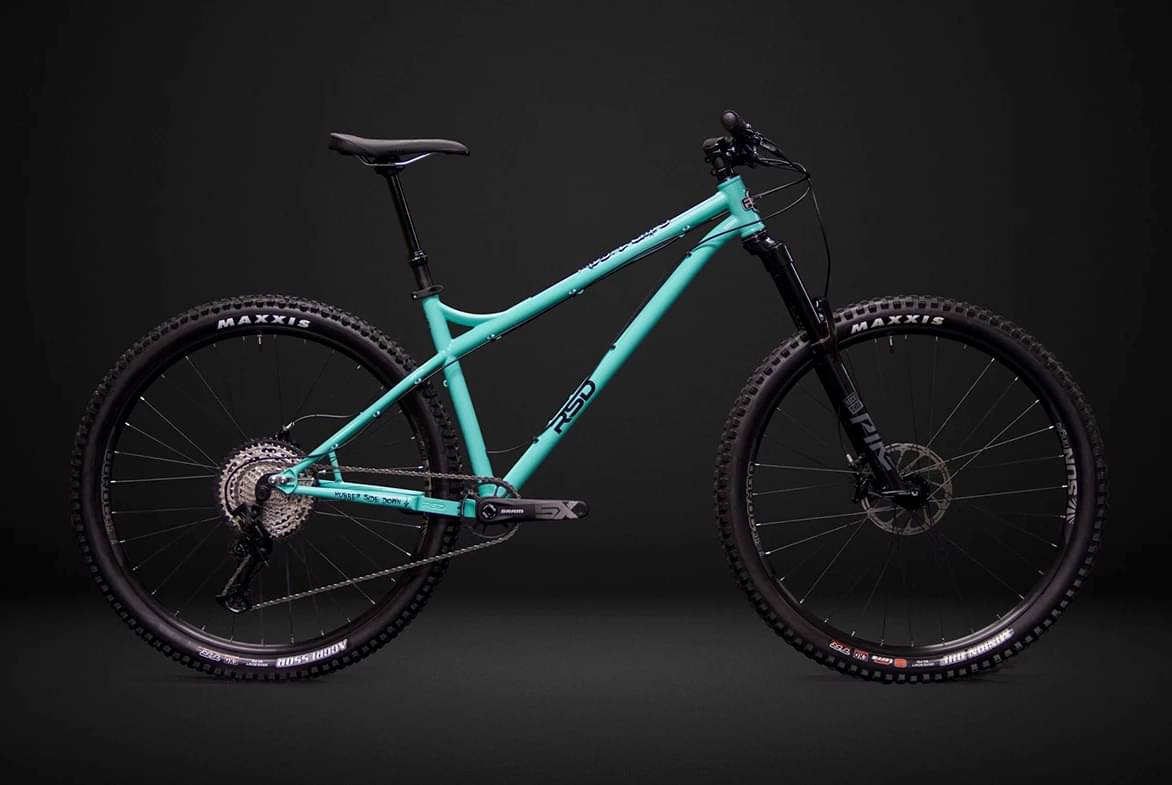

RSD MIDDLECHILD V2 Chromoly Deore/D2 Build 2023
2023 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset Deore, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

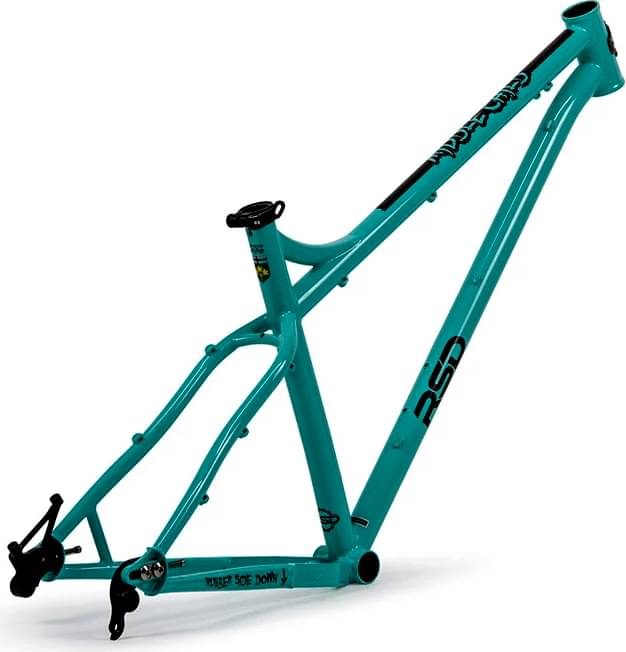

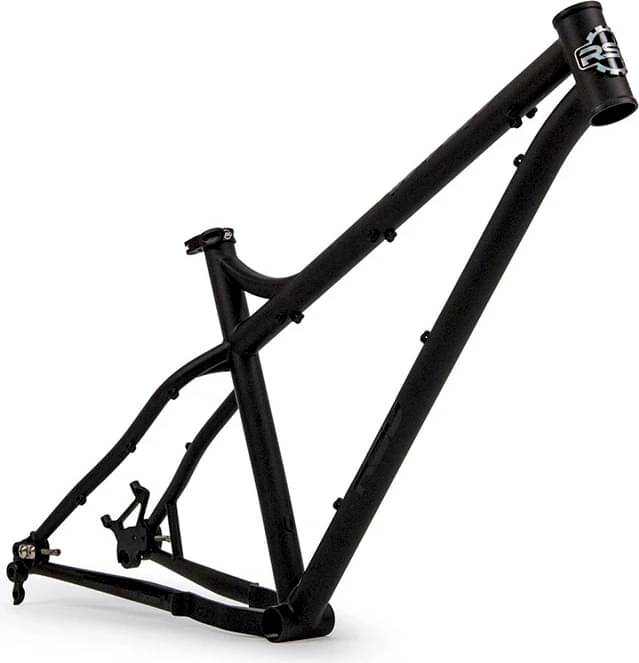

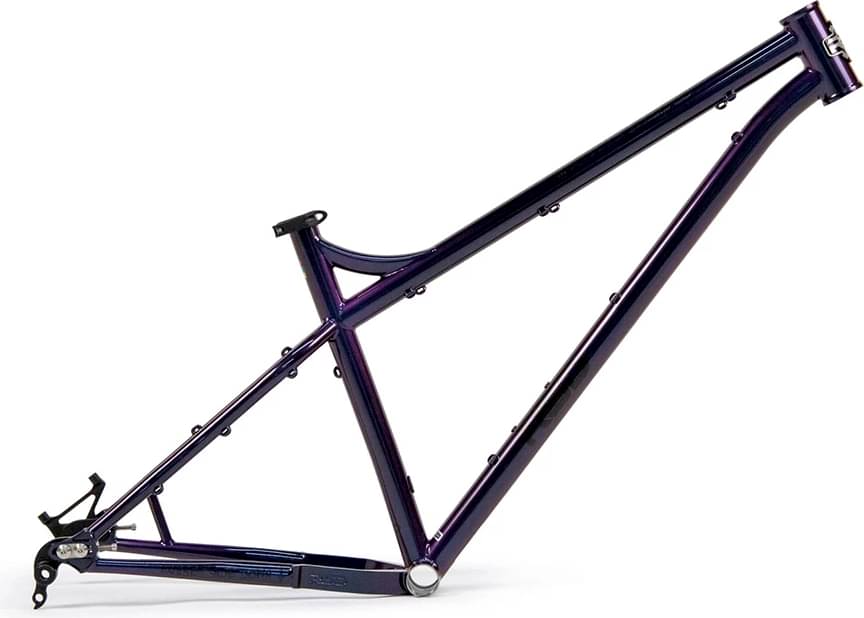

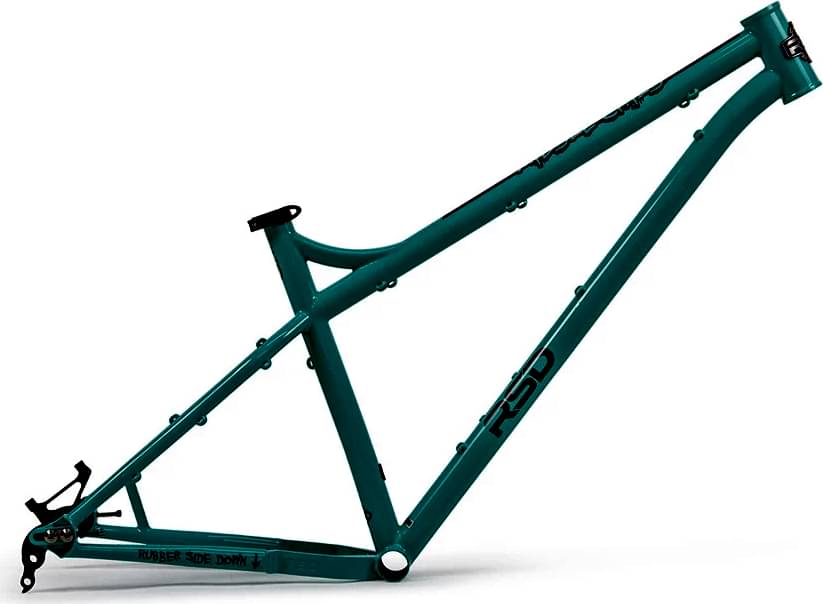

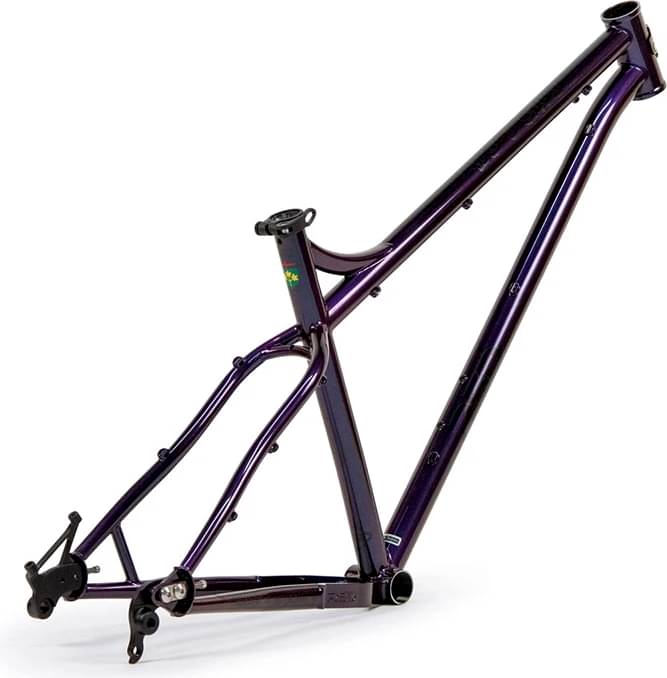

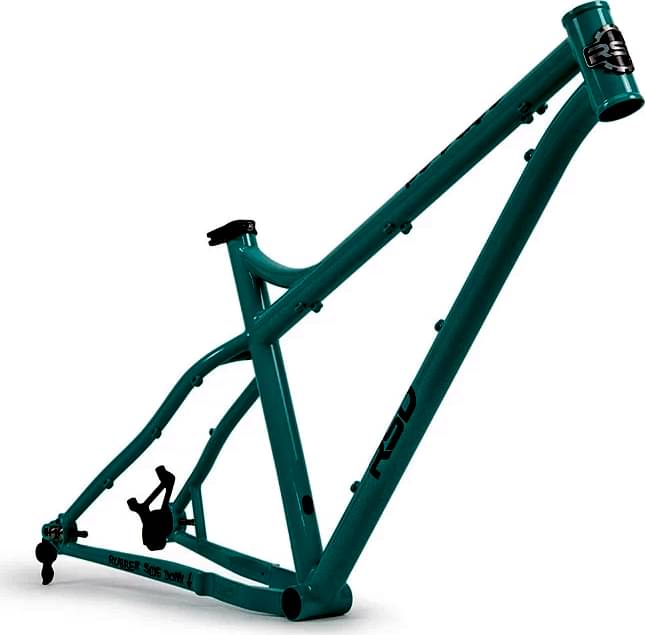

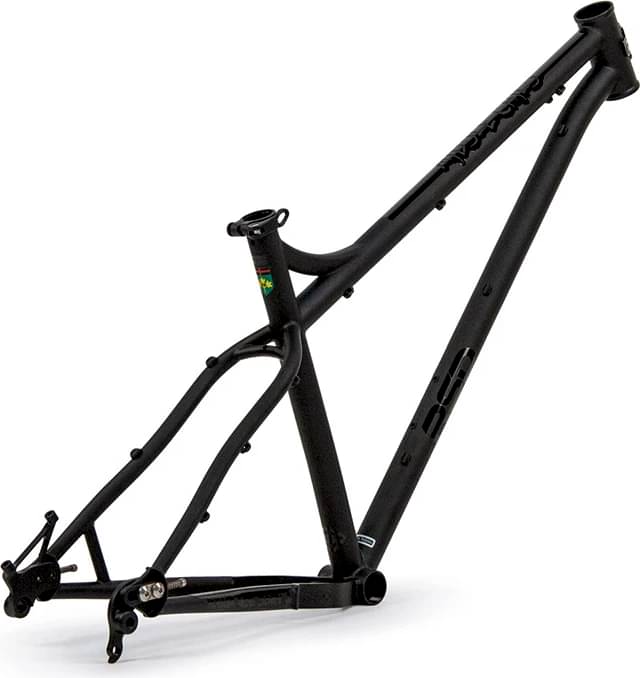

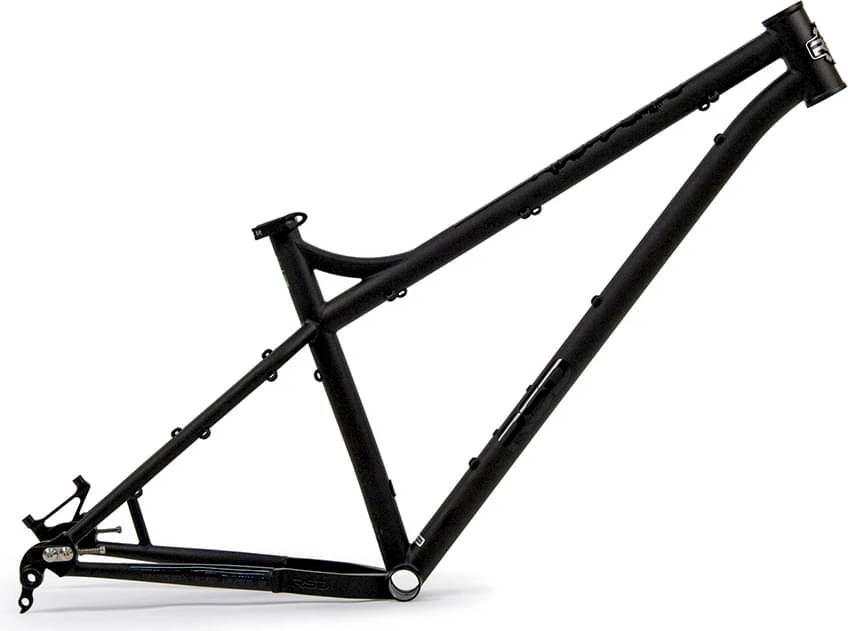

27.5+/29 Cr-Mo 4130 Double Butted and Heat Treated
Suspension Fork
DVO Diamond D2 27.5+/29 140mm 51mm
Drivetrain
Rear Derailleur
Shimano Deore Trigger M6100 Long Cage 12spd
Shift Levers
Shimano Deore Trigger M6100 12spd
Cassette
Shimano Deore M6100 10-51T 12spd
Crank
Race Face Turbine 73mm 175mm
Bottom Bracket
Race Face 73mm BSA
Chain
Shimano Deore M6100 126L 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
Shimano SLX M7120 4 Pistons
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Turbine R 20mm 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek 40 Series ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 130 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 614 mm | 614 mm | 624 mm |
| Reach | 405 mm | 443 mm | 460 mm | 484 mm |
| Top Tube Length | 581 mm | 620 mm | 637 mm | 664 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1147 mm | 1188 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 705 mm | 709 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MIDDLECHILD V2 Chromoly Deore/D2 Build is a Rsd Middlechild model. RSD launched 42 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
RSD MiddleChild V2 Aluminum Deore/D2 Build 2023 is the most economical model, with a starting price of 2899$. RSD MIDDLECHILD V2 Titanium Deore Build 2023 on the other hand costs 4649$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, RSD MIDDLECHILD V2 Chromoly Deore/D2 Build price was 2999$. In conclusion, this bike price is 8.58% higher than the price of the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, RSD MIDDLECHILD V2 Chromoly Deore/D2 Build 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
