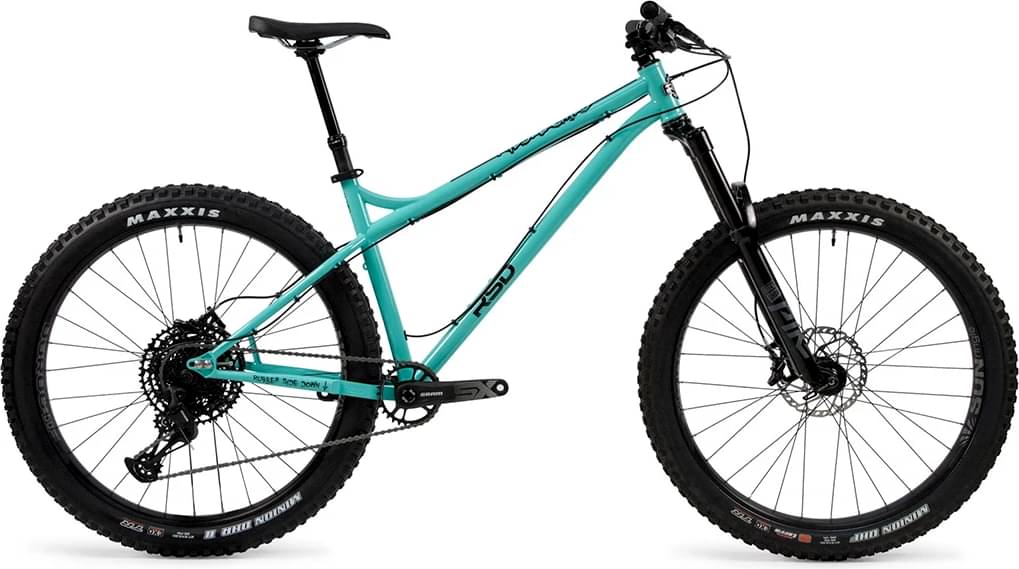

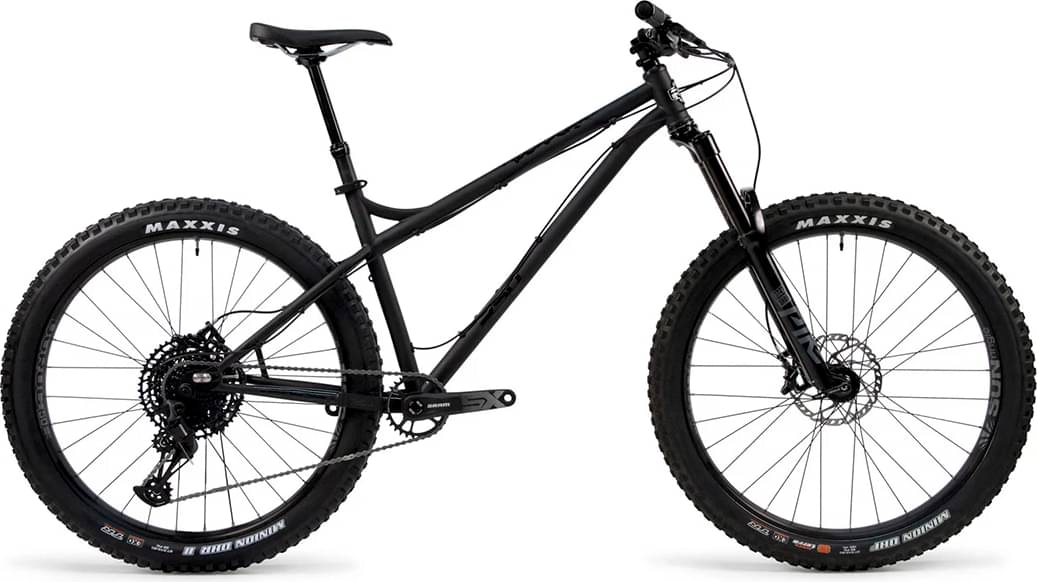

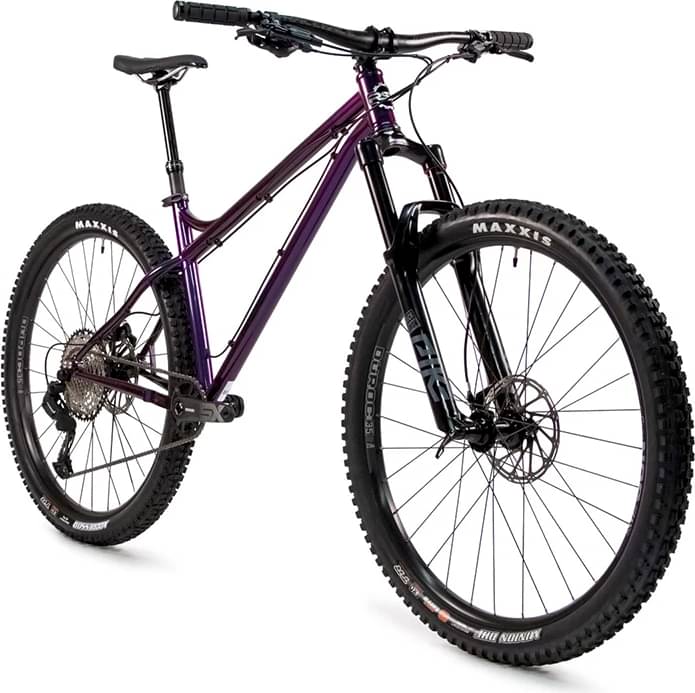

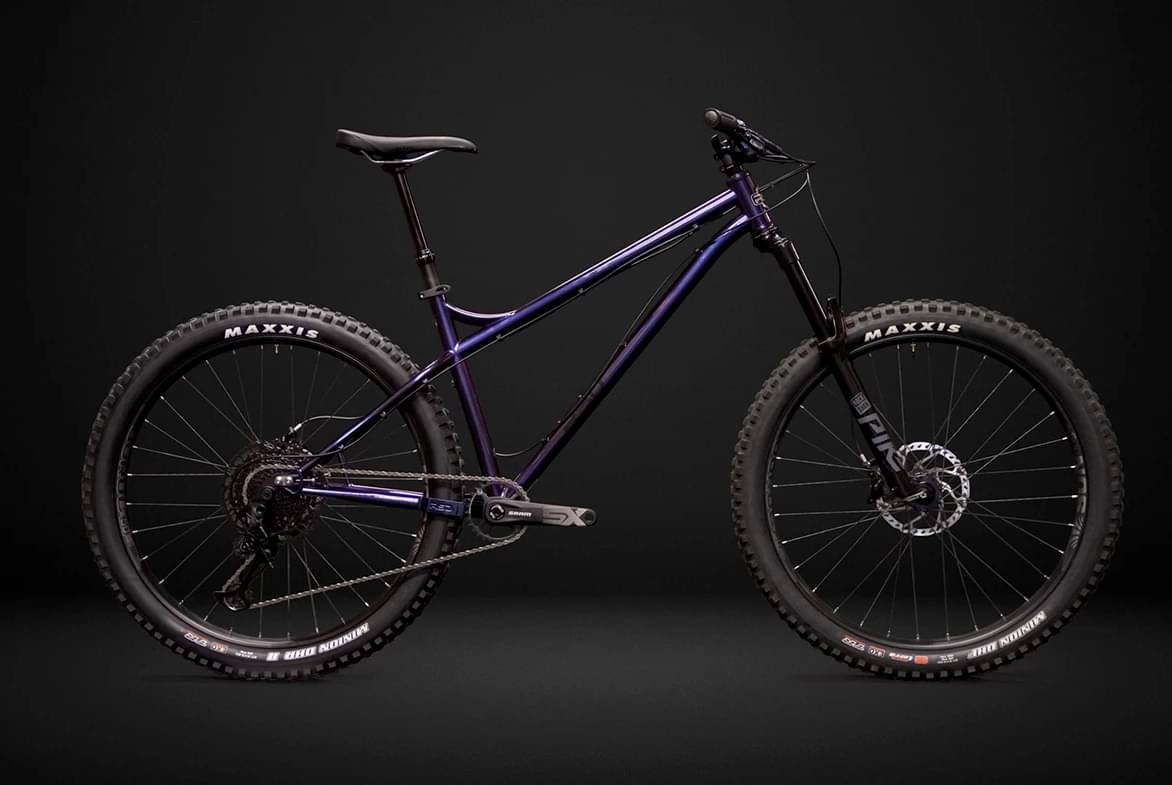

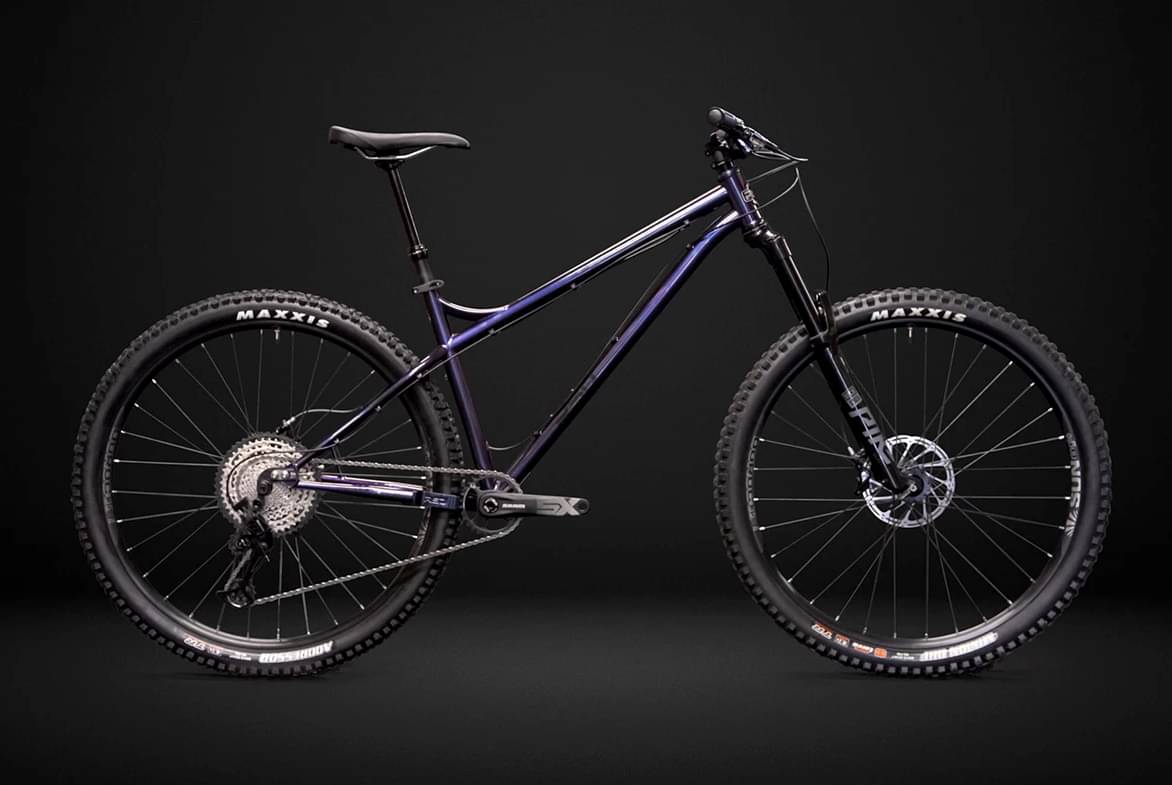

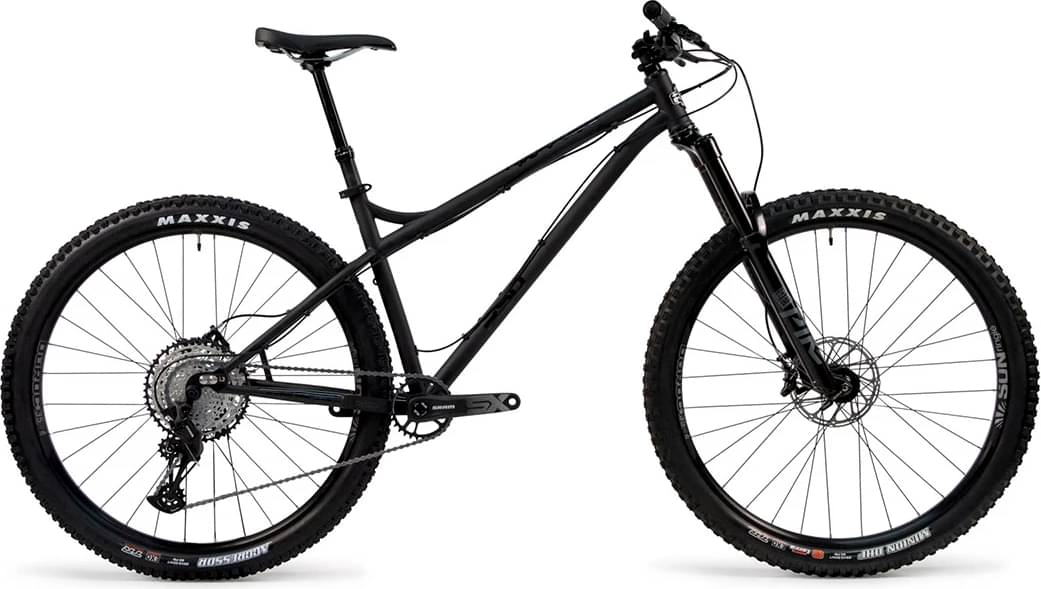

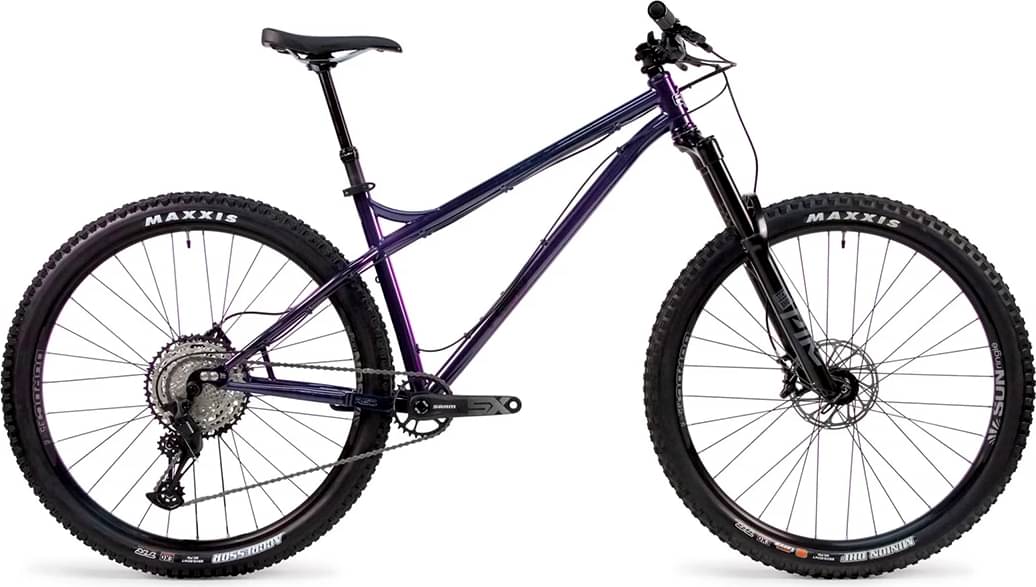

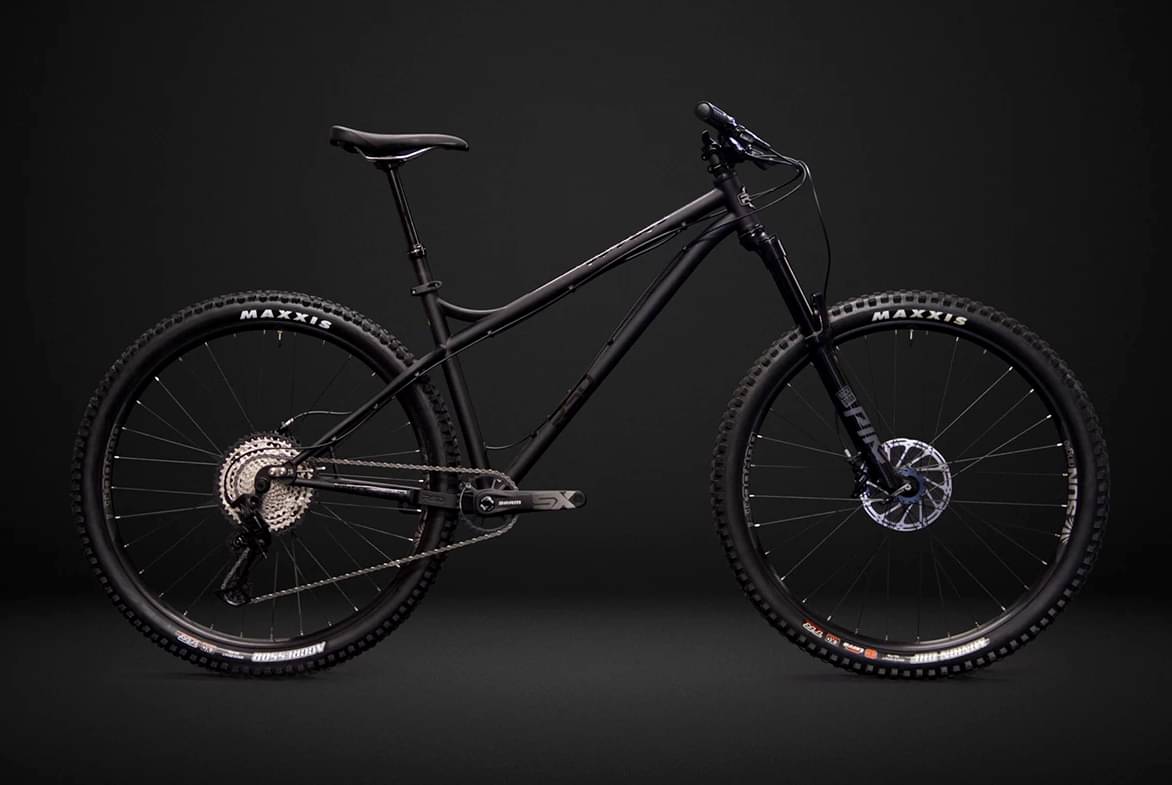

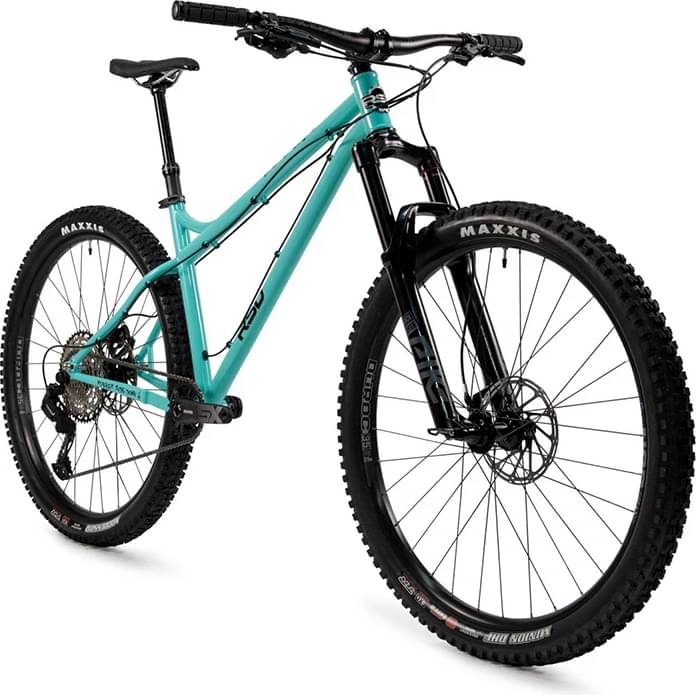

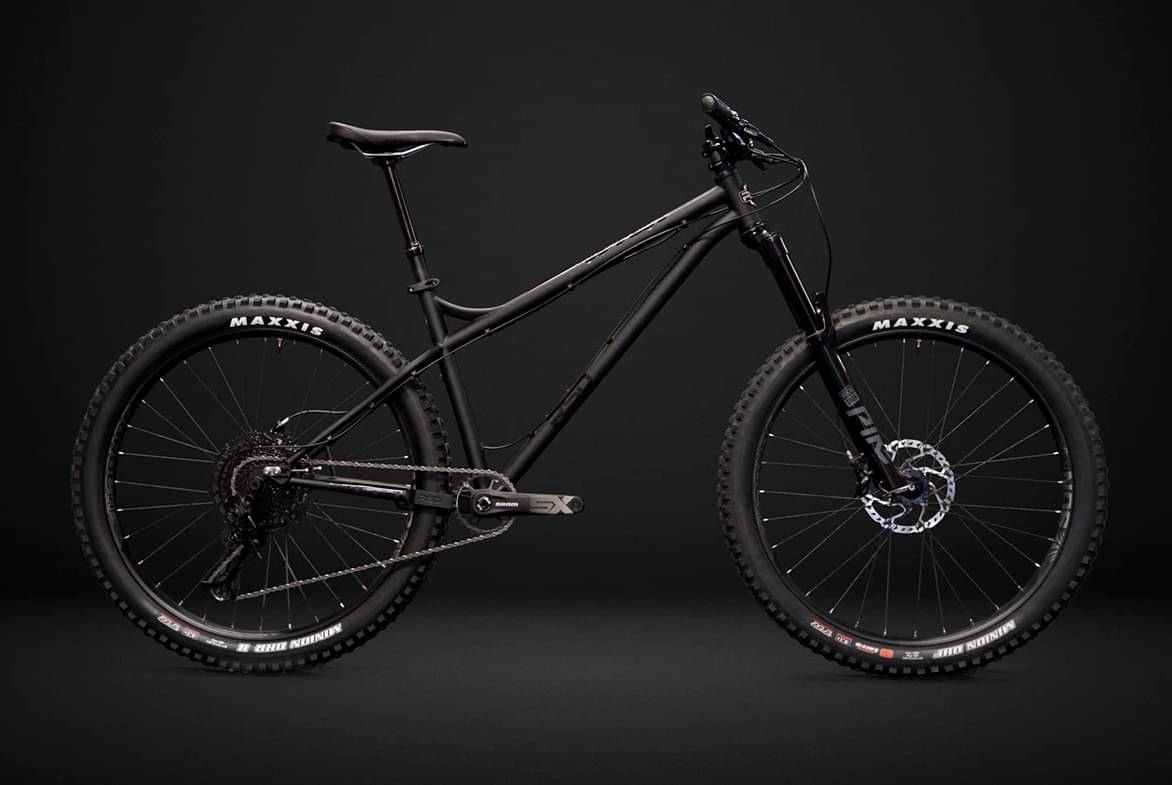

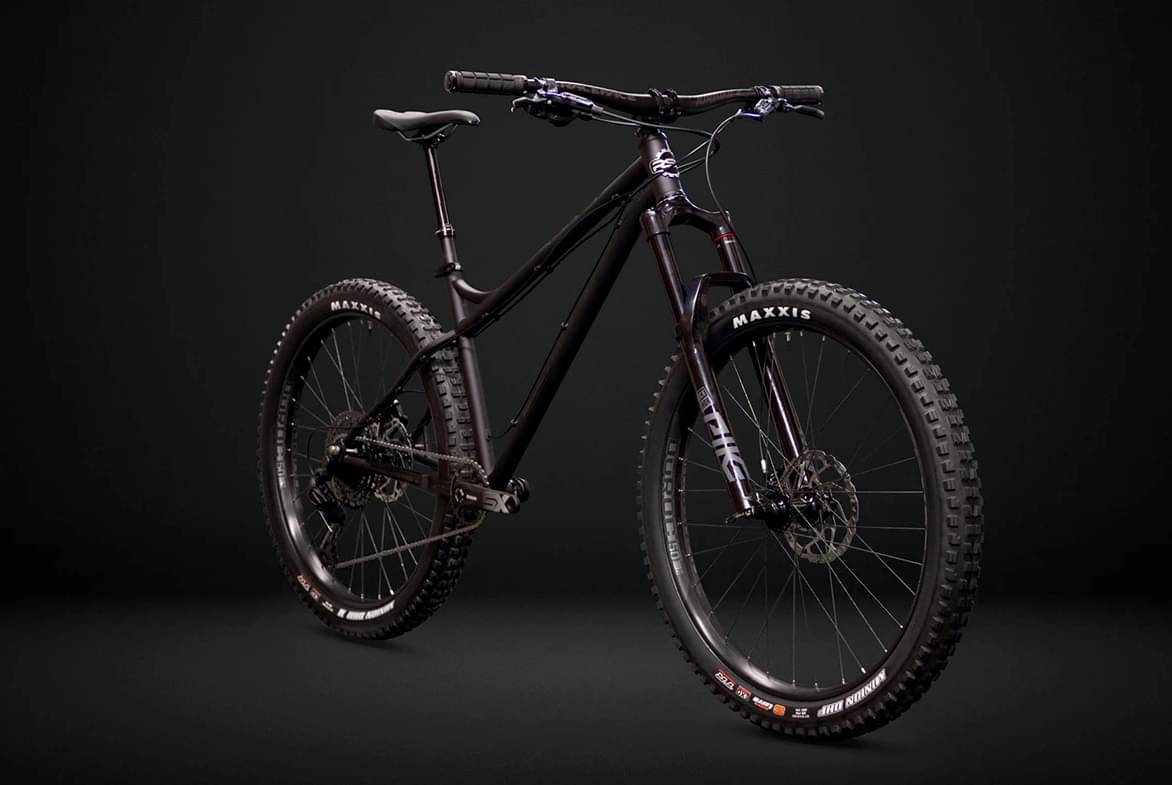

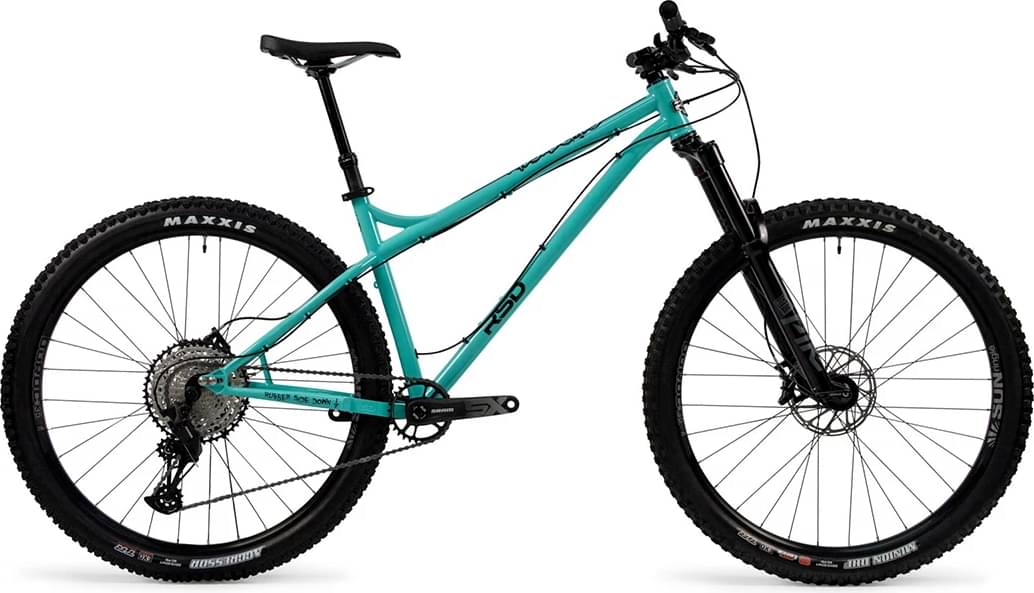

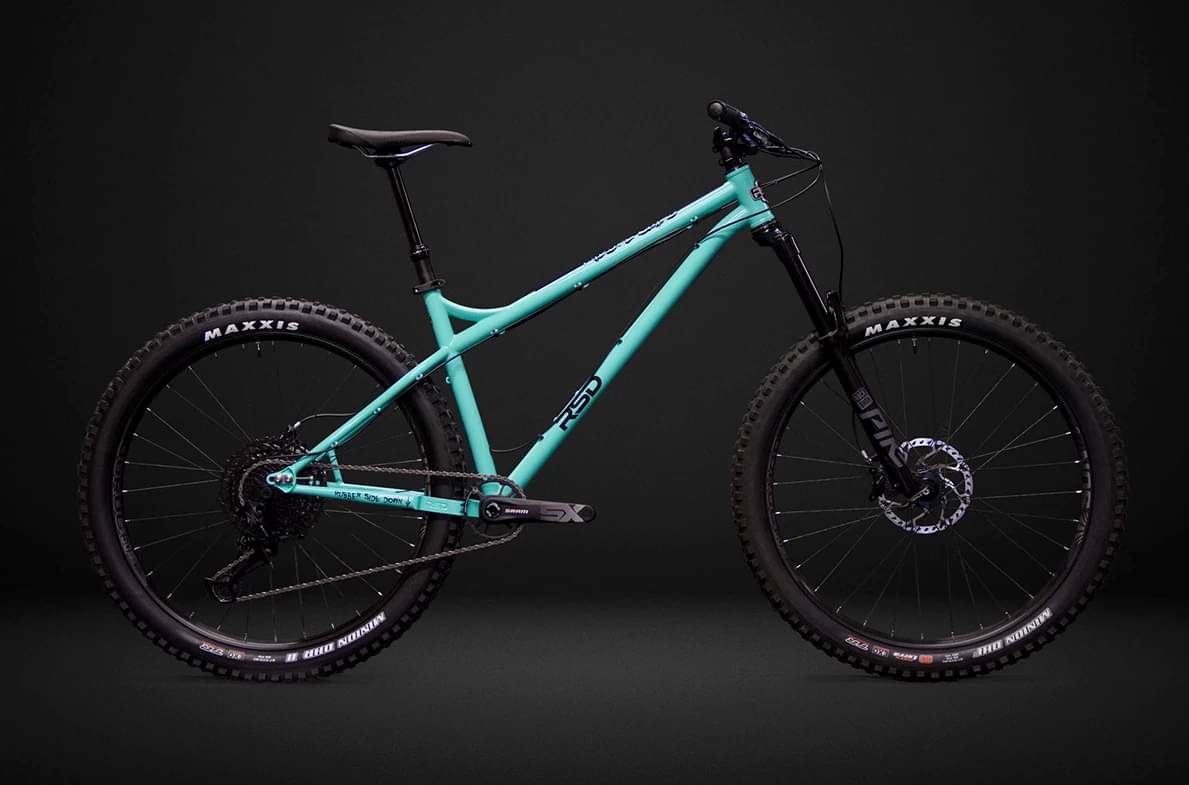

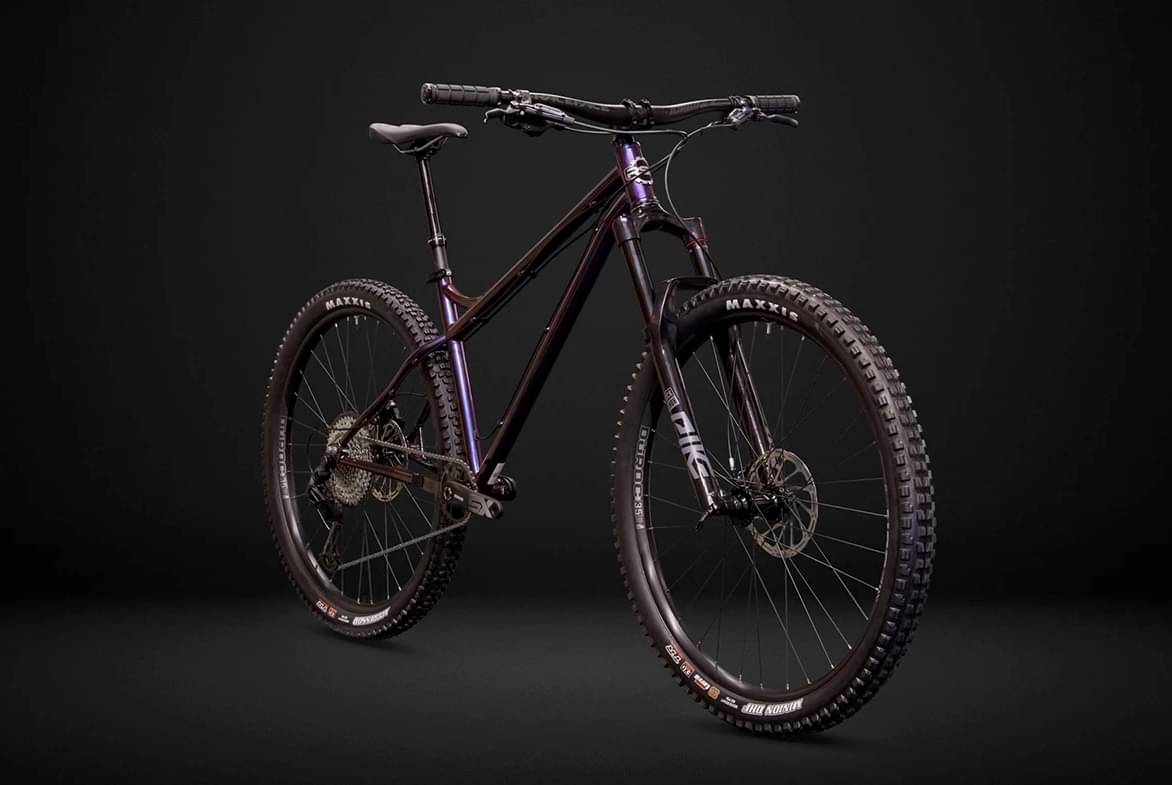

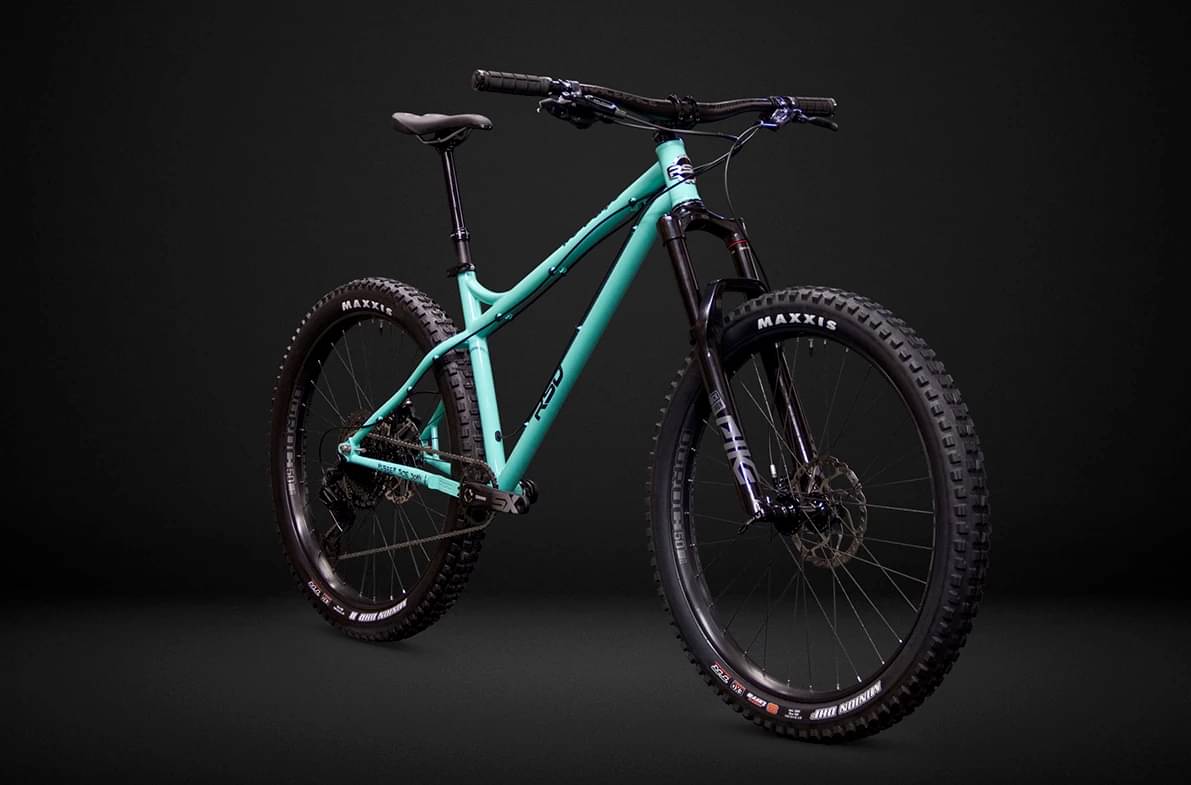

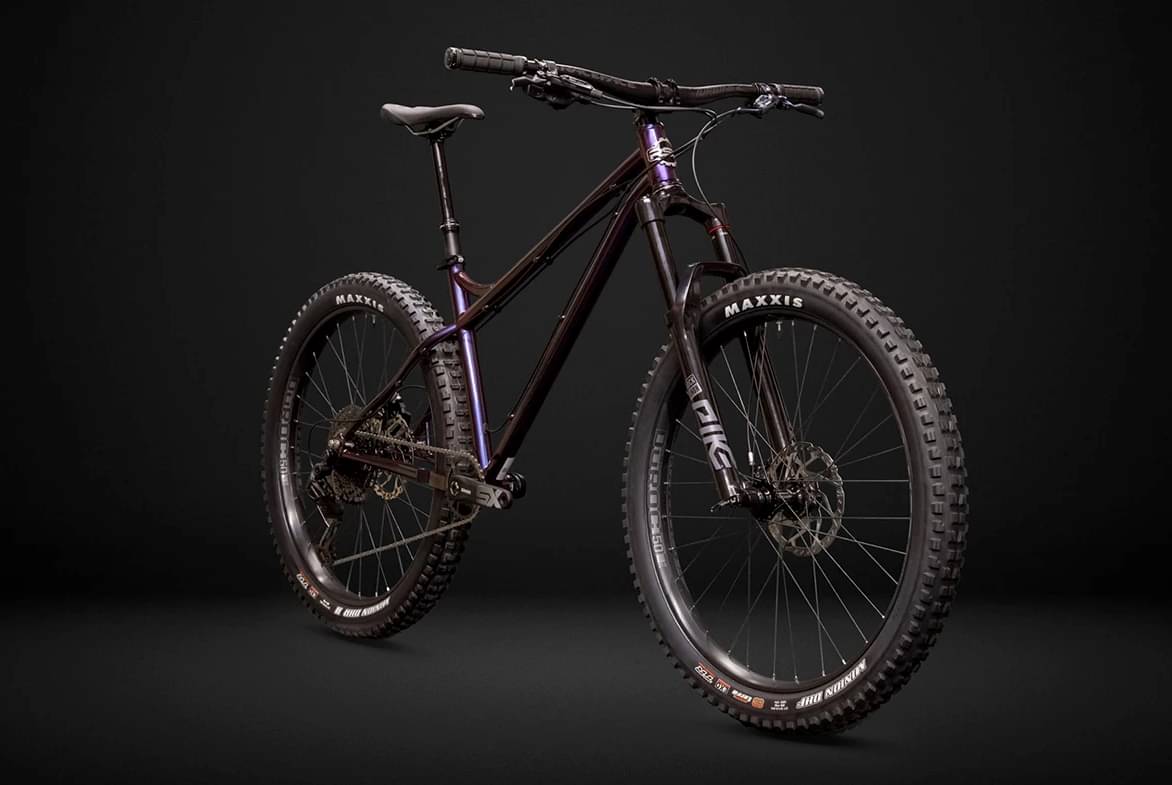

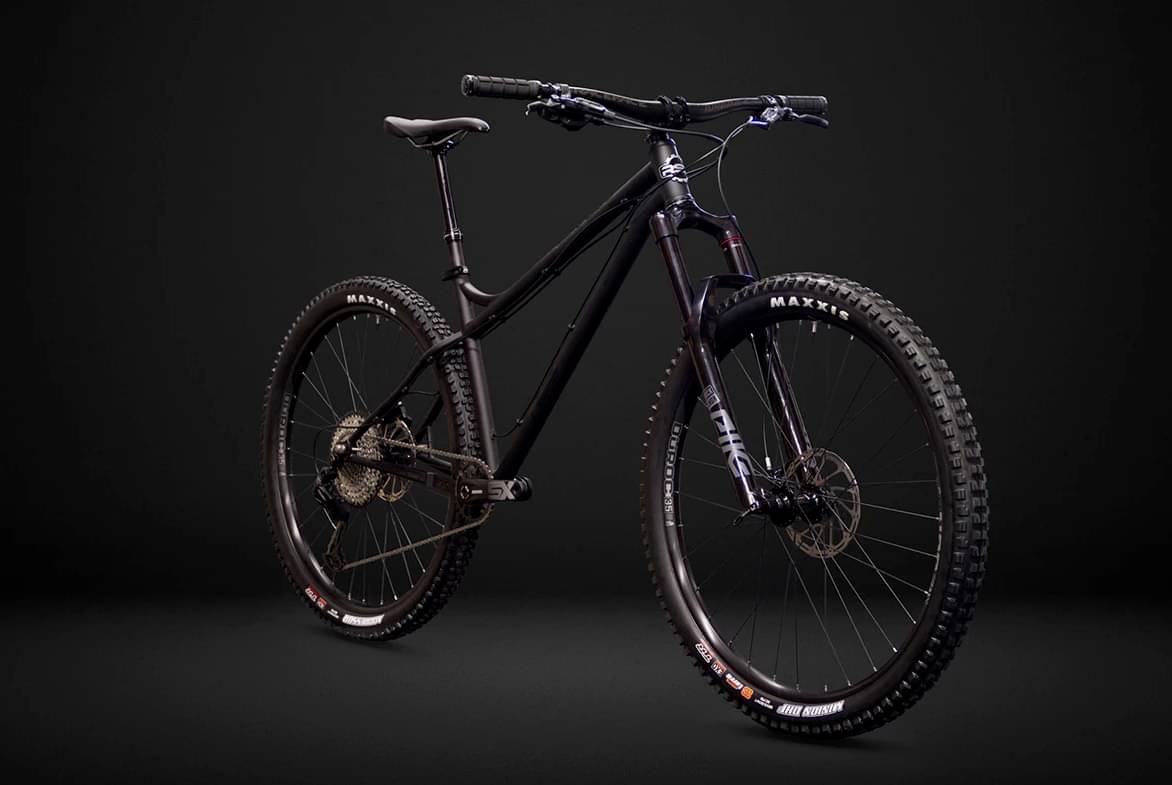

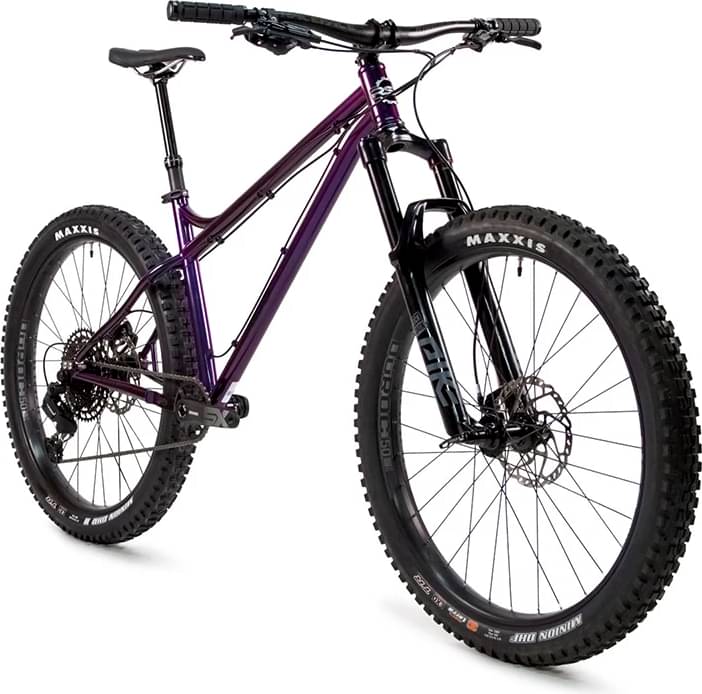

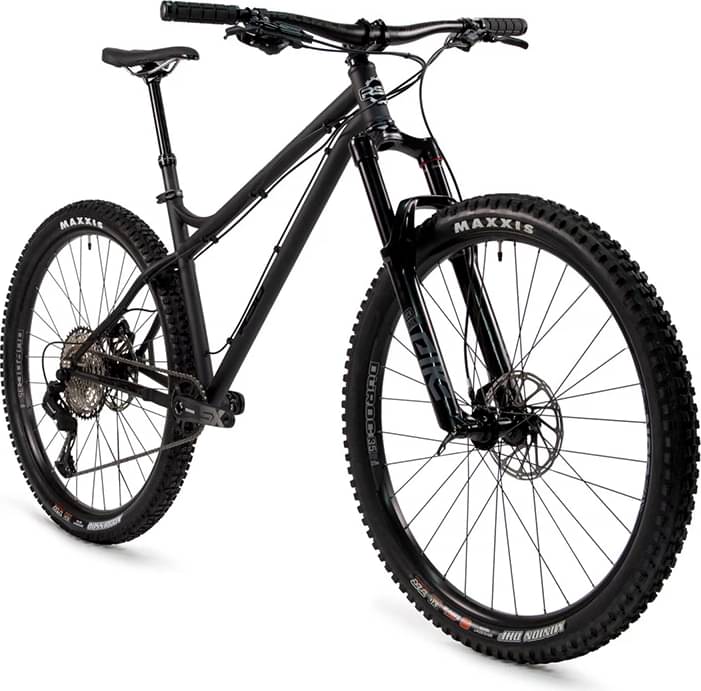

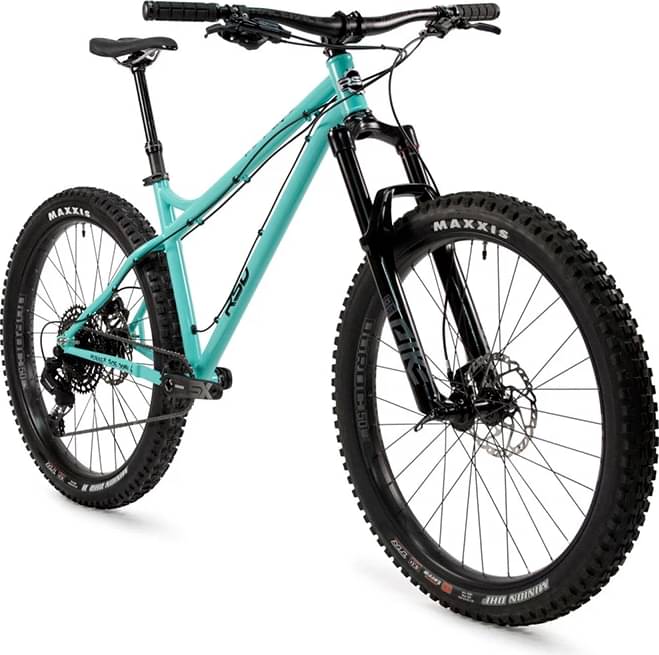

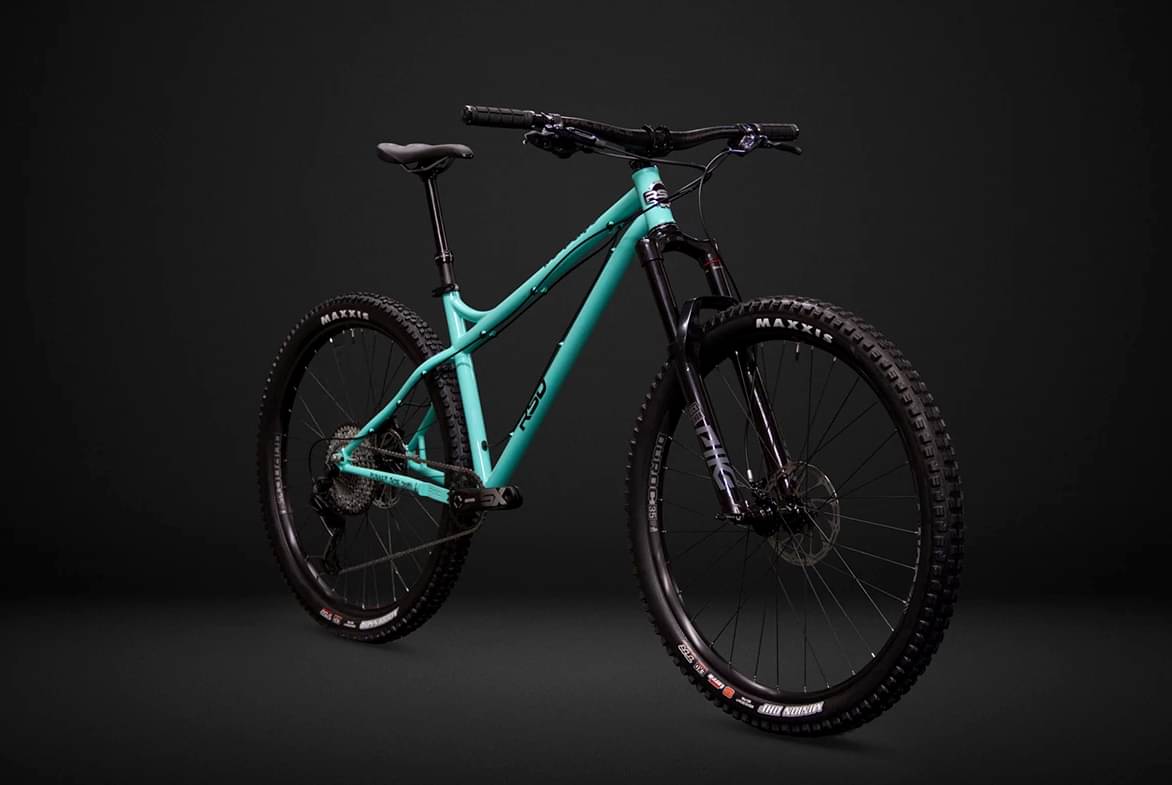

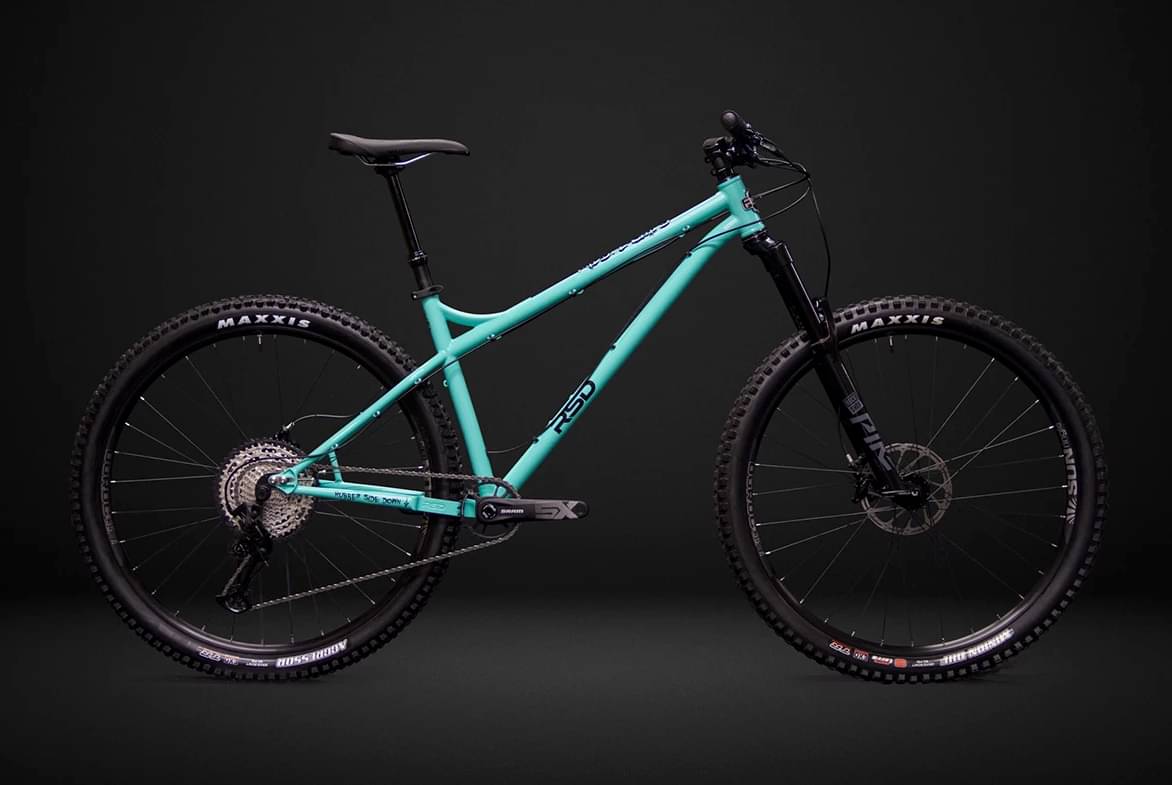

RSD MIDDLECHILD V2 Chromoly SX Build 2023
2023 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

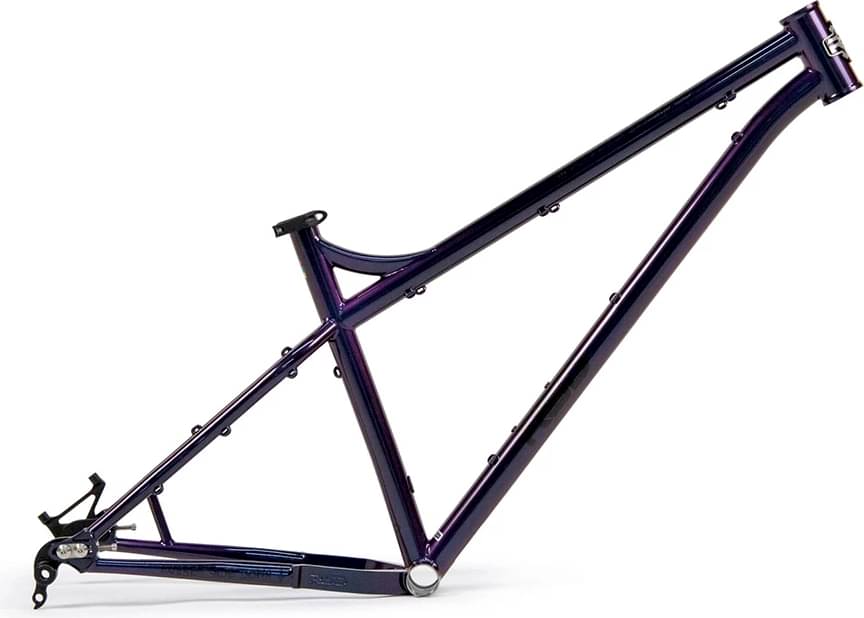

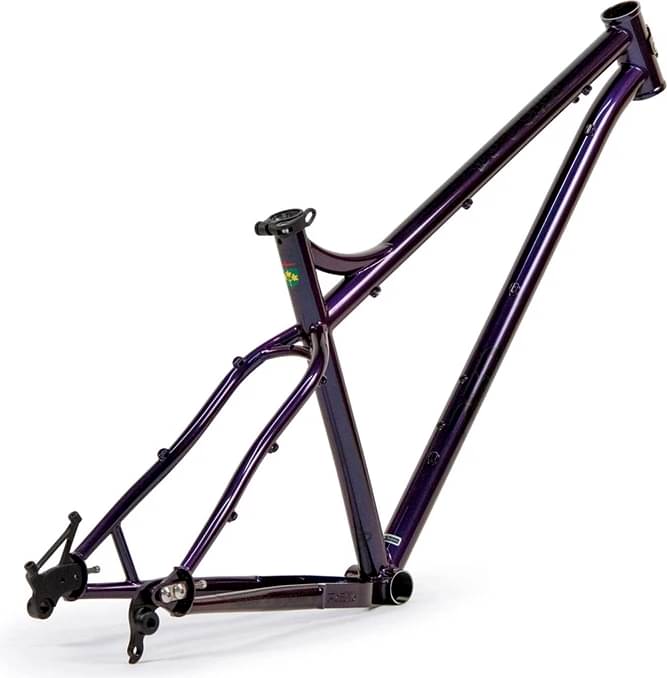

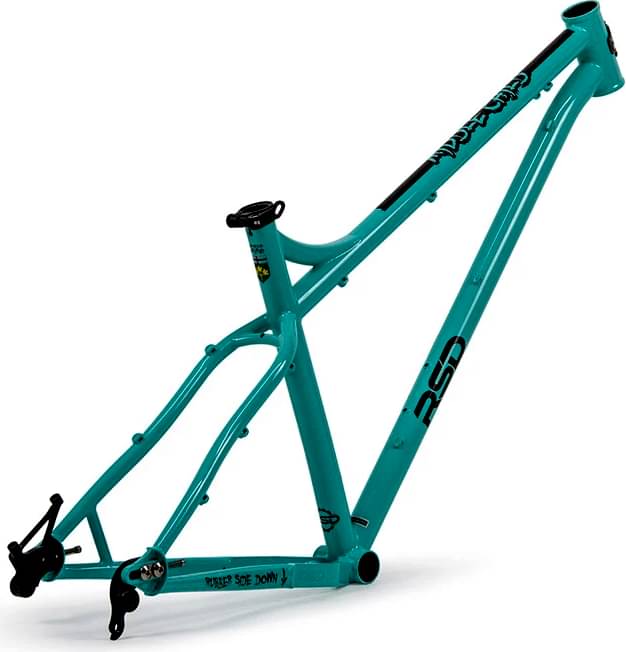

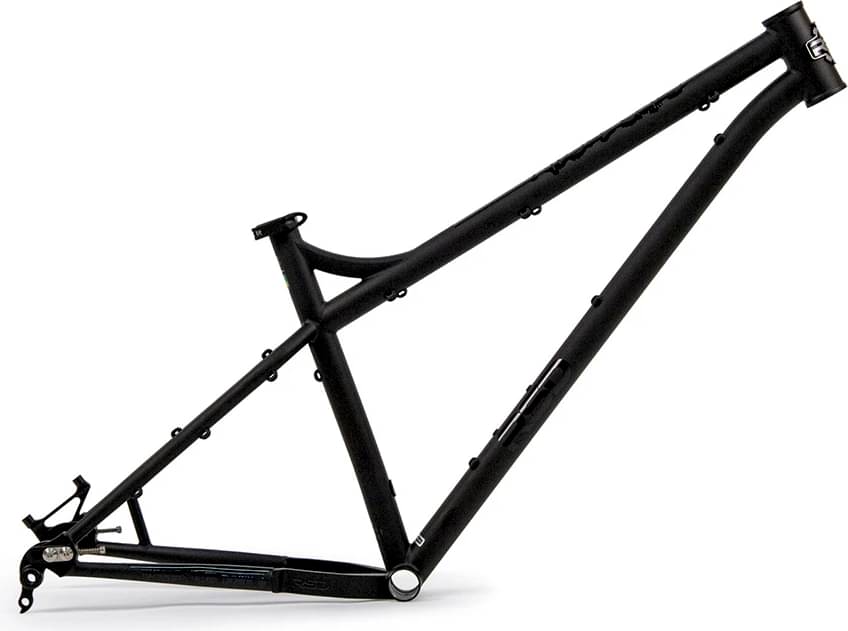

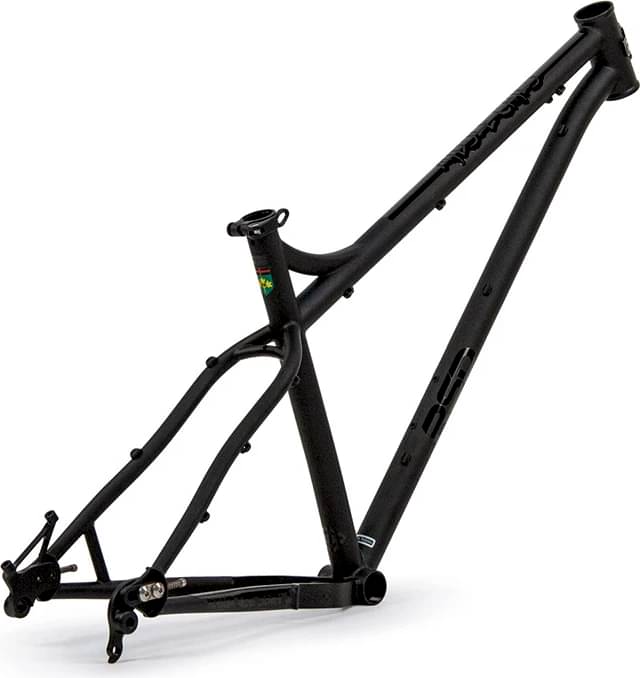

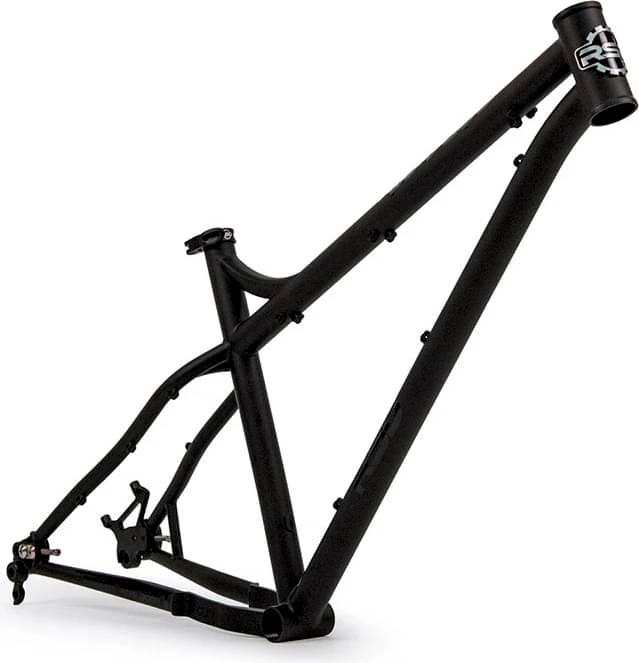

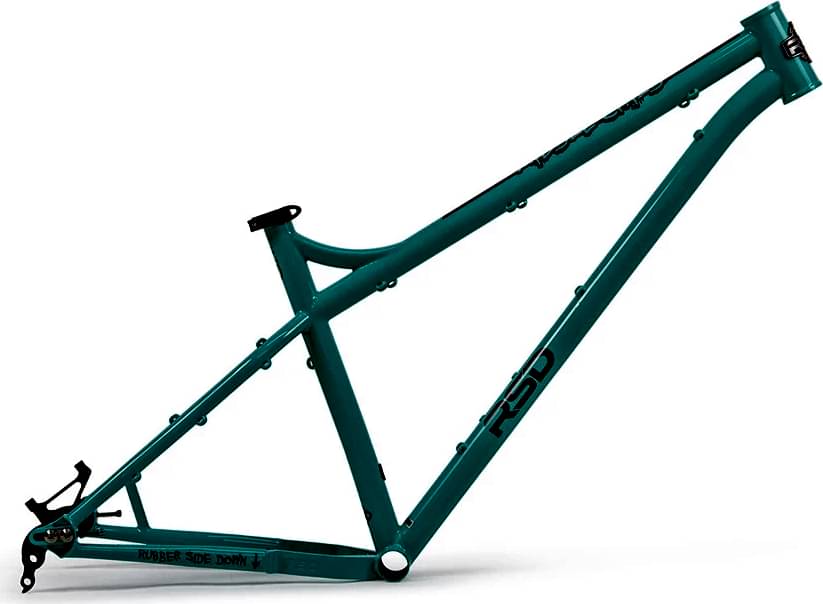

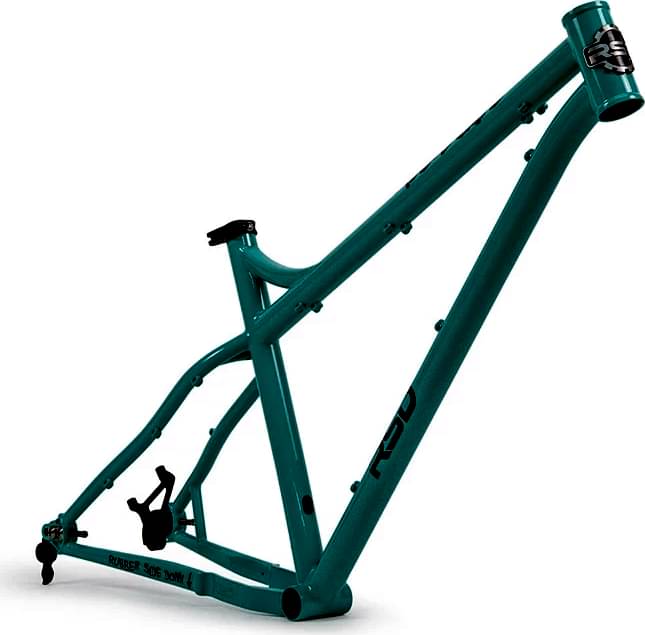

27.5+/29 Cr-Mo 4130 Double Butted and Heat Treated
Suspension Fork
DVO Diamond D3 27.5+/29 140mm 44mm
Drivetrain
Rear Derailleur
SRAM SX Eagle Long Cage 12spd
Shift Levers
SRAM SX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM SX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
SRAM Level T
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
FSA Orbit ITA ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 130 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 614 mm | 614 mm | 624 mm |
| Reach | 405 mm | 443 mm | 460 mm | 484 mm |
| Top Tube Length | 581 mm | 620 mm | 637 mm | 664 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1147 mm | 1188 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 705 mm | 709 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MIDDLECHILD V2 Chromoly SX Build is part of the Rsd Middlechild model. 42 bikes variations carry this model name so far. Take a sneak peek at all Rsd Middlechild bikes models from 2023, by clicking here.
Model range prices
RSD MiddleChild V2 Aluminum Deore/D2 Build 2023 is the most affordable bike of this model and has a price of 2899$. On the other hand, RSD MIDDLECHILD V2 Titanium Deore Build 2023, is the most expensive and costs 4649$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. In conclusion, this bike price is 8.58% more expensive than the price of the average Trail bike.
MIDDLECHILD V2 Chromoly SX Build components
Fork
RSD MIDDLECHILD V2 Chromoly SX Build 2023 bike is equipped with the DVO Diamond fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The MIDDLECHILD V2 Chromoly SX Build 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. RSD MIDDLECHILD V2 Chromoly SX Build has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
RSD MIDDLECHILD V2 Chromoly SX Build bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
