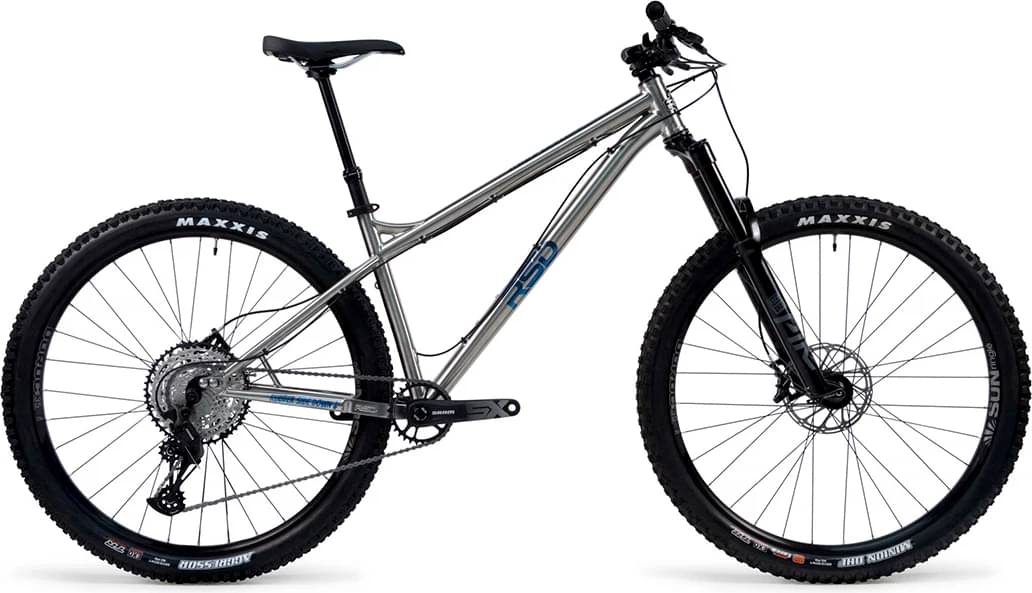

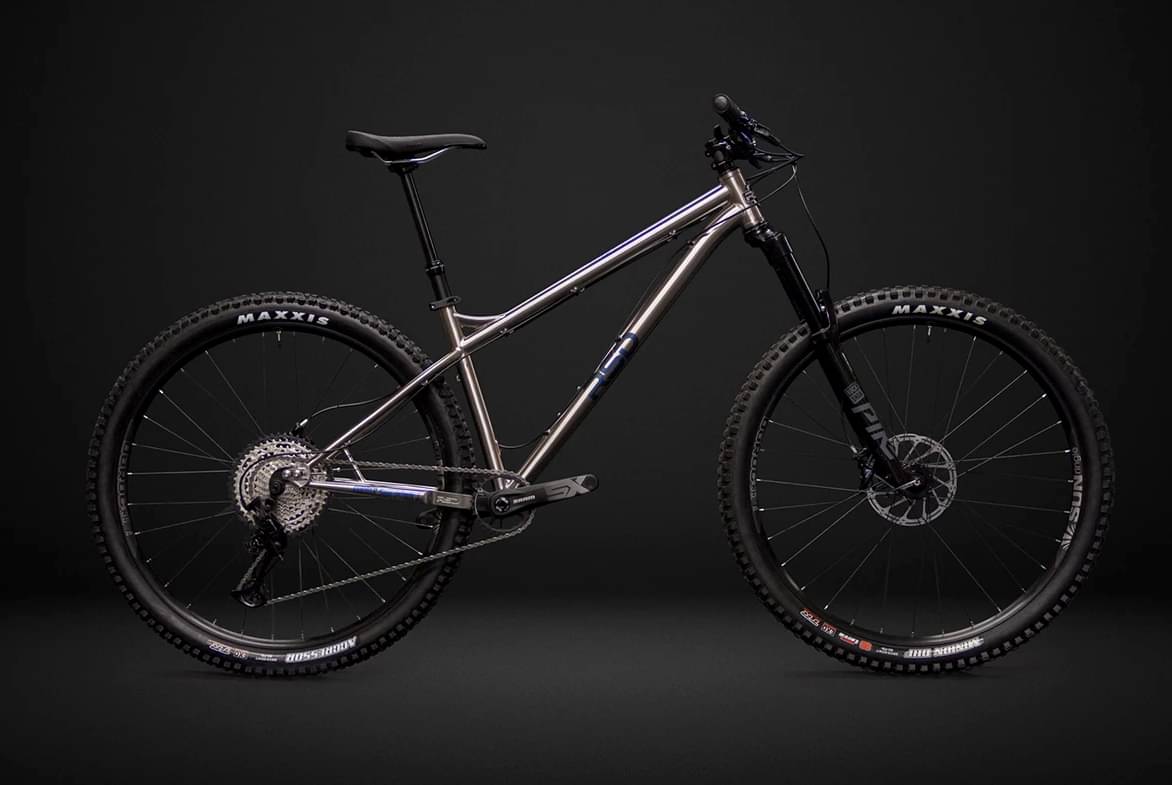

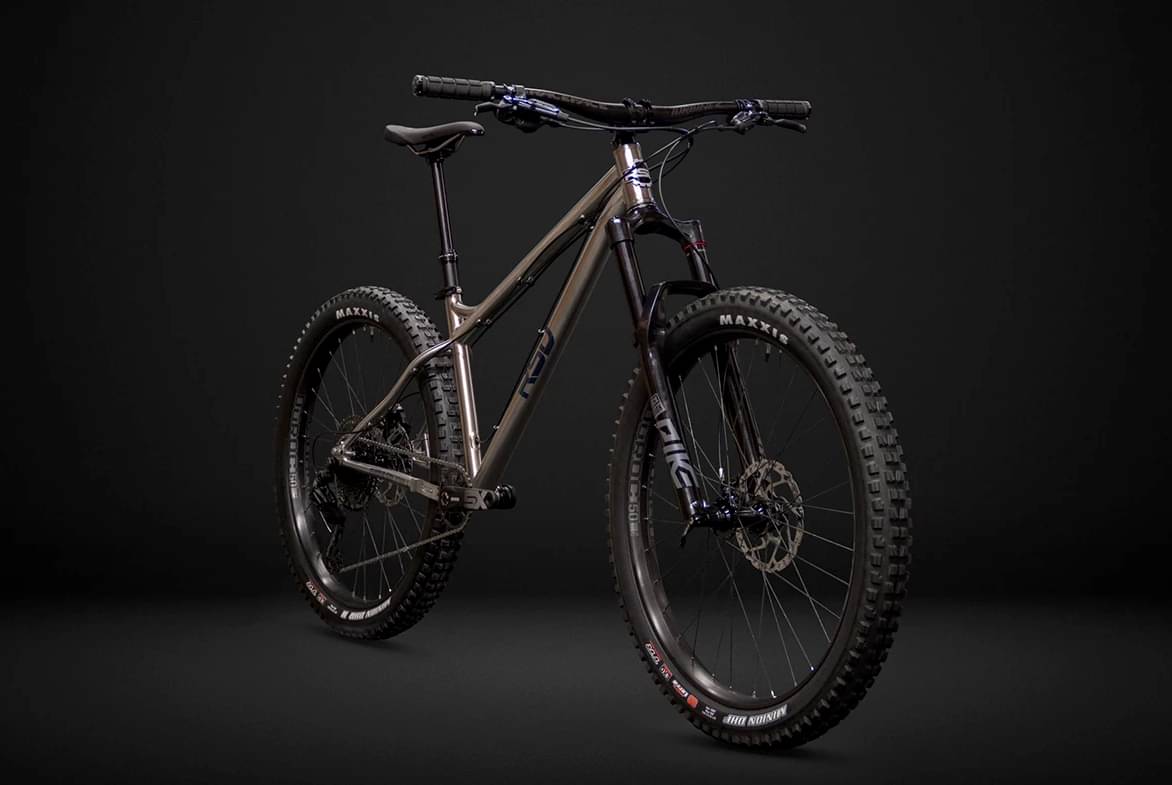

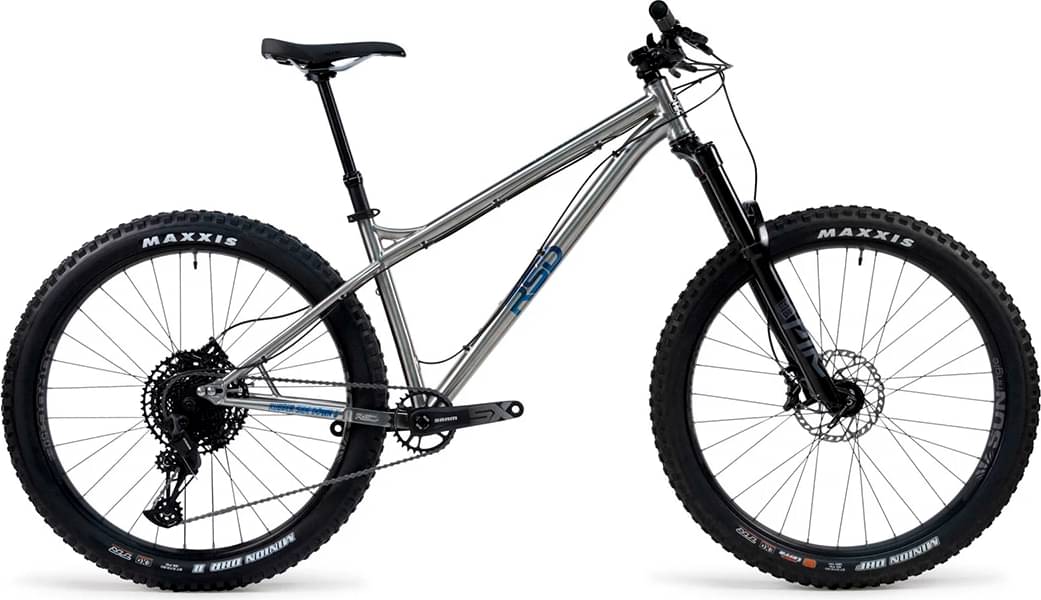

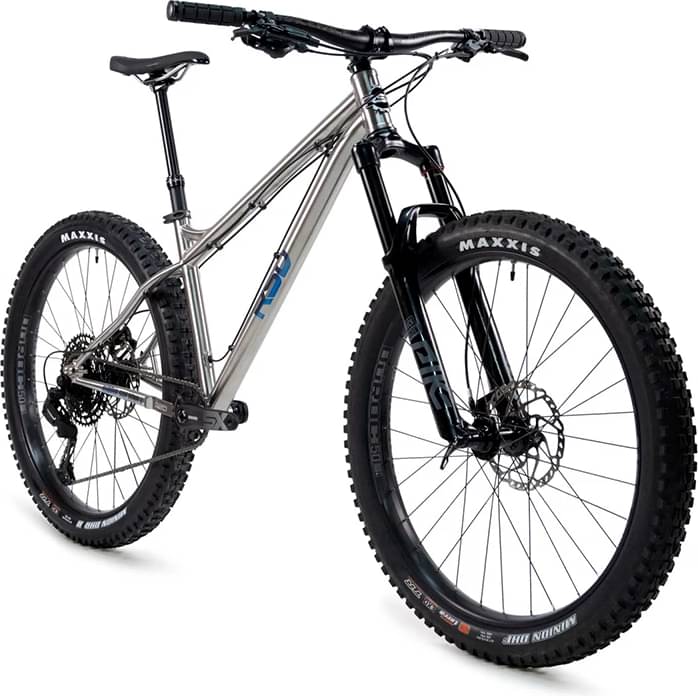

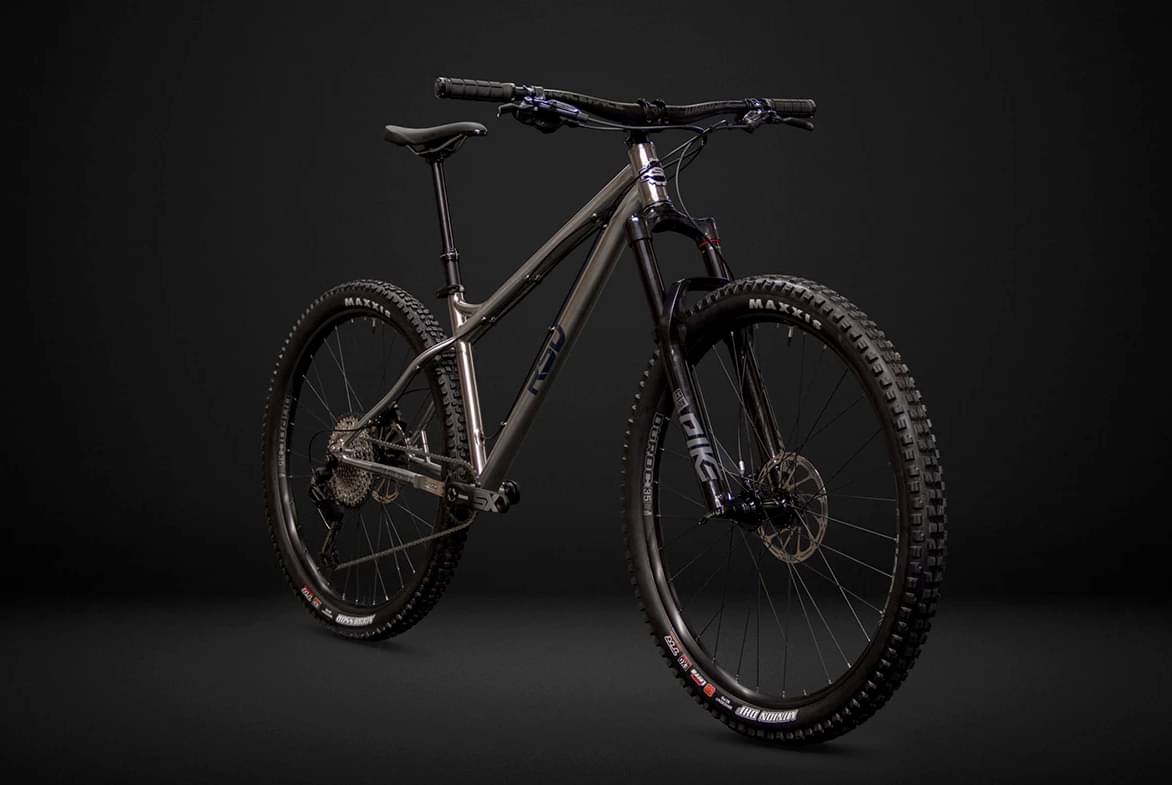

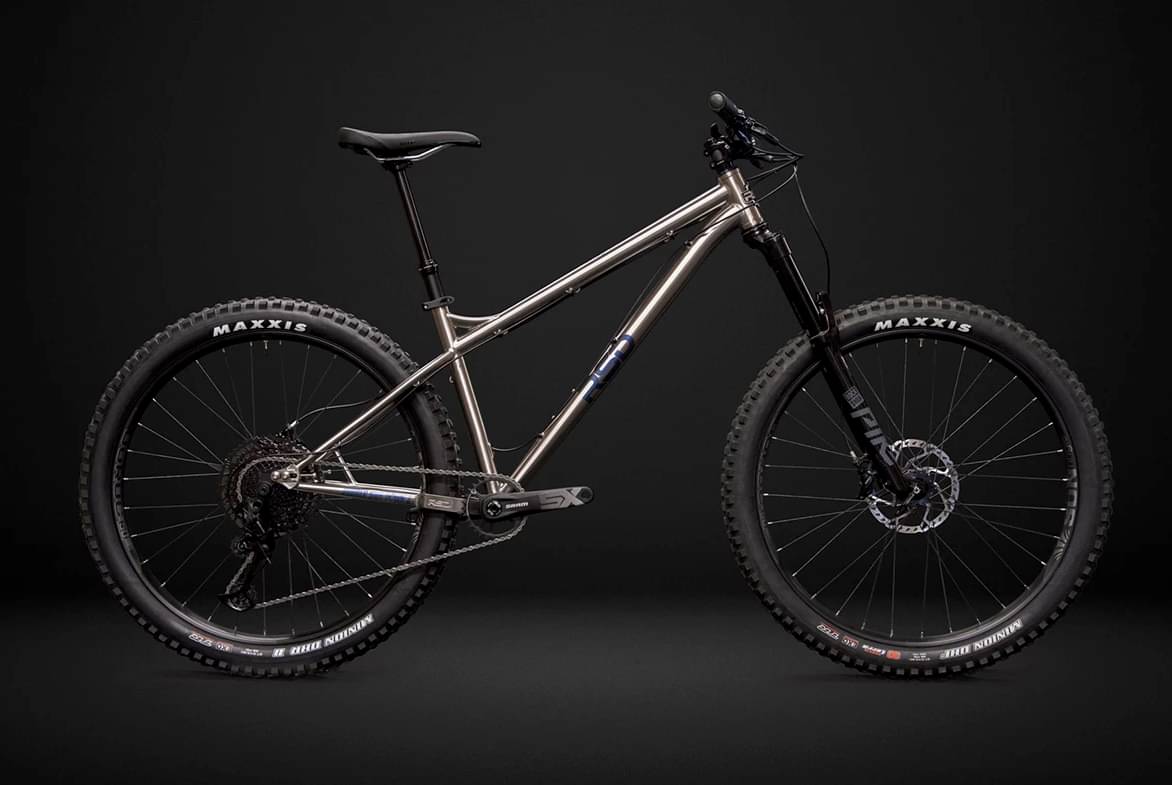

RSD MIDDLECHILD V2 Titanium GX/D3 Build 2023
2023 Mountain
Estimate price |
4,649$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 140mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

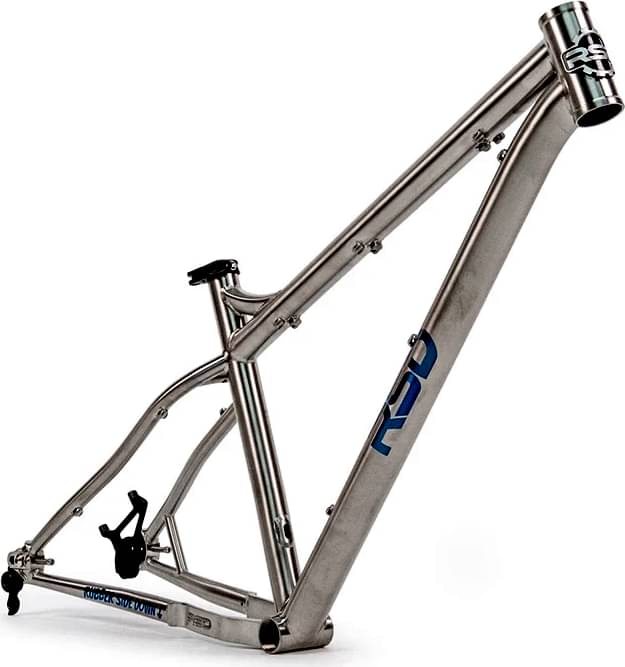

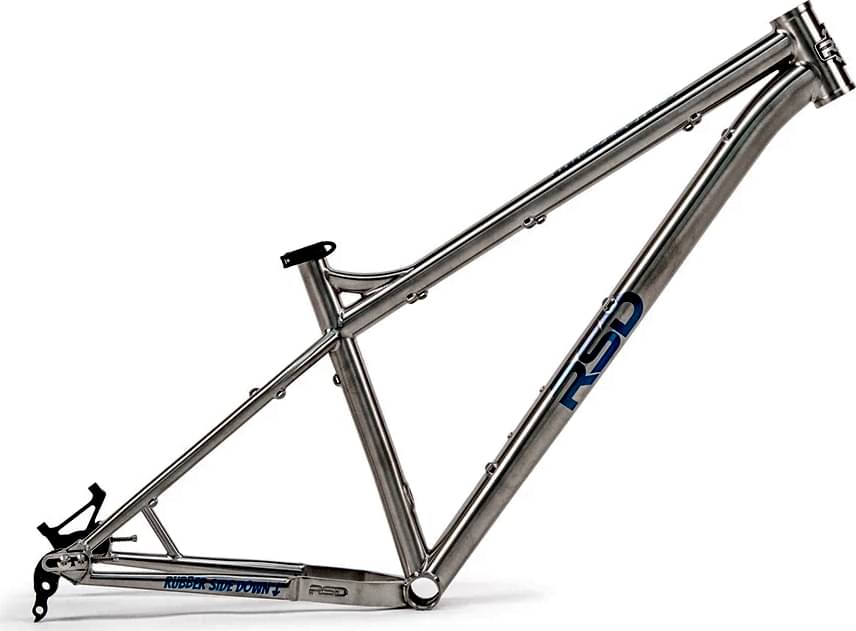

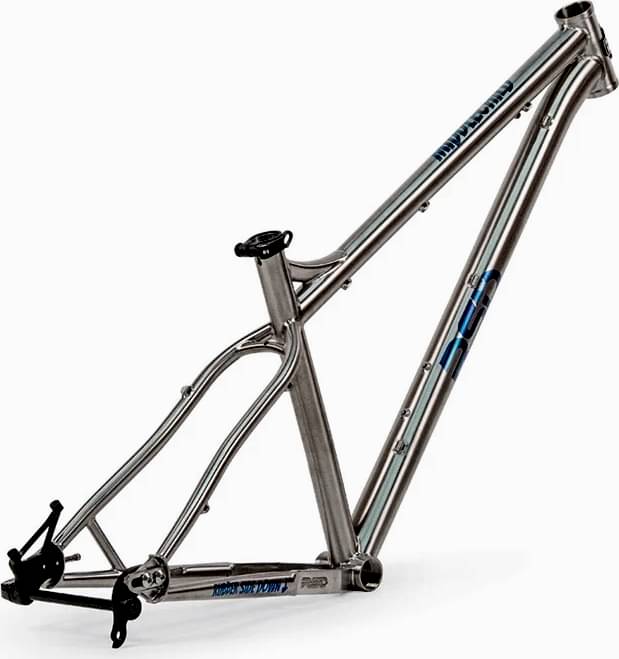

27.5+/29 Titanium Butted and Heat Treated
Suspension Fork
DVO Diamond D3 27.5+/29 140mm 44mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Long Cage 12spd
Shift Levers
SRAM GX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM GX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 425mm)
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Race Face Aeffect 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
FSA Orbit ITA ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 740 mm | 781 mm | 798 mm | 826 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 130 mm | 123 mm | 123 mm | 123 mm |
| Stack | 605 mm | 614 mm | 614 mm | 624 mm |
| Reach | 405 mm | 443 mm | 460 mm | 484 mm |
| Top Tube Length | 581 mm | 620 mm | 637 mm | 664 mm |
| Seat Tube Angle | 73.6 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 1147 mm | 1188 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 690 mm | 705 mm | 709 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MIDDLECHILD V2 Titanium GX/D3 Build is a Rsd Middlechild model. 42 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
RSD MiddleChild V2 Aluminum Deore/D2 Build 2023 is the most affordable bike of this model and has a price of 2899$. On the other hand, RSD MIDDLECHILD V2 Titanium Deore Build 2023, is the most expensive and costs 4649$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 4649$. Comparing the average cost of a Trail bike to this one, you will see that MIDDLECHILD V2 Titanium GX/D3 Build price is 68.32% more expensive.
Overview of components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The MIDDLECHILD V2 Titanium GX/D3 Build 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The MIDDLECHILD V2 Titanium GX/D3 Build has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MIDDLECHILD V2 Titanium GX/D3 Build comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
