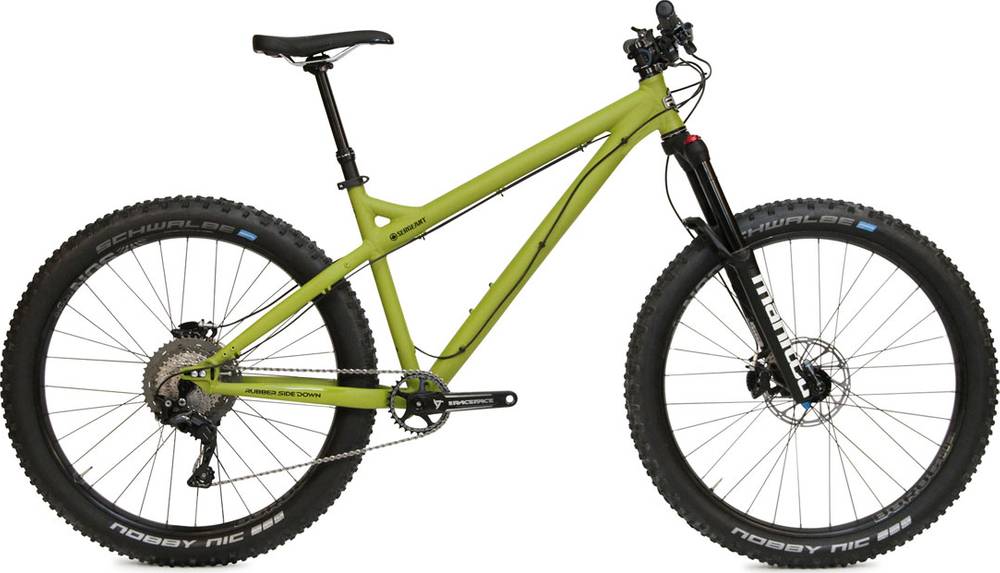

RSD SERGEANT V3 Aluminum 2020
2020 Mountain
Estimate price |
1,999$
Weight | 13.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork Manitou Mattoc Comp
-
Groupset SLX, Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Aluminum 6061
Suspension Fork
Manitou Mattoc 27.5+/29 140mm Comp
Drivetrain
Rear Derailleur
Shimano SLX 11spd
Shift Levers
Shimano SLX 11spd
Cassette
Shimano XT 11/46T 11spd
Crank
Race Face 175mm Cinch 149mm DM
Bottom Bracket
Race Face 83mm BSA
Chain
KMC X11SL
Wheels
Rims
Sun Ringle Duroc 27.5x50mm Front 15x110mm Boost
Tires
Schwalbe Nobby Nic 27.5 x 3.0 Addix Evolution Speedgrip
Brakes
Brakes
Shimano SLX 2 Pistons
Disk Rotors
Shimano SLX 180mm
Cockpit
Stem
Race Face 35mm Aeffect 50mm
Handlebar
Race Face 35mm Turbine R 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek ZS-44
Seat
Saddle
WTB Volt Comp
Seatpost
Race Face Turbine / KS Lev Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.37 mm | 1.35 mm | 1.36 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 727 mm | 773 mm | 790 mm | 809 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 71 mm | 73 mm | 73 mm | 73 mm |
| Stack | 605 mm | 615 mm | 625 mm | 643 mm |
| Reach | 406 mm | 449 mm | 462 mm | 473 mm |
| Top Tube Length | 582 mm | 627 mm | 643 mm | 659 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1162 mm | 1208 mm | 1225 mm | 1244 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 674 mm | 692 mm | 703 mm | 722 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SERGEANT V3 Aluminum is part of the Rsd Sergeant model. RSD launched 16 bikes of this model so far. Take a sneak peek at all Rsd Sergeant bikes models from 2020, by clicking here.
Model range prices
RSD SERGEANT V3 Aluminum Adventure Build 2020 is the most economical model, with a starting price of 1699$. RSD SERGEANT V3 Aluminum 2020 on the other hand costs 1999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1999$. Comparing this to the average Trail bike price, we see that the price is 38.17% smaller.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, SERGEANT V3 Aluminum has a weight of 13.55 kg (29.87 lbs). In other words, this model is 4.39% heavier than the average Trail bike.
SERGEANT V3 Aluminum components
Fork
RSD SERGEANT V3 Aluminum 2020 bike is equipped with the Manitou Mattoc Comp fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, RSD SERGEANT V3 Aluminum 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SERGEANT V3 Aluminum comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The RSD model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
