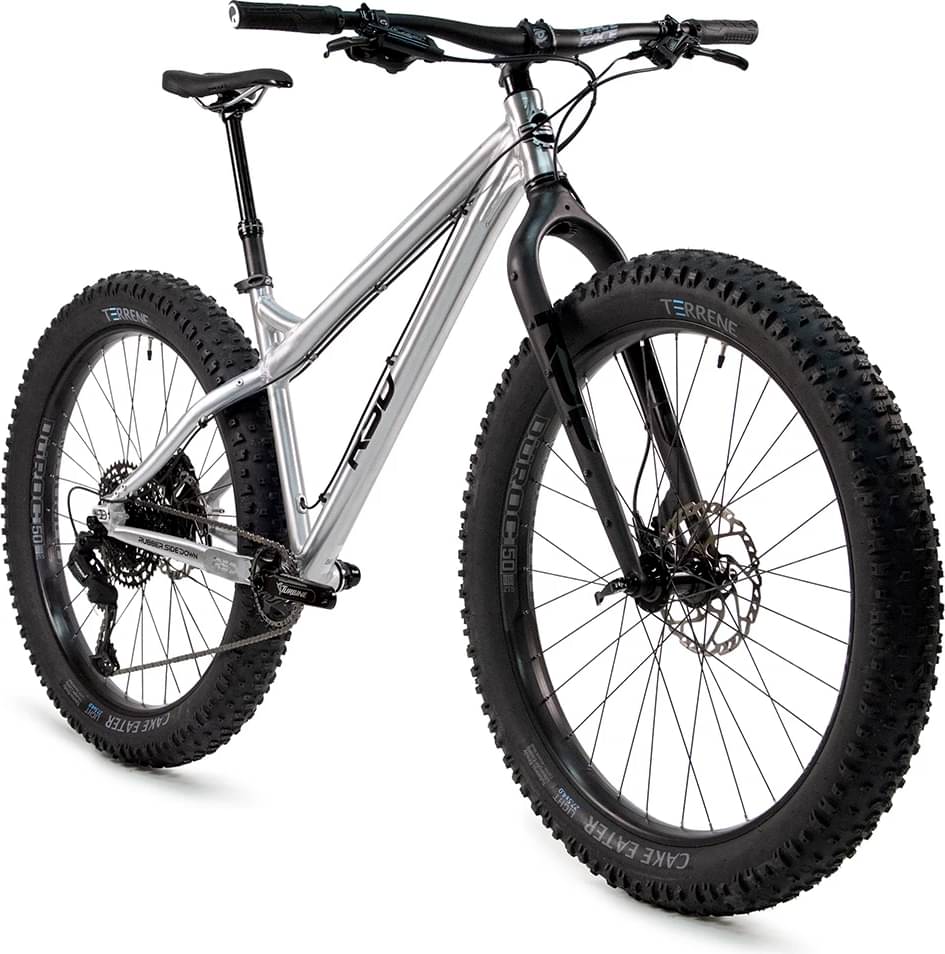

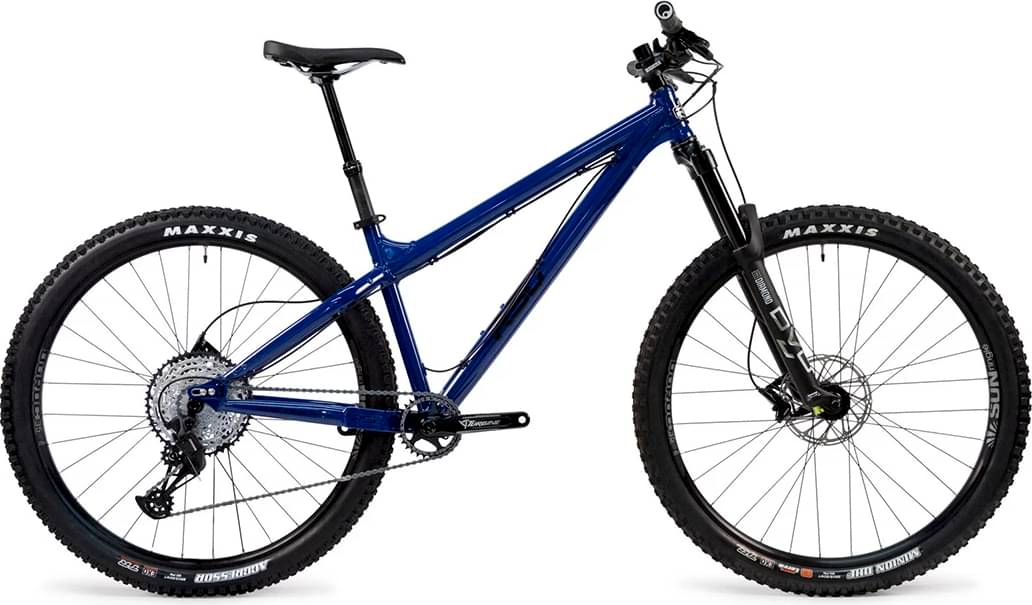

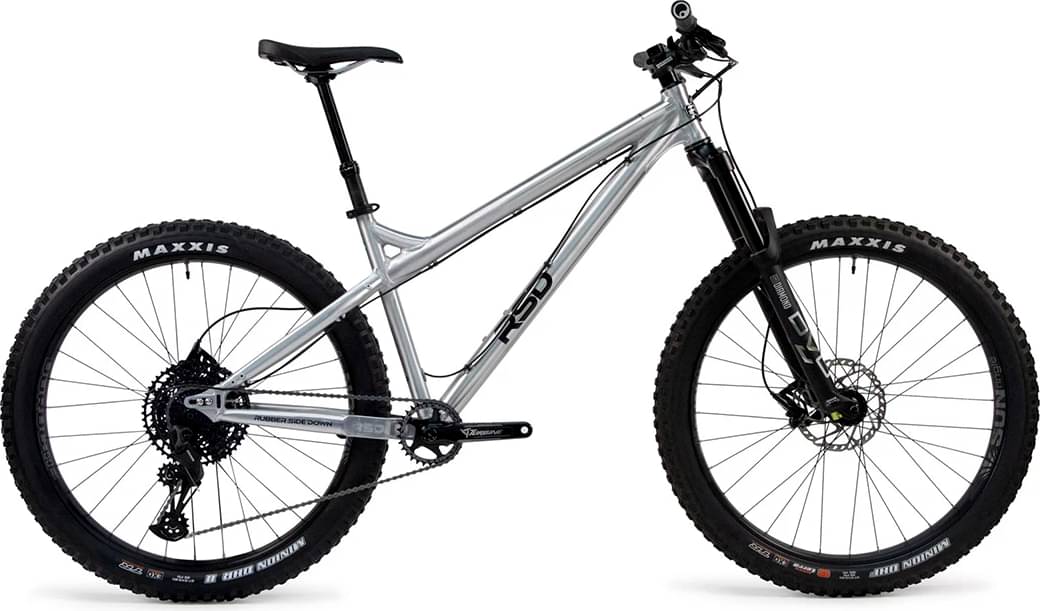

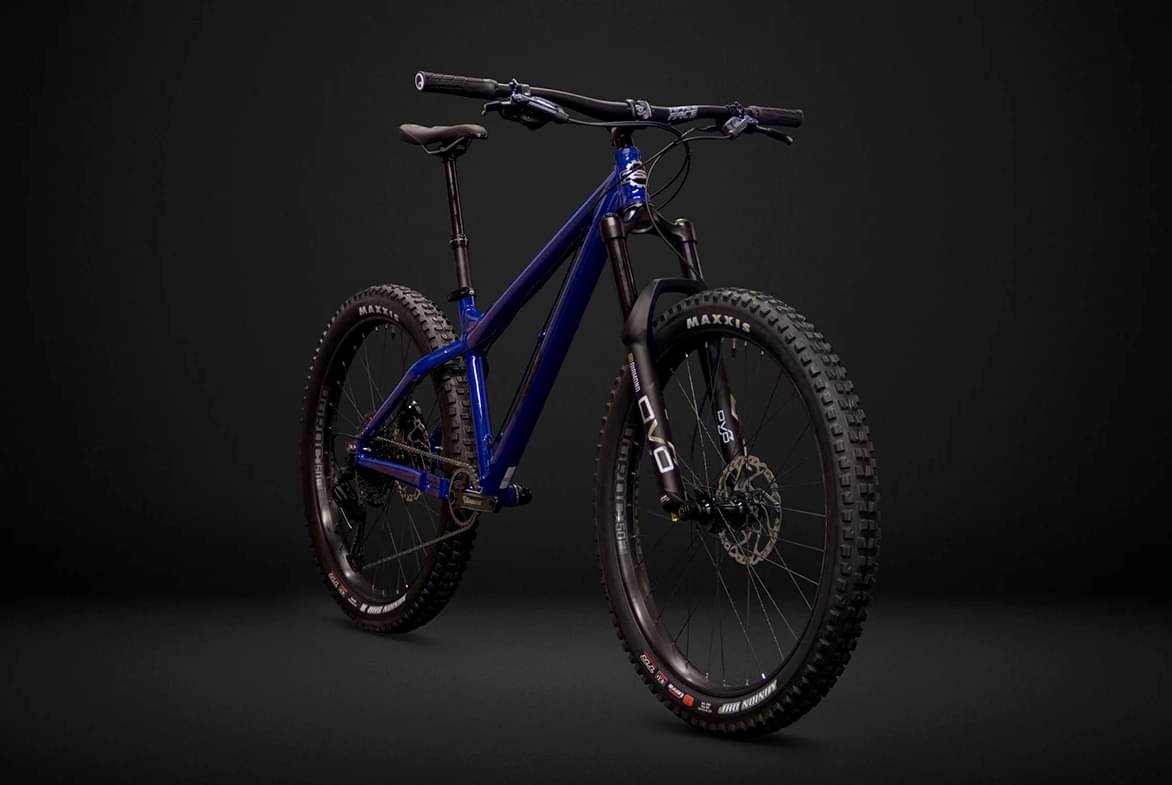

RSD SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build 2023
2023 Mountain
Estimate price |
2,499$
Weight | 13.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Groupset Deore, Race Face -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

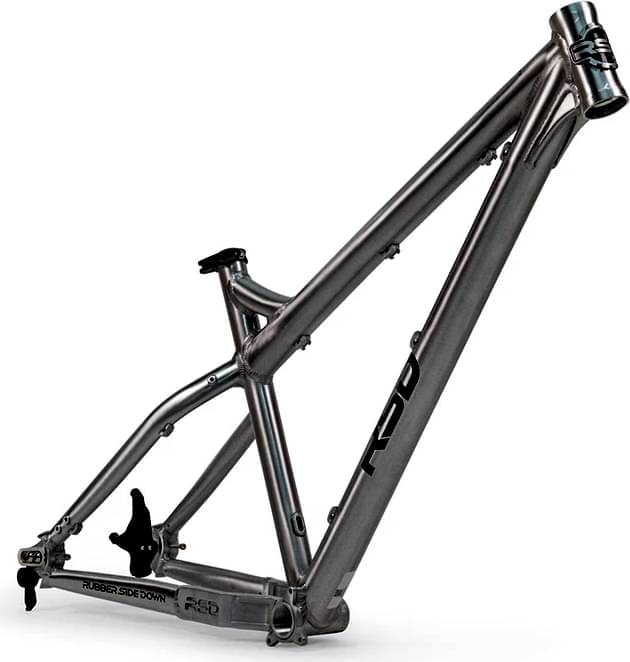

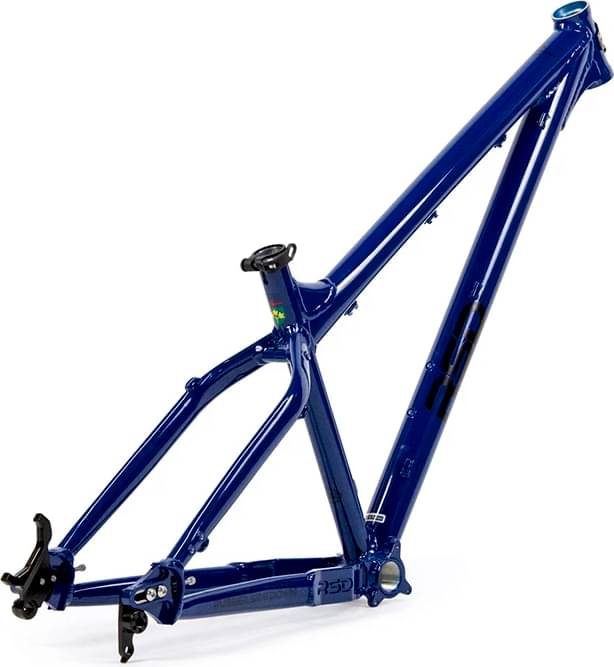

Frame

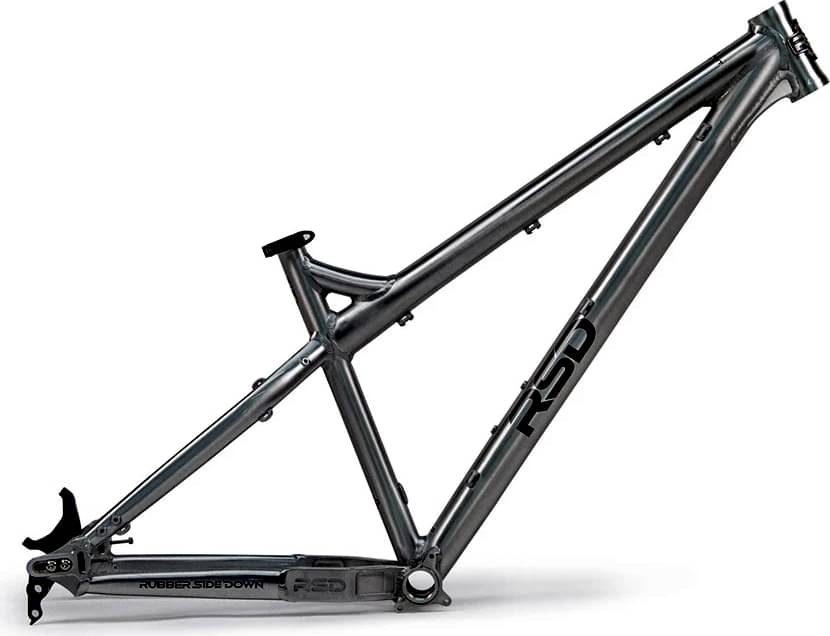

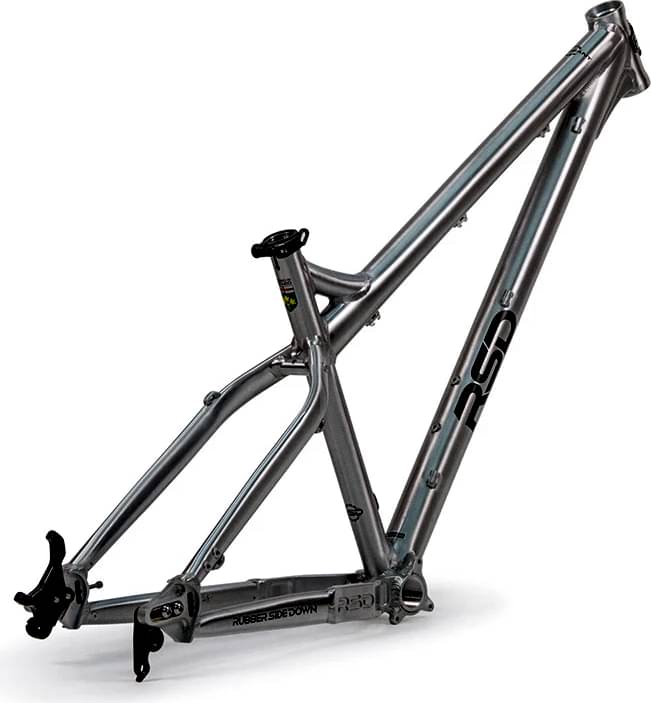

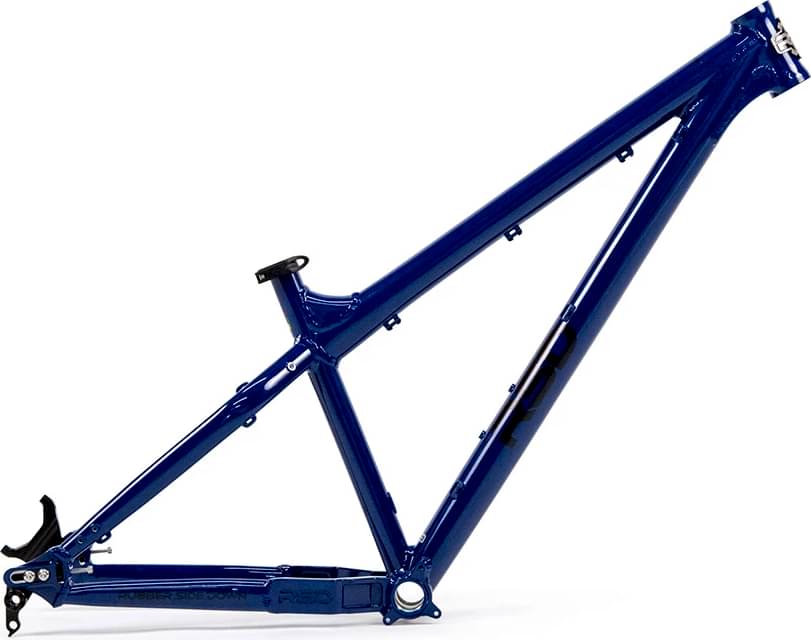

Frame

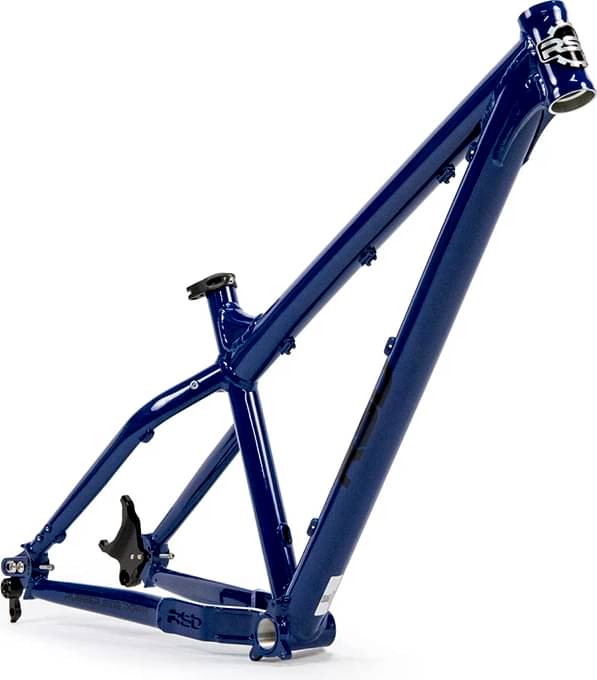

27.5+/29 Aluminum 6061
Suspension Fork
RSD 510mm Aluminum Rigid Fork 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore 12spd
Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10/51T 12spd
Crank
Race Face 83mm 175mm Aeffect 156mm DM Super Boost
Bottom Bracket
Race Face 83mm BSA
Chain
Shimano Deore 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x50mm 15x110mm & 12x157mm Super Boost
Tires

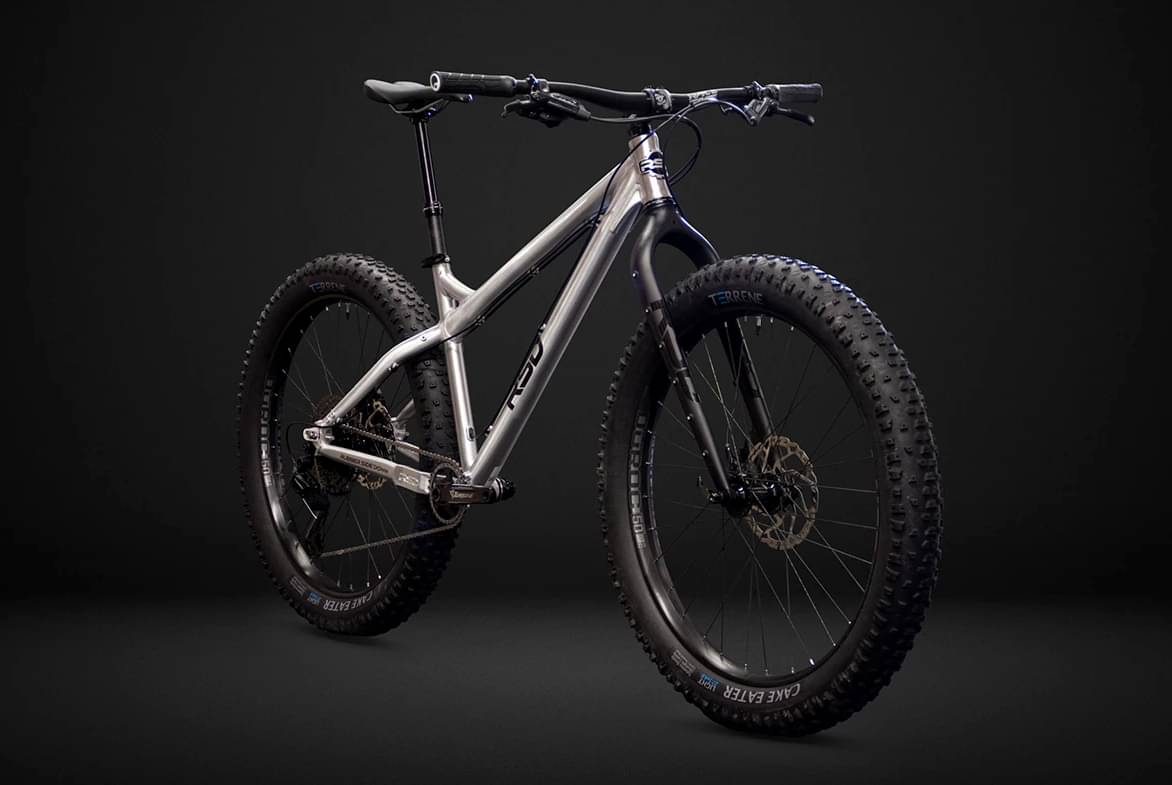

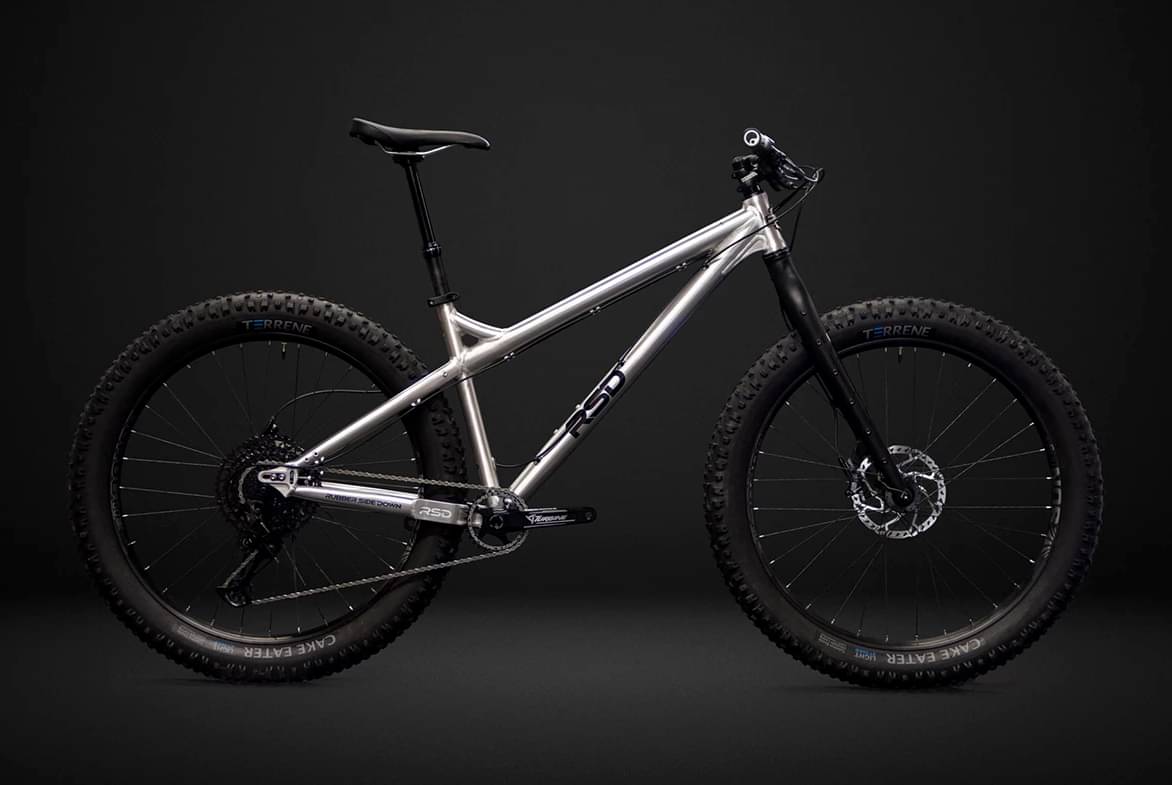

Terrene Cake Eater 27.5×4.0 Light Studdable 120Tpi, (Minimum Sliding Drop-Out Position – 440mm)
Brakes
Brakes
SRAM Level T
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face Chester 35 780mm
Grips
Lizard Skin Northshore
Headset
FSA Orbit ITA ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.4 mm | 1.36 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 322.5 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 741 mm | 783 mm | 804 mm | 828 mm | 849 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 65 mm | 89 mm | 91 mm | 91 mm | 92 mm |
| Stack | 622 mm | 632 mm | 641 mm | 659 mm | 677 mm |
| Reach | 415 mm | 452 mm | 470 mm | 485 mm | 500 mm |
| Top Tube Length | 592 mm | 632 mm | 652 mm | 672 mm | 692 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 470 mm | 490 mm |
| Head Tube Angle | 66.8 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1184 mm | 1226 mm | 1247 mm | 1271 mm | 1293 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 694 mm | 712 mm | 717 mm | 721 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build belongs to the Rsd Sergeant model. RSD launched 16 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
RSD SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build 2023 is the most economical model, with a starting price of 2499$. RSD SERGEANT V4 Aluminum Deore/D3 Build 2023 on the other hand costs 2499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When RSD released this model in 2023, its price was 2499$. If we compare this with the average Trail bike cost we notice that the price is 10.52% lower.
Trail bikes average weight
Trail bikes have an average weight of 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build has a weight of 13.55 kg (29.87 lbs). In short, the average Trail bike weight is 5.2% lower than this one.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. RSD SERGEANT V4 Aluminum 27.5+ Deore/D3 Adventure Build is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
