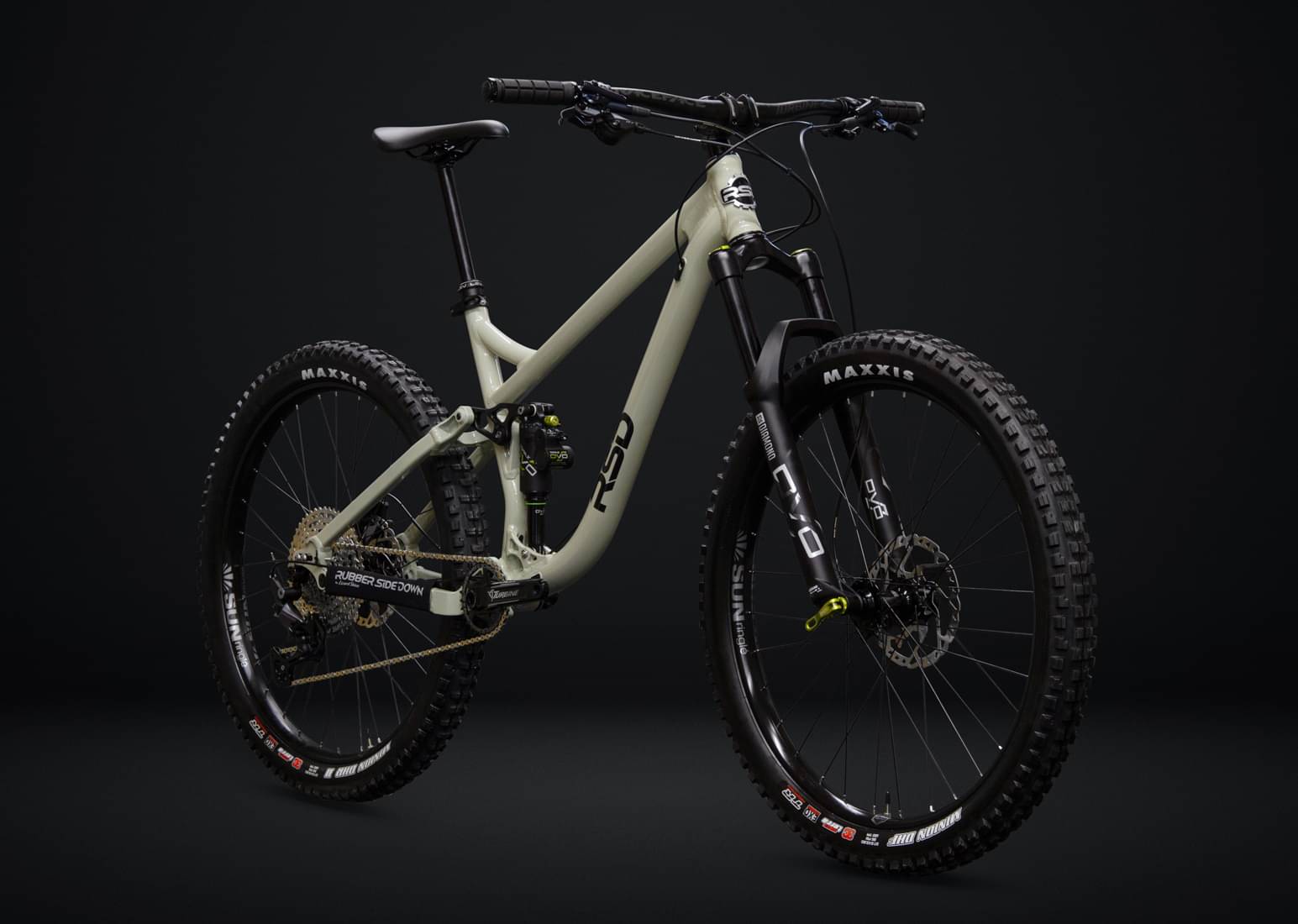

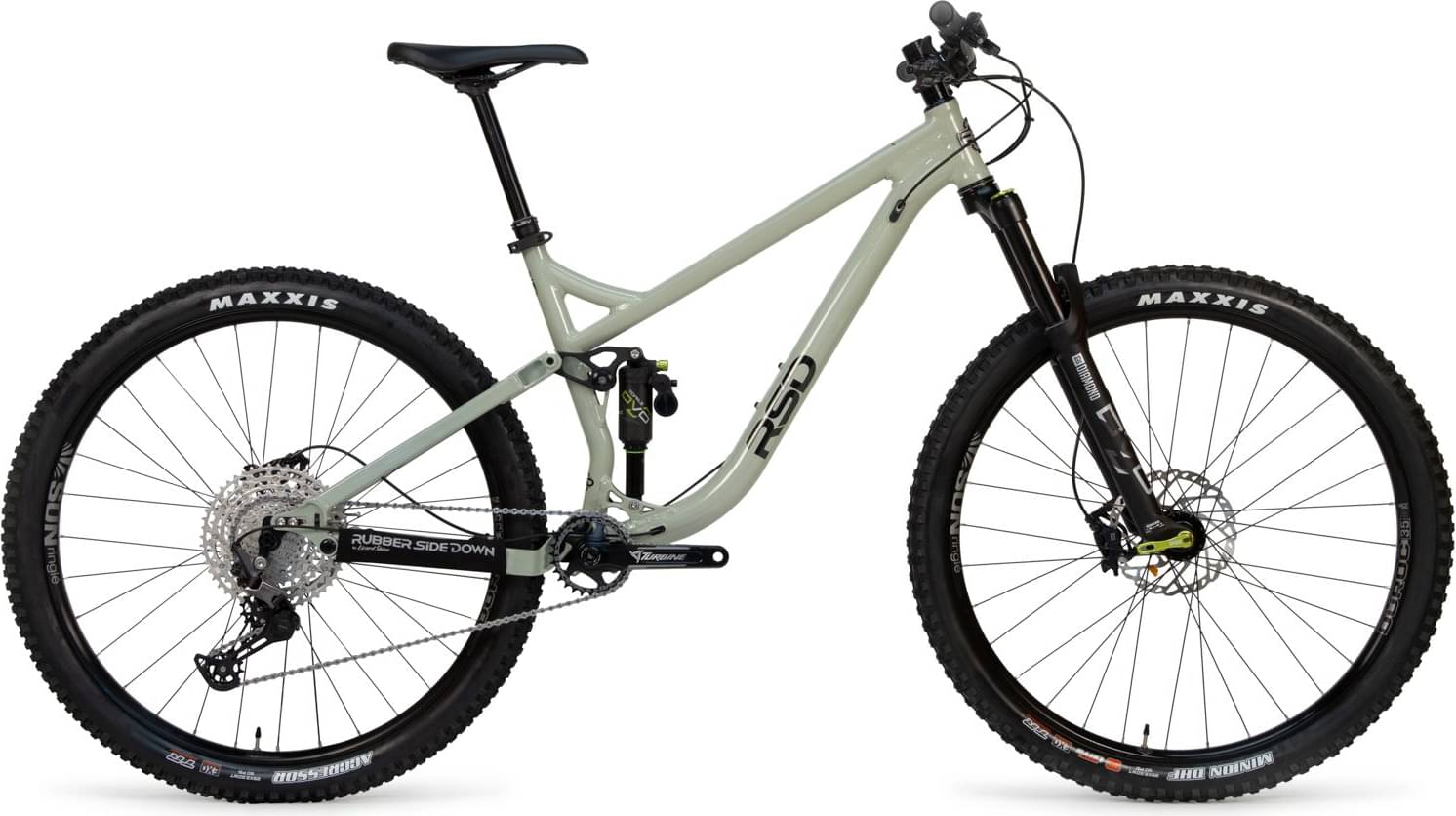

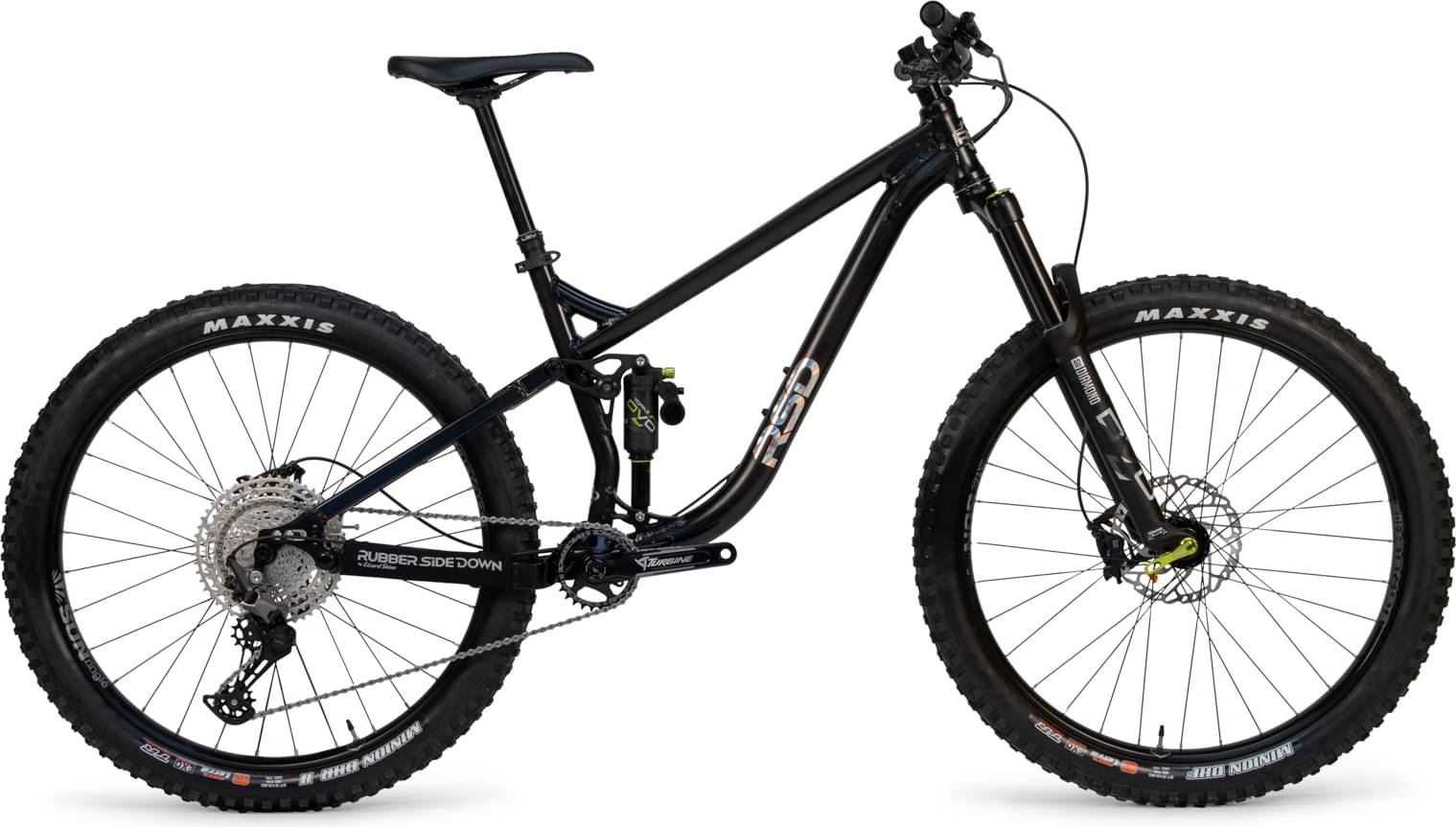

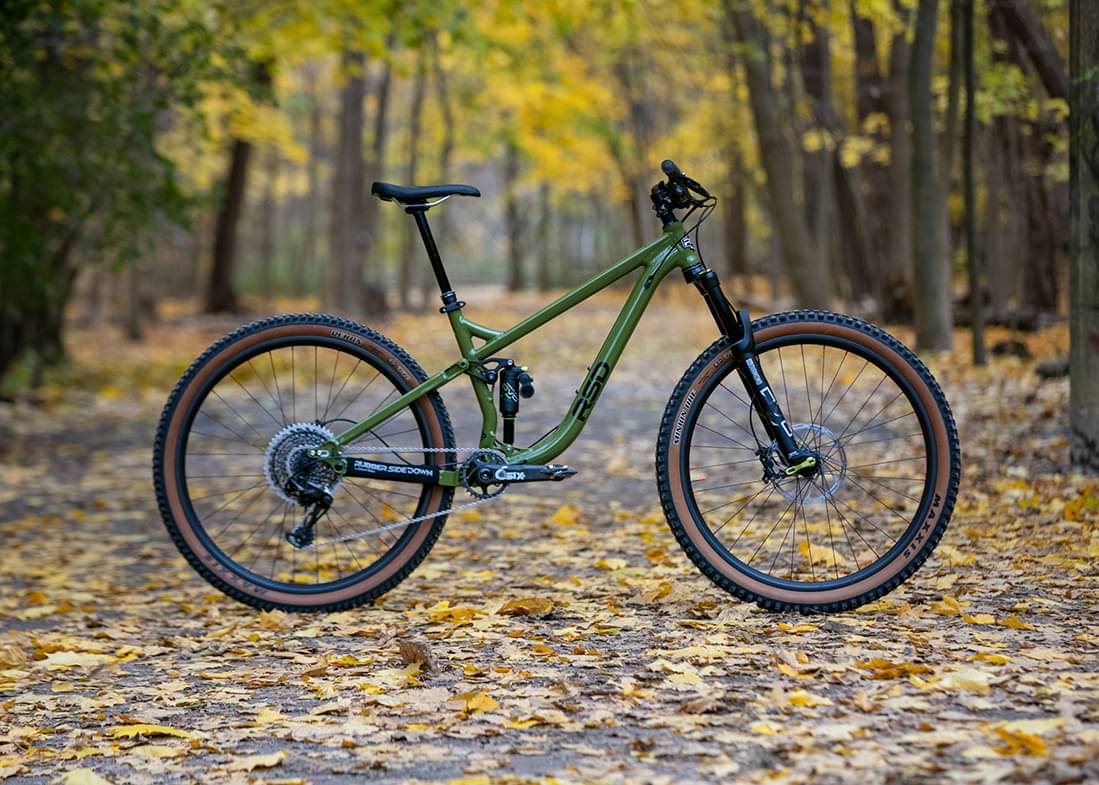

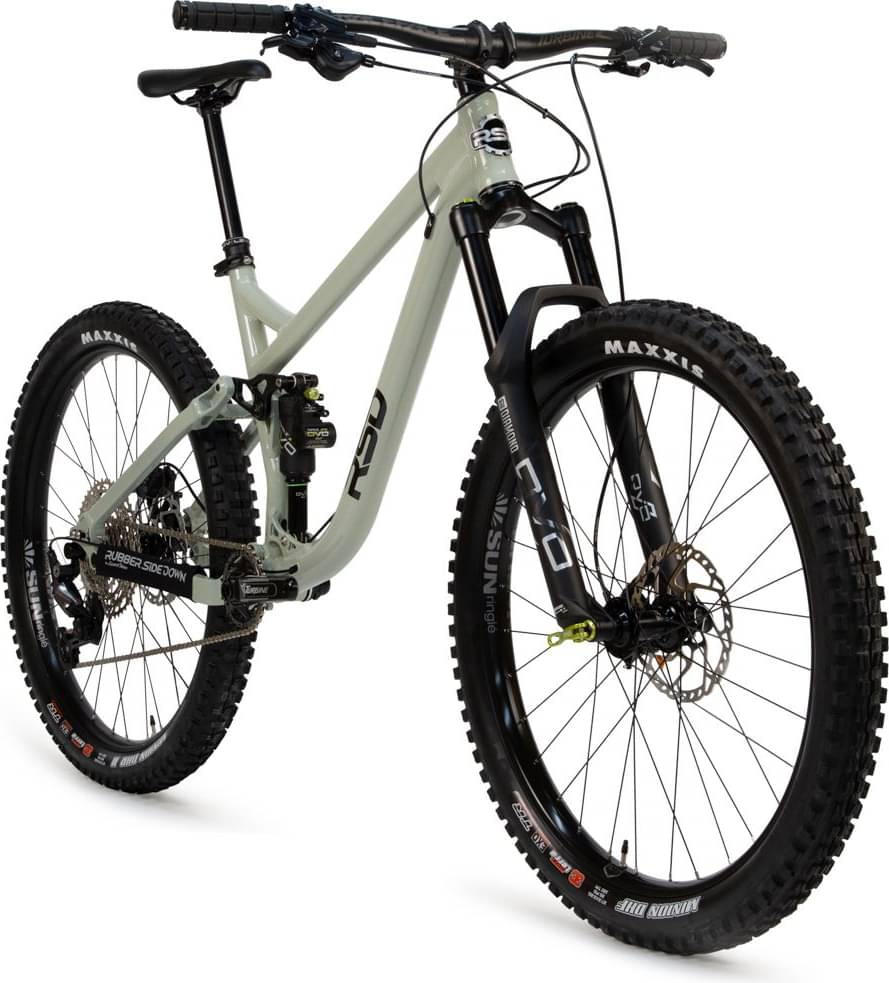

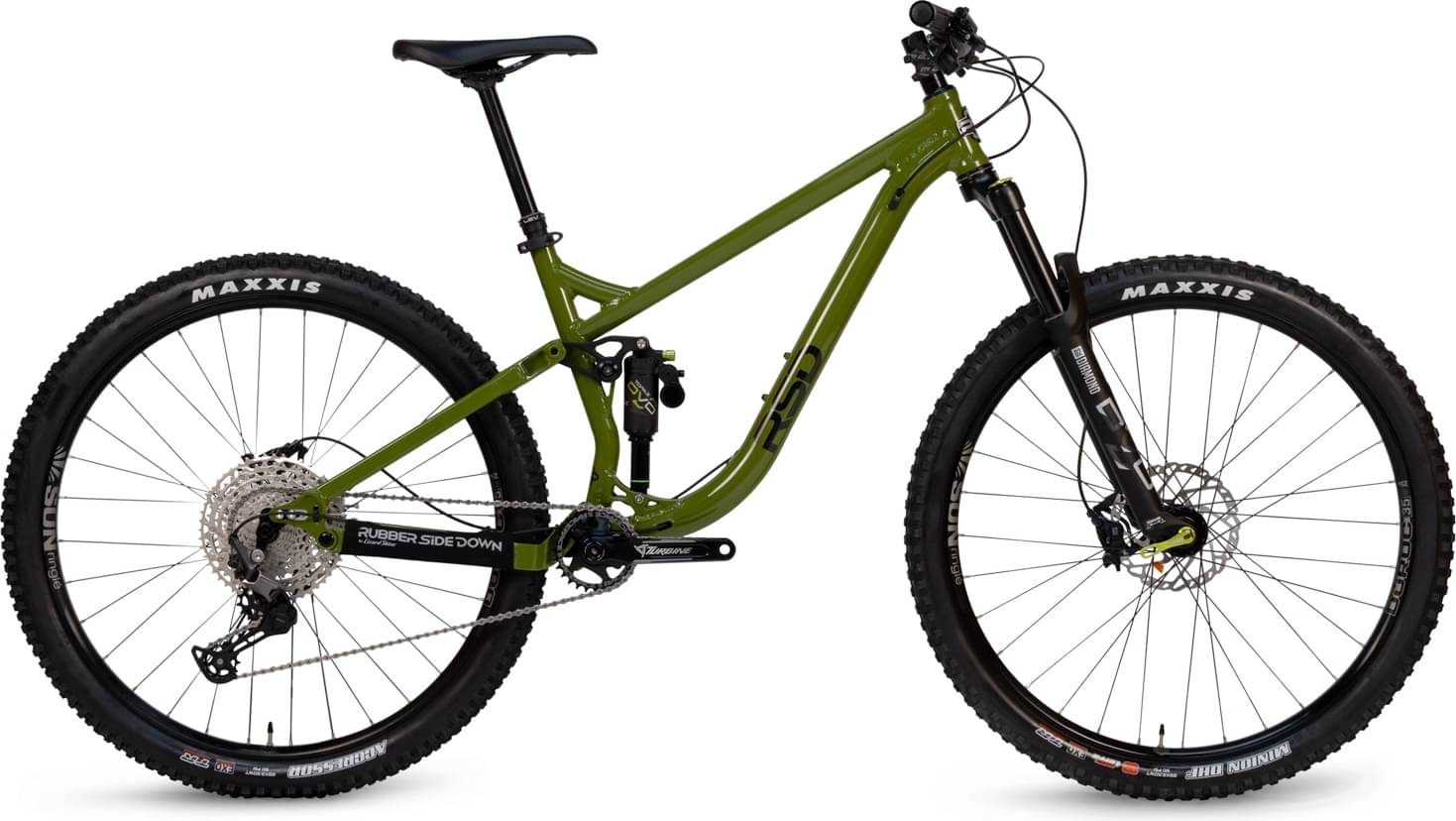

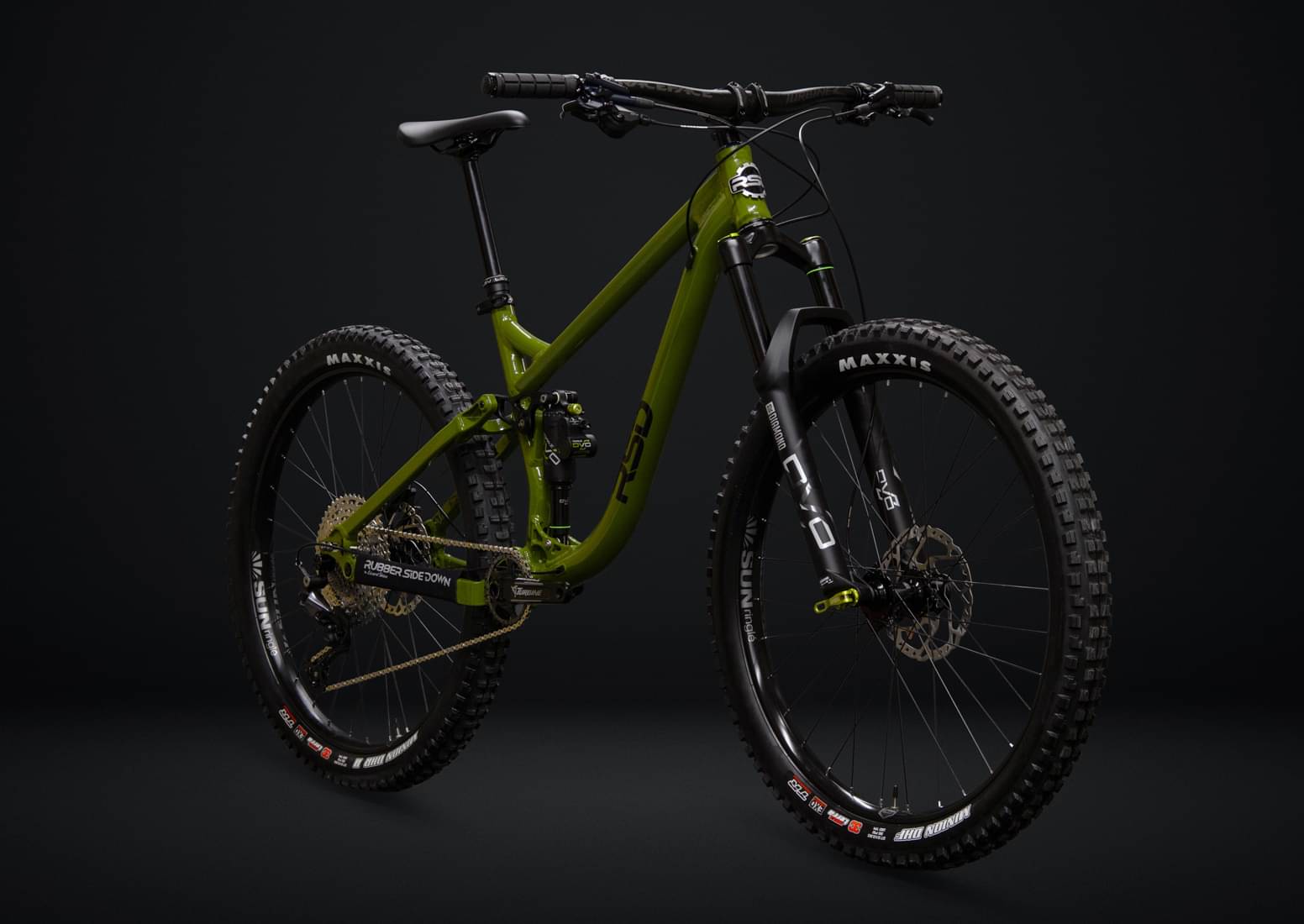

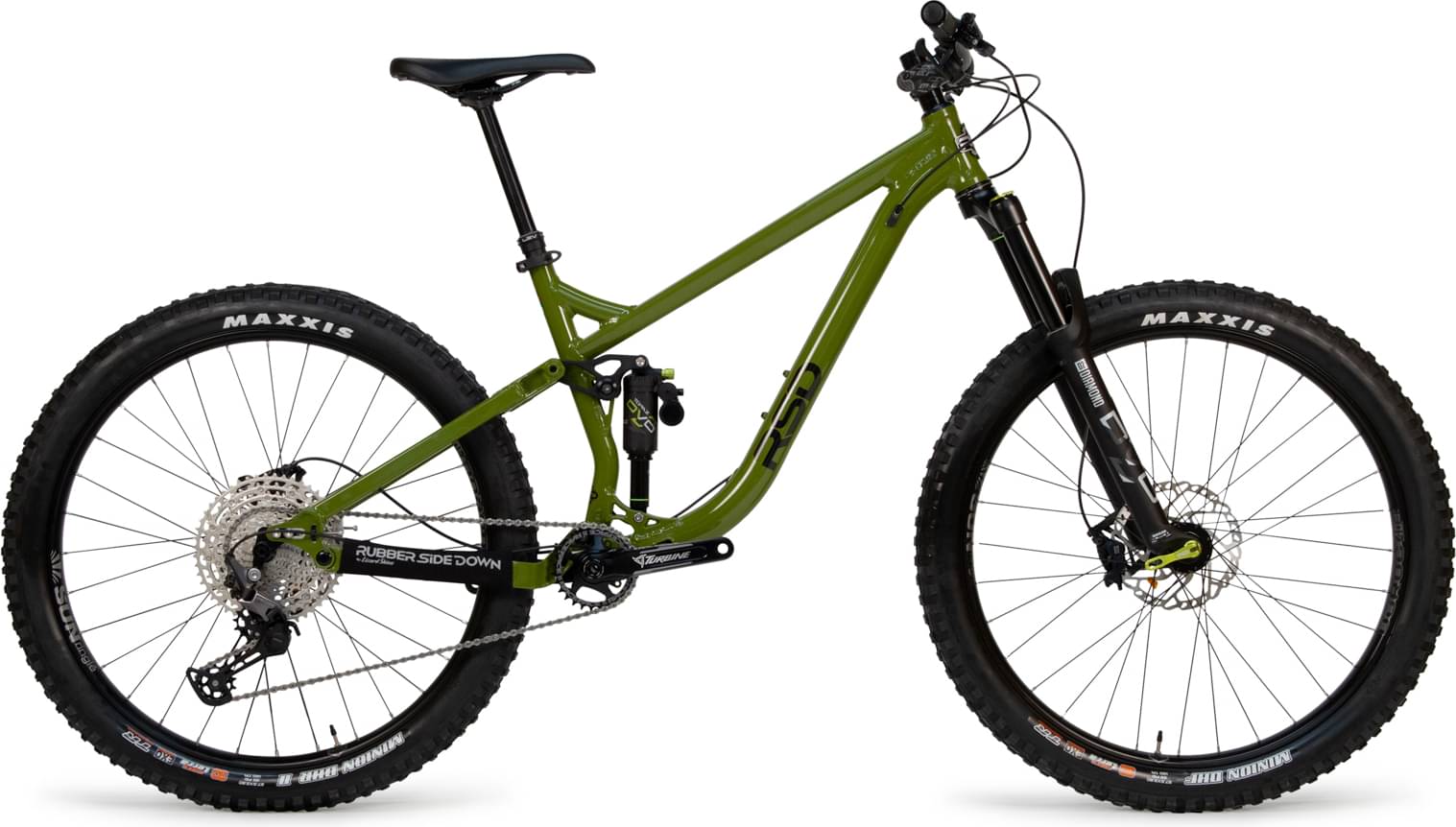

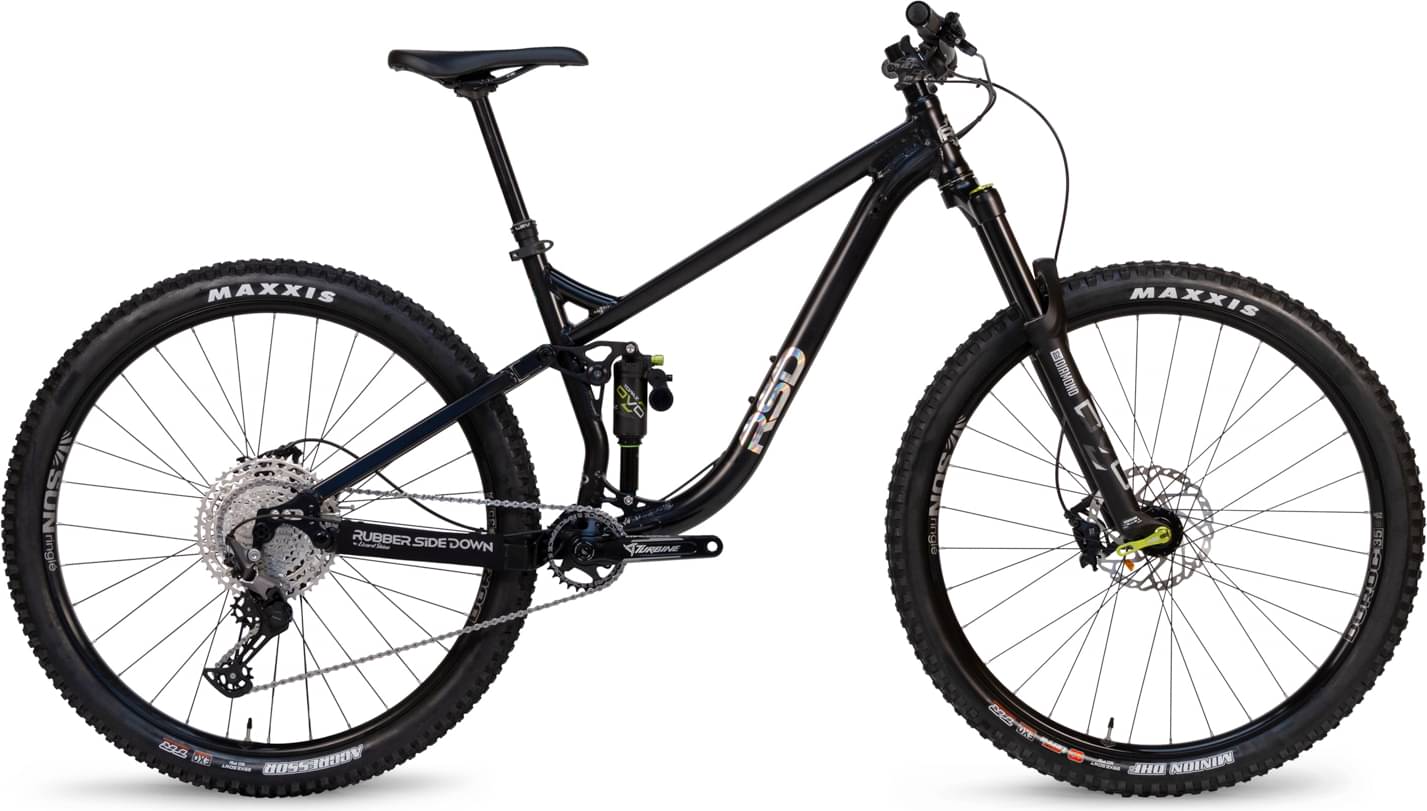

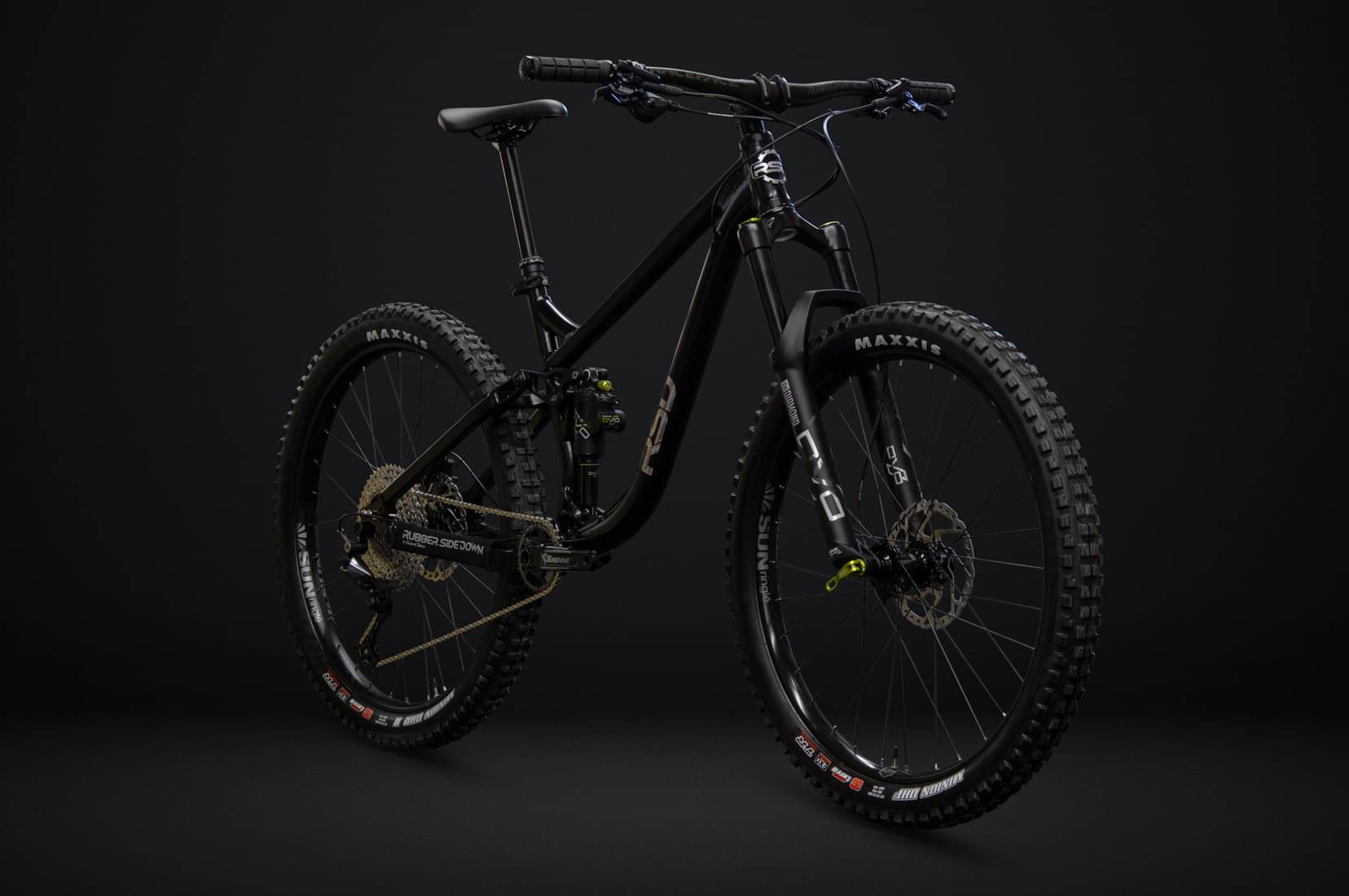

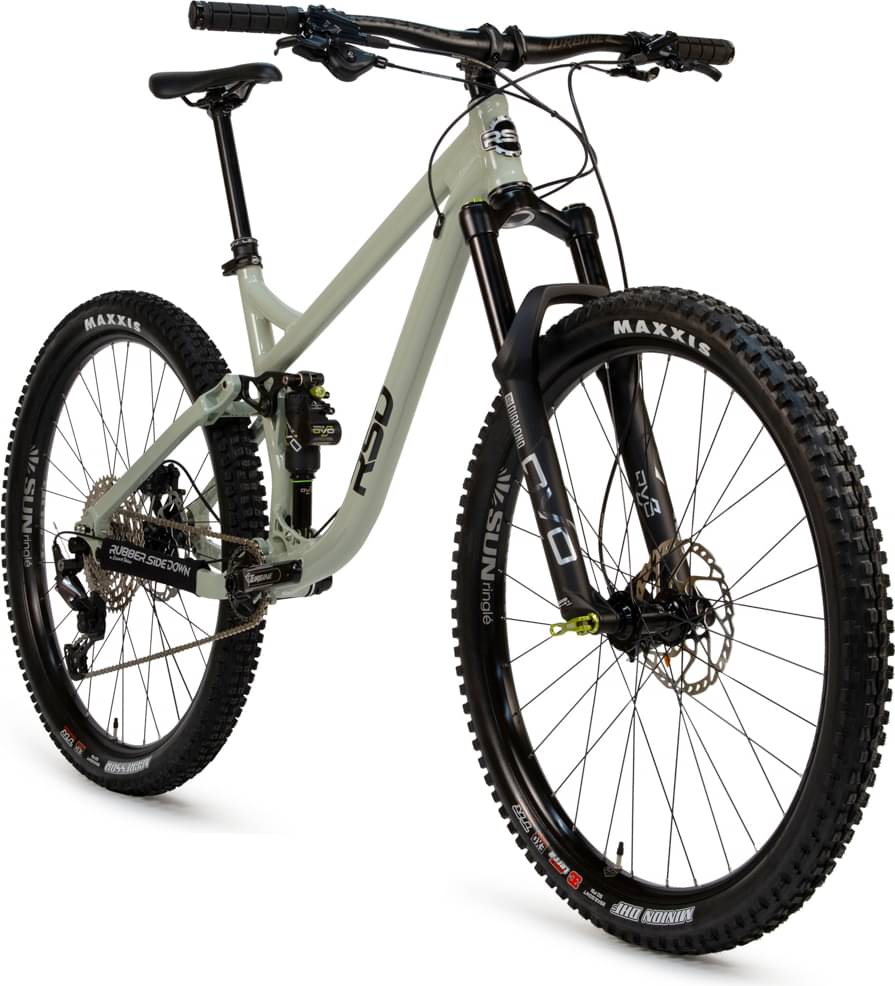

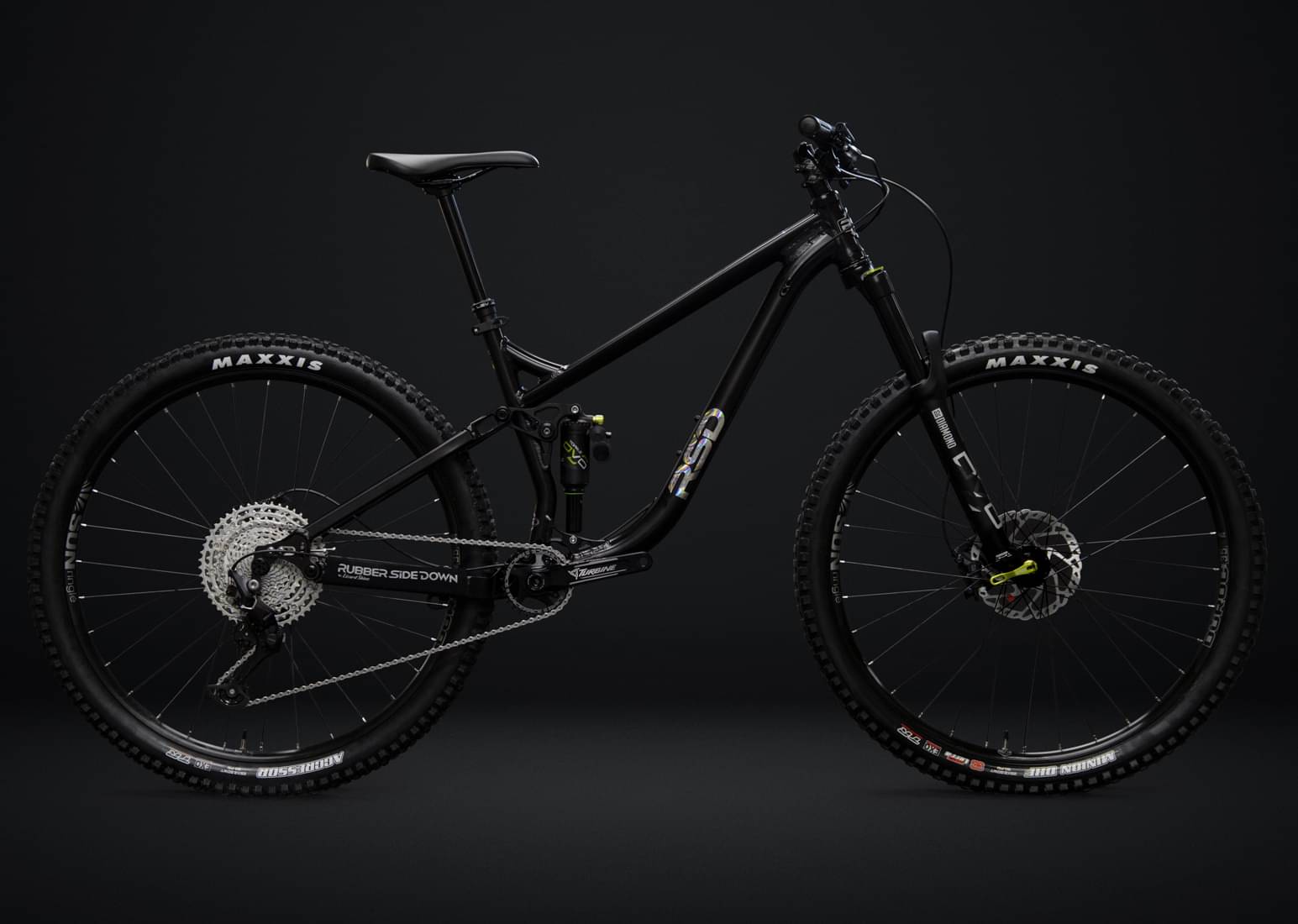

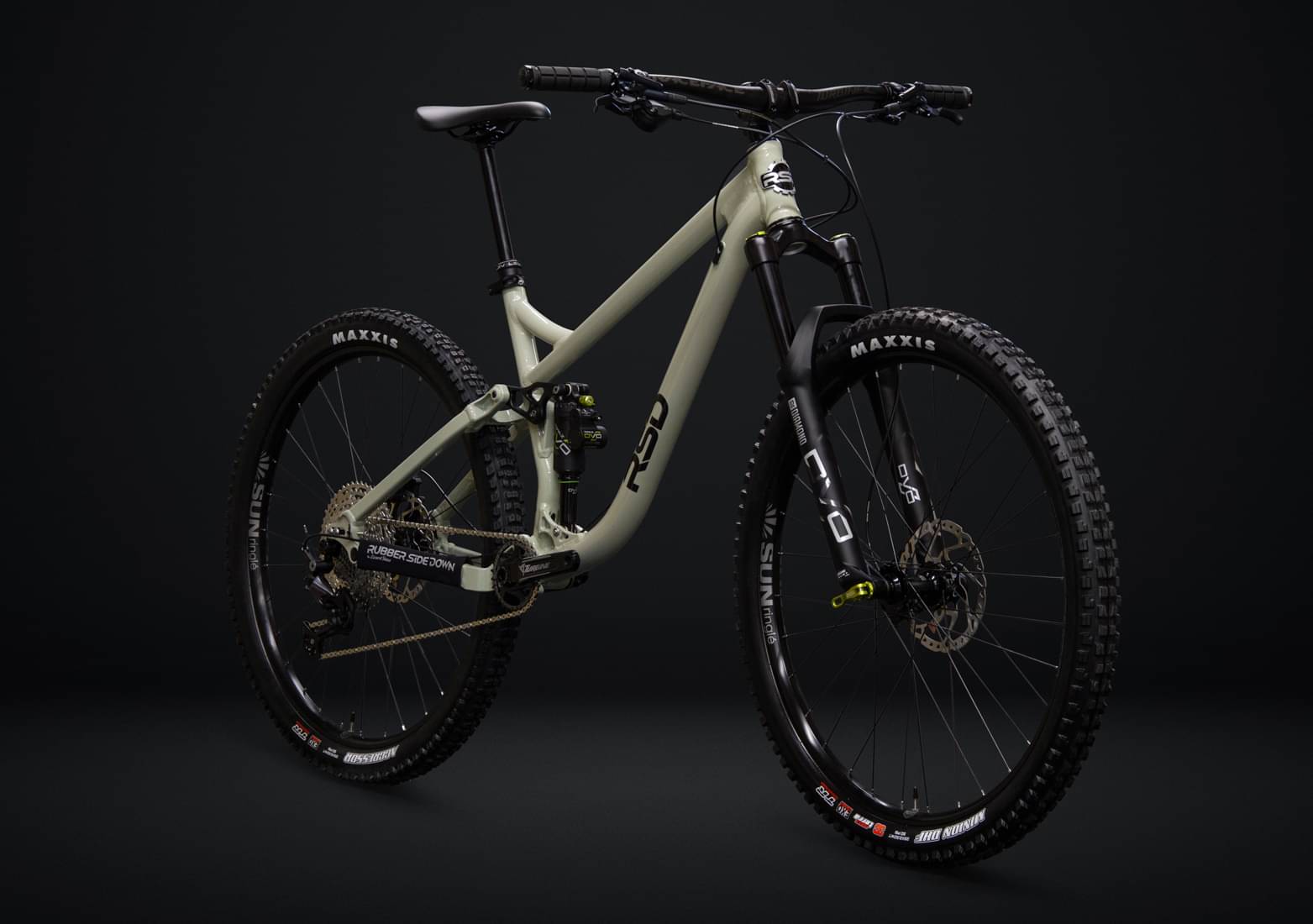

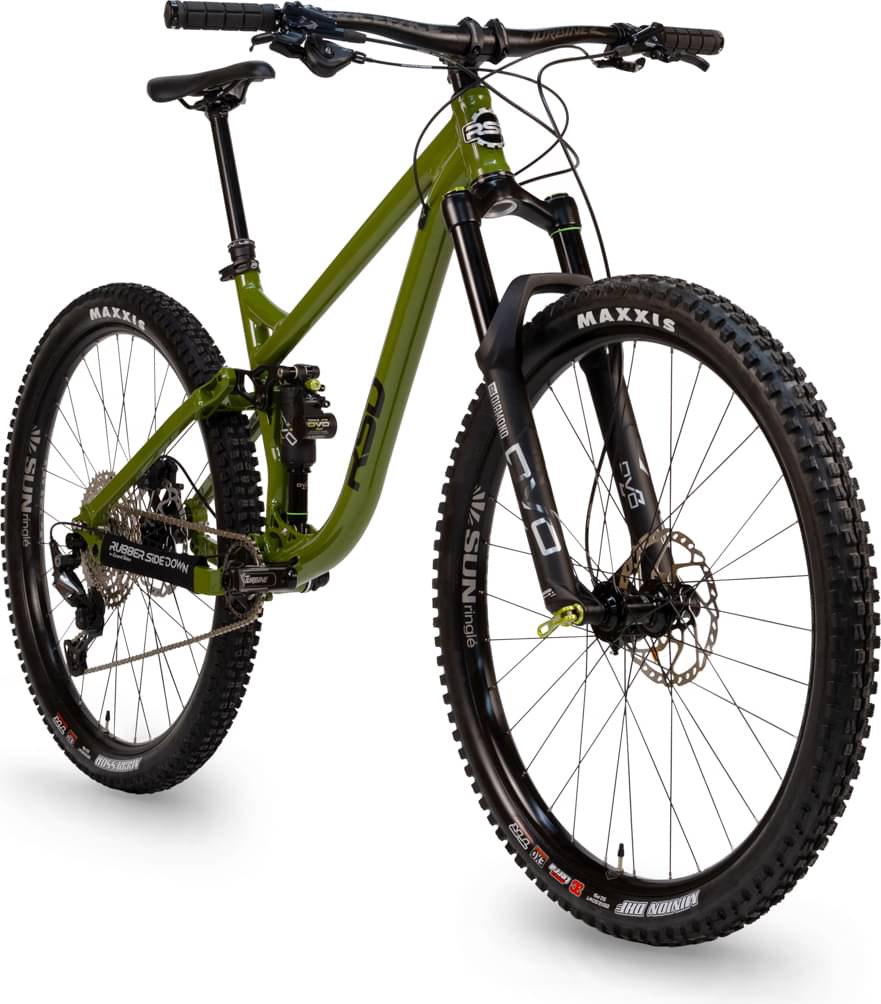

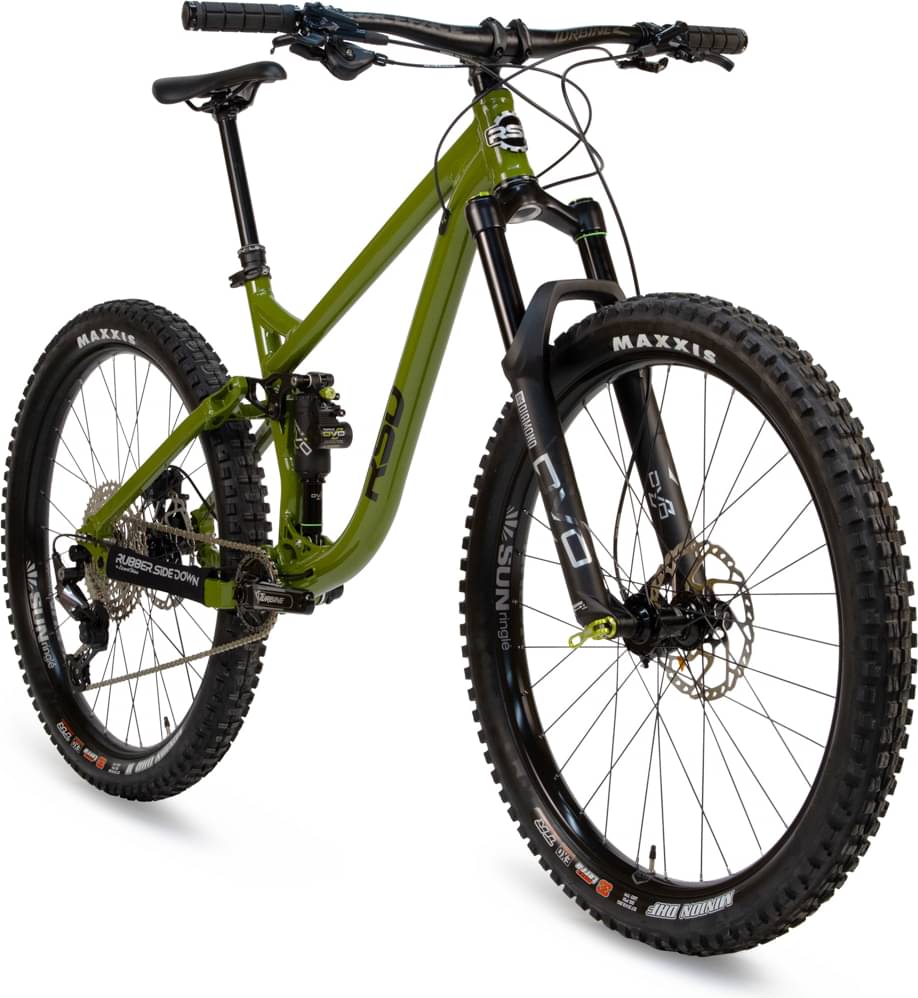

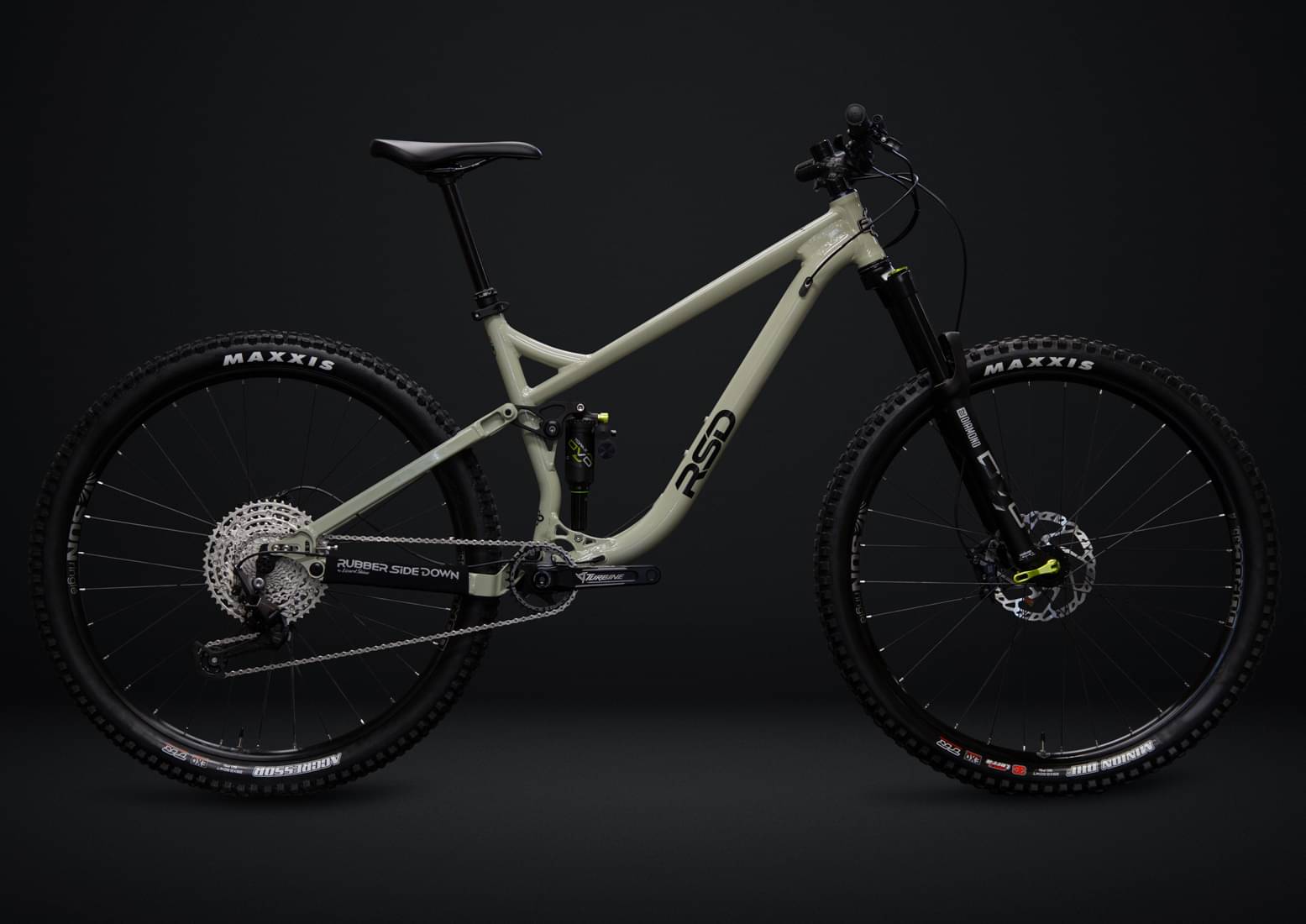

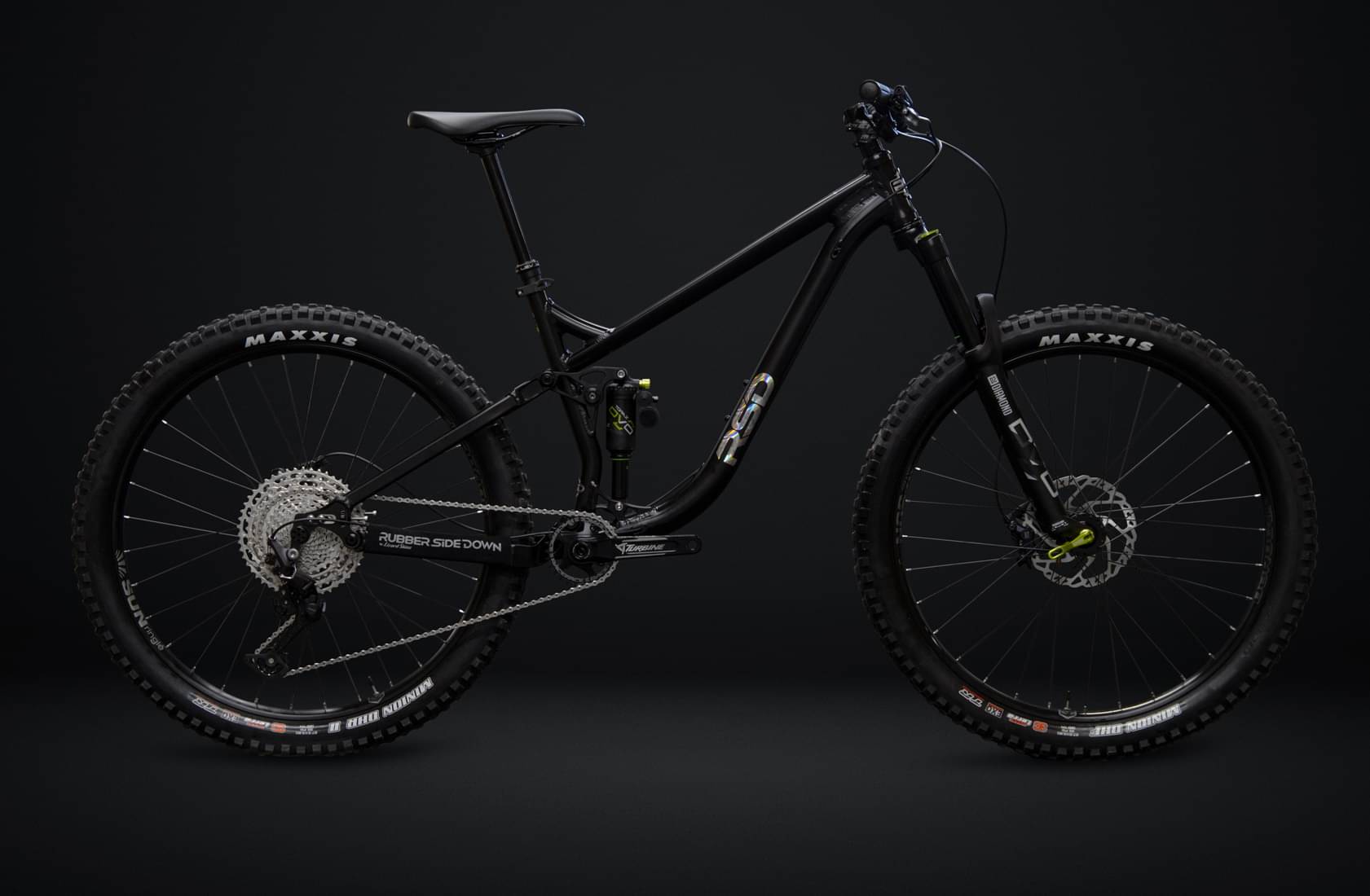

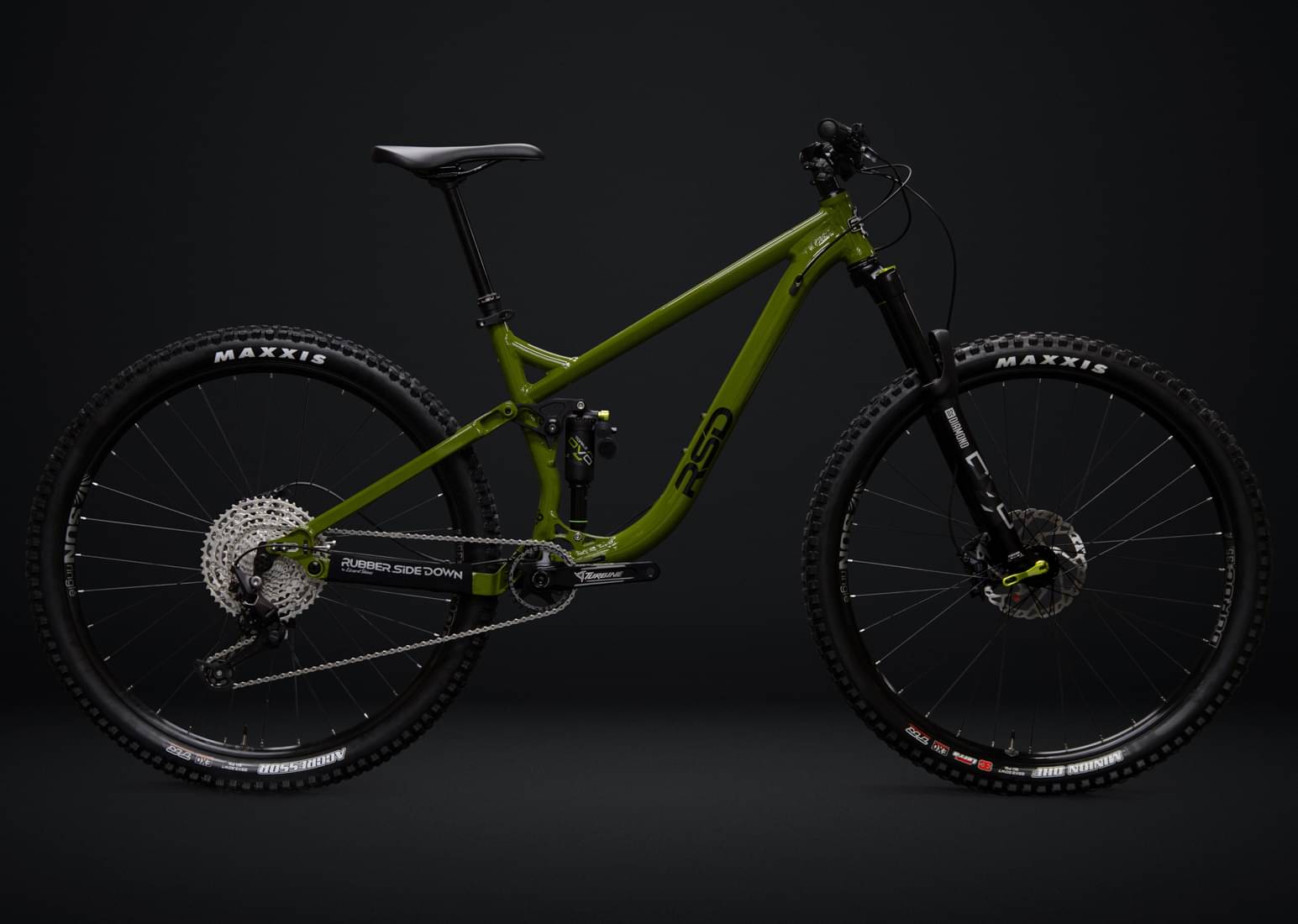

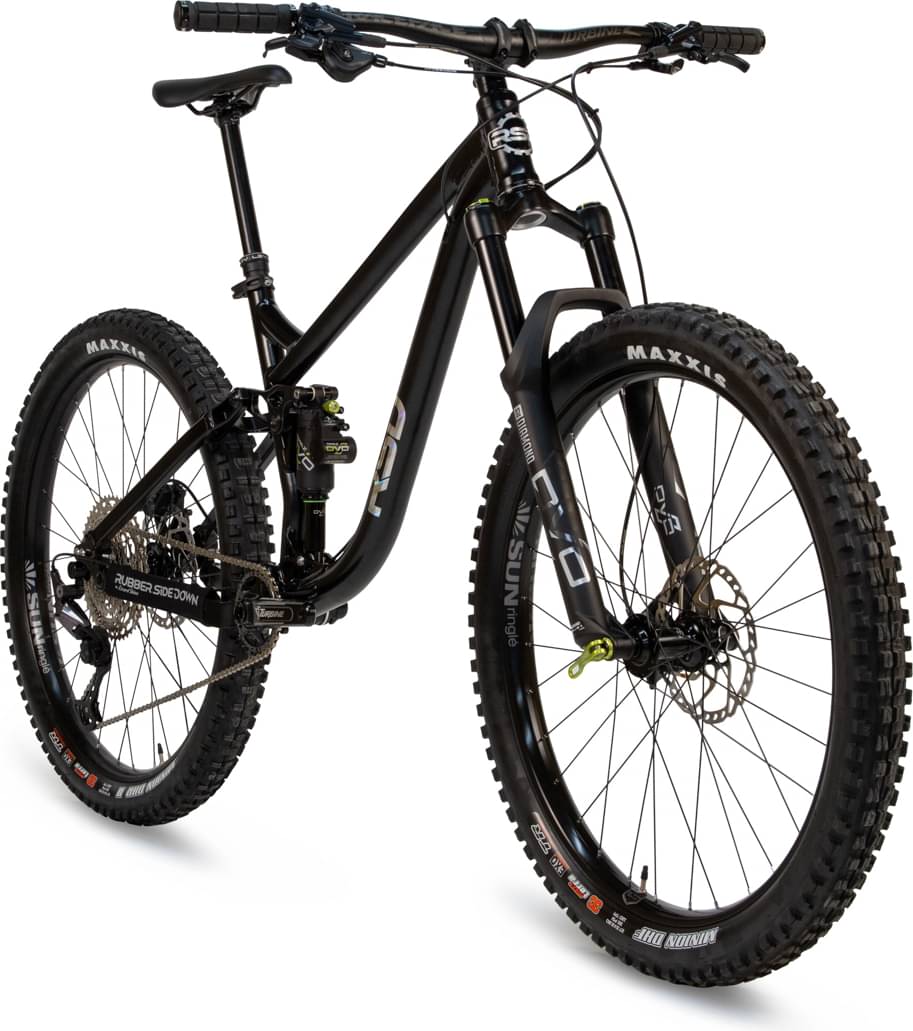

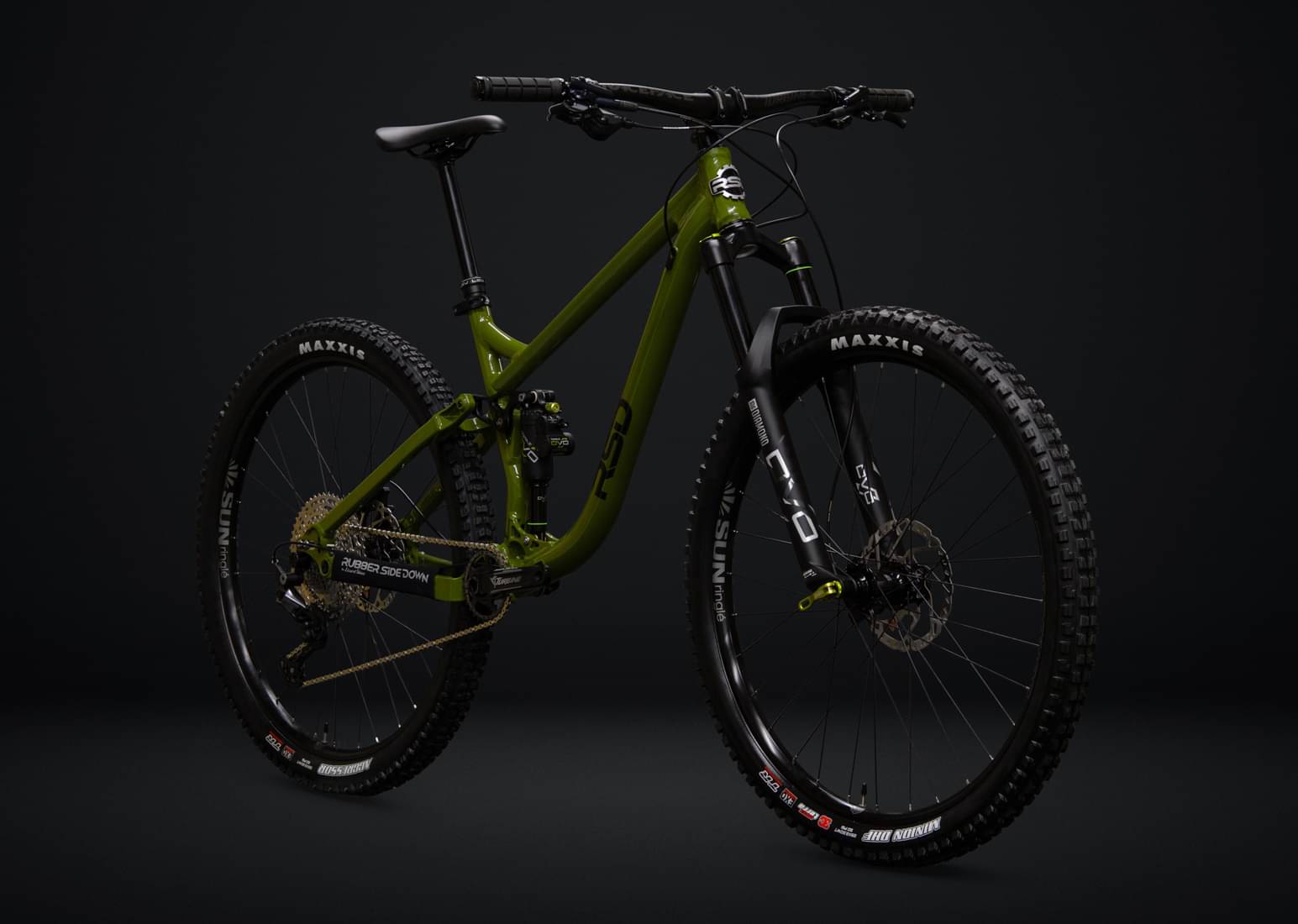

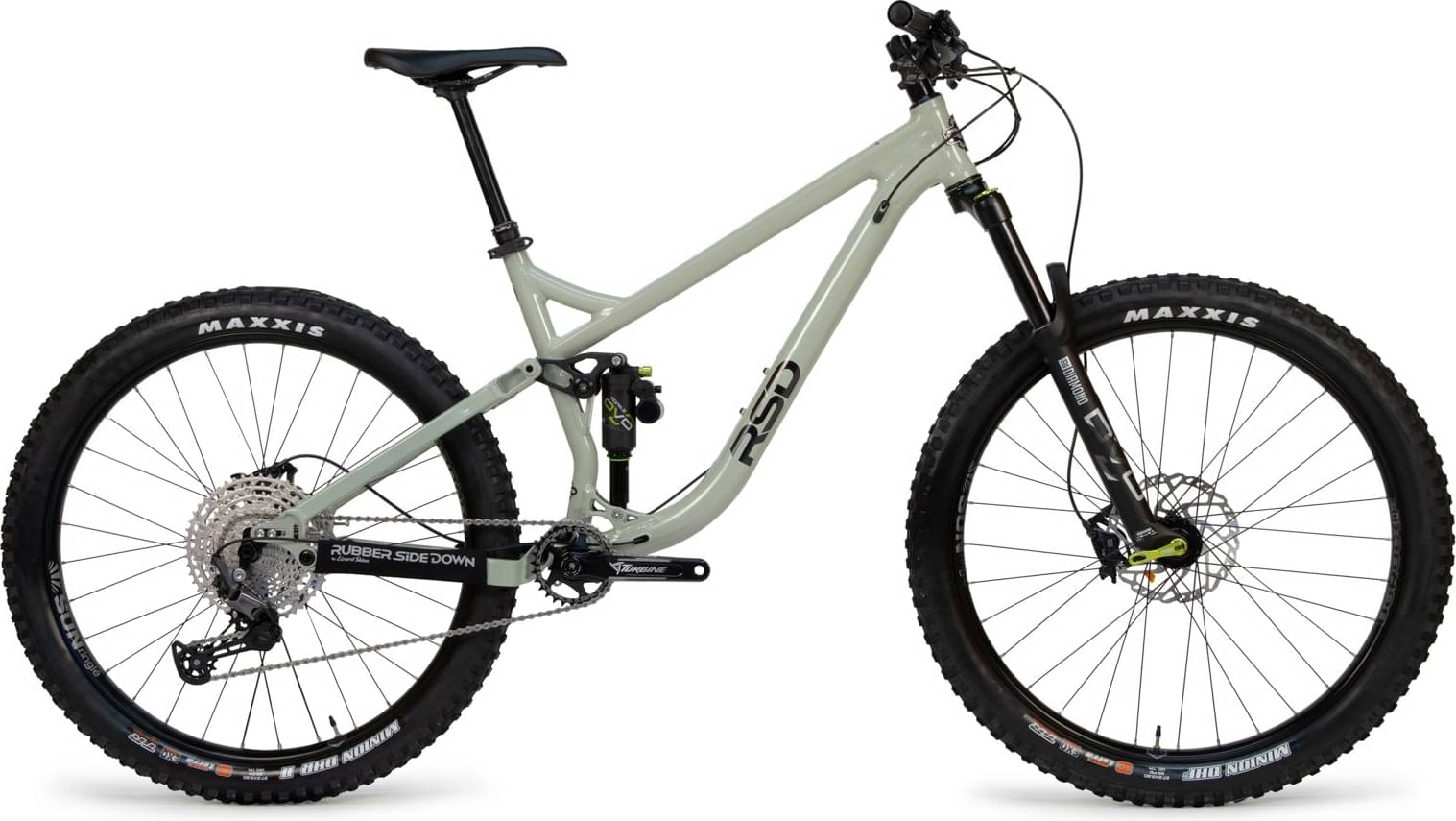

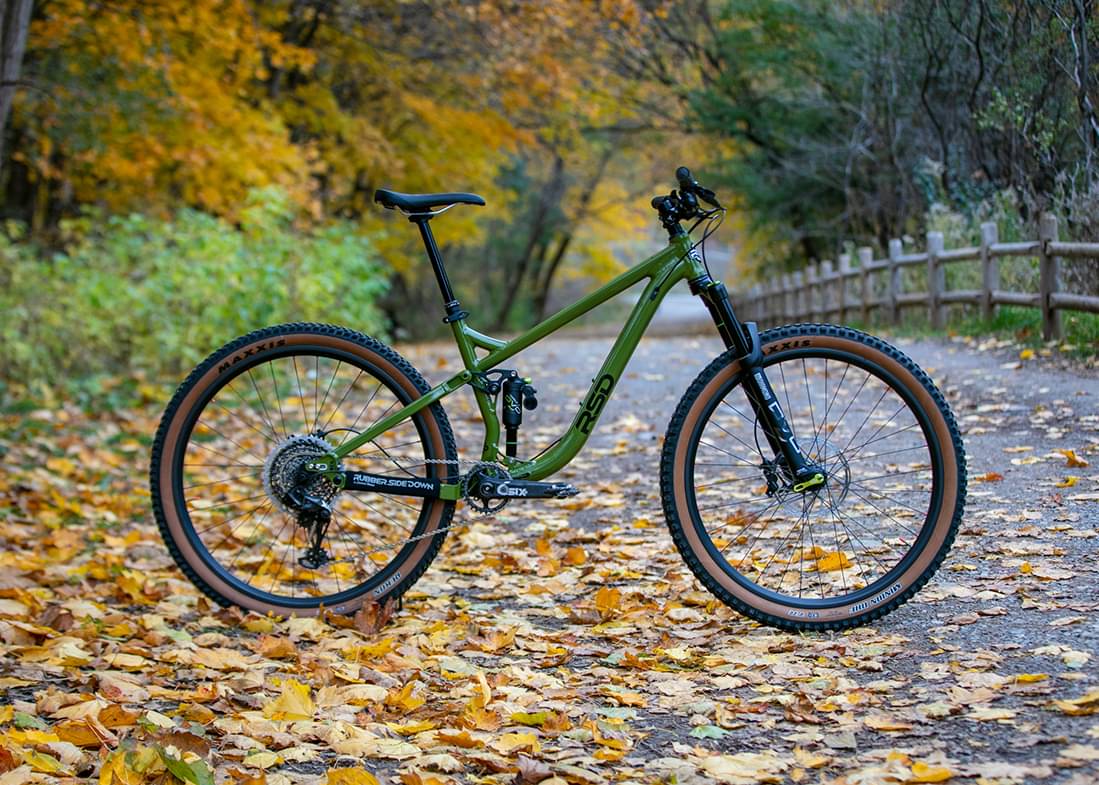

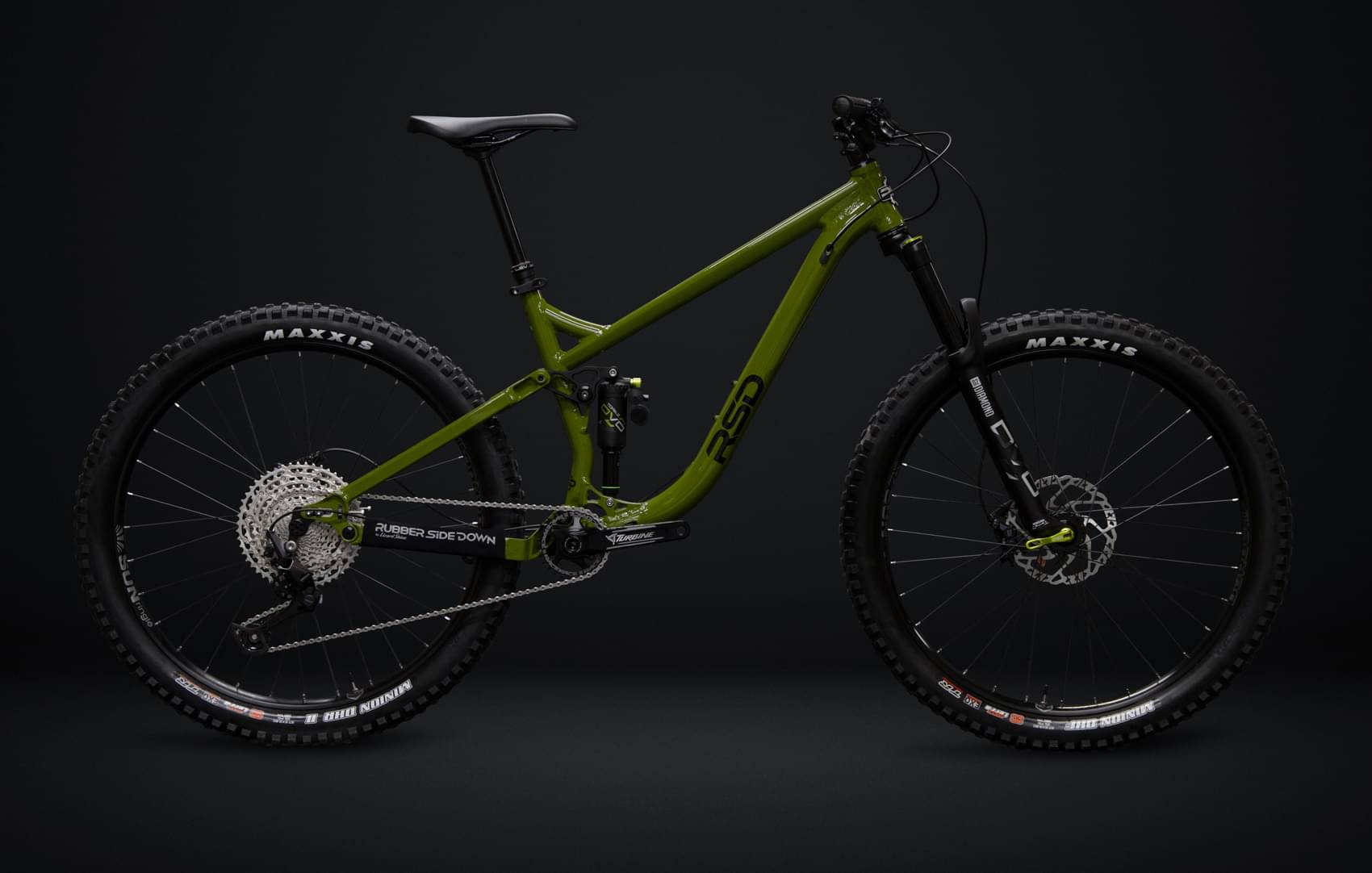

RSD WILDCAT 125 (V3) Aluminum 29in SX Build 2022
2022 Mountain
Estimate price |
2,999$
Weight | 15.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork DVO Diamond
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

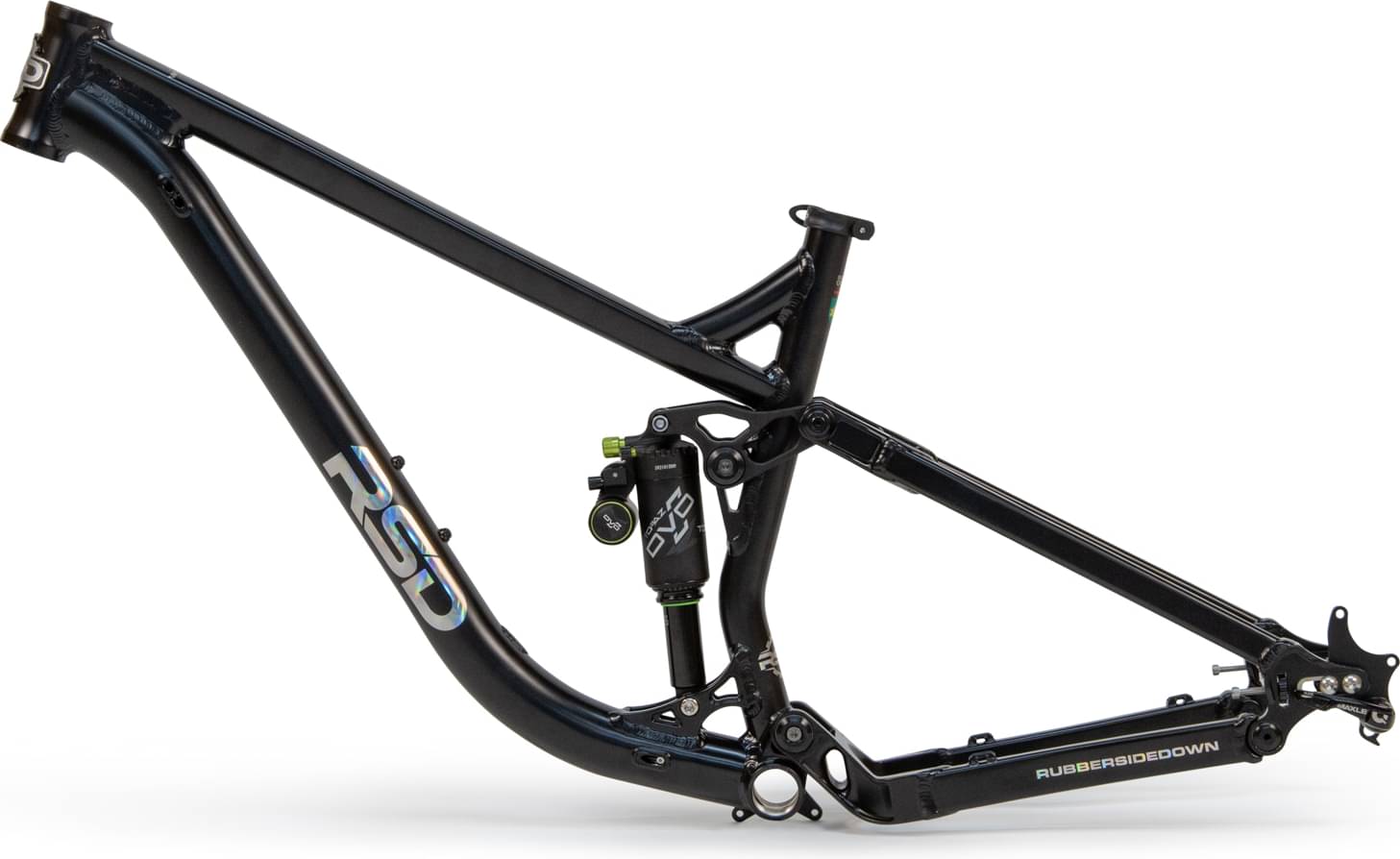

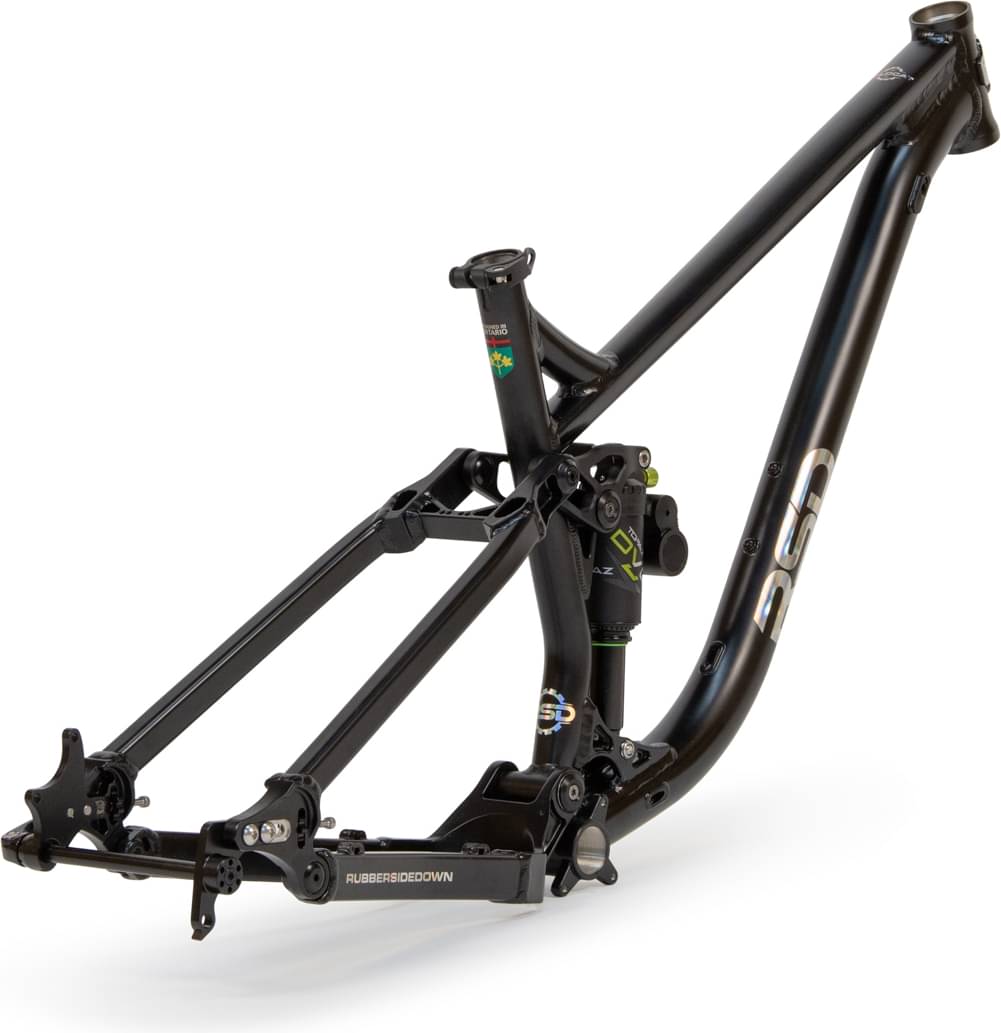

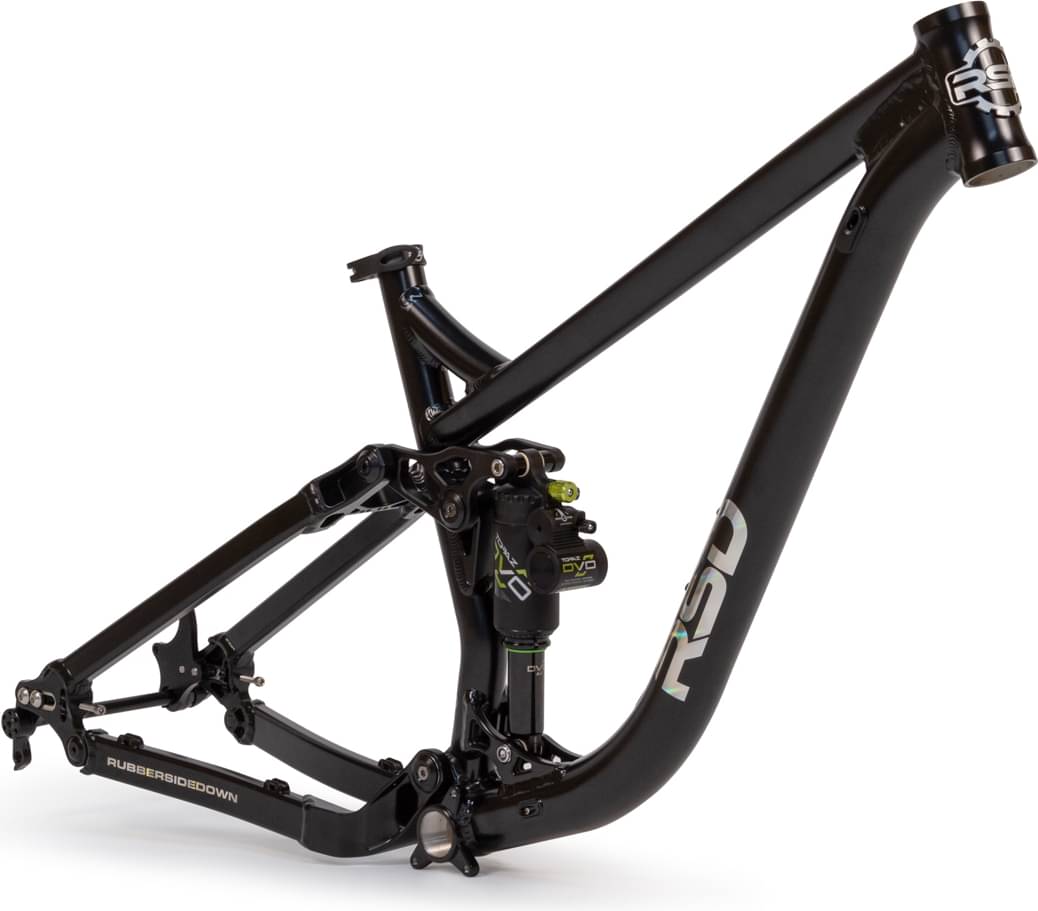

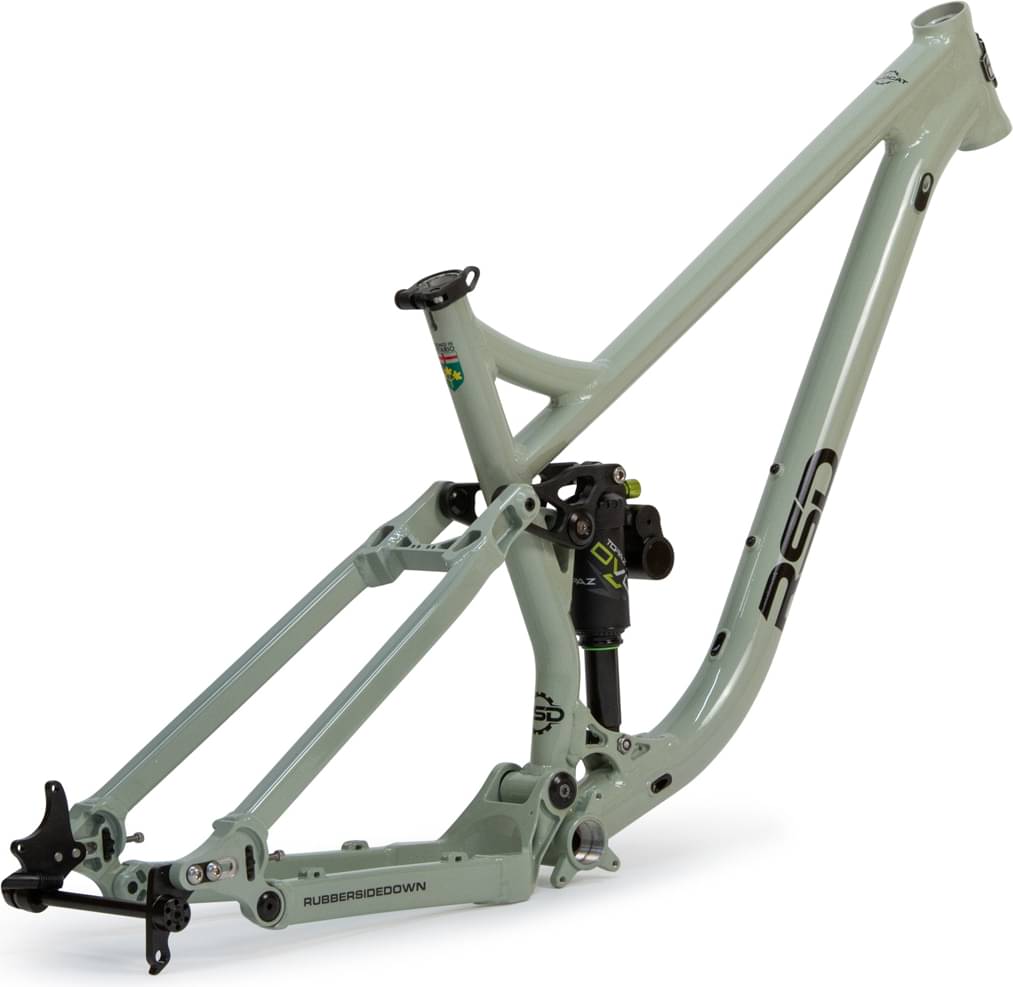

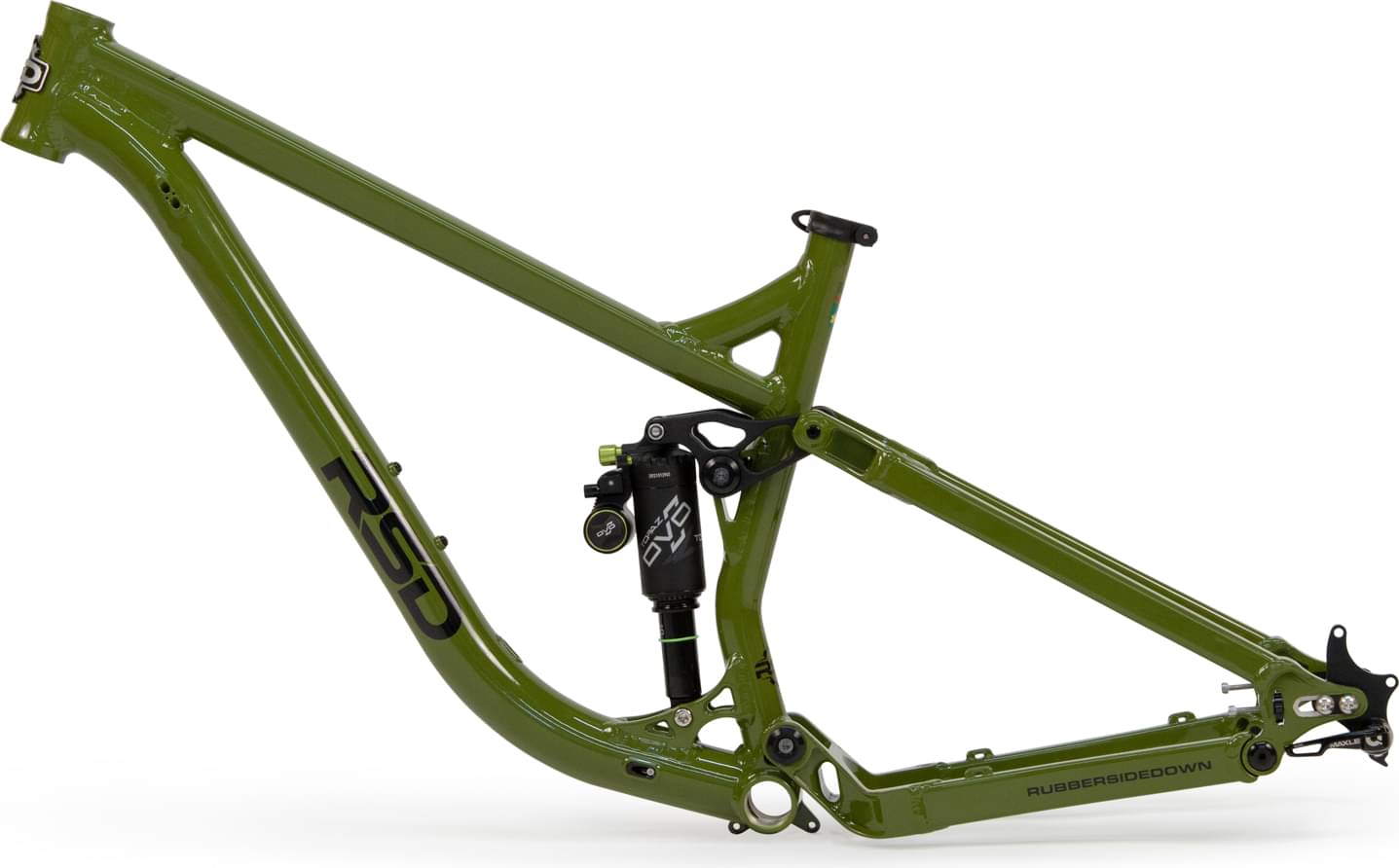

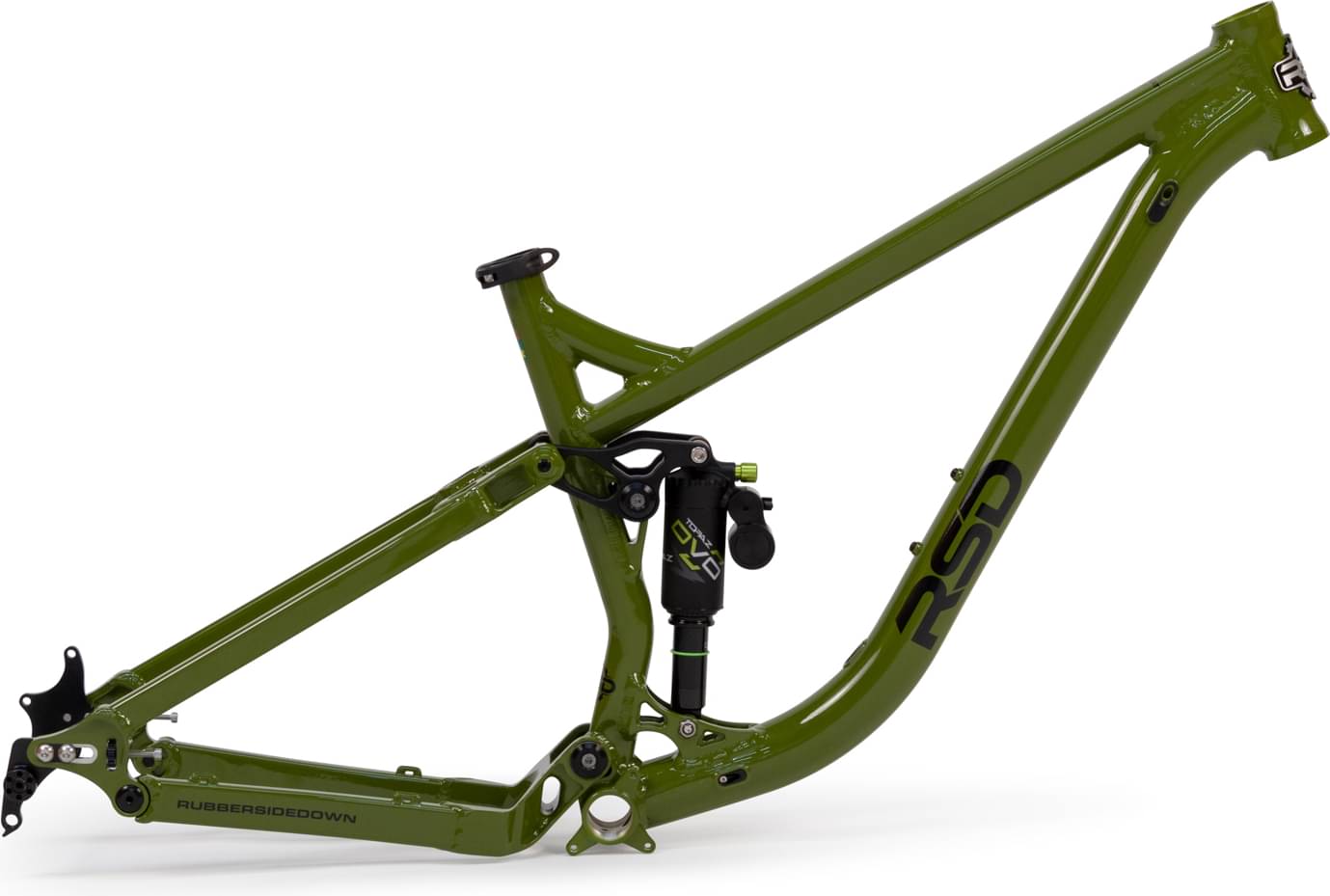

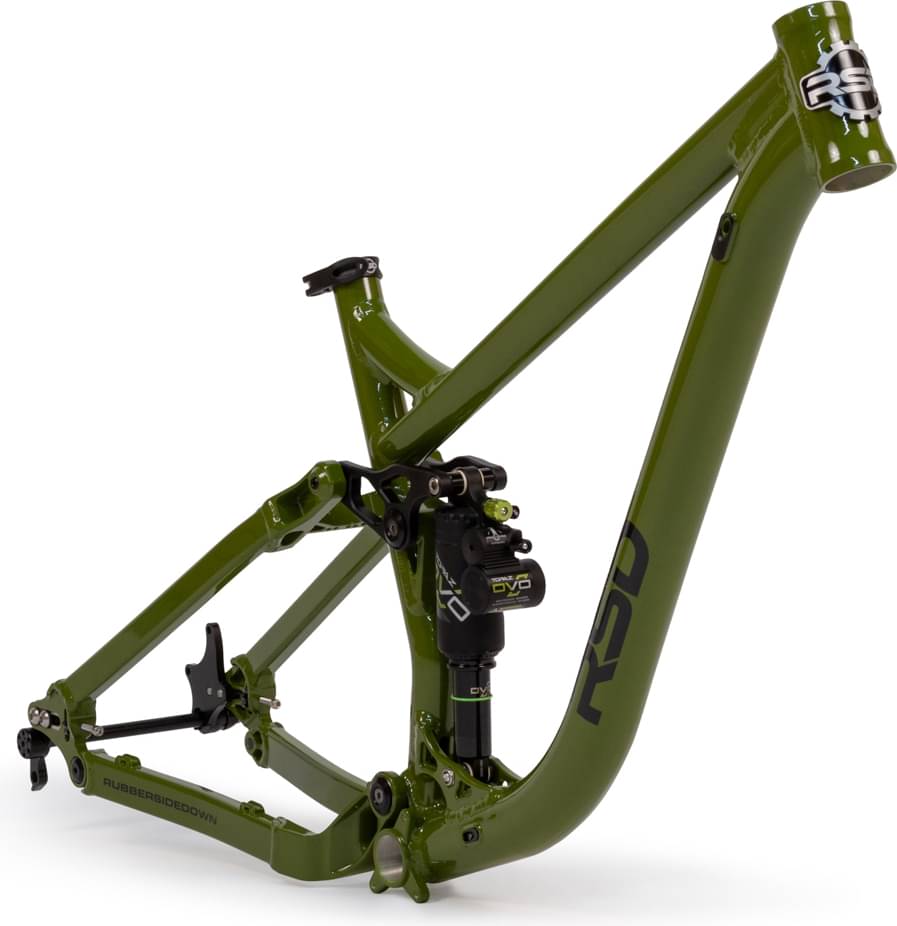

Frame

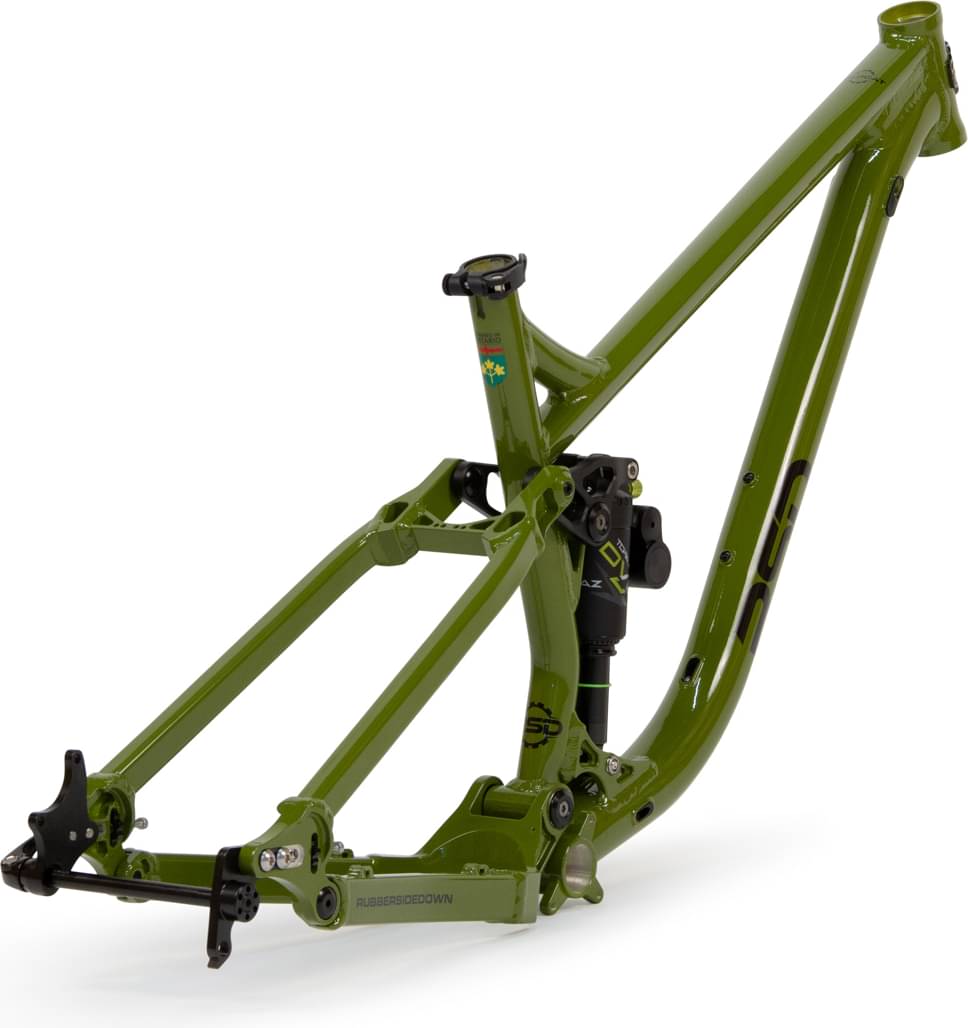

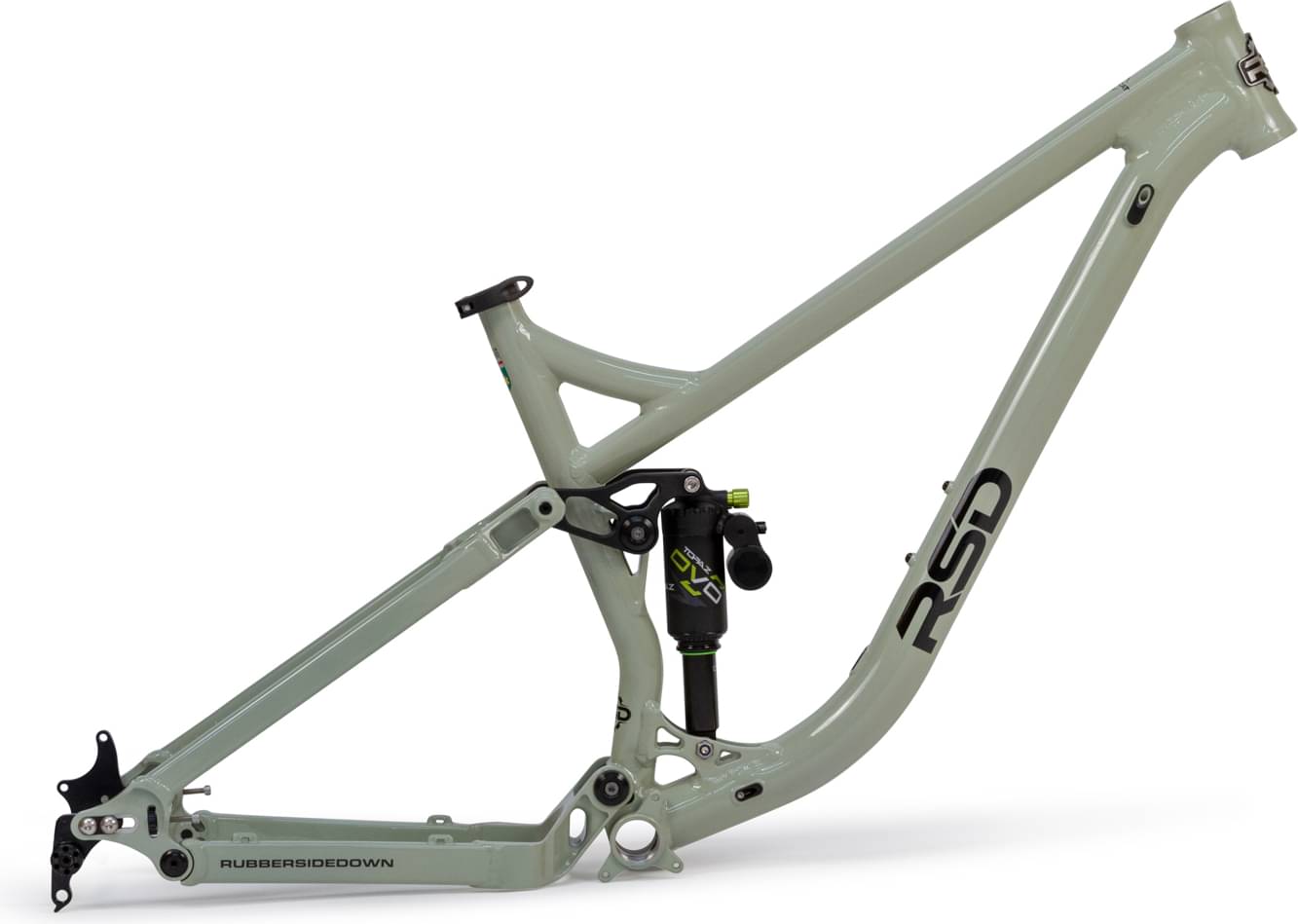

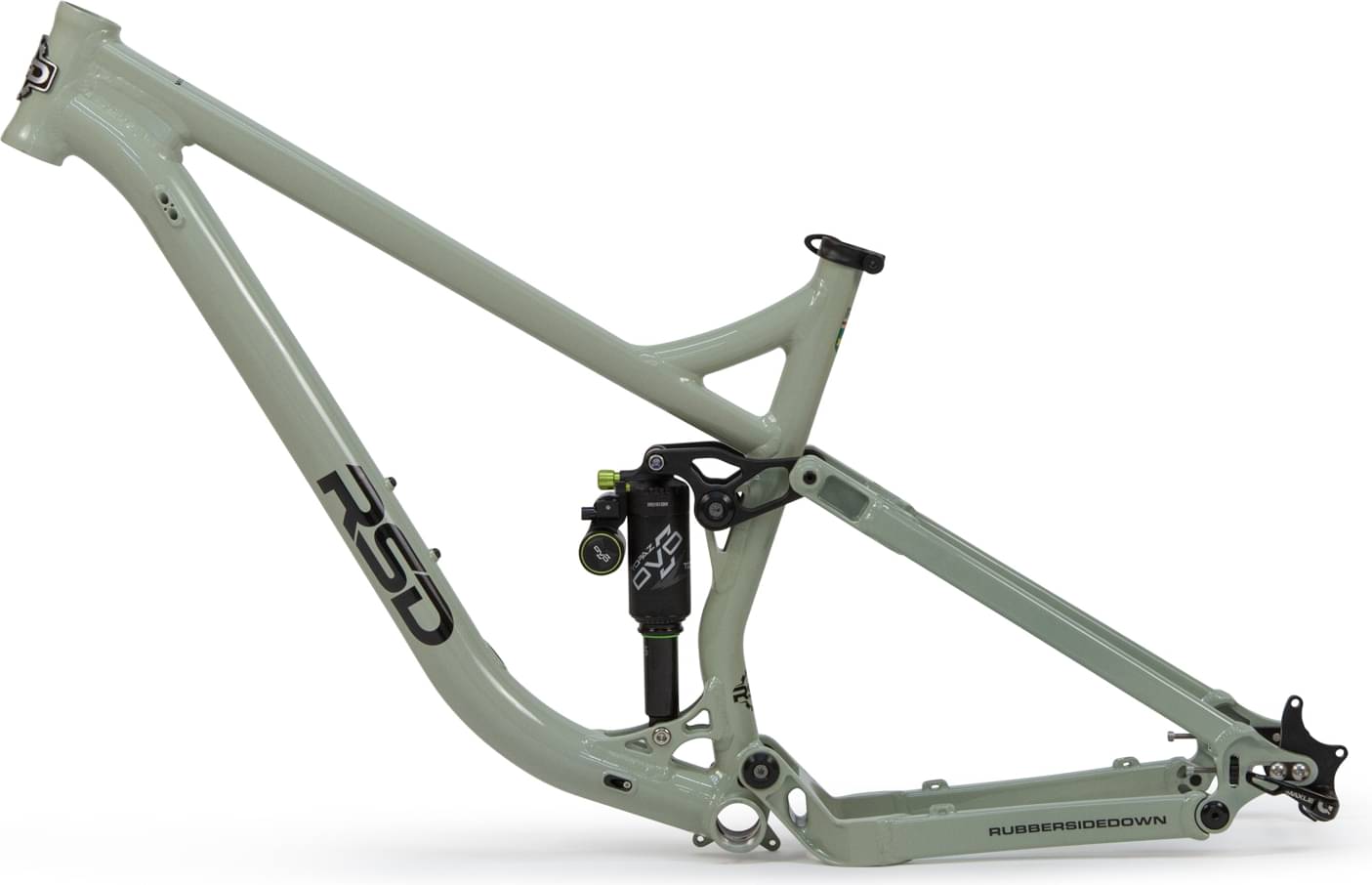

Frame

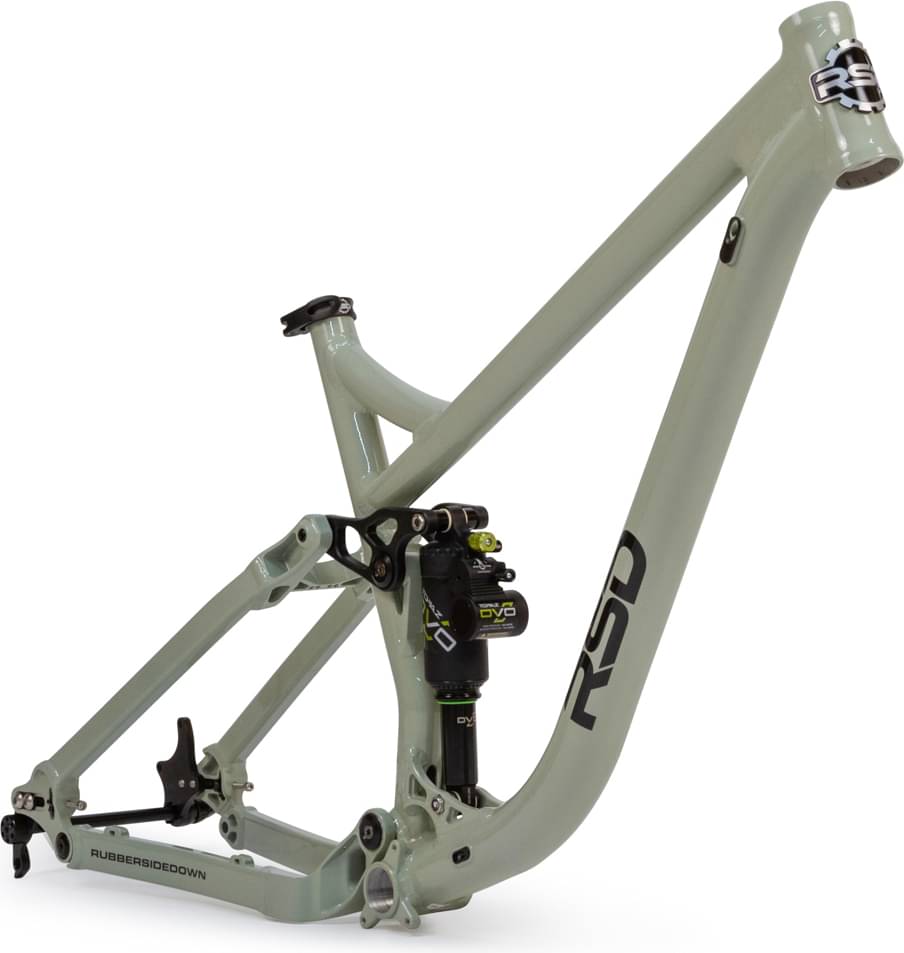

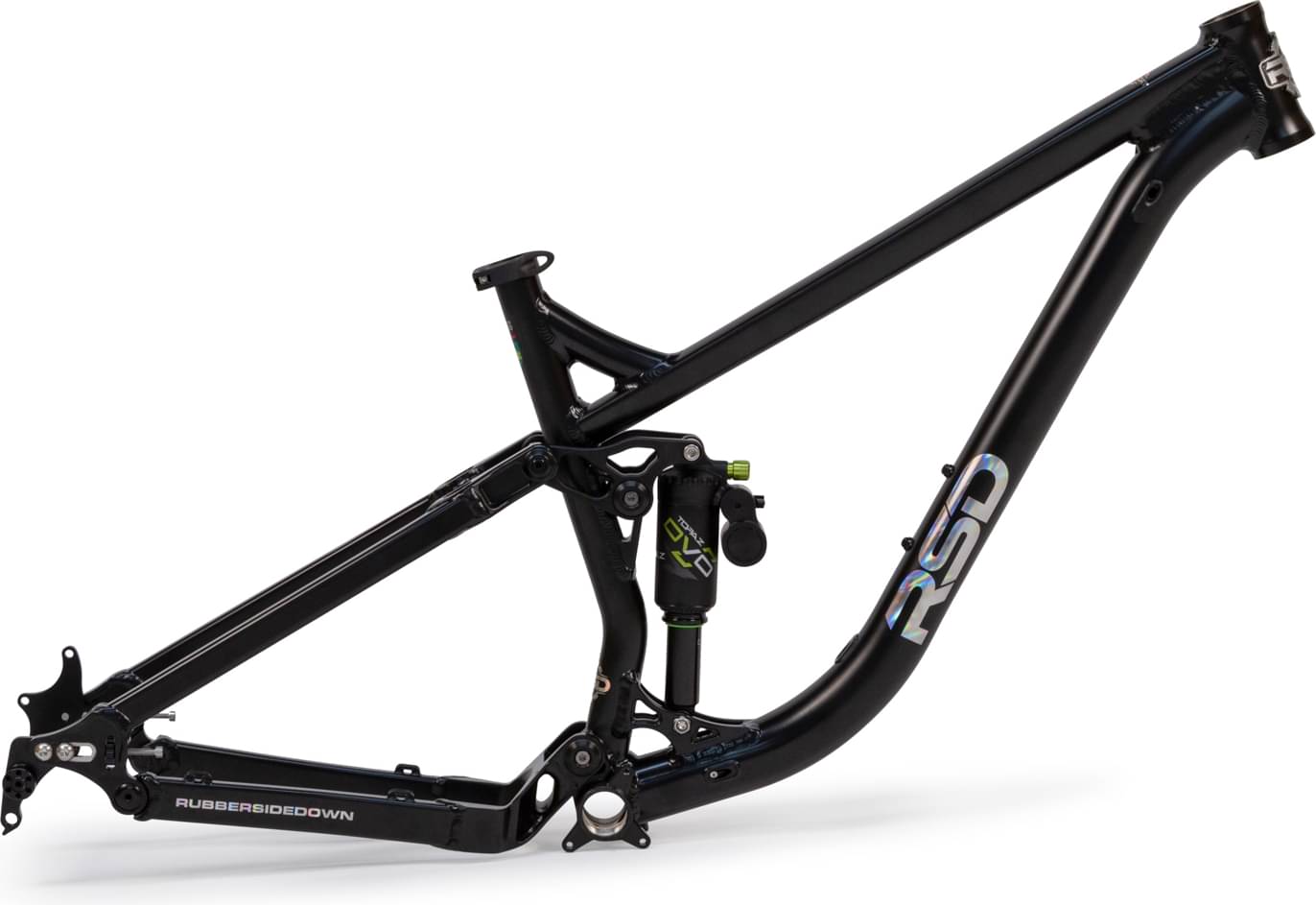

27.5+/29 Aluminum 6000 Series
Suspension Fork
DVO Diamond D3 27.5+/29 140mm 51mm
Rear Shock

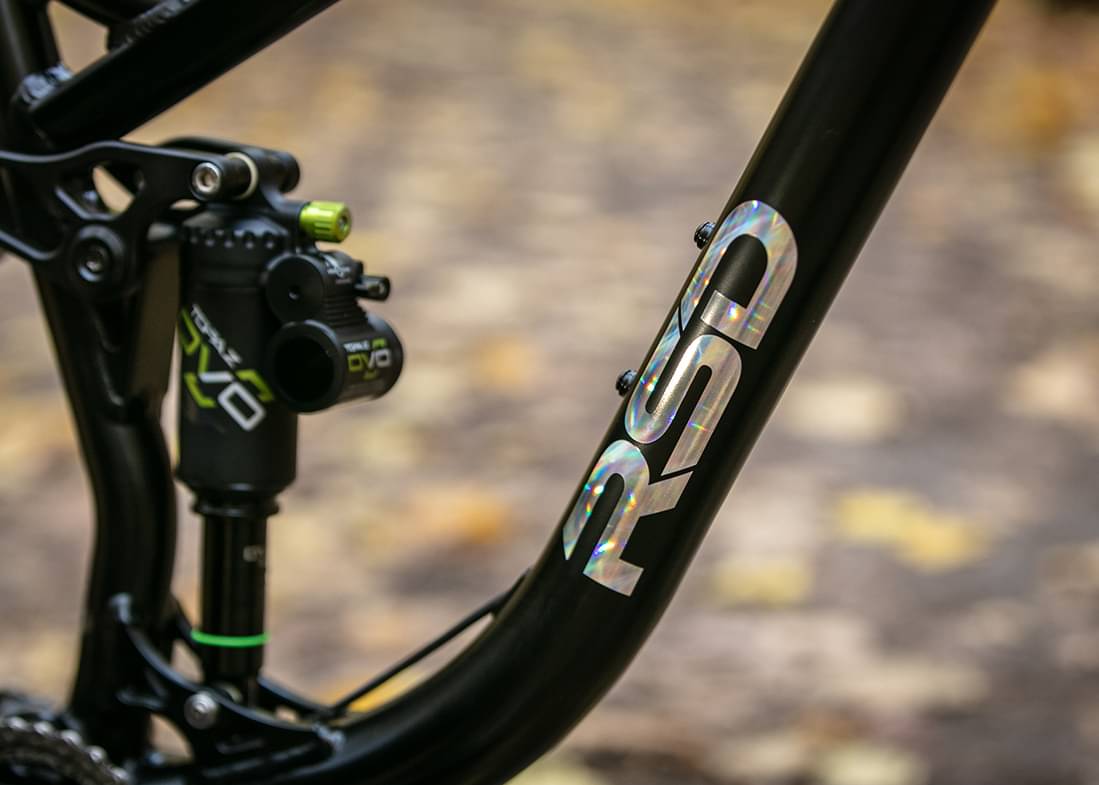

DVO Topaz T2 210×52.5 (RC 425 – 125mm, RC 440 – 128mm)
Drivetrain
Rear Derailleur
SRAM SX Eagle Long Cage 12spd
Shift Levers
SRAM SX Eagle Trigger 12spd
Cassette
SRAM SX Eagle 10-51T 12spd
Crank
SRAM SX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM NX Eagle 12spd
Wheels
Rims
Front: Sun Ringle Duroc 29x35mm Front 15x110mm Boost, Rear: Sun Ringle Duroc 29x35mm Rear 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C/Max Terra/EXO Rear
Brakes
Brakes
SRAM Level T
Cockpit
Stem
Race Face Aeffect R 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10

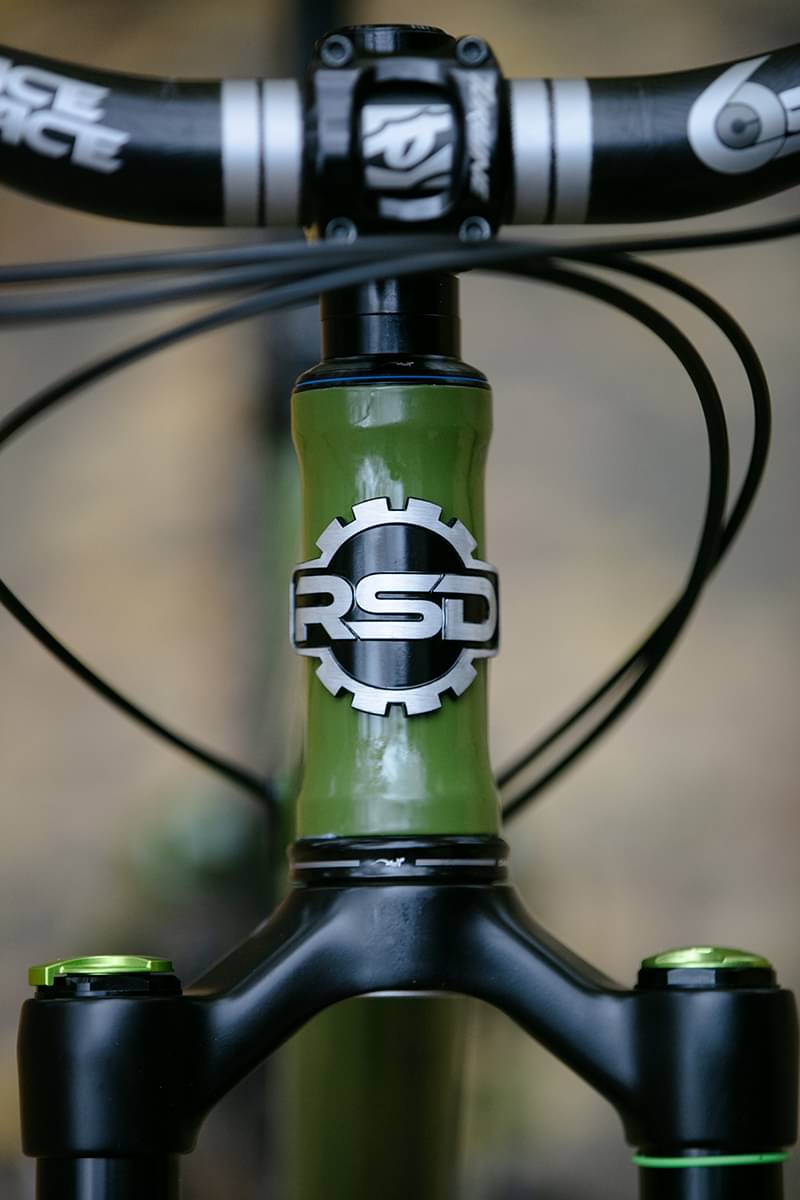

Headset
Cane Creek ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Seatpost
Race Face Turbine / KS LEV Dropper (S 125mm, M 150mm, L 175mm & XL 200mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.329 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 754 mm | 786 mm | 807 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 134 mm | 126 mm | 126 mm | 126 mm |
| Stack | 605 mm | 614 mm | 619 mm | 632 mm |
| Reach | 434 mm | 462 mm | 481 mm | 502 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 75.6 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1178 mm | 1210 mm | 1231 mm | 1258 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 700 | 705 mm | 708 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
WILDCAT 125 (V3) Aluminum 29in SX Build completes the Rsd Wildcat model. RSD released 32 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
RSD WILDCAT V3 Aluminum 29in SX Build 2022 is the most affordable bike of this model and has a price of 2999$. On the other hand, RSD WILDCAT 125 (V3) Aluminum 29in Deore Build 2022, is the most expensive and costs 3749$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When RSD released this model in 2022, its price was 2999$. Comparing the average cost of a Trail bike to this one, you will see that WILDCAT 125 (V3) Aluminum 29in SX Build price is 8.58% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
RSD WILDCAT 125 (V3) Aluminum 29in SX Build it’s weighing 15.25 kg (33.62 lbs). At this weight, is much heavier than average. In other words, this model is 17.49% heavier than the average Trail bike.
Overview of components
Fork
RSD WILDCAT 125 (V3) Aluminum 29in SX Build 2022 bike is equipped with the DVO Diamond fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the DVO Topaz T2 210×52.5 (RC 425 – 125mm rear shock model, which has a travel of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, RSD WILDCAT 125 (V3) Aluminum 29in SX Build 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
RSD WILDCAT 125 (V3) Aluminum 29in SX Build includes a dropper post. Therefore, climbing or descending will be a breeze.
