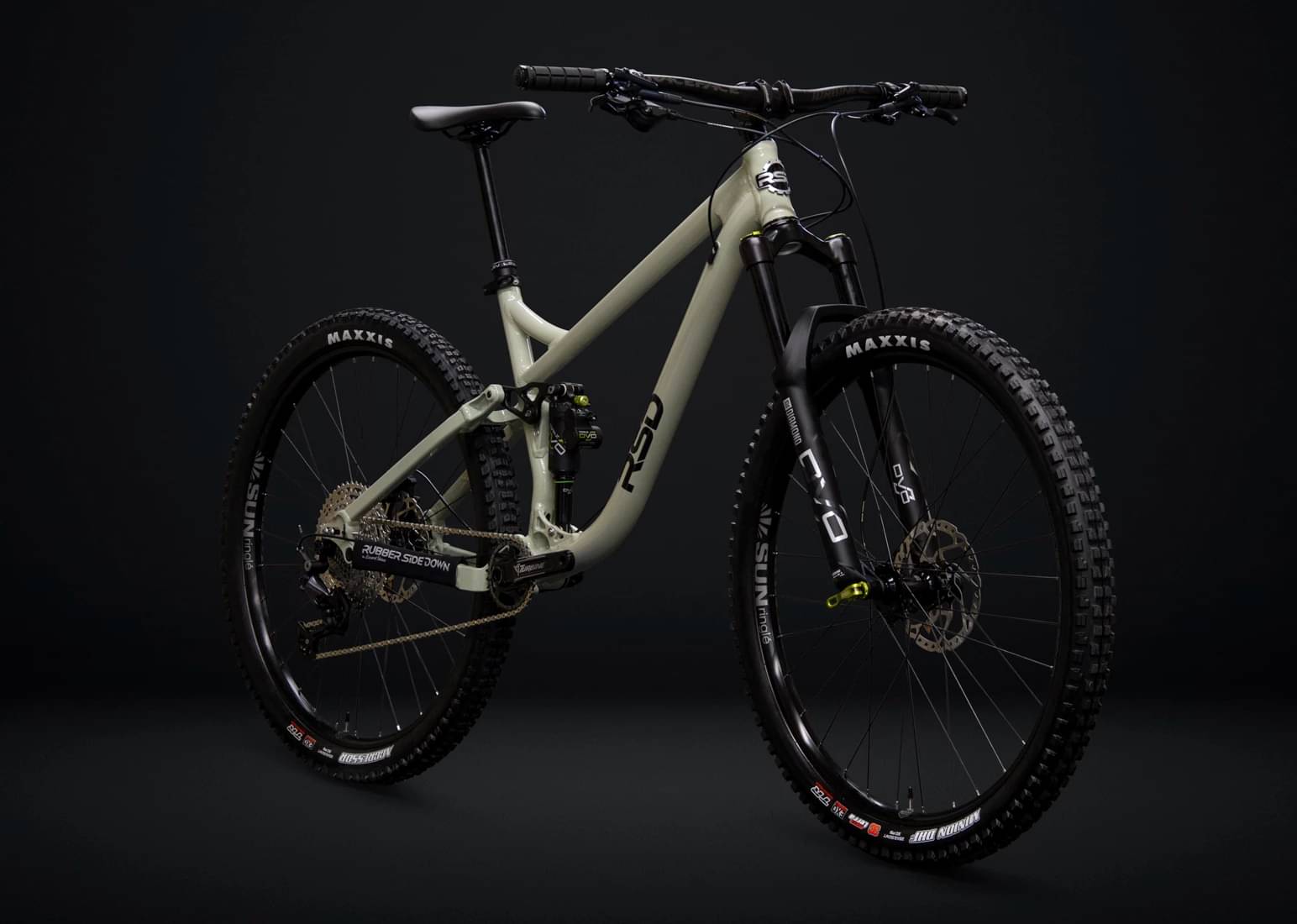

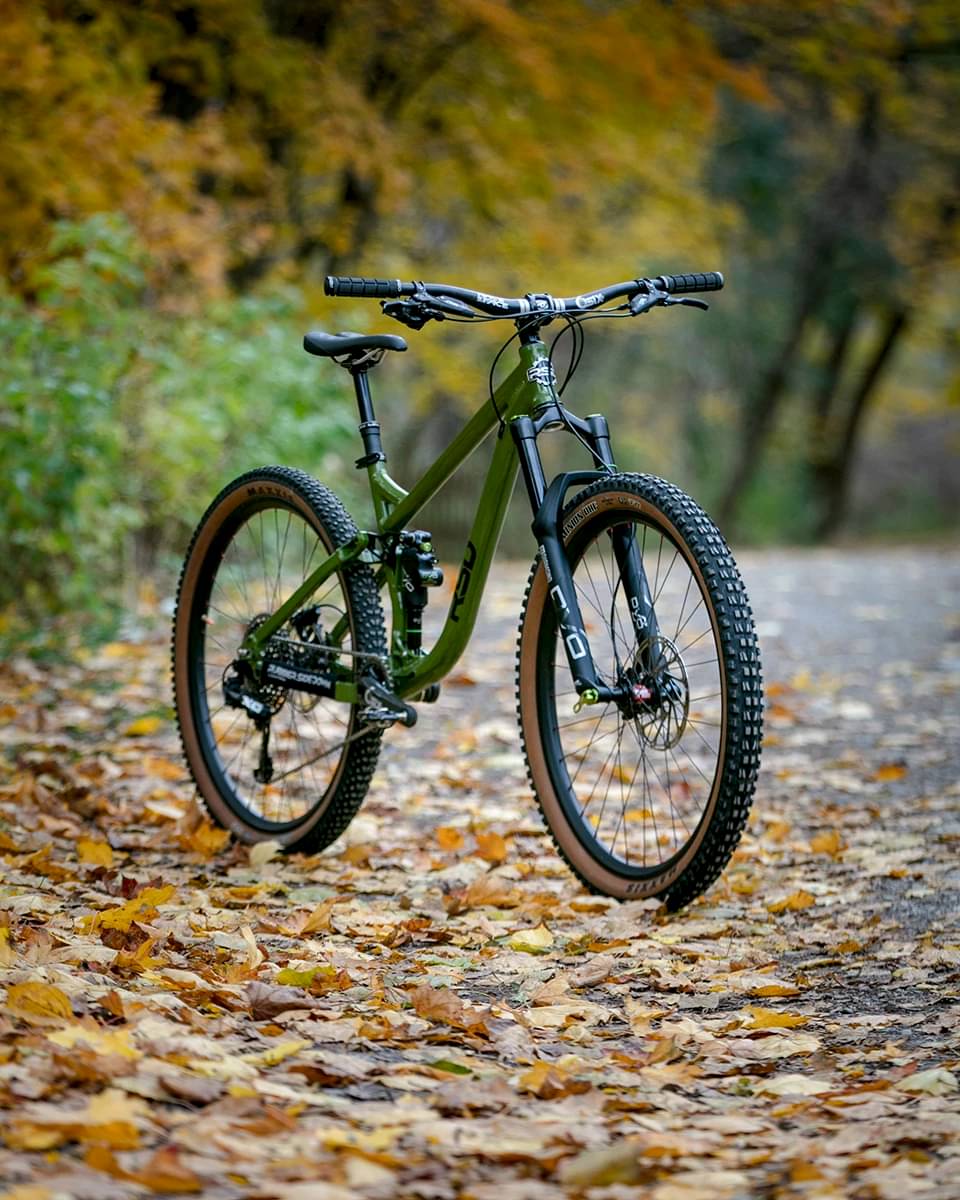

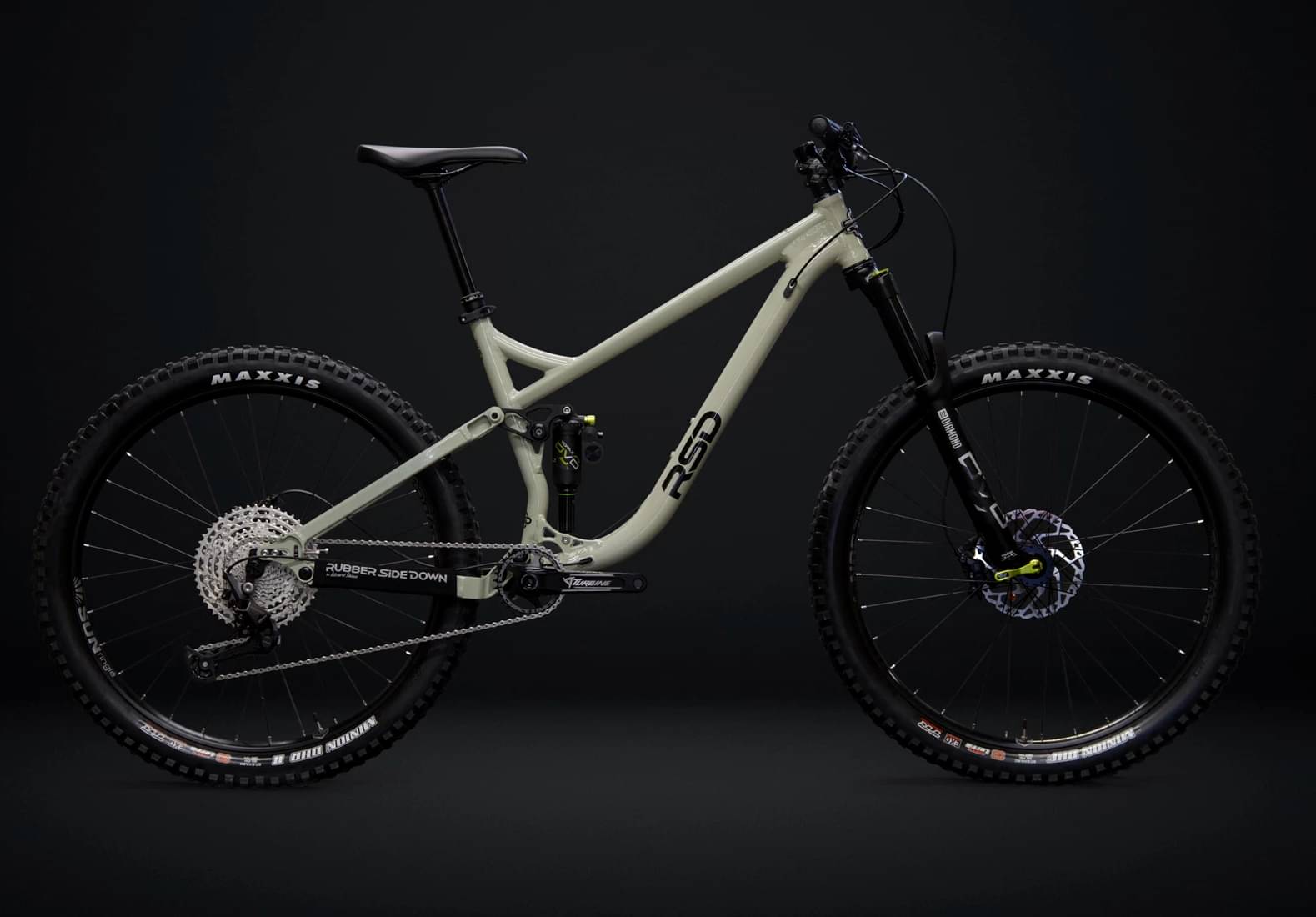

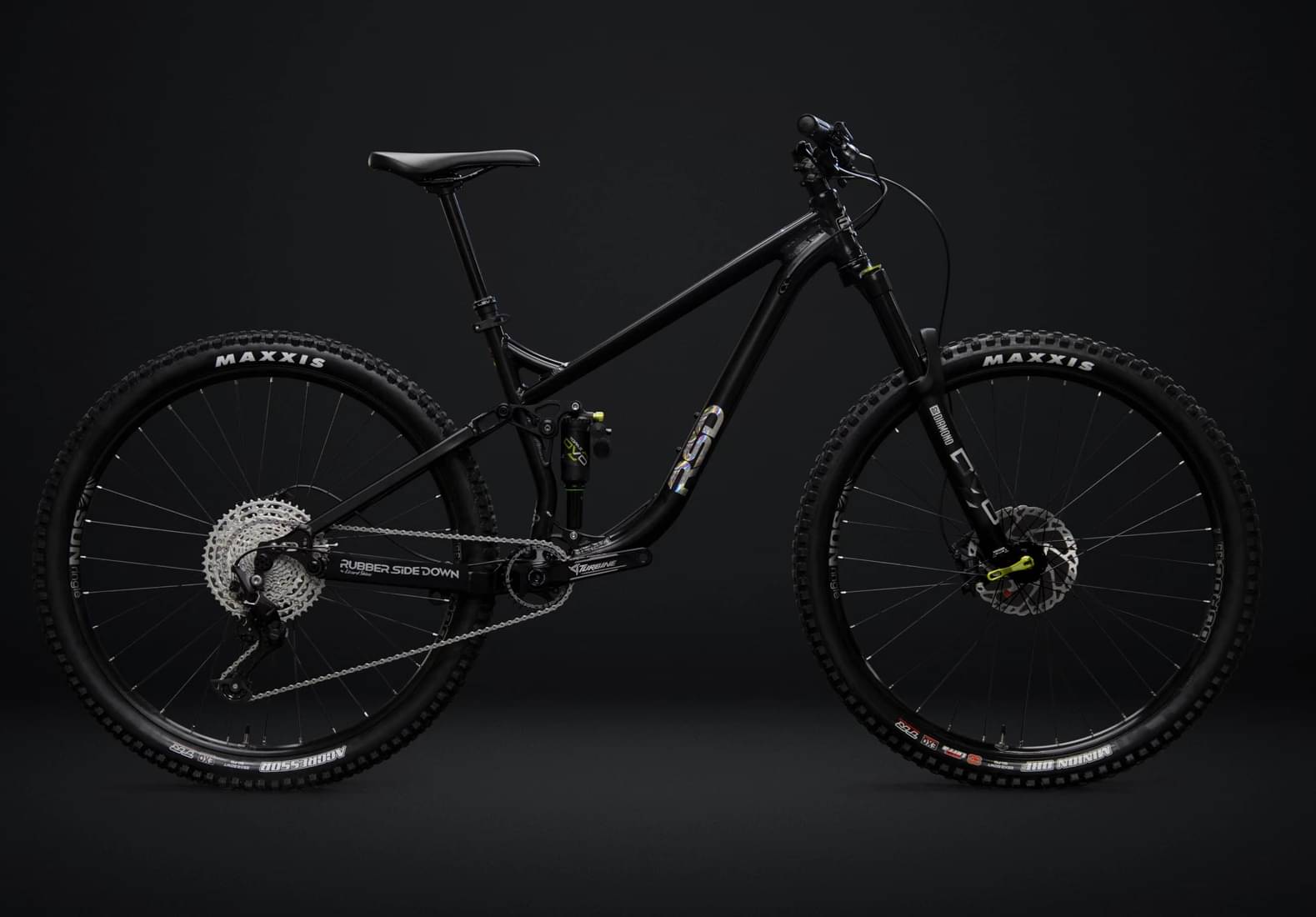

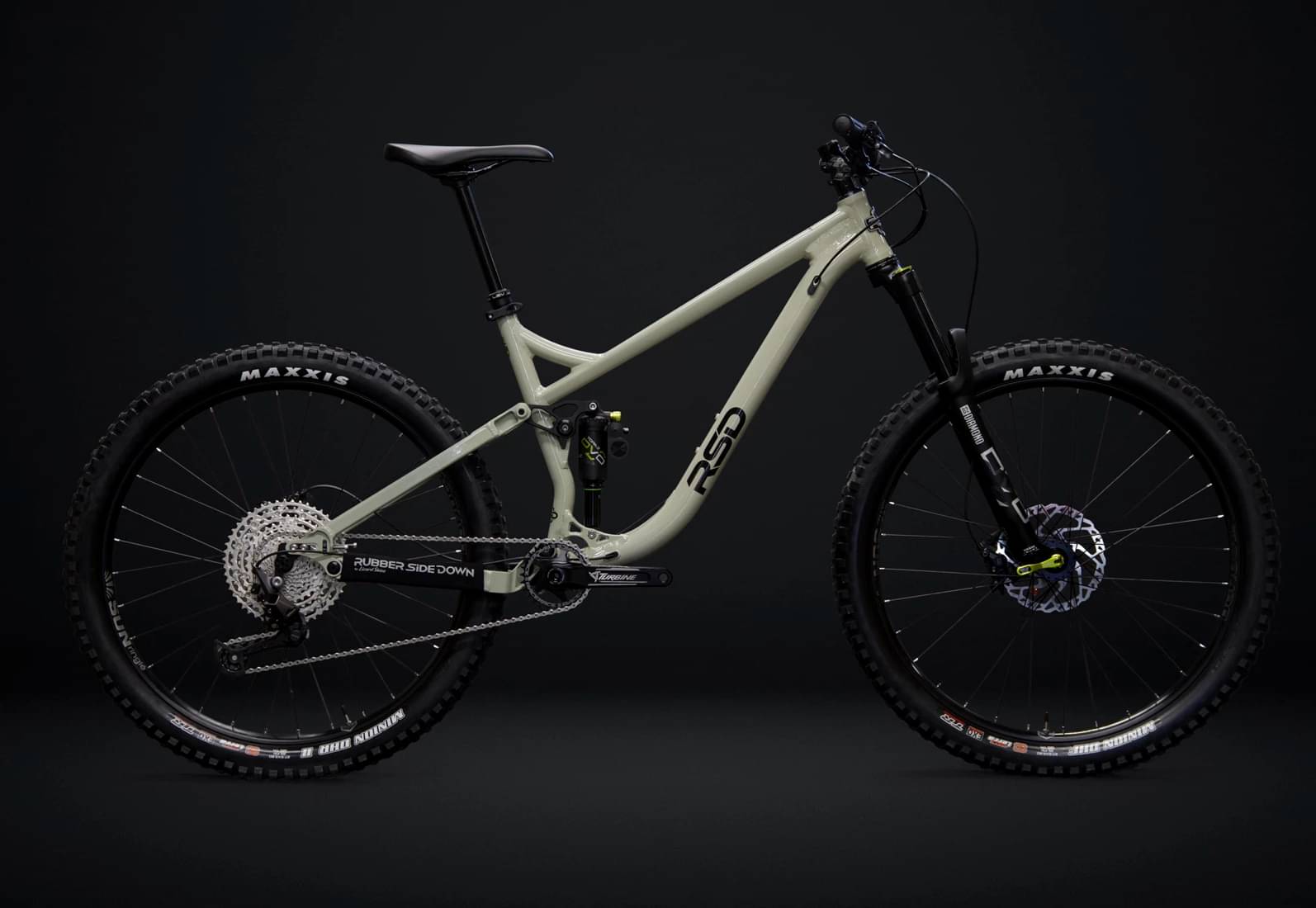

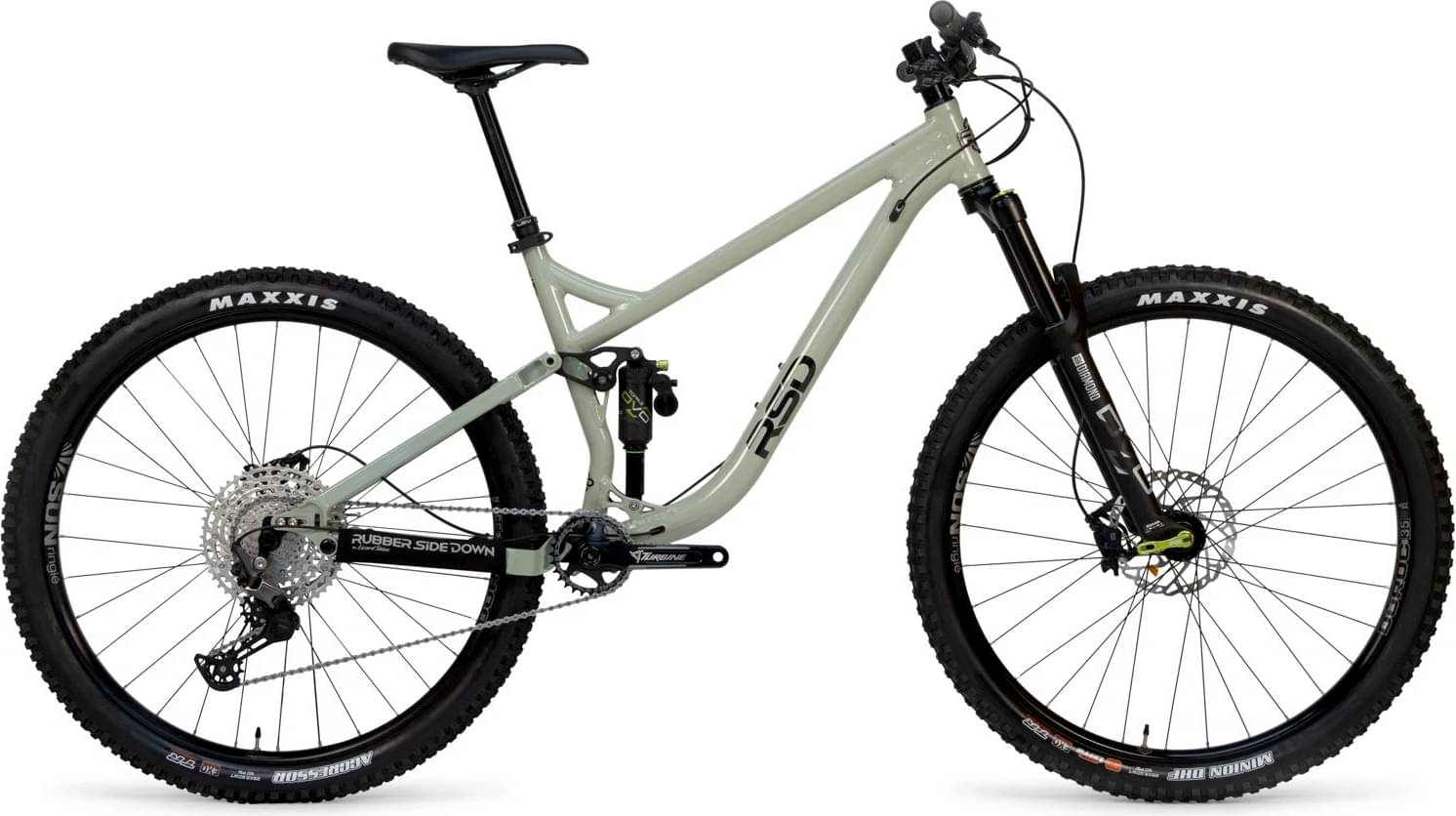

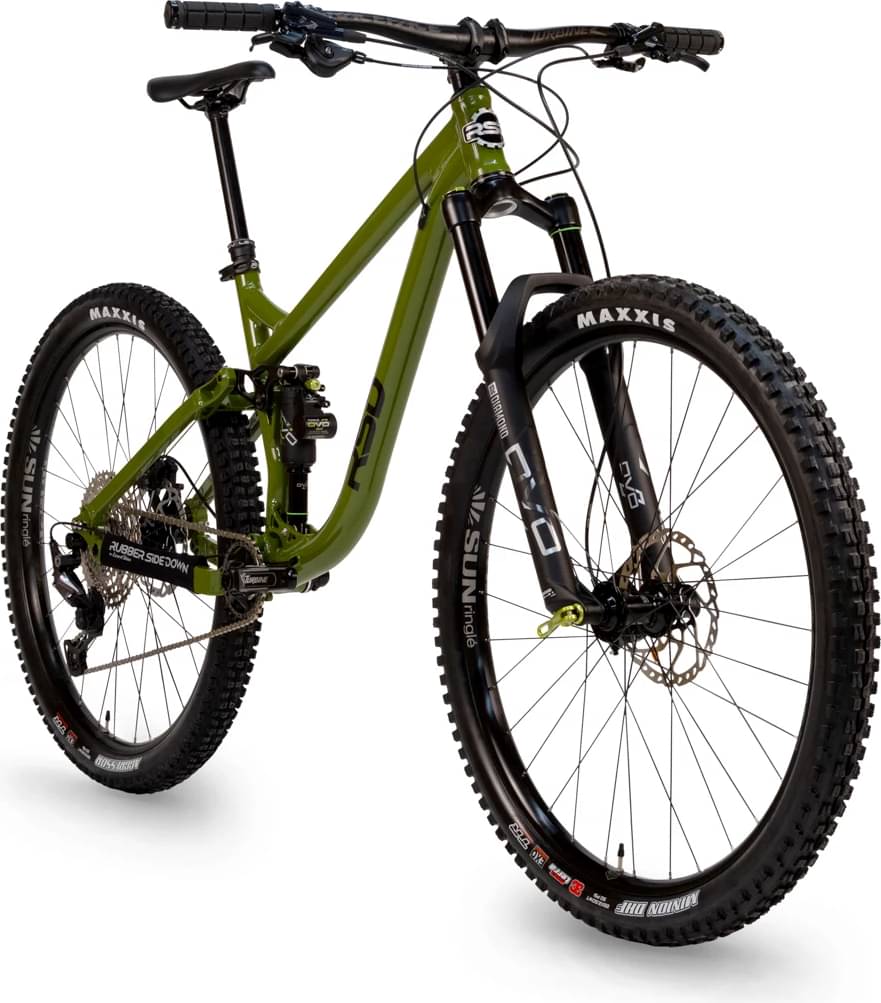

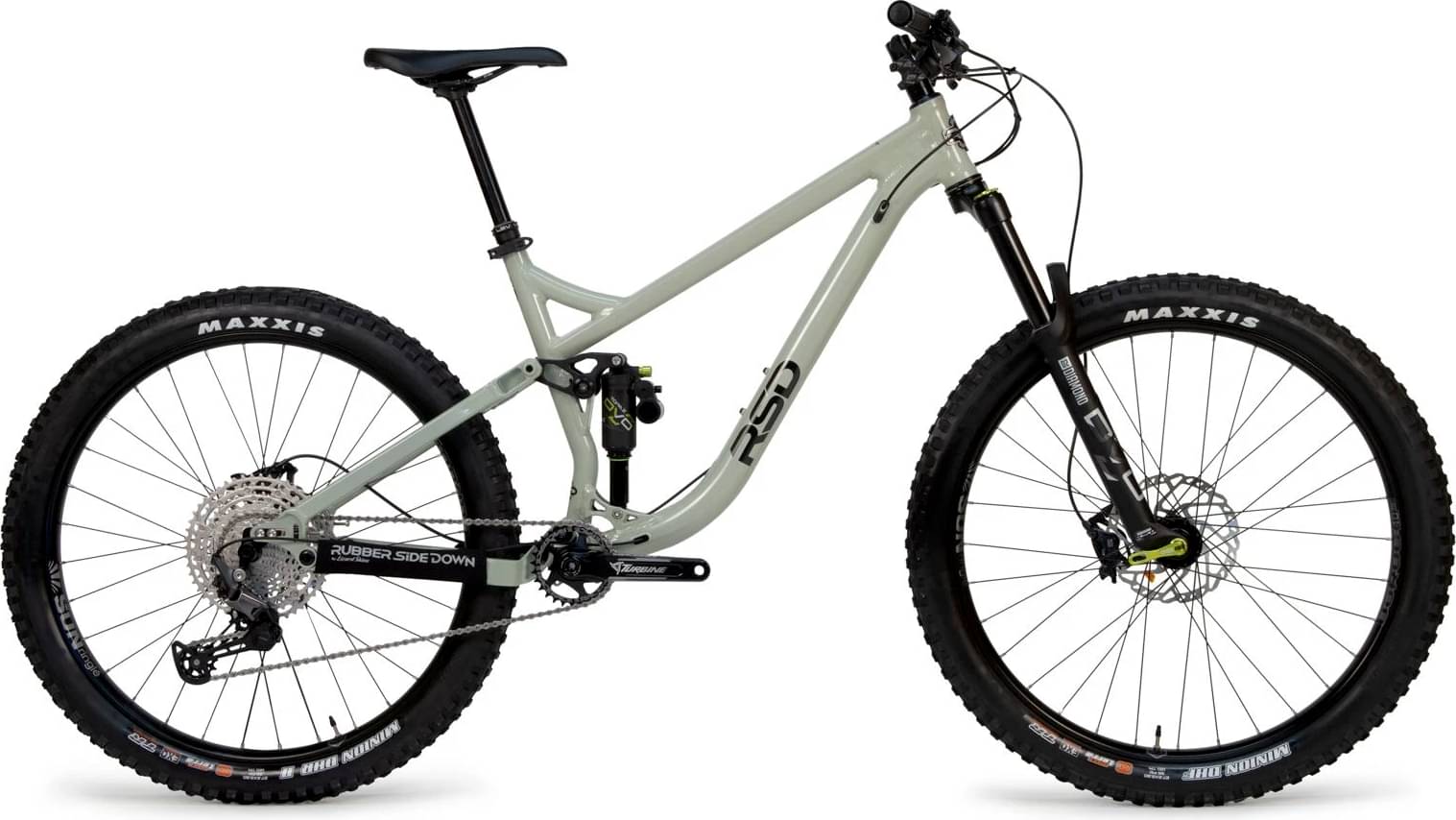

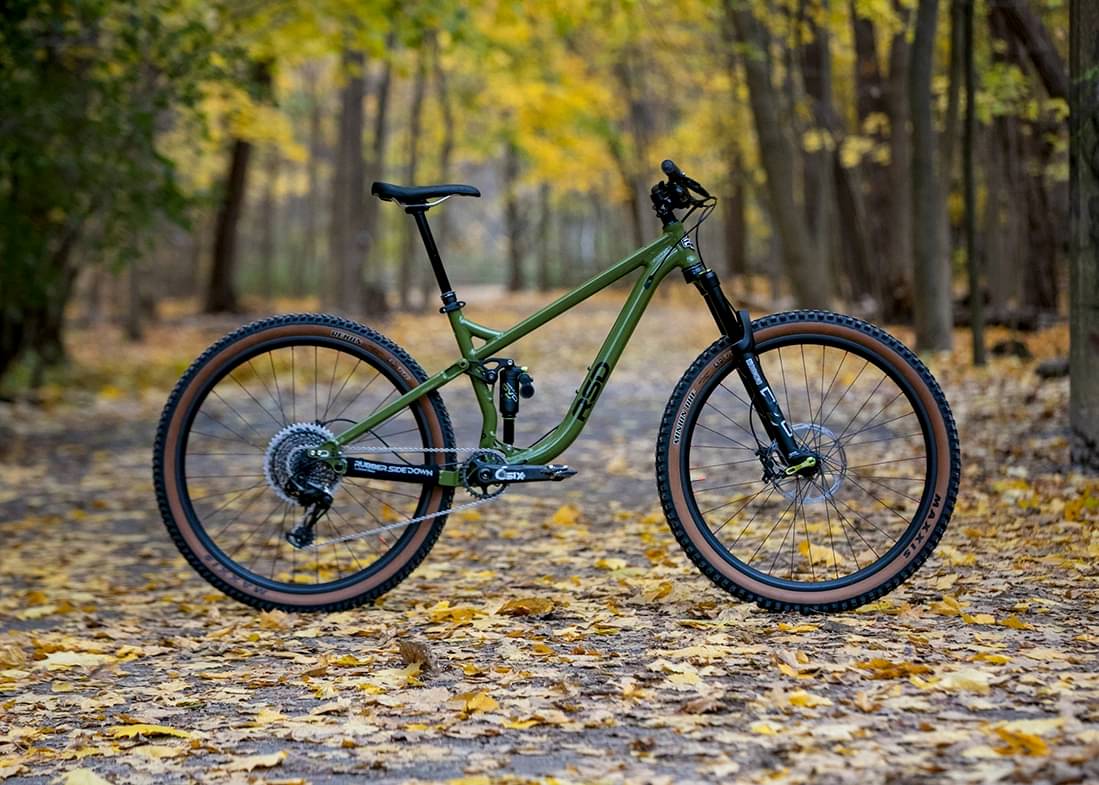

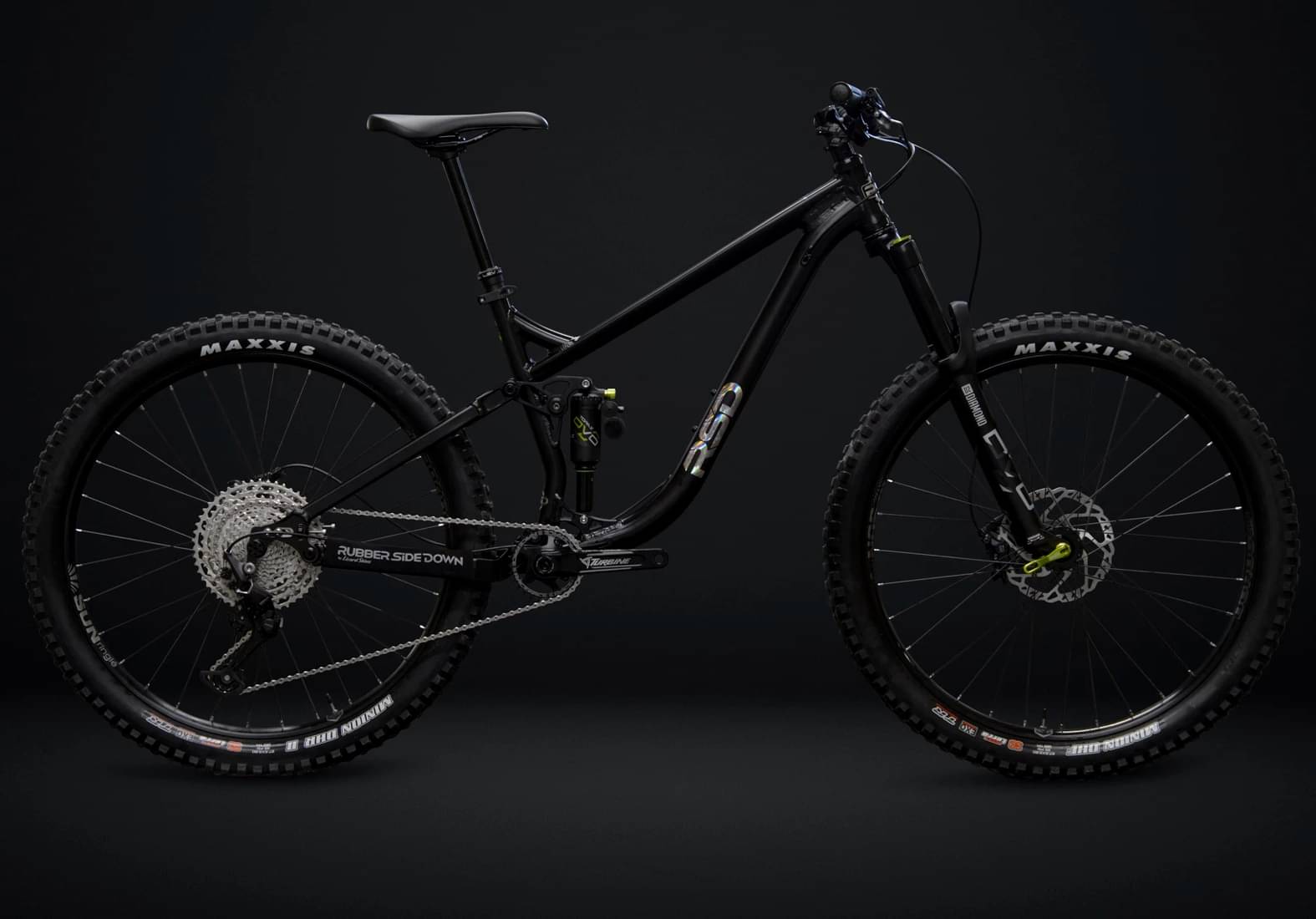

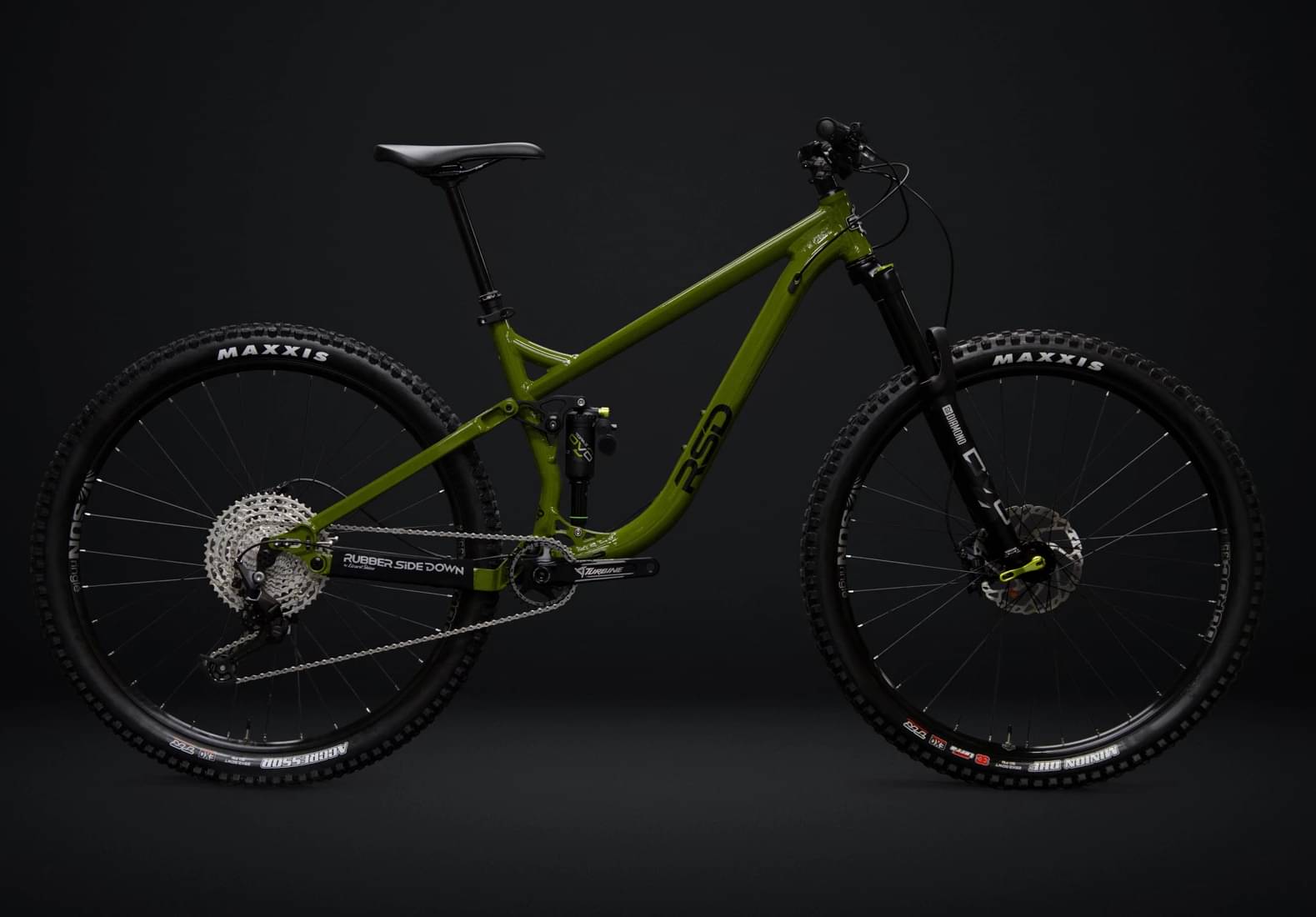

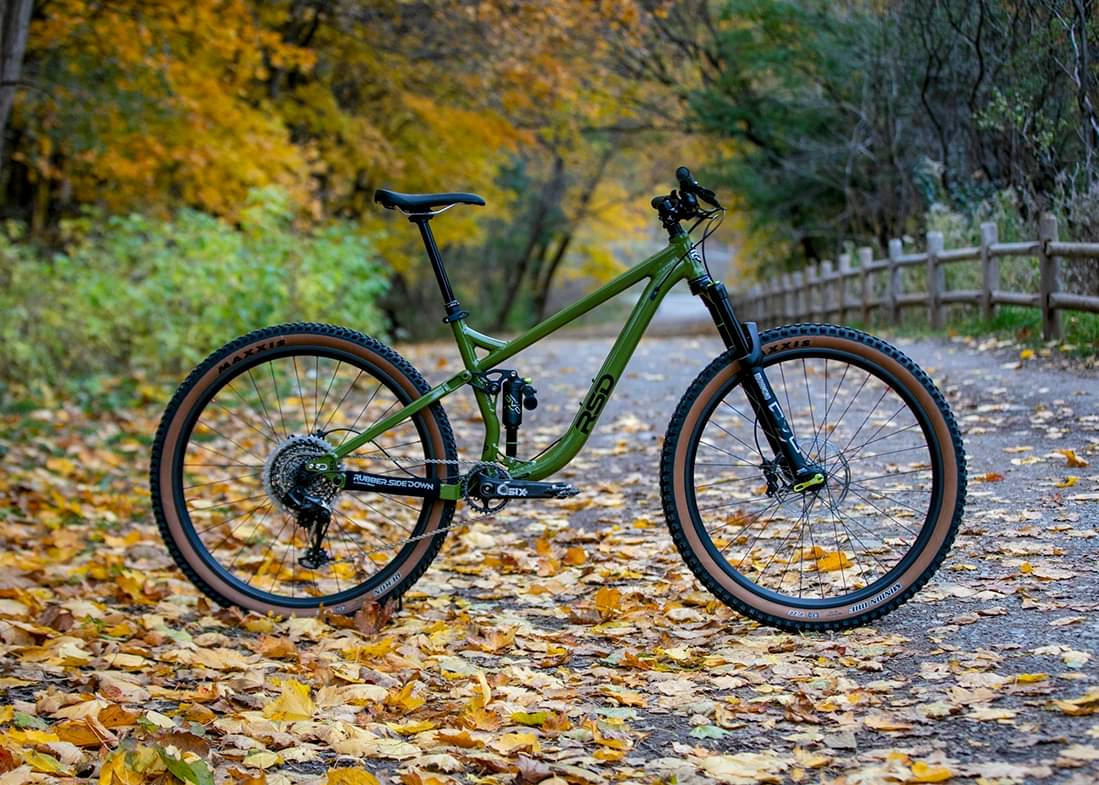

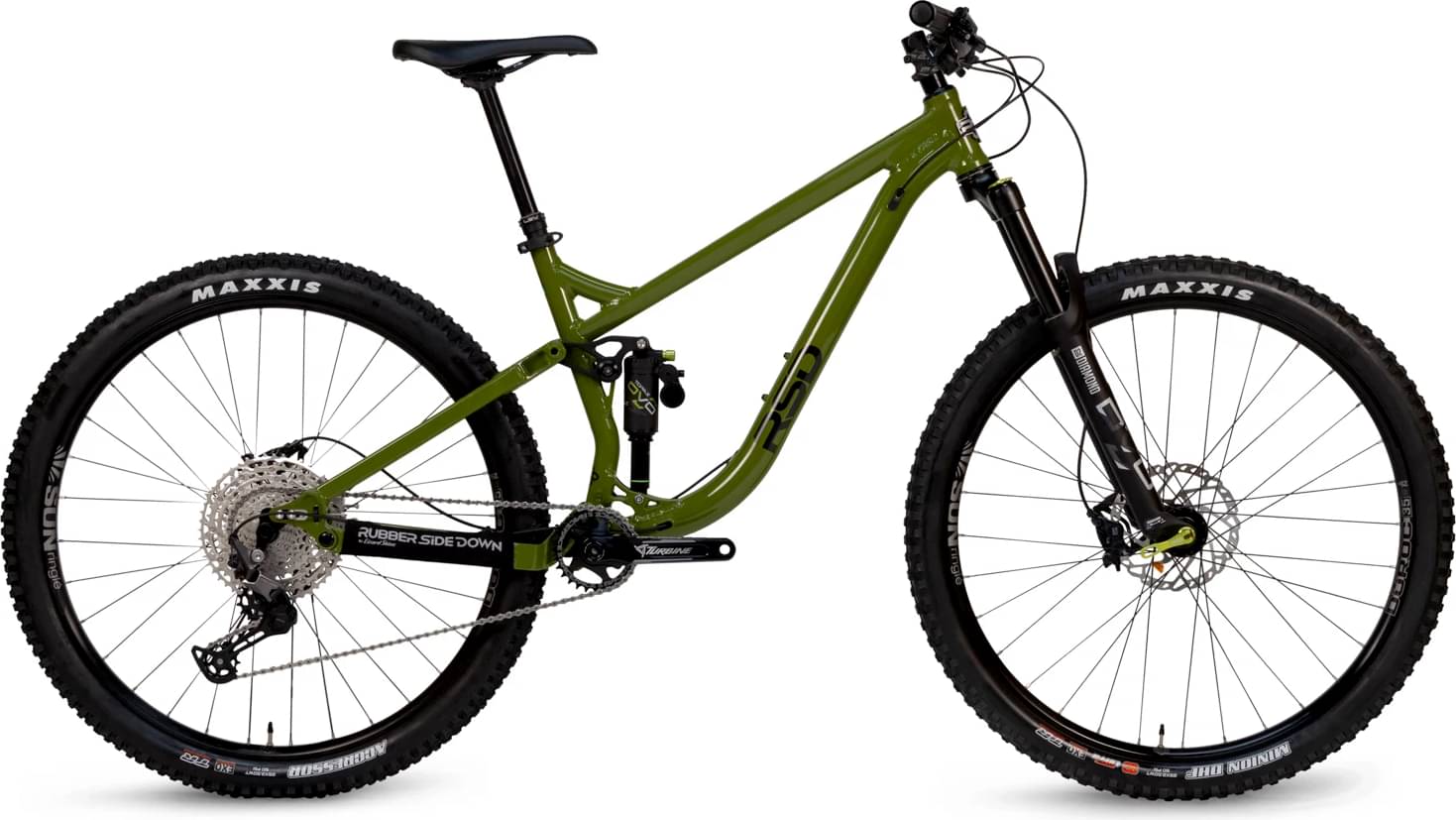

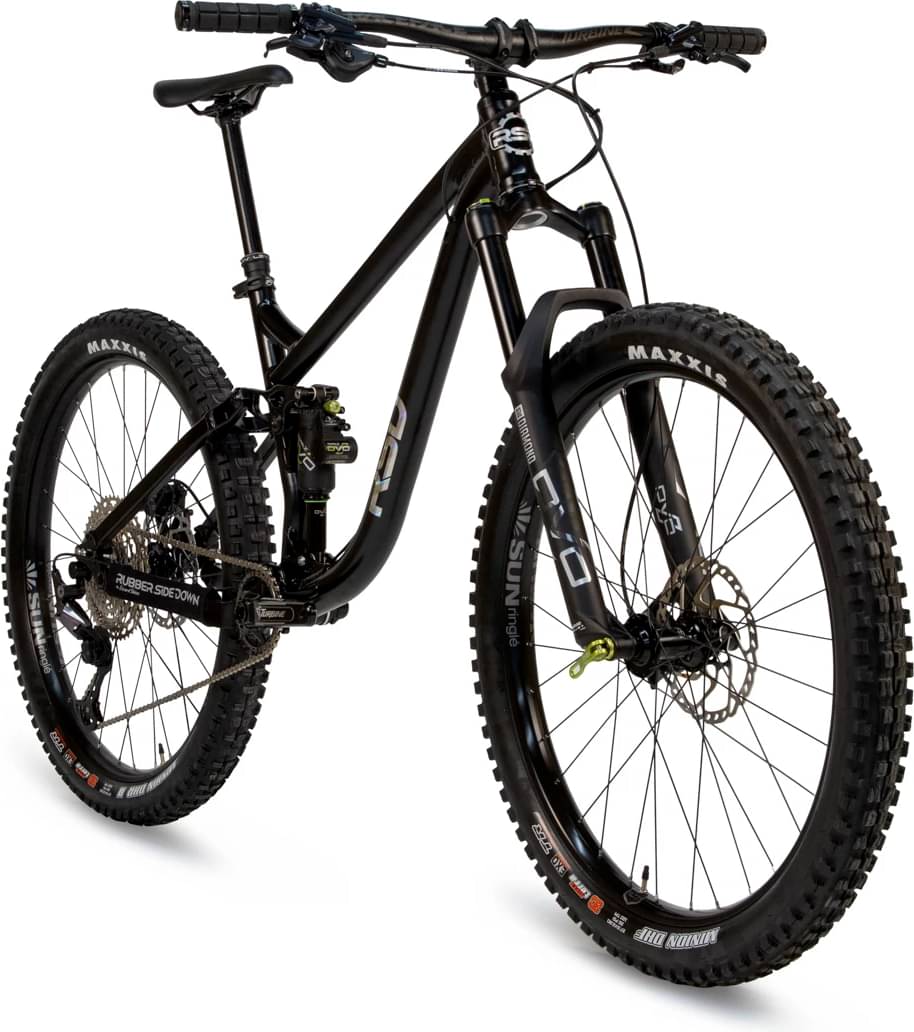

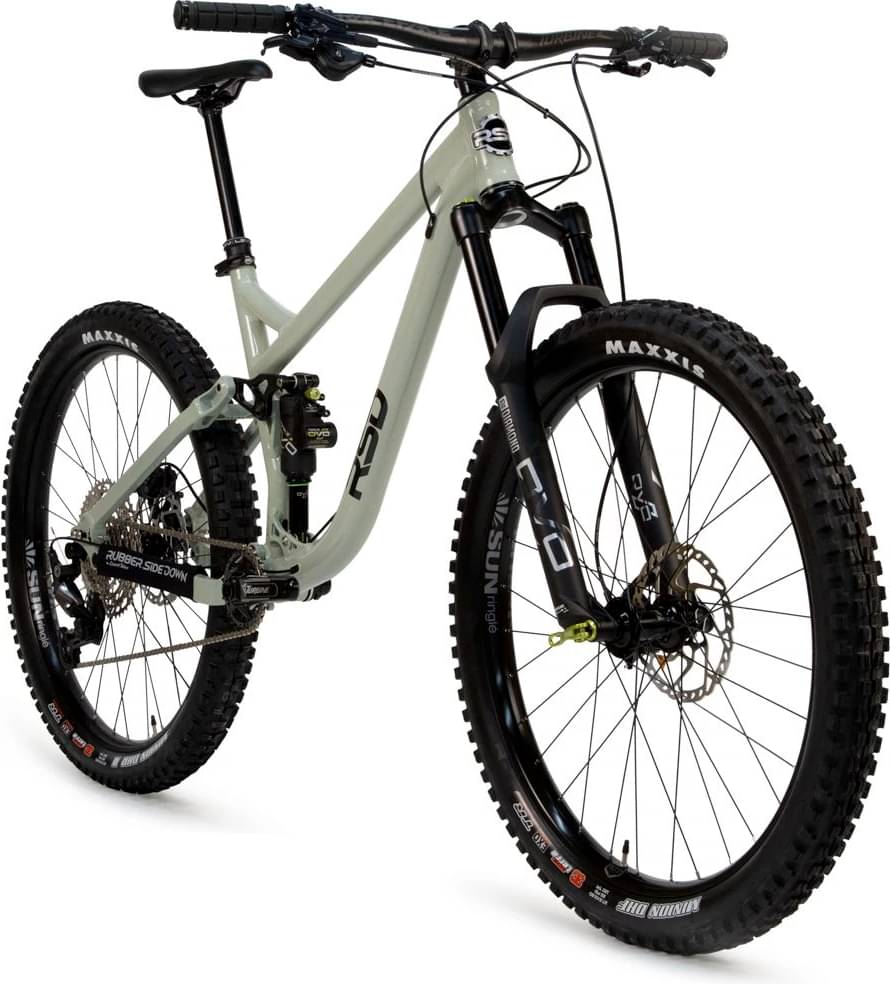

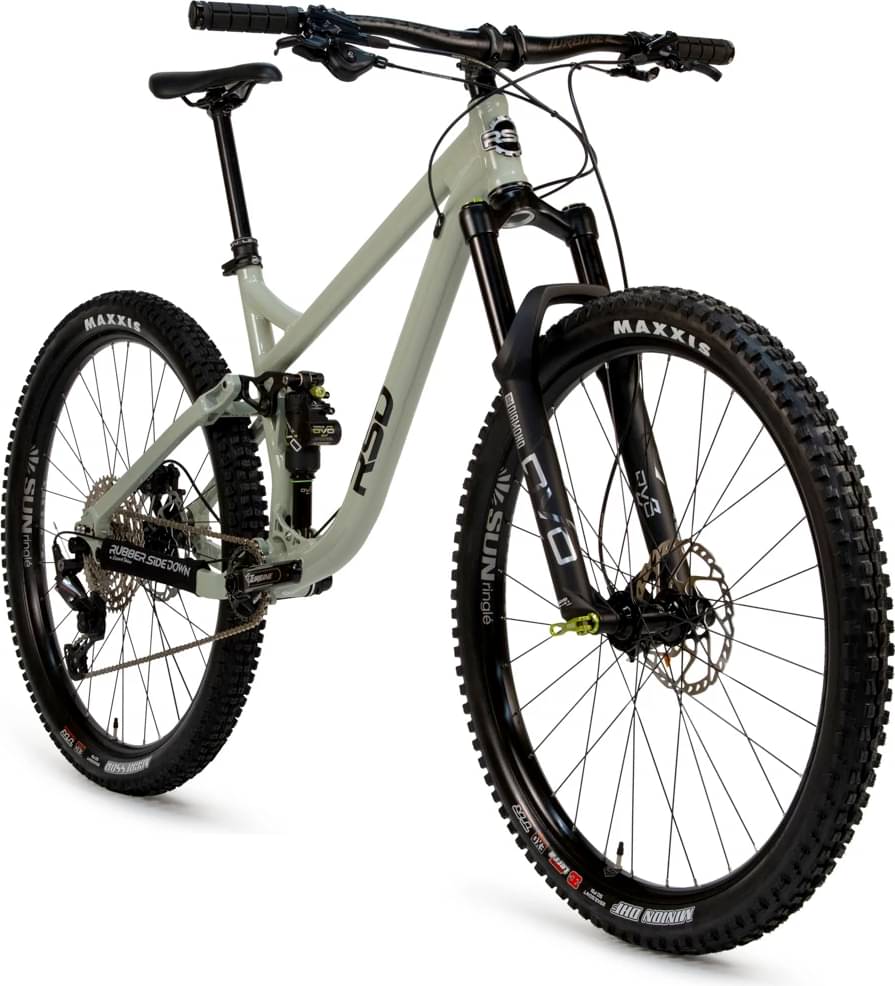

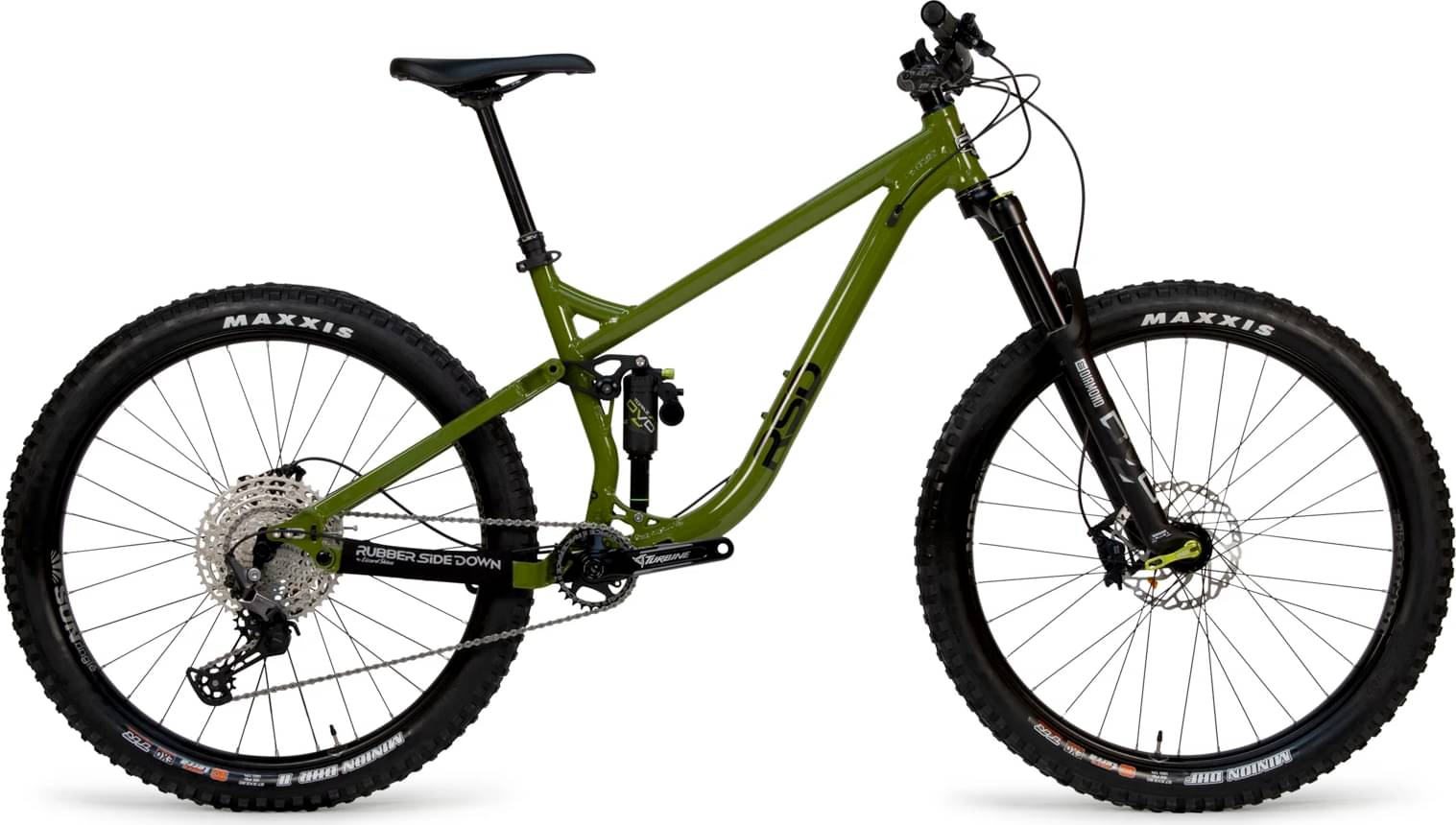

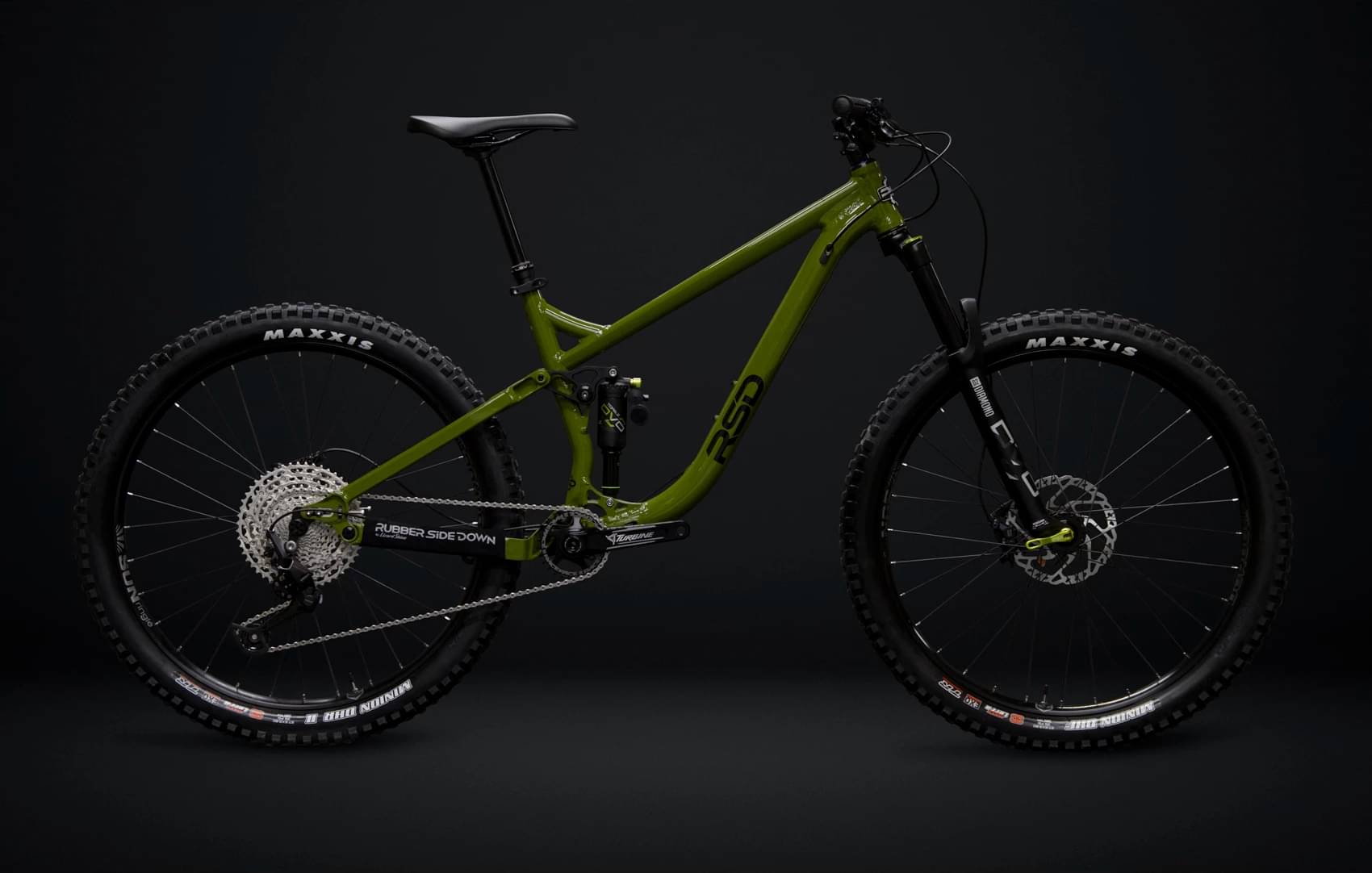

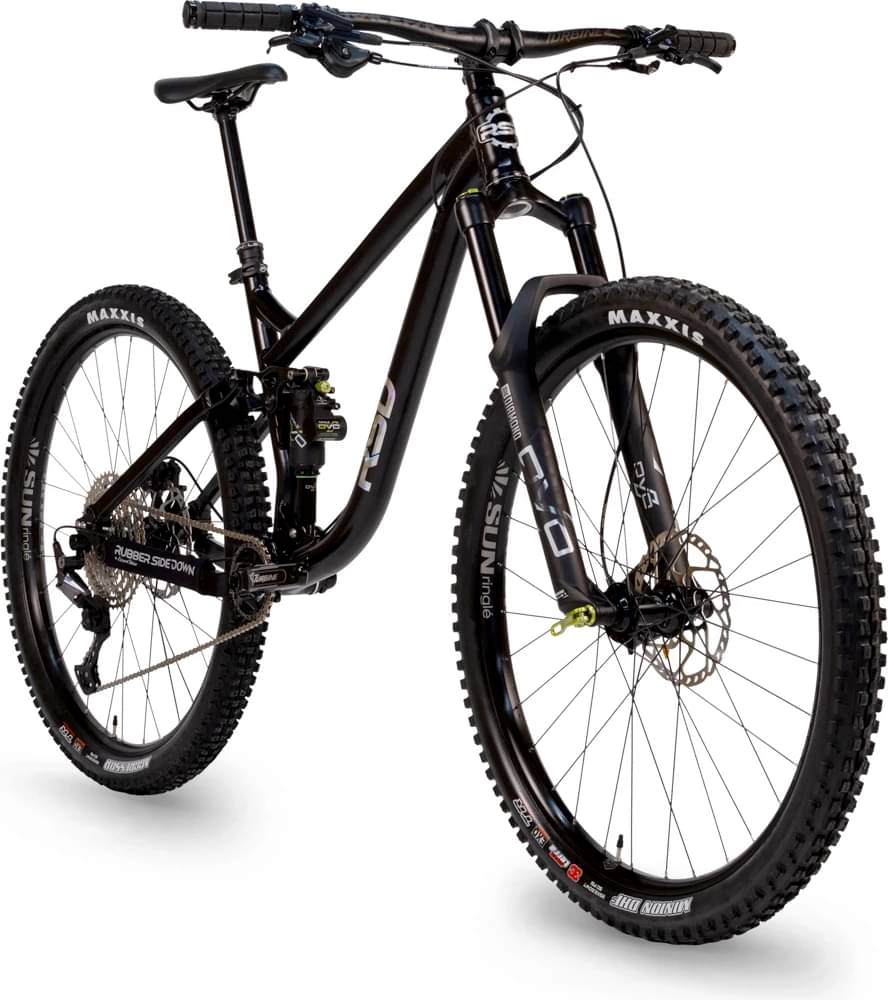

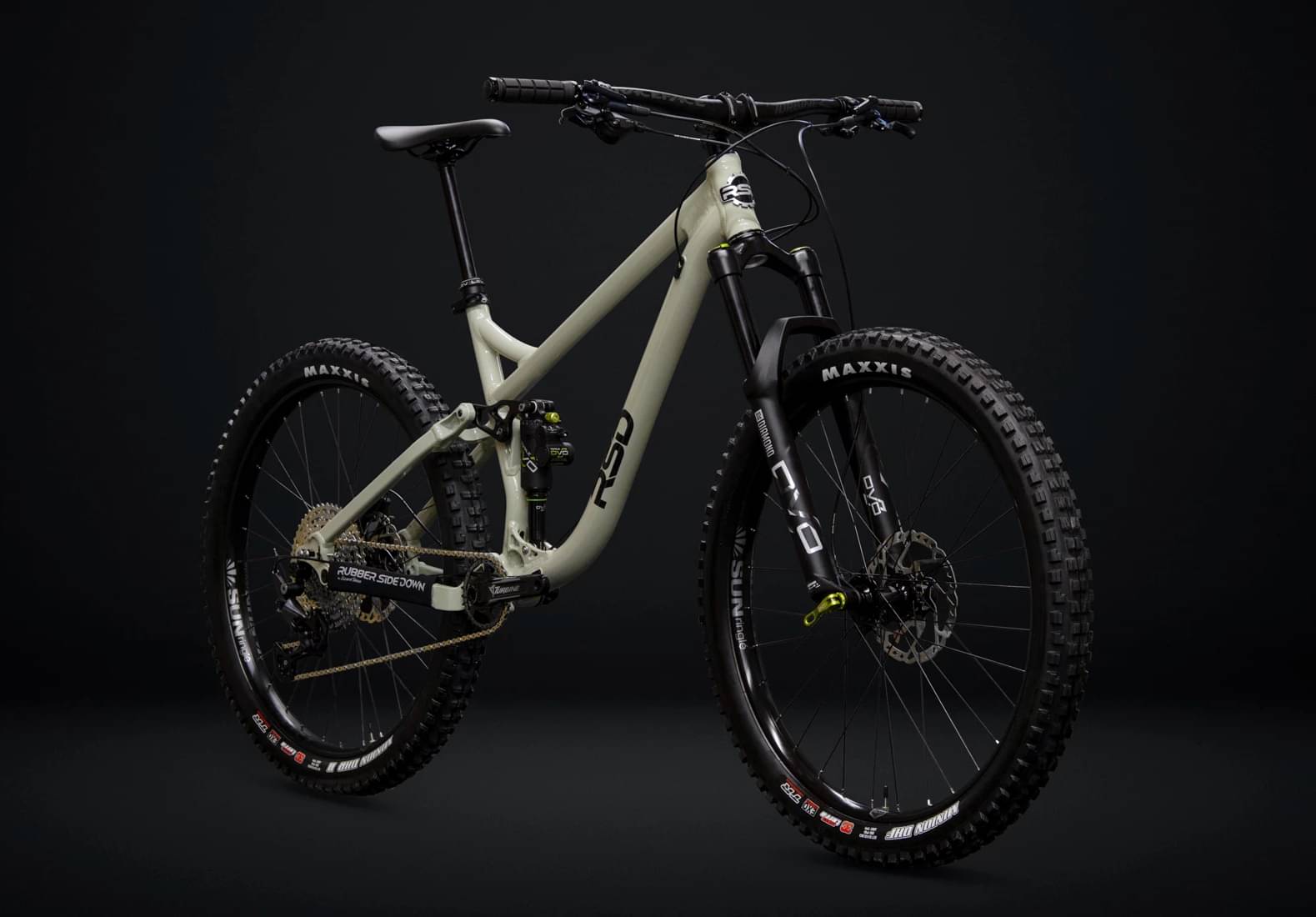

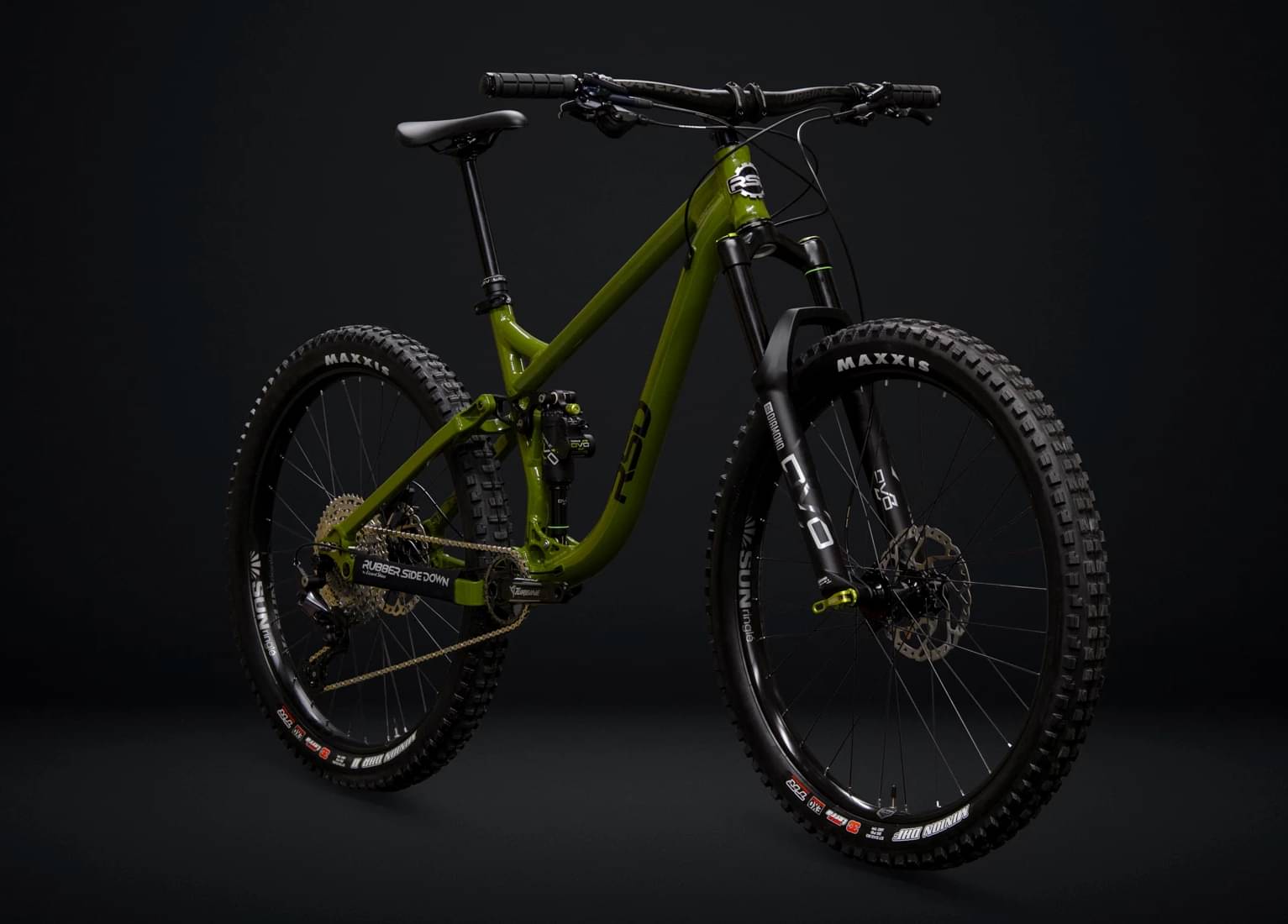

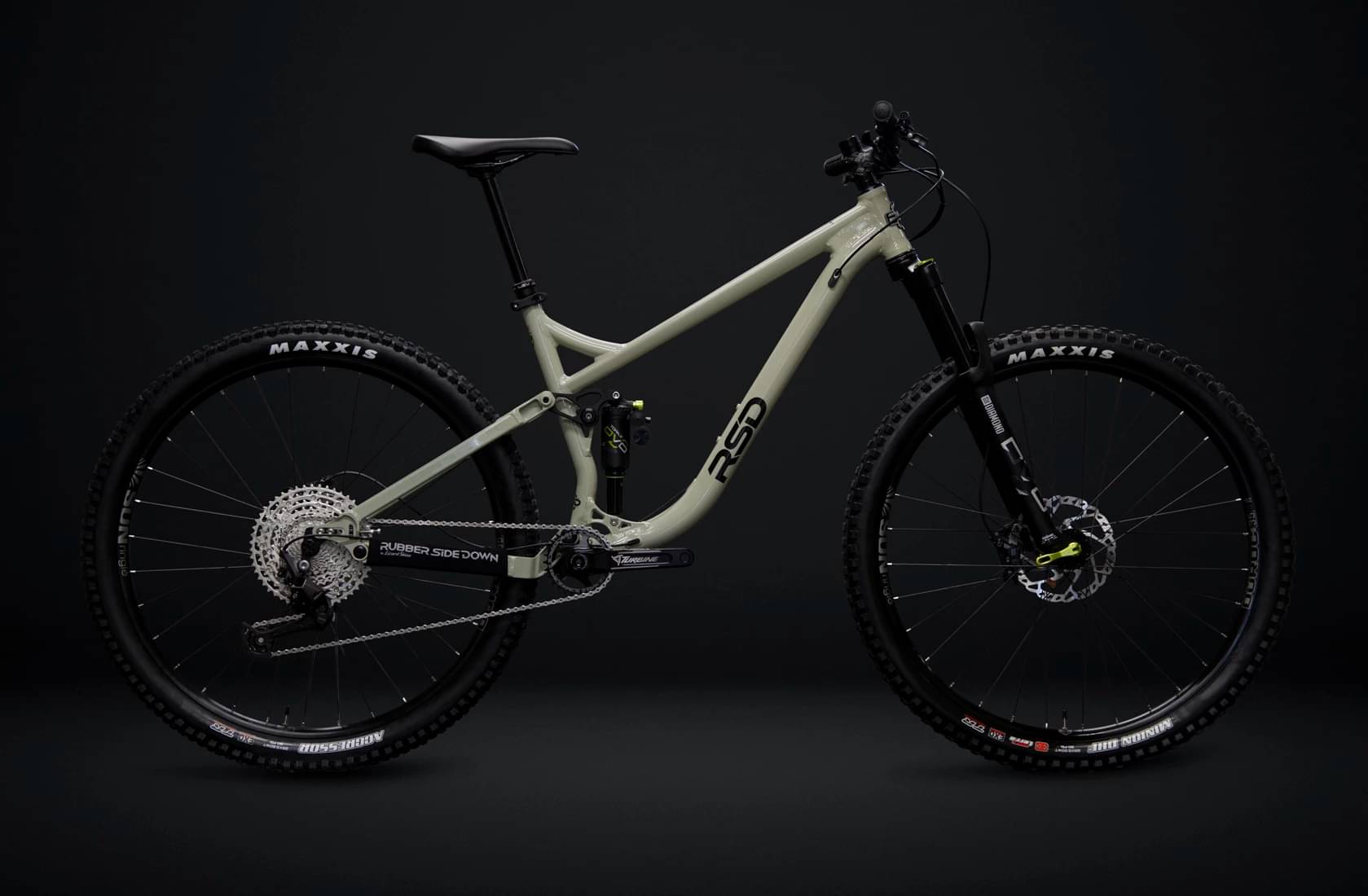

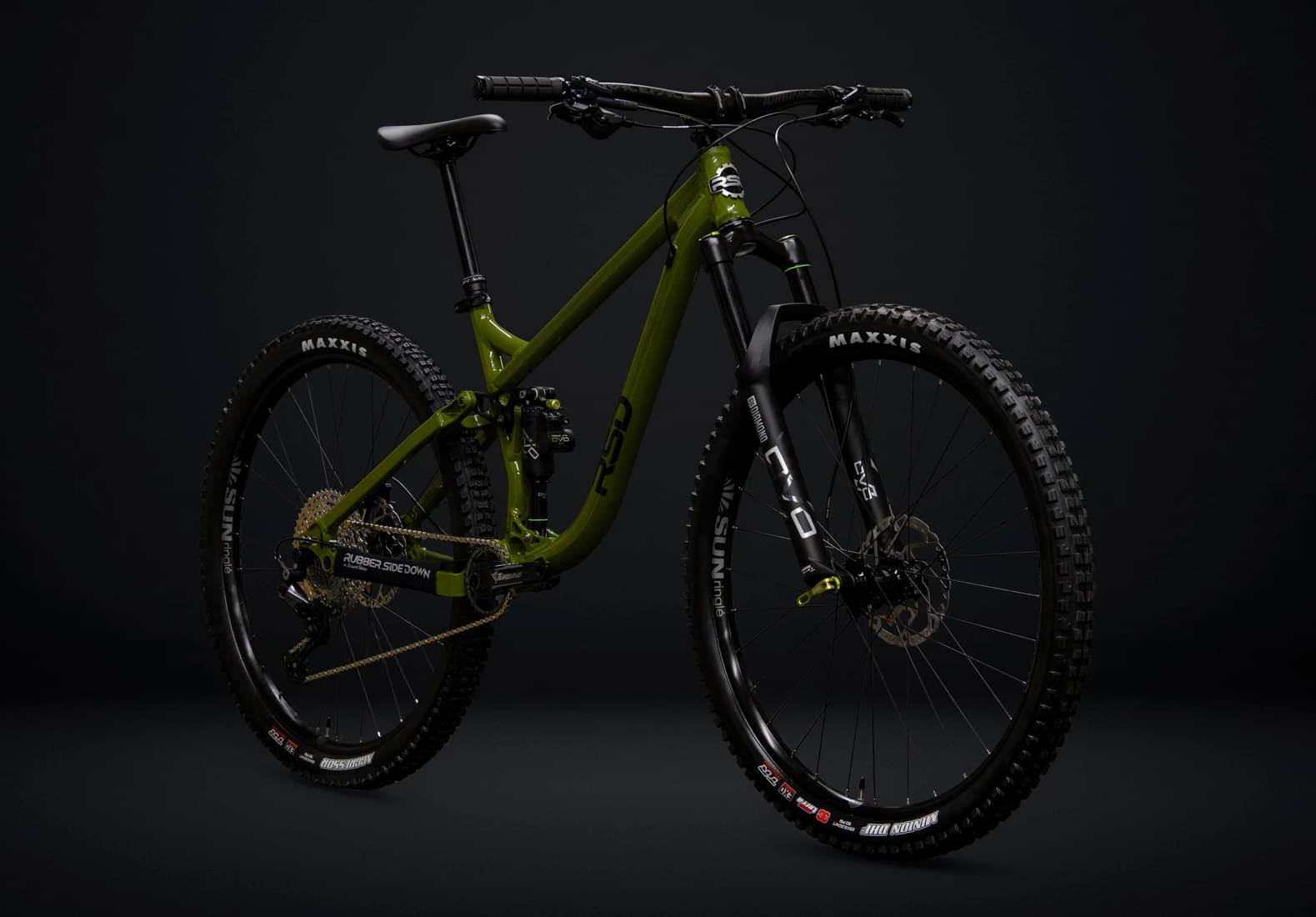

RSD WILDCAT 125 (V3) Aluminum SX/D3 Build 2023
2023 Mountain
Estimate price |
3,749$
Weight | 15.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork DVO Diamond
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

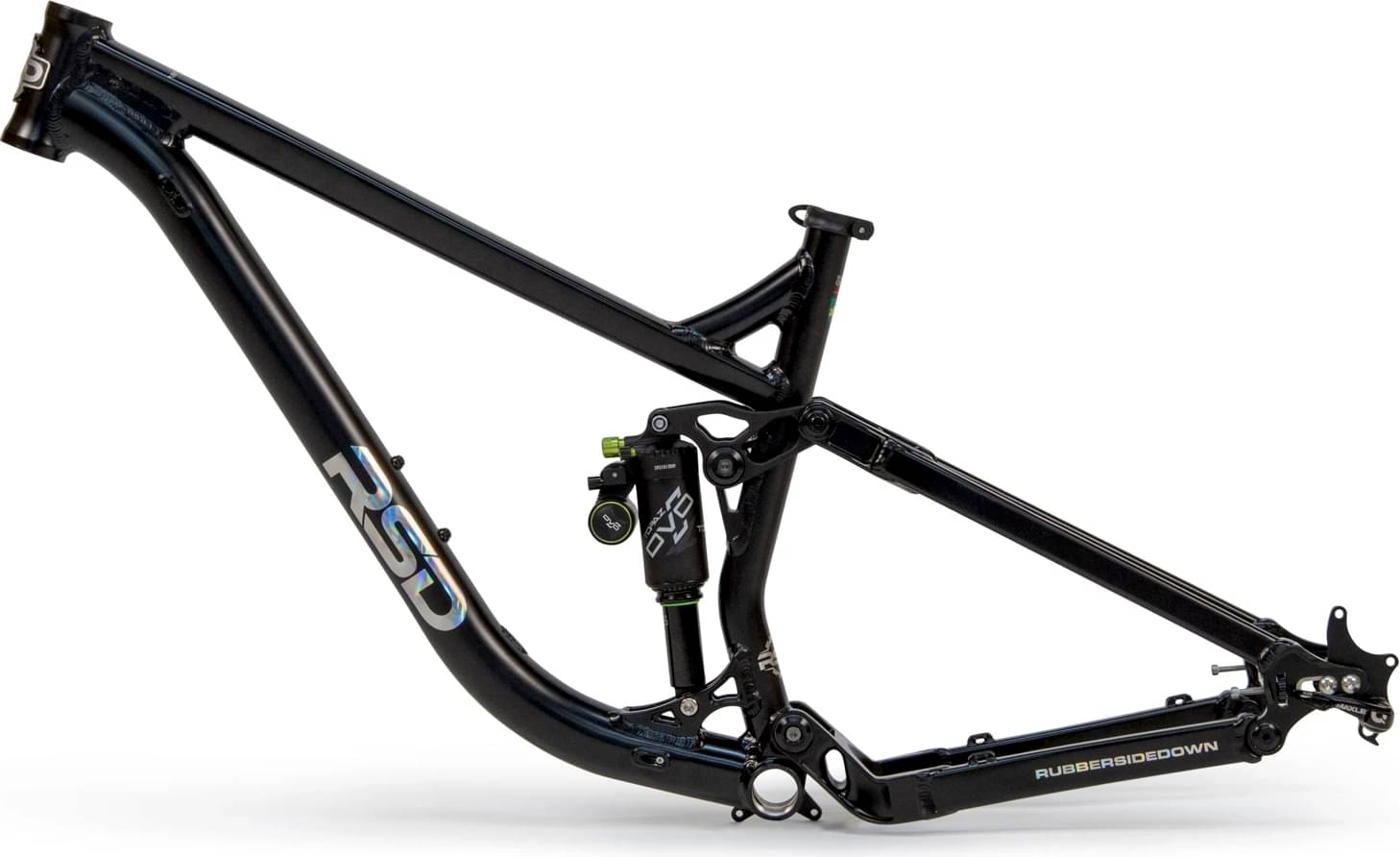

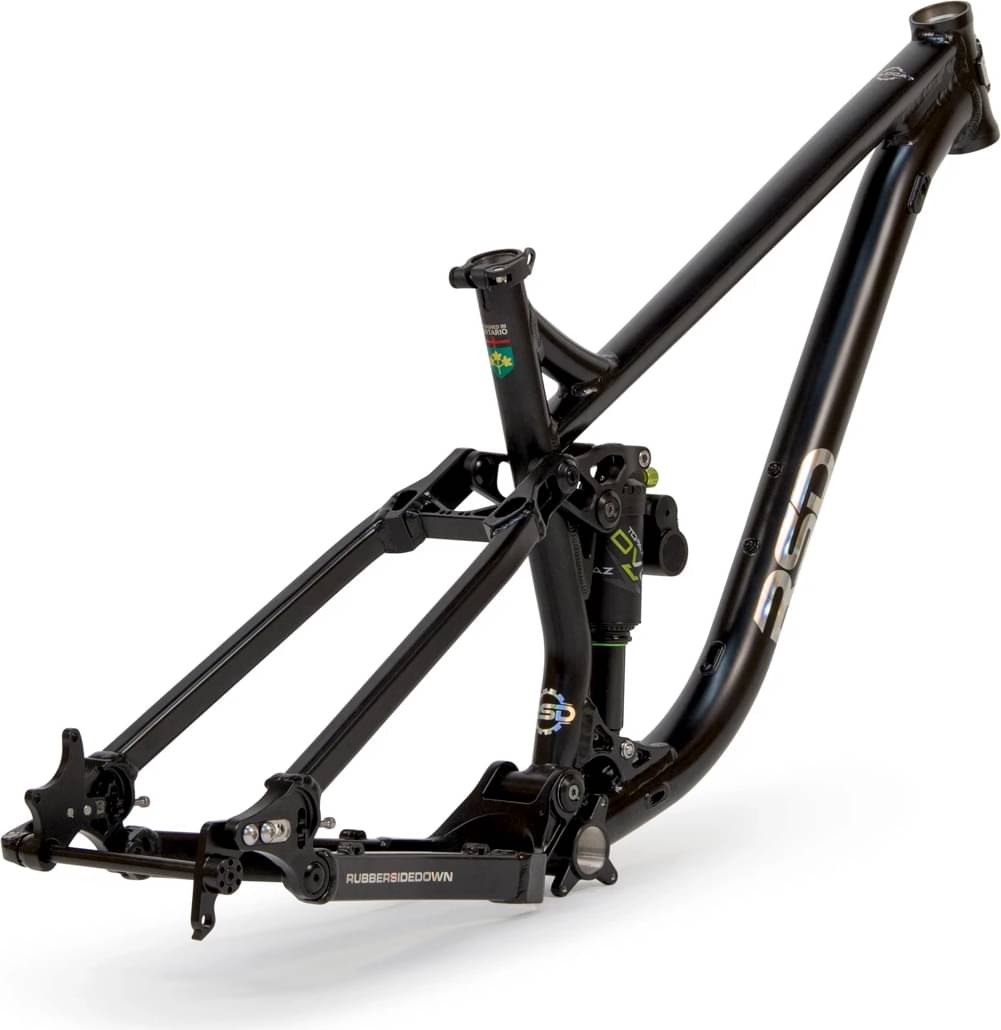

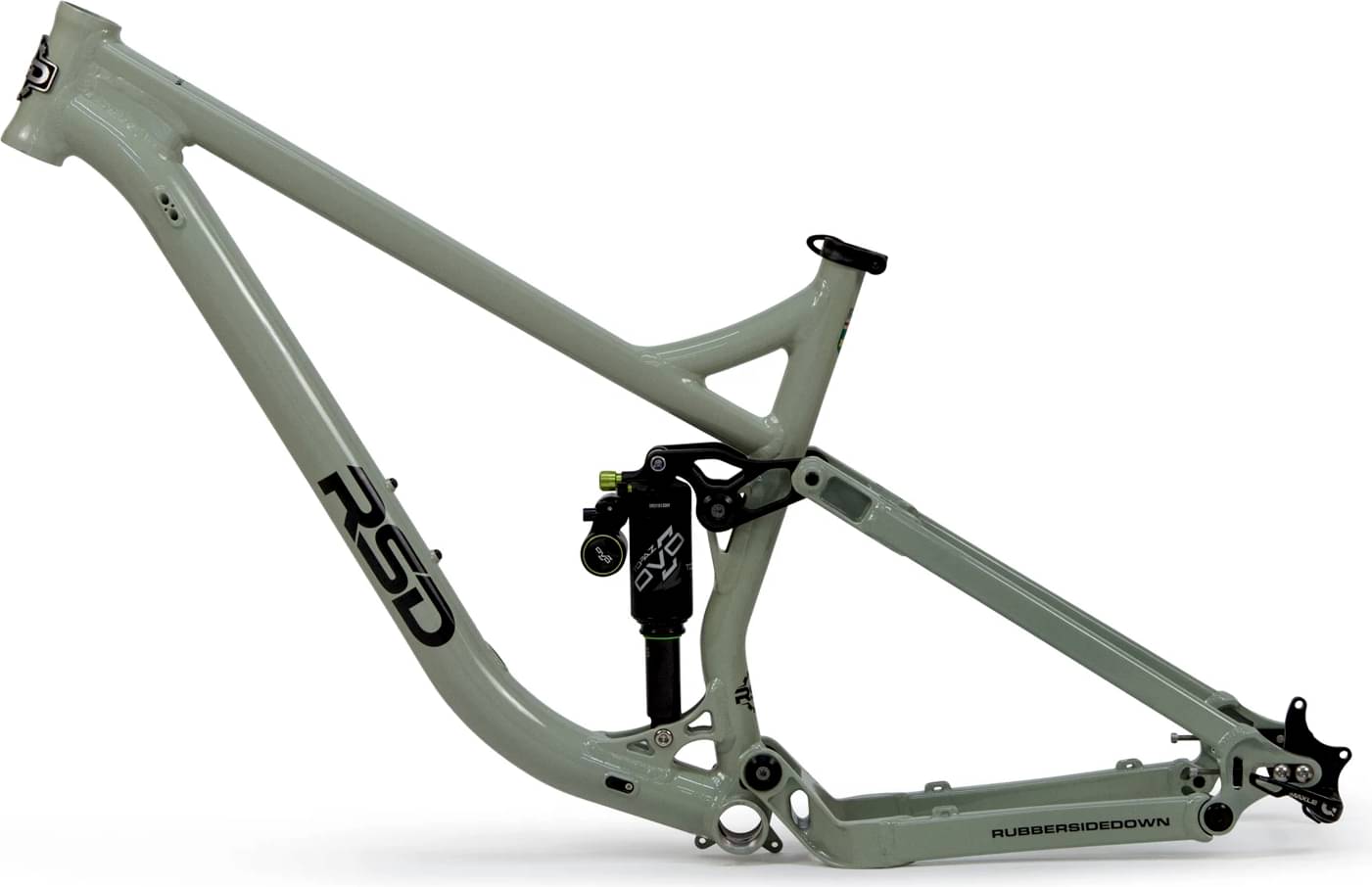

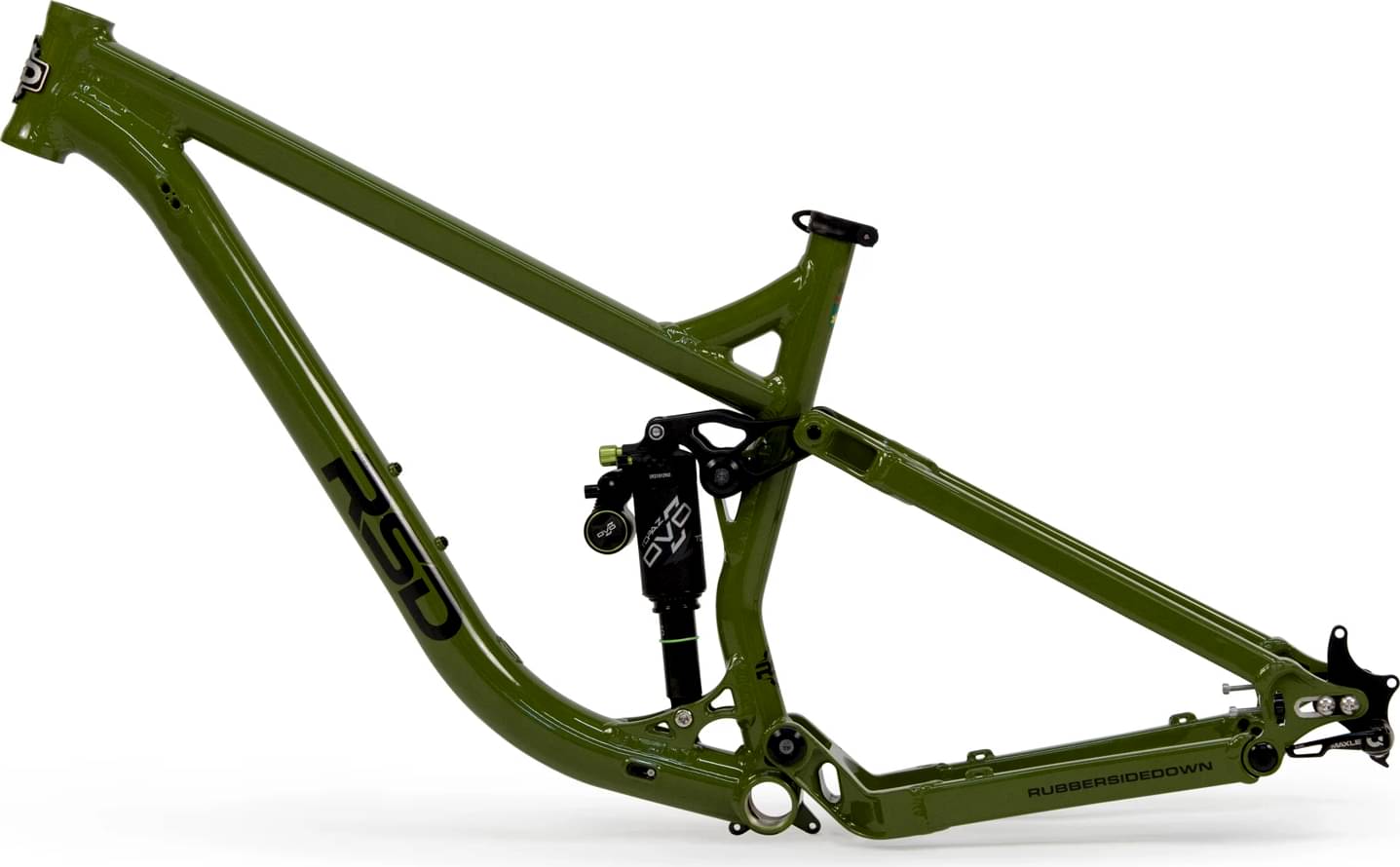

Frame

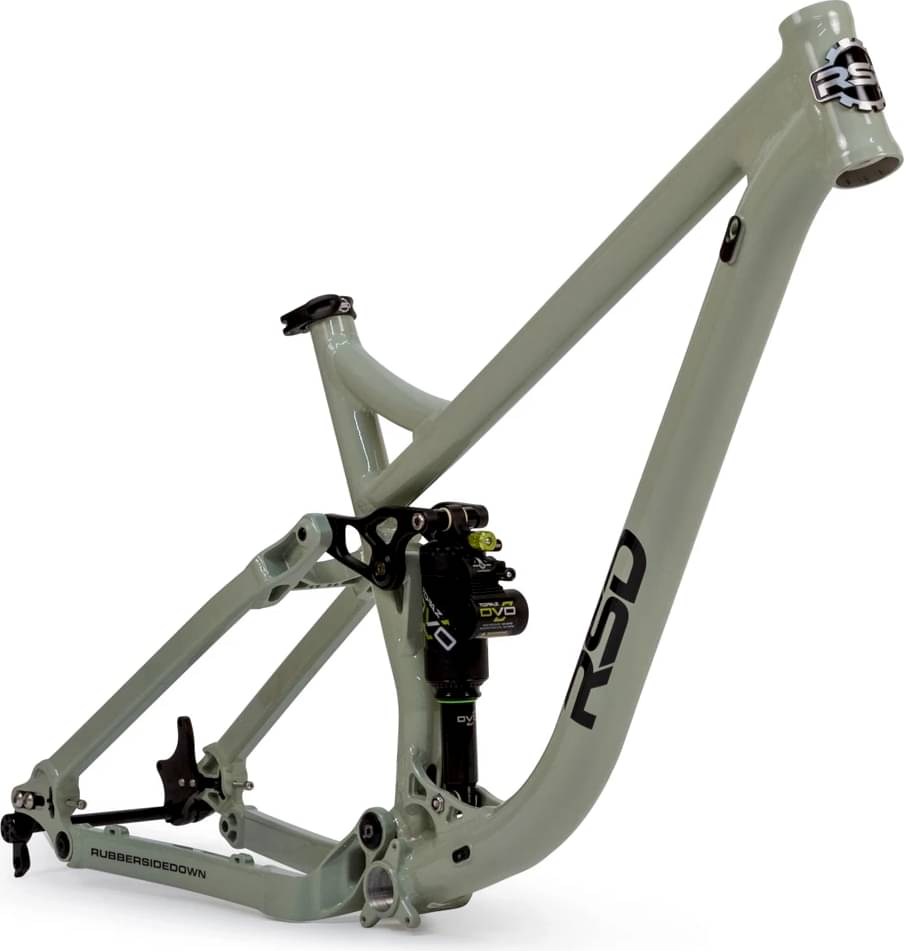

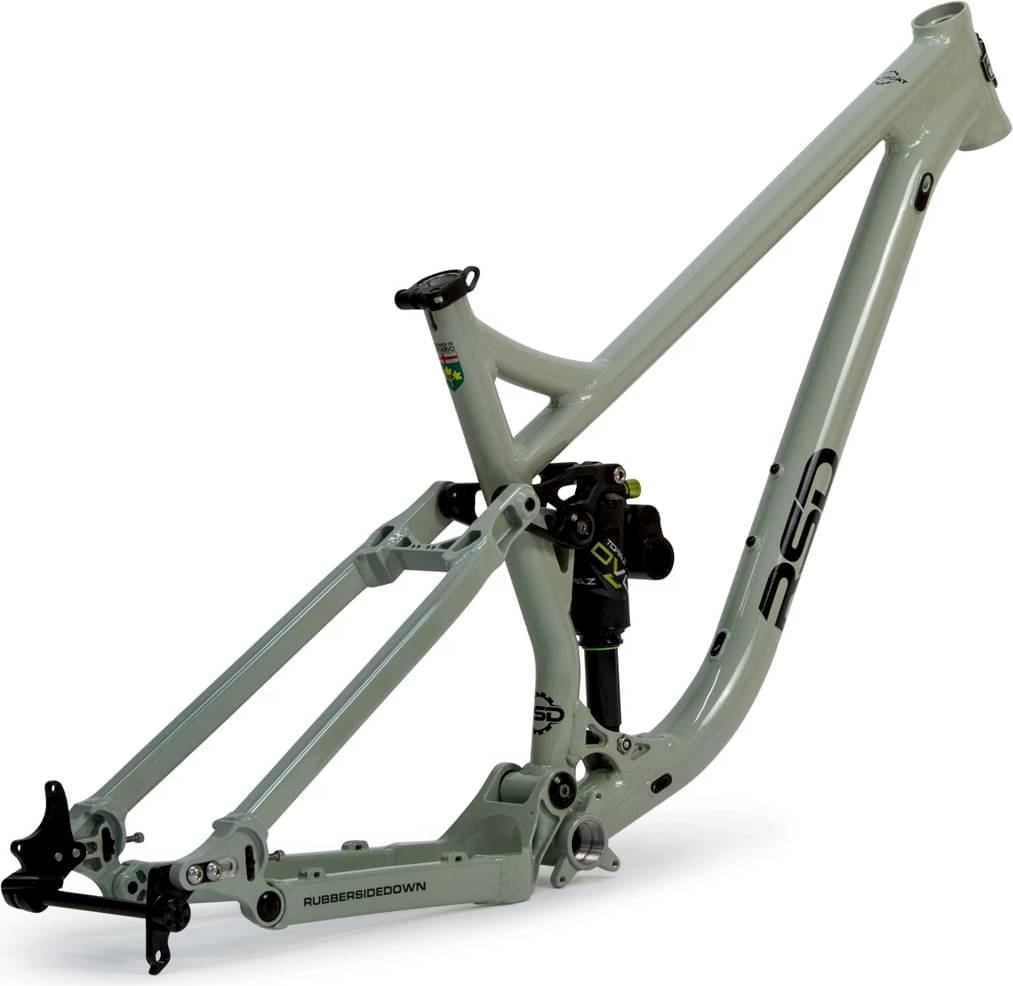

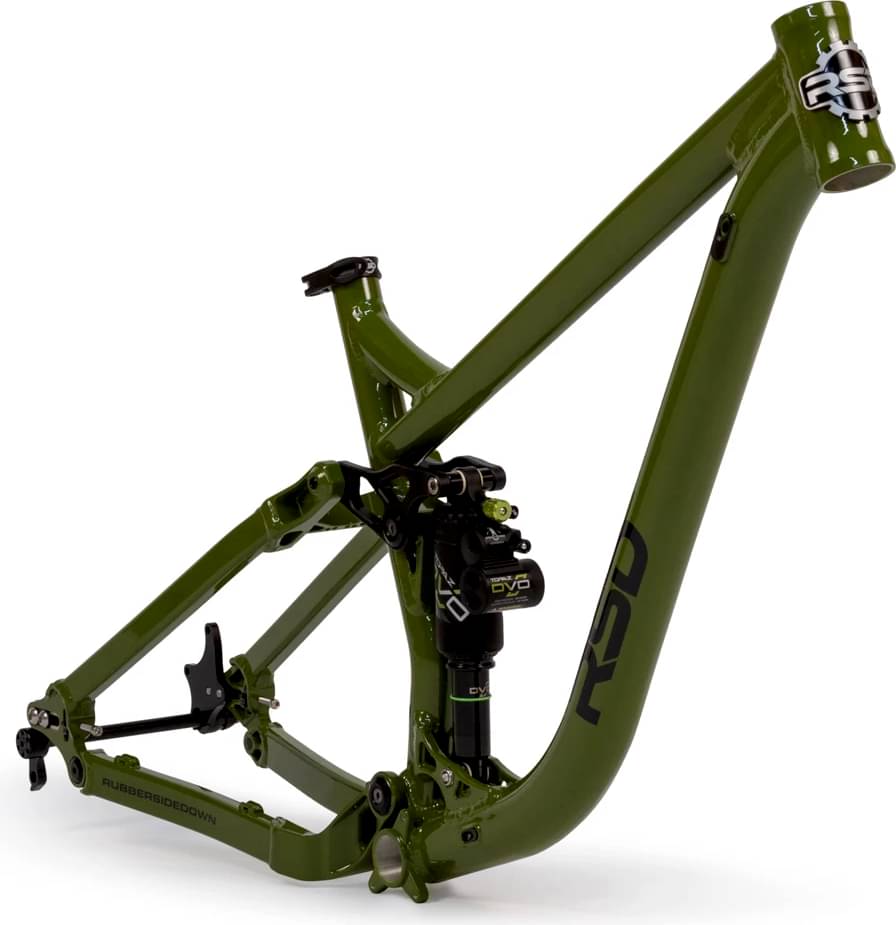

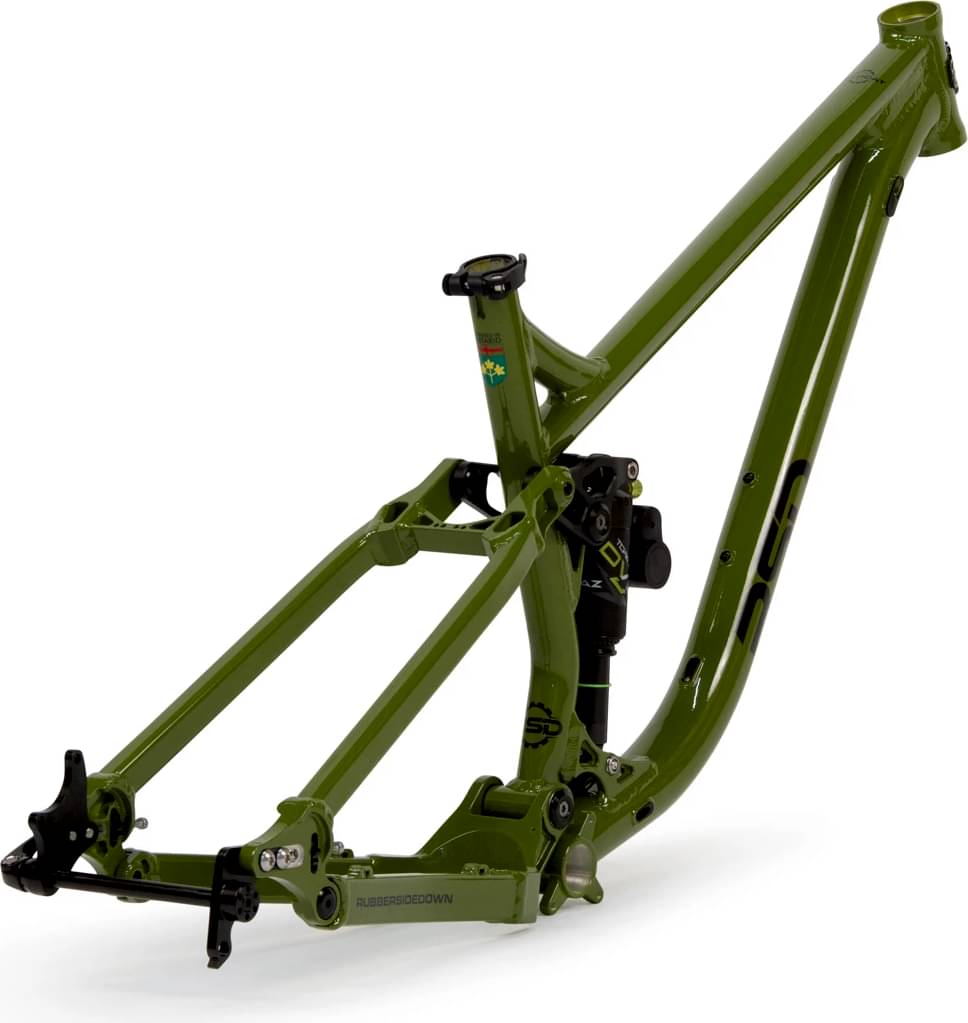

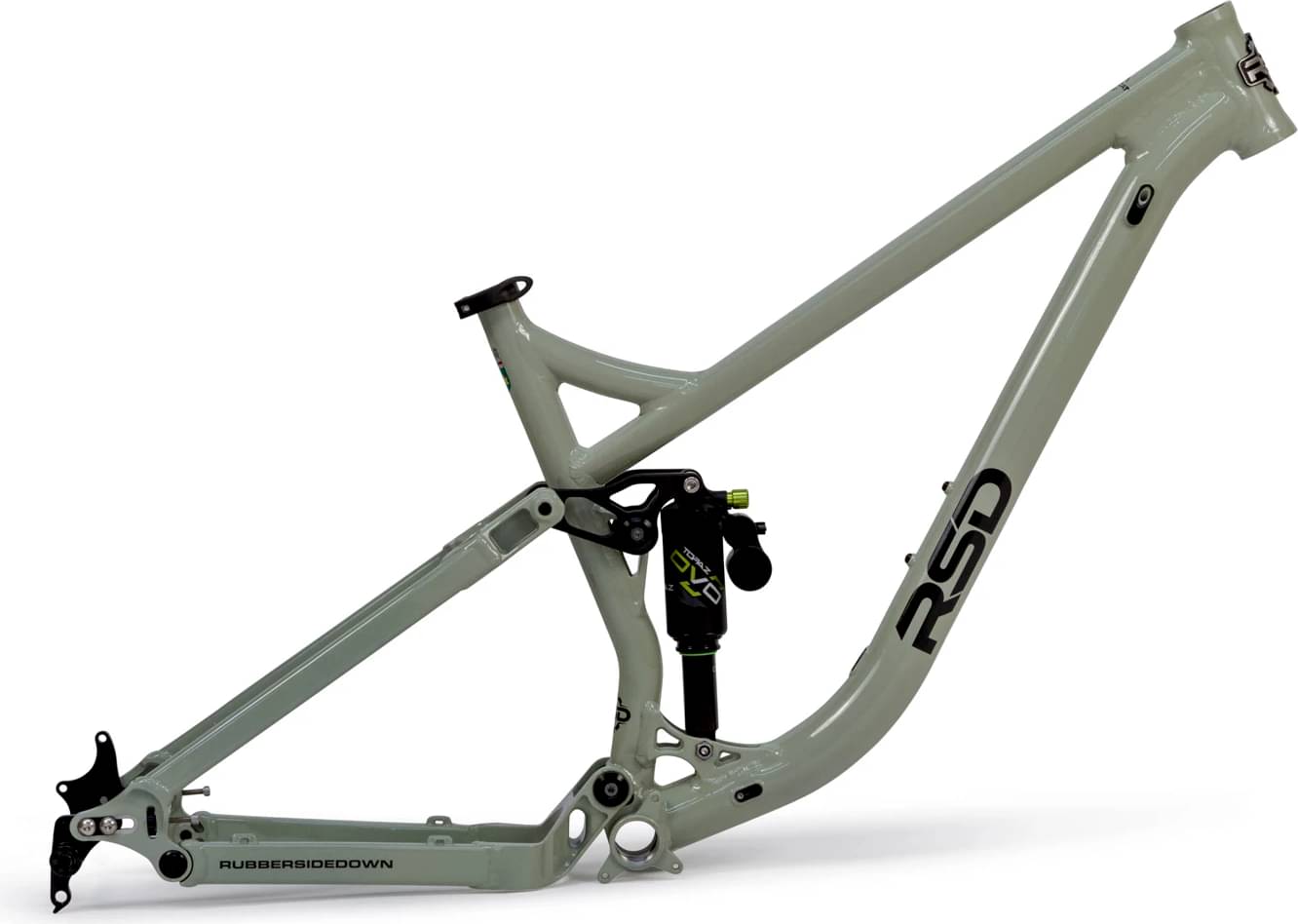

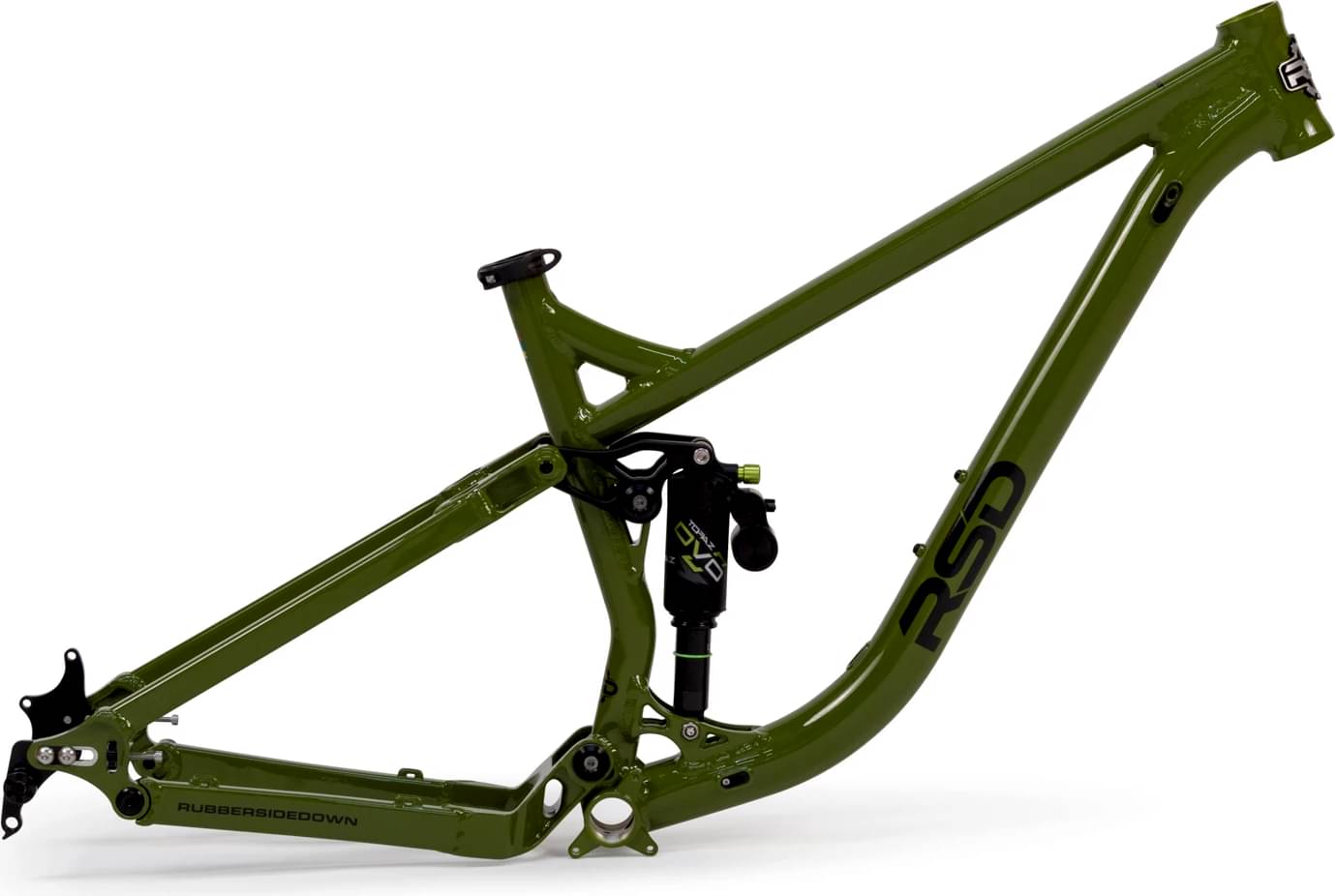

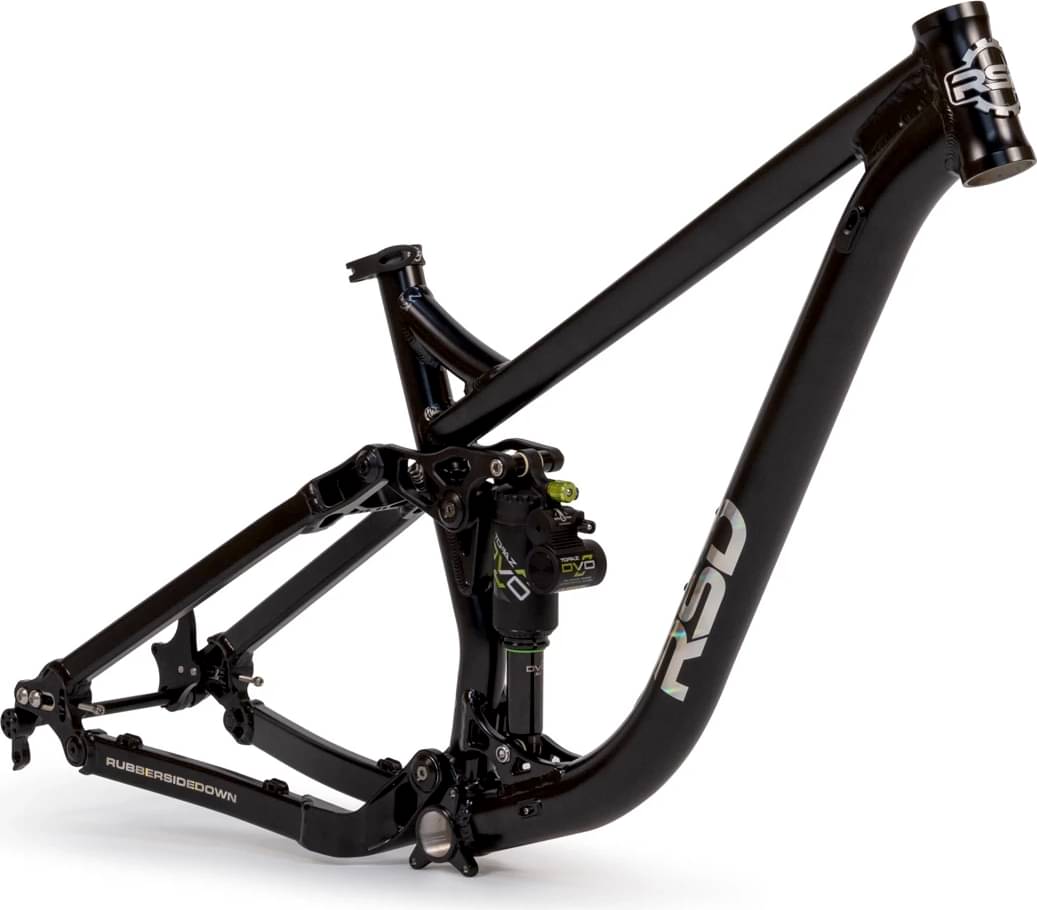

Frame

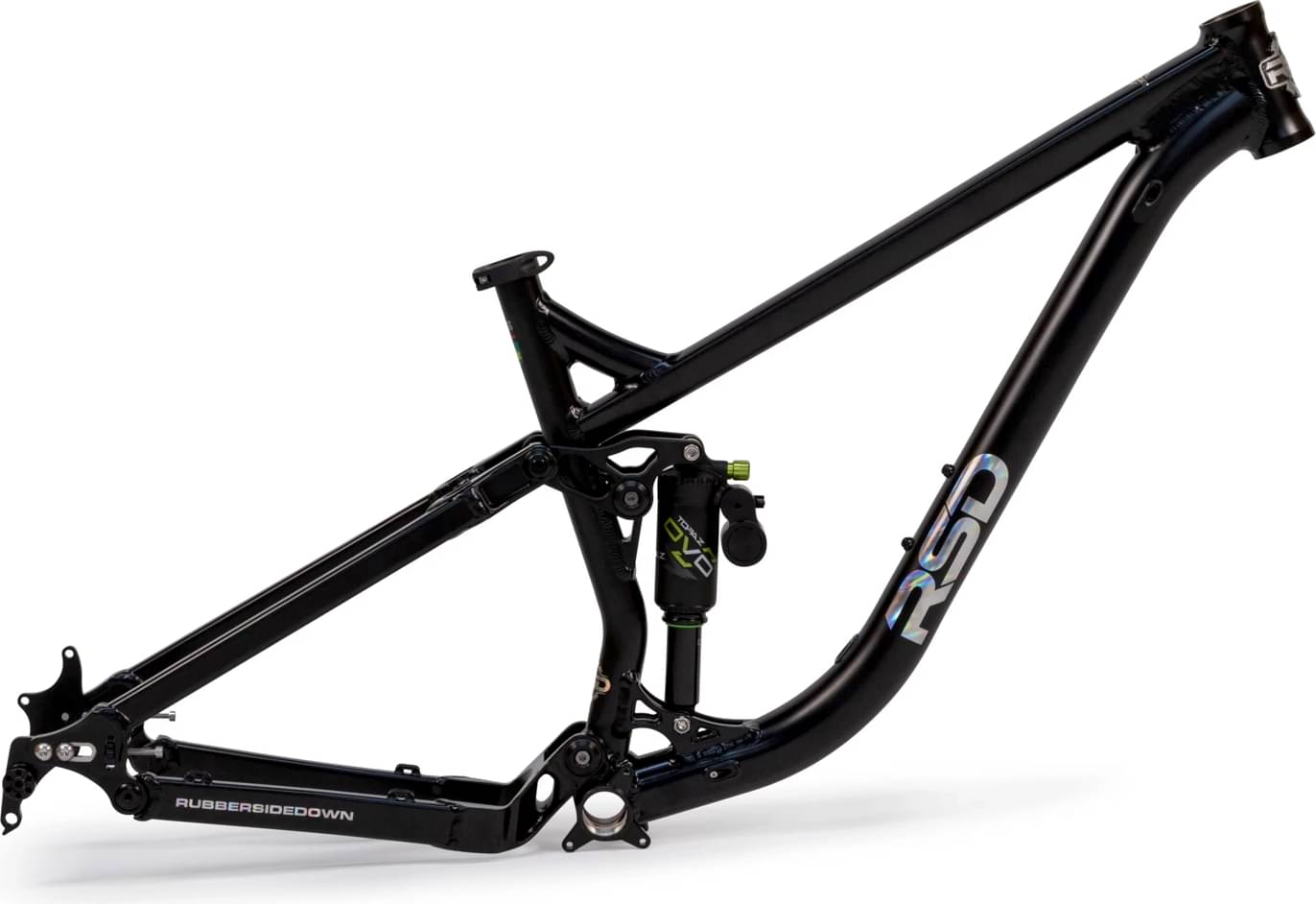

27.5+/29 Aluminum 6000 Series
Suspension Fork
DVO Diamond D3 27.5+/29 140mm 44mm

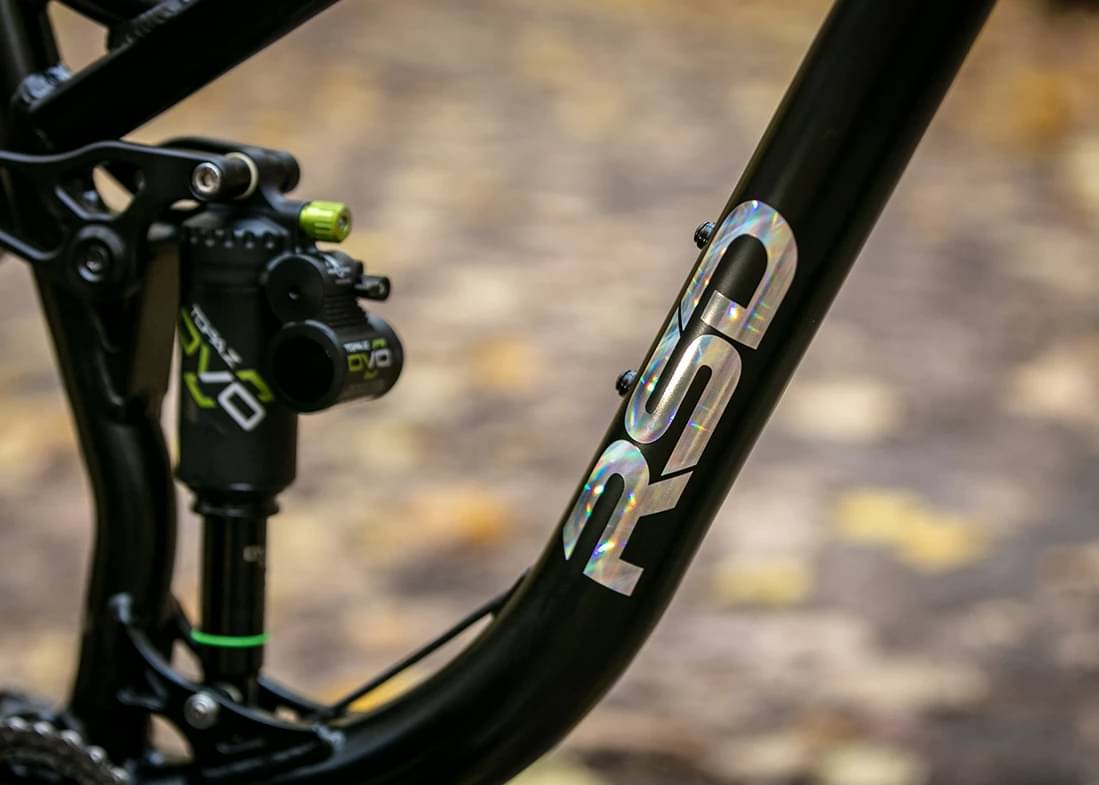

Rear Shock
DVO Topaz T2 210×52.5 (RC 425 – 125mm, RC 440 – 128mm)
Drivetrain
Rear Derailleur
SRAM SX Eagle Long Cage 12spd
Shift Levers
SRAM SX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM SX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 435mm)
Brakes
Brakes
SRAM Level T

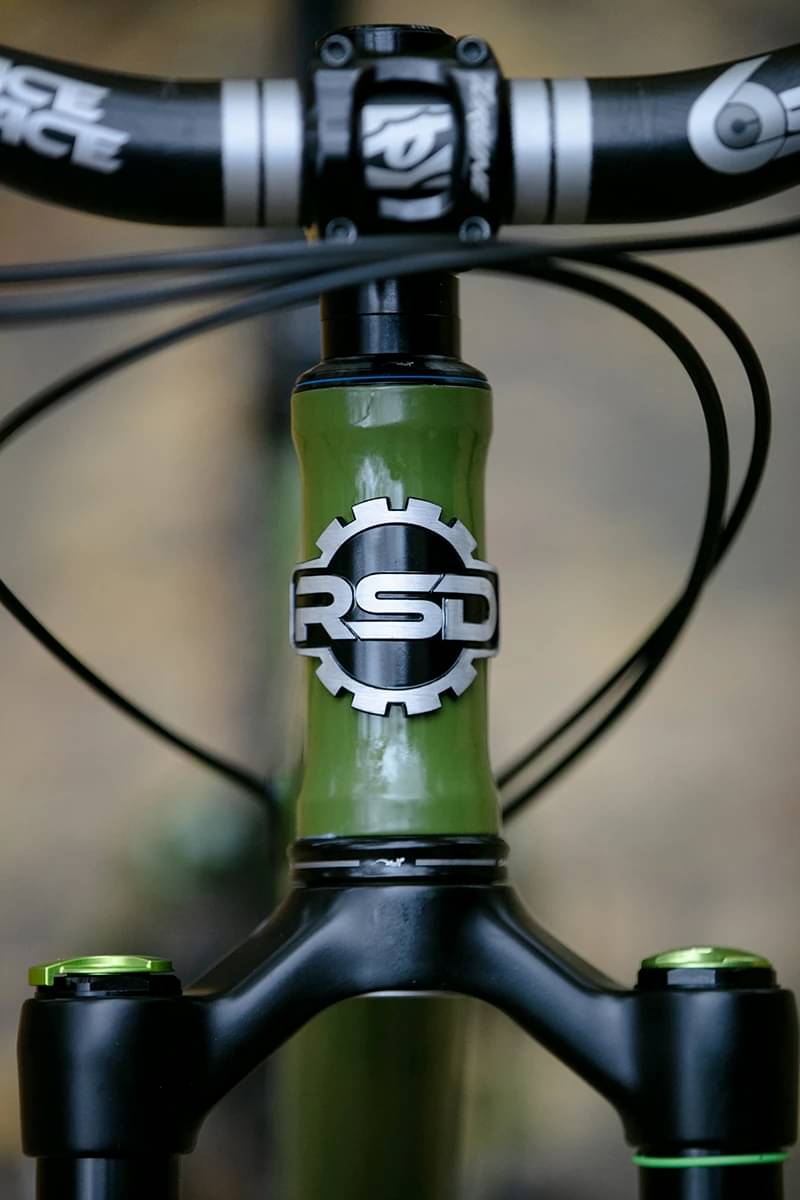

Cockpit
Stem
Race Face Aeffect 35 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
FSA Orbit ITA ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.329 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 754 mm | 786 mm | 807 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 134 mm | 126 mm | 126 mm | 126 mm |
| Stack | 605 mm | 614 mm | 619 mm | 632 mm |
| Reach | 434 mm | 462 mm | 481 mm | 502 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 75.6 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1178 mm | 1210 mm | 1231 mm | 1258 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 700 | 705 mm | 708 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
WILDCAT 125 (V3) Aluminum SX/D3 Build is part of the Rsd Wildcat model. 32 bikes variations carry this model name so far. Take a sneak peek at all Rsd Wildcat bikes models from 2023, by clicking here.
Model range prices
The most economical model, the RSD WILDCAT 125 (V3) Aluminum SX/D3 Build 2023 has a starting price of 3749$. RSD WILDCAT 150 Aluminum 29in Deore Build 2023 on the other hand is the most expensive at 3999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, RSD WILDCAT 125 (V3) Aluminum SX/D3 Build price was 3749$. Doing a quick comparison, we notice that WILDCAT 125 (V3) Aluminum SX/D3 Build price is 35.73% higher than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 15.25 kg (33.62 lbs), the WILDCAT 125 (V3) Aluminum SX/D3 Build model is much heavier than average. In other words, this model is 17.49% heavier than the average Trail bike.
WILDCAT 125 (V3) Aluminum SX/D3 Build components
Fork
The WILDCAT 125 (V3) Aluminum SX/D3 Build comes factory-installed with the DVO Diamond fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is DVO Topaz T2 210×52.5 (RC 425 – 125mm, with a travel distance of 125mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the WILDCAT 125 (V3) Aluminum SX/D3 Build bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. RSD WILDCAT 125 (V3) Aluminum SX/D3 Build is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
