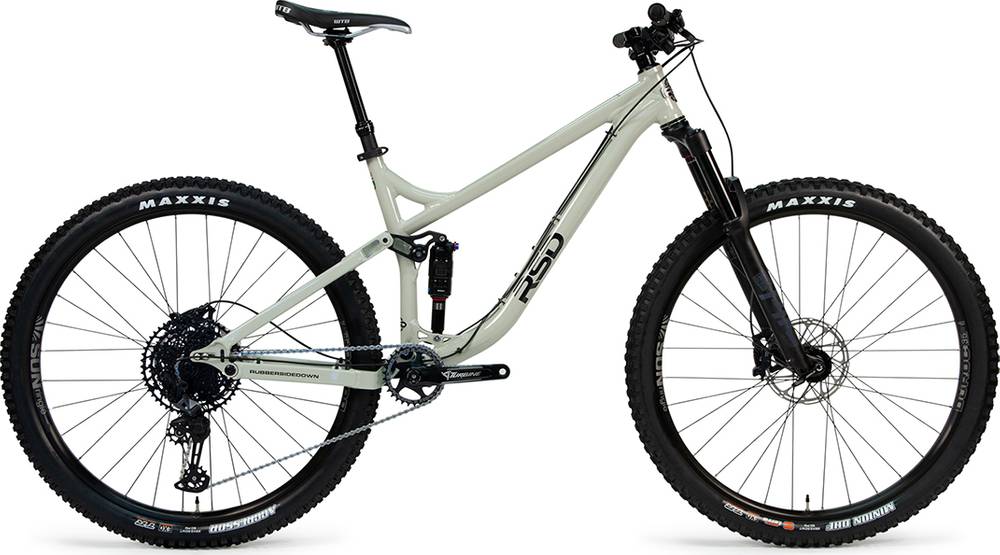

RSD WILDCAT V2 Aluminum 29in SX 2020
2020 Mountain
Estimate price |
2,199$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox
-
Groupset SX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5+/29 Aluminum 7000 Series
Suspension Fork
Rockshox Rekon RL 27.5+/29 140mm 51mm
Rear Shock
Rockshox Monarch RT 200×51 120mm
Drivetrain
Rear Derailleur
SRAM SX Eagle Long Cage 12spd
Shift Levers
SRAM SX Eagle Trigger 12spd
Cassette
SRAM SX Eagle PG-1210 10-51T 12spd
Crank
SRAM SX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM NX Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 29x35mm Front 15x110mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C/Max Terra/EXO Rear
Brakes
Brakes
SRAM Level
Disk Rotors
SRAM Centerline 180mm Rounded
Cockpit
Stem
Race Face 35mm Ride 50mm
Handlebar
Race Face 35mm Chester 780mm
Grips
Ergon GE10 Black
Headset
Cane Creek ZS-44
Seat
Saddle
WTB Volt Comp 142mm
Seatpost
Race Face Ride / KS LEV Dropper (S 125mm, M & L 150mm, XL 175mm) with SouthPaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 754 mm | 786 mm | 807 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 116 mm | 126 mm | 126 mm | 126 mm |
| Stack | 601 mm | 610 mm | 615 mm | 628 mm |
| Reach | 430 mm | 458 mm | 477 mm | 498 mm |
| Top Tube Length | 581 mm | 611 mm | 631 mm | 656 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1174 mm | 1206 mm | 1227 mm | 1254 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 696 mm | 701 mm | 704 mm | 712 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
WILDCAT V2 Aluminum 29in SX belongs to the Rsd Wildcat model. RSD released 32 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the RSD WILDCAT V2 Aluminum 29in SX 2020 has a starting price of 2199$. RSD WILDCAT V2 Aluminum 27.5+ SLX 2020 on the other hand is the most expensive at 2999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 2199$. In conclusion, this bike price is 25.6% lower than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.8 kg (32.63 lbs), RSD bike is considerably heavier than average. In conclusion, the average Trail bike weighs 14.02% less than WILDCAT V2 Aluminum 29in SX.
WILDCAT V2 Aluminum 29in SX components
Fork
The fork installed on this bike is the RockShox model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Monarch RT 200×51 120mm rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the WILDCAT V2 Aluminum 29in SX bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The WILDCAT V2 Aluminum 29in SX has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
RSD WILDCAT V2 Aluminum 29in SX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
RSD WILDCAT V2 Aluminum 29in SX comes with a dropper post. Therefore, climbing or descending will be a breeze.
