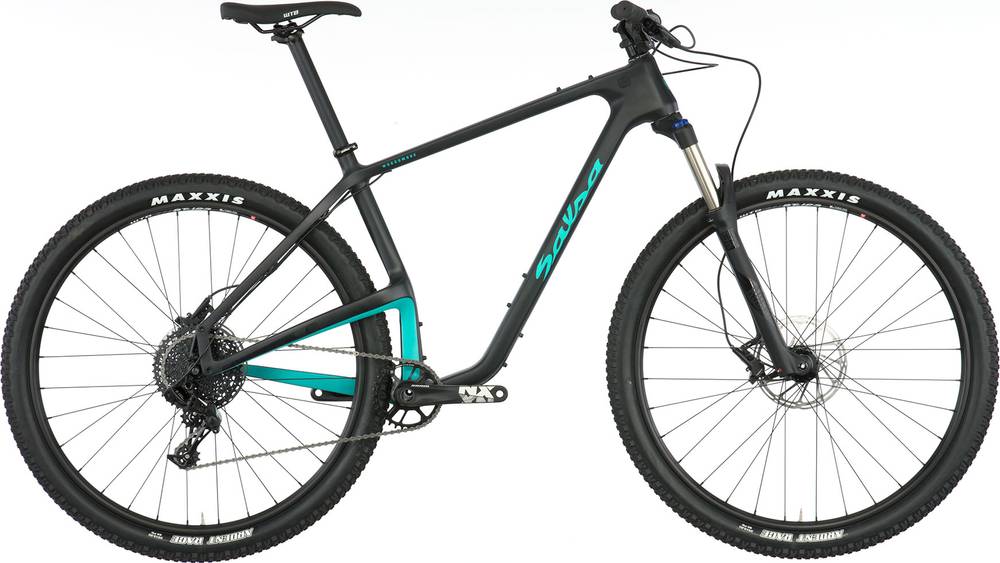

Salsa WOODSMOKE NX1 29 2018
2018 Mountain
Estimate price |
2,199$
Weight | 12.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 168cm
SM
160cm - 175cm
MD
173cm - 183cm
LG
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Woodsmoke Carbon
Suspension Fork
RockShox Judy Silver Solo Air 120mm BOOST
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX1 Long Cage
Front Derailleur
N/A
Shift Levers
SRAM NX1
Cassette
SunRace CSMS7 11-42t
Crank
SRAM NX, Boost XSYNC 32t
Bottom Bracket
PressFit 41 x 92mm
Chain
SRAM PC1110
Wheels
Rims
SUNRinglé Charger Comp 29" alloy straight gauge Wheelsmith spokes, brass nipples
Tires
Maxxis Ardent 29 x 2.2", 60 tpi
Brakes
Brakes
SRAM DB Level, Centerline 180
Disk Rotors
SRAM DB Level, Centerline 180
Cockpit
Stem
Salsa Guide Trail
Handlebar
Salsa Salt Flat 3
Grips
Salsa File Tread
Headset
Cane Creek 15
Seat
Saddle
WTB Volt Sport
Seatpost
Promax 30.9 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.44 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 674 mm | 694 mm | 715 mm | 746 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 91 mm | 91 mm | 92 mm |
| Stack | 602.6 mm | 612.6 mm | 621.6 mm | 630.6 mm | 639.6 mm |
| Reach | 398.6 mm | 415.6 mm | 432.6 mm | 459.6 mm | 487.6 mm |
| Top Tube Length | 577.6 mm | 597.6 mm | 617.6 mm | 647.6 mm | 677.6 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 355.6 mm | 381 mm | 431.8 mm | 482.6 mm | 533.4 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 1081 mm | 1102 mm | 1123 mm | 1154 mm | 1185 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 720 mm | 740 mm | 779 mm | 808 mm | 837 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 160 cm | 173 cm | 180 cm | 188 cm |
| Rider Max Height | 168 cm | 175 cm | 183 cm | 191 cm | cm |
Model Overview
WOODSMOKE NX1 29 belongs to the Salsa Woodsmoke model. Salsa released 10 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Salsa WOODSMOKE NX1 29 2018 has a starting price of 2199$. Salsa WOODSMOKE XO1 EAGLE 27.5+ 2018 on the other hand is the most expensive at 4299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 2199$. If we compare this with the average Trail bike cost we notice that the price is 25.6% smaller.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, WOODSMOKE NX1 29 has a weight of 12.25 kg (27.01 lbs). To sum up, it’s 5.96% lighter than the average weight of Trail bikes.
WOODSMOKE NX1 29 components
Fork
The fork installed on this bike is the RockShox Judy model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the WOODSMOKE NX1 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Salsa WOODSMOKE NX1 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
