Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Fox 34 Float Factory Kashima 130
Rear Shock
Fox Float Factory
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
Shimano SLX M7000; Direct Mount
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295; 10-50t
Crank
SRAM XX1 Eagle, 32 Tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM XX1 Eagle Powerlock
Wheels
Front Hub
Industry Nine Torch 110x15
Rear Hub
Industry Nine Torch 148x12
Rims
Race Face ARC 24; 28h
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis Minion DHF EXO TR; 27.5x2.3
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
Avid Centerline; 180mm
Cockpit
Stem
Race Face Turbine R; 35mm
Handlebar
Santa Cruz Carbon 760mm Bar, 35mm clamp
Grips
Santa Cruz Palmdale Lock-on
Headset
Cane Creek 110 series tapered, cartridge bearing
Seat
Saddle
WTB Silverado SLT
Seatpost
Rockshox Reverb Stealth, 150mm travel (125mm travel on size small)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 692 mm | 716 mm | 739 mm | 773 mm |
| Rake | 43 mm | 43 mm | 42 mm | 42 mm |
| Trail | 104 mm | 104 mm | 105 mm | 105 mm |
| Stack | 580 mm | 590 mm | 599 mm | 608 mm |
| Reach | 400 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 571 mm | 593 mm | 616 mm | 649 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1112 mm | 1136 mm | 1159 mm | 1193 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 706 mm | 712 mm | 714 mm | 727 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

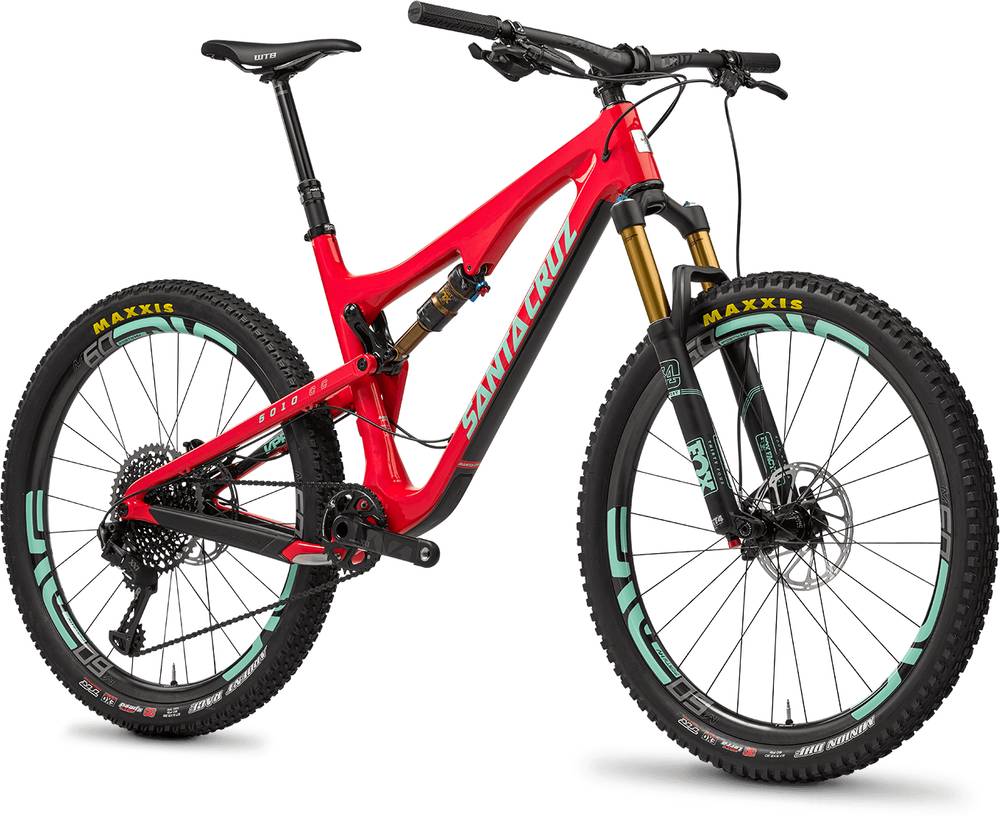

5010 C R2x is part of the Santacruz 5010 model. 71 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz 5010 D 2017 has a starting price of 2599$. Santa Cruz 5010 CC XT 2017 on the other hand is the most expensive at 8000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Santa Cruz released this model in 2017, its price was 7000$. In conclusion, this bike price is 153.44% more expensive than the price of the average Trail bike.
5010 C R2x components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the 5010 C R2x bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 5010 C R2x comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz 5010 C R2x bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz 5010 C R2x includes a dropper post. Therefore, climbing or descending will be a breeze.
