Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory
Rear Shock
FOX Float Factory DSP Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG1295 Eagle, 12-speed, 10-50 tooth
Crank
SRAM XX1 Eagle
Bottom Bracket
SRAM GXP Team
Chain
SRAM XX1 Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole, XD Driver
Rear Hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole, XD Driver
Rims
Standard: Race Face ARC 27, 28 hole, Upgrade: Santa Cruz Reserve 27 Carbon, 28 hole
Spokes
DT Swiss Competition (28)
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", 3c, EXO, TR
Brakes
Brakes
SRAM Guide Ultimate with Avid Centerline 180mm rotors front and rear, 6-bolt
Brake Levers
SRAM Guide Ultimate
Cockpit
Stem
Race Face Turbine, 50mm
Handlebar
Santa Cruz Bicycles Carbon, 35mm diameter, 760mm width
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 110 zero stack
Seat
Saddle
WTB Silverado SLT
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 580 mm | 590 mm | 599 mm | 608 mm |
| Reach | 400 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 571 mm | 593 mm | 616 mm | 649 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1112 mm | 1136 mm | 1159 mm | 1193 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 706 mm | 712 mm | 714 mm | 727 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

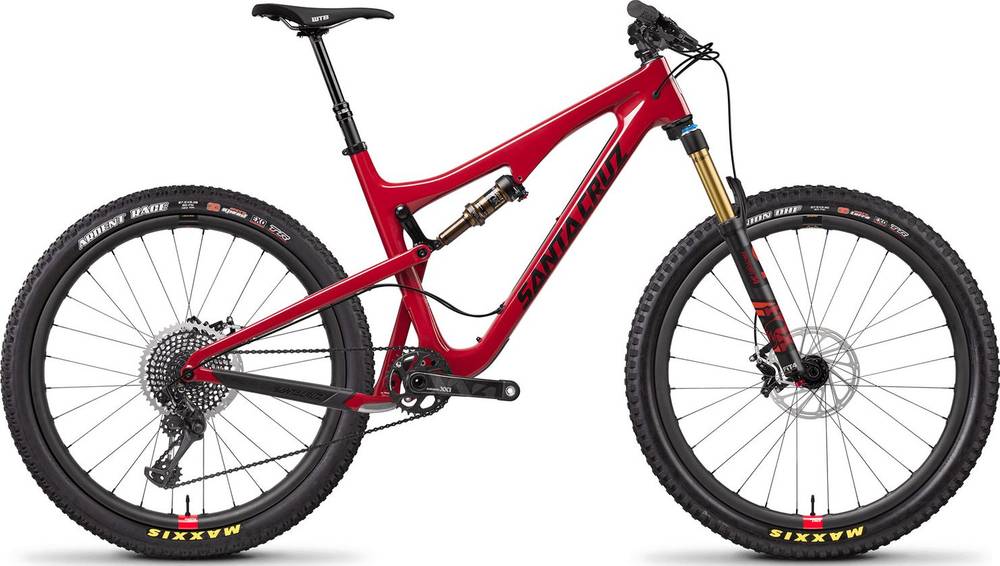

About this model
5010 CC XX1 completes the Santacruz 5010 model. There are 71 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Santa Cruz 5010 Aluminum D 2018 is the most economical model, with a starting price of 2649$. Santa Cruz 5010 CC XX1 2018 on the other hand costs 9199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9199$. Doing a quick comparison, we notice that 5010 CC XX1 price is 233.06% more expensive than the average cost of a Trail bike.
5010 CC XX1 components
Fork
Santa Cruz 5010 CC XX1 2018 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float Factory DSP Kashima model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the 5010 CC XX1 bike is equipped with the 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 5010 CC XX1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
5010 CC XX1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the 5010 CC XX1. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
