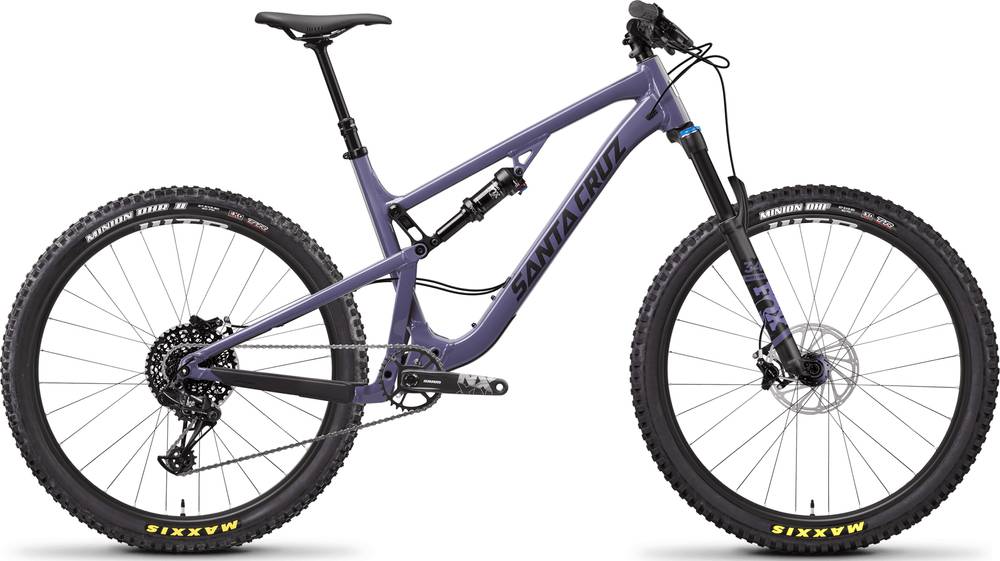

Santa Cruz 5010 R / Aluminum / 27.5 2019
2019 Mountain
Estimate price |
3,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 R / Aluminum / 27.5
Suspension Fork
Fox Rhythm 34 27.5
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 170mm (XS,S), 175mm (M-XL)
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i35 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Maxxis Minion DHF, 27.5"x2.6", DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Ride
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm |
| Front Center | 679 mm | 679 mm | 717 mm | 717 mm | 741 mm | 741 mm | 765 mm | 765 mm | 807 mm | 807 mm |
| Rake | 48 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 105 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm |
| Stack | 574 mm | 577 mm | 593 mm | 595 mm | 602 mm | 604 mm | 611 mm | 613 mm | 638 mm | 640 mm |
| Reach | 394 mm | 391 mm | 424 mm | 421 mm | 444 mm | 441 mm | 464 mm | 461 mm | 494 mm | 491 mm |
| Top Tube Length | 542 mm | 543 mm | 578 mm | 579 mm | 602 mm | 602 mm | 624 mm | 625 mm | 664 mm | 665 mm |
| Seat Tube Angle | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm |
| Wheelbase | 1110 mm | 1110 mm | 1146 mm | 1147 mm | 1170 mm | 1171 mm | 1194 mm | 1195 mm | 1236 mm | 1237 mm |
| Bottom Bracket Drop | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm |
| Standover Height | 694 mm | 688 mm | 714 mm | 708 mm | 717 mm | 711 mm | 717 mm | 712 mm | 716 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
5010 R / Aluminum / 27.5 is a Santacruz 5010 model. Santa Cruz released 71 bikes variations of this model so far. You can easily view all of the Santacruz 5010 bikes models from 2019, here.
Model range prices
Santa Cruz 5010 D Plus / Aluminum / 27.5 2019 is the cheapest bike model and costs 2699$. Santa Cruz 5010 XTR Reserve / Carbon CC / 27.5 2019 is the most expensive one and costs 9499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3399$. In conclusion, this bike price is 23.06% more expensive than the price of the average Trail bike.
5010 R / Aluminum / 27.5 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Santa Cruz 5010 R / Aluminum / 27.5 bike has the FOX Float Performance DPS model installed, and has a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The 5010 R / Aluminum / 27.5 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the 5010 R / Aluminum / 27.5. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
