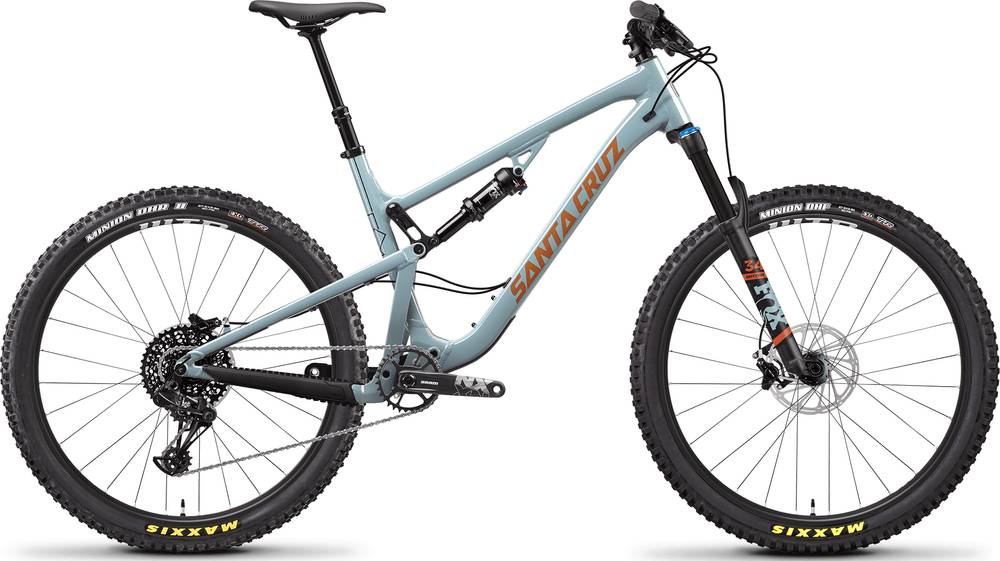

Santa Cruz 5010 R / Aluminum / 27.5 2020
2020 Mountain
Estimate price |
3,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Rear 130mm -
Fork Fox Rhythm Float 34 -
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 R / Aluminum / 27.5
Suspension Fork
Fox Rhythm 34 27.5
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 165 (XS), 170mm (S), 175mm (M-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i35 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHF EXO TR 27.5x2.3, Rear: Maxxis Rekon, 27.5"x2.6", DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Ride 35x760 bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm |
| Front Center | 679 mm | 679 mm | 717 mm | 717 mm | 741 mm | 741 mm | 765 mm | 765 mm | 807 mm | 807 mm |
| Rake | 48 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 105 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm |
| Stack | 574 mm | 577 mm | 593 mm | 595 mm | 602 mm | 604 mm | 611 mm | 613 mm | 638 mm | 640 mm |
| Reach | 394 mm | 391 mm | 424 mm | 421 mm | 444 mm | 441 mm | 464 mm | 461 mm | 494 mm | 491 mm |
| Top Tube Length | 542 mm | 543 mm | 578 mm | 579 mm | 602 mm | 602 mm | 624 mm | 625 mm | 664 mm | 665 mm |
| Seat Tube Angle | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm |
| Wheelbase | 1110 mm | 1110 mm | 1146 mm | 1147 mm | 1170 mm | 1171 mm | 1194 mm | 1195 mm | 1236 mm | 1237 mm |
| Bottom Bracket Drop | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm |
| Standover Height | 694 mm | 688 mm | 714 mm | 708 mm | 717 mm | 711 mm | 717 mm | 712 mm | 716 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
About this model
5010 R / Aluminum / 27.5 is a Santacruz 5010 model. There are 71 bikes that carry this model name. Take a sneak peek at all Santacruz 5010 bikes models from 2020, by clicking here.
Model range prices
Santa Cruz 5010 D / Aluminum / 27.5 2020 is the most affordable bike of this model and has a price of 2699$. On the other hand, Santa Cruz 5010 XX1 AXS Reserve / Carbon CC / 27.5 2020, is the most expensive and costs 10299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 3399$. Doing a quick comparison, we notice that 5010 R / Aluminum / 27.5 price is 23.06% higher than the average cost of a Trail bike.
Overview of components
Fork
The 5010 R / Aluminum / 27.5 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float Performance DPS rear shock model, which has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the 5010 R / Aluminum / 27.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The 5010 R / Aluminum / 27.5 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Santa Cruz 5010 R / Aluminum / 27.5 bike has 10 sizes, in the range of 142 cm – 195 cm (4.66 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Santa Cruz 5010 R / Aluminum / 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
