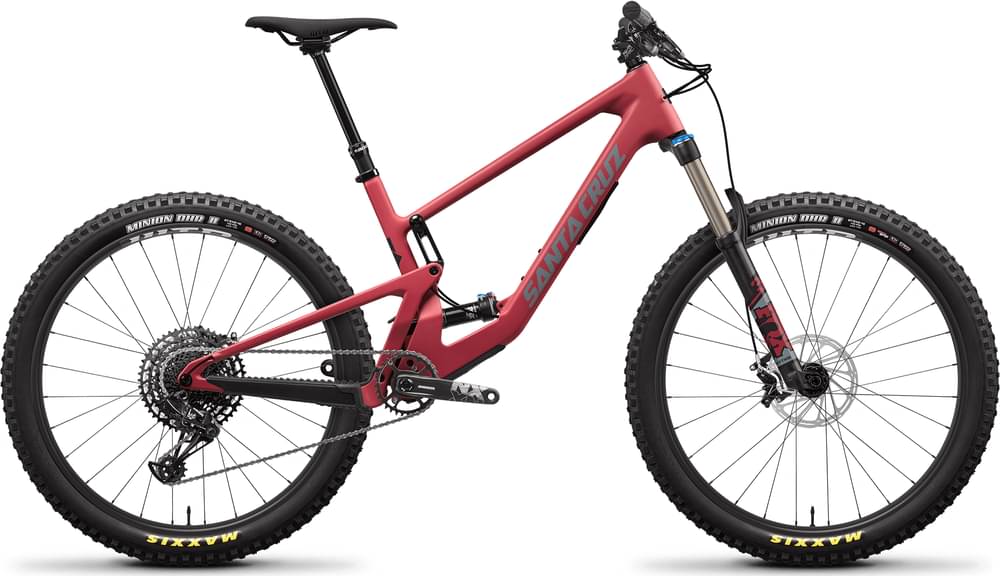

Santa Cruz 5010 R / Carbon C / 27.5 2021
2021 Mountain
Estimate price |
4,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 152cm
XS Low
142cm - 152cm
SM High
154cm - 167cm
SM Low
154cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 193cm
XL Low
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 R / Carbon C / 27.5
Suspension Fork
FOX Rhythm 34, 140mm, 27.5"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle 12spd
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i30 TCS 2.0 27.5" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II 27.5"x2.4 MaxxGRIP EXO TR, Rear: Maxxis Minion DHR II 27.5"x2.4" 3C EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Chester 40mm
Handlebar
Race Face Ride 35x760 bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
SDG Tellis Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.38 mm | 1.4 mm | 1.34 mm | 1.35 mm | 1.3 mm | 1.31 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm |
| Front Center | 699 mm | 699 mm | 733 mm | 733 mm | 764 mm | 764 mm | 795 mm | 795 mm | 826 mm | 826 mm |
| Rake | 49 mm | 44 mm | 50 mm | 44 mm | 47 mm | 45 mm | 44 mm | 44 mm | 42 mm | 44 mm |
| Trail | 107 mm | 114 mm | 106 mm | 114 mm | 109 mm | 113 mm | 112 mm | 114 mm | 114 mm | 114 mm |
| Stack | 576 mm | 578 mm | 594 mm | 597 mm | 608 mm | 610 mm | 622 mm | 624 mm | 635 mm | 638 mm |
| Reach | 404 mm | 401 mm | 429 mm | 426 mm | 454 mm | 451 mm | 479 mm | 476 mm | 504 mm | 501 mm |
| Top Tube Length | 528 mm | 528 mm | 559 mm | 560 mm | 589 mm | 591 mm | 620 mm | 621 mm | 650 | 651 mm |
| Seat Tube Angle | 77.9 ° | 77.5 ° | 77.6 ° | 77.2 ° | 77.4 ° | 77 ° | 77.2 ° | 76.8 ° | 77 ° | 76.6 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 135 mm | 135 mm | 150 mm | 150 mm | 165 mm | 165 mm |
| Chainstay Length | 427 mm | 428 mm | 427 mm | 428 mm | 430 mm | 431 mm | 433 mm | 434 mm | 436 mm | 437 mm |
| Wheelbase | 1132 mm | 1127 mm | 1166 mm | 1160 mm | 1197 mm | 1195 mm | 1228 mm | 1229 mm | 1259 mm | 1263 mm |
| Bottom Bracket Drop | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm |
| Standover Height | 694 mm | 690 mm | 711 mm | 706 mm | 710 mm | 704 mm | 708 mm | 703 mm | 708 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 152 cm | 152 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 193 cm | 193 cm |
About this model
5010 R / Carbon C / 27.5 completes the Santacruz 5010 model. Santa Cruz released 71 bikes variations of this model so far. Take a sneak peek at all Santacruz 5010 bikes models from 2021, by clicking here.
Model range prices
Santa Cruz 5010 R / Carbon C / 27.5 2021 is the cheapest bike model and costs 4549$. Santa Cruz 5010 X01 / Carbon CC / 27.5 2021 is the most expensive one and costs 7599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 4549$. In conclusion, this bike price is 64.7% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float Performance DPS, with a travel distance of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on 5010 R / Carbon C / 27.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz 5010 R / Carbon C / 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
5010 R / Carbon C / 27.5 comes in 10 sizes, that range from 142 cm – 193 cm (4.66 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the 5010 R / Carbon C / 27.5. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
