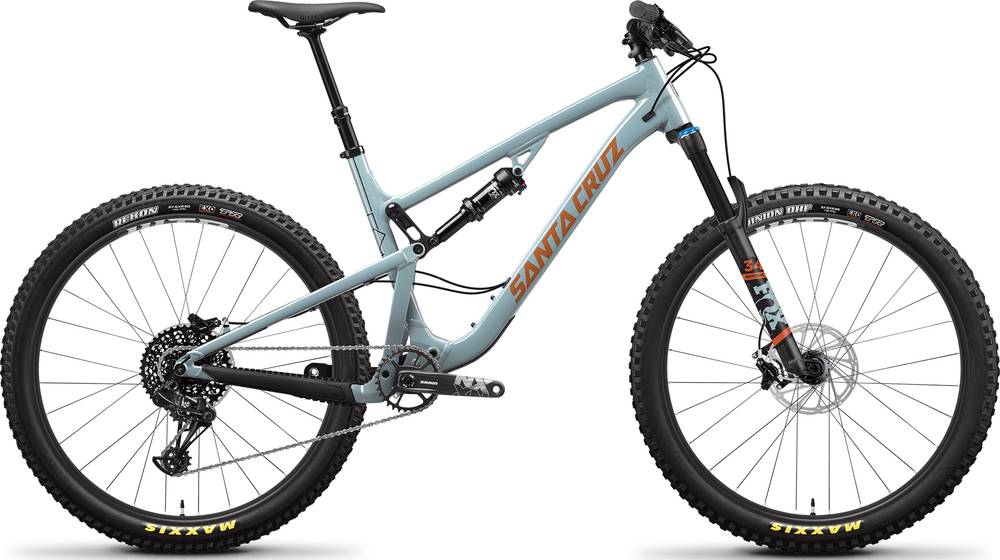

Santa Cruz 5010 R Plus / Aluminum / 27.5 2020
2020 Mountain
Estimate price |
3,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Rear 130mm -
Fork Fox Rhythm Float 34 -
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 R Plus / Aluminum / 27.5
Suspension Fork
Fox Rhythm 34 27.5
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 165 (XS), 170mm (S), 175mm (M-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i35 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHF EXO TR 27.5x2.3, Rear: Maxxis Rekon, 27.5"x2.6", DC EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Ride 35x760 bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm |
| Front Center | 679 mm | 679 mm | 717 mm | 717 mm | 741 mm | 741 mm | 765 mm | 765 mm | 807 mm | 807 mm |
| Rake | 48 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 105 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm |
| Stack | 574 mm | 577 mm | 593 mm | 595 mm | 602 mm | 604 mm | 611 mm | 613 mm | 638 mm | 640 mm |
| Reach | 394 mm | 391 mm | 424 mm | 421 mm | 444 mm | 441 mm | 464 mm | 461 mm | 494 mm | 491 mm |
| Top Tube Length | 542 mm | 543 mm | 578 mm | 579 mm | 602 mm | 602 mm | 624 mm | 625 mm | 664 mm | 665 mm |
| Seat Tube Angle | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm |
| Wheelbase | 1110 mm | 1110 mm | 1146 mm | 1147 mm | 1170 mm | 1171 mm | 1194 mm | 1195 mm | 1236 mm | 1237 mm |
| Bottom Bracket Drop | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm |
| Standover Height | 694 mm | 688 mm | 714 mm | 708 mm | 717 mm | 711 mm | 717 mm | 712 mm | 716 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
5010 R Plus / Aluminum / 27.5 is part of the Santacruz 5010 model. Santa Cruz launched 71 bikes of this model so far. You can easily view all of the Santacruz 5010 bikes models from 2020, here.
Model range prices
The most economical model, the Santa Cruz 5010 D / Aluminum / 27.5 2020 has a starting price of 2699$. Santa Cruz 5010 XX1 AXS Reserve / Carbon CC / 27.5 2020 on the other hand is the most expensive at 10299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 3399$. Doing a quick comparison, we notice that 5010 R Plus / Aluminum / 27.5 price is 23.06% higher than the average cost of a Trail bike.
5010 R Plus / Aluminum / 27.5 components
Fork
The 5010 R Plus / Aluminum / 27.5 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The 5010 R Plus / Aluminum / 27.5 has a rear shock with a travel of 130mm. The model FOX Float Performance DPS is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Santa Cruz 5010 R Plus / Aluminum / 27.5 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The 5010 R Plus / Aluminum / 27.5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Santa Cruz 5010 R Plus / Aluminum / 27.5 bike has 10 sizes, in the range of 142 cm – 195 cm (4.66 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Santa Cruz 5010 R Plus / Aluminum / 27.5 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
