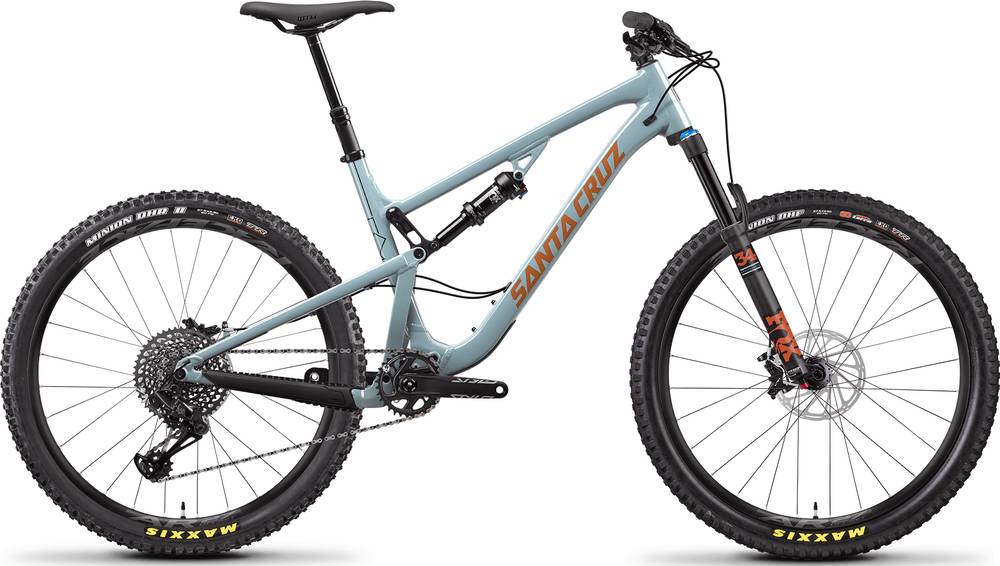

Santa Cruz 5010 S / Aluminum / 27.5 2020
2020 Mountain
Estimate price |
4,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 S / Aluminum / 27.5
Suspension Fork
FOX 34 Float Performance 130
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG1275 Eagle 10-50T
Crank
SRAM Stylo 7k 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle 12 SPD
Wheels
Front Hub
DT 370 15x110 32H
Rear Hub
DT 370 12x148 32H
Rims
Race Face AR Offset 35 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHF 3C EXO TR 27.5x2.3, Rear: Maxxis Rekon, 27.5"x2.6", 3C Terra EXO TR
Brakes
Brakes
SRAM Guide R
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 40mm
Handlebar
Race Face Ride 35x760 bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.29 mm | 1.3 mm |
| Bottom Bracket Height | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm | 334 mm | 330 mm |
| Front Center | 679 mm | 679 mm | 717 mm | 717 mm | 741 mm | 741 mm | 765 mm | 765 mm | 807 mm | 807 mm |
| Rake | 48 mm | 47 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 105 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm | 104 mm | 107 mm |
| Stack | 574 mm | 577 mm | 593 mm | 595 mm | 602 mm | 604 mm | 611 mm | 613 mm | 638 mm | 640 mm |
| Reach | 394 mm | 391 mm | 424 mm | 421 mm | 444 mm | 441 mm | 464 mm | 461 mm | 494 mm | 491 mm |
| Top Tube Length | 542 mm | 543 mm | 578 mm | 579 mm | 602 mm | 602 mm | 624 mm | 625 mm | 664 mm | 665 mm |
| Seat Tube Angle | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° | 75.2 ° | 74.9 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° | 66.5 ° | 66.2 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm |
| Wheelbase | 1110 mm | 1110 mm | 1146 mm | 1147 mm | 1170 mm | 1171 mm | 1194 mm | 1195 mm | 1236 mm | 1237 mm |
| Bottom Bracket Drop | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm | 20 mm | 24 mm |
| Standover Height | 694 mm | 688 mm | 714 mm | 708 mm | 717 mm | 711 mm | 717 mm | 712 mm | 716 mm | 711 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
5010 S / Aluminum / 27.5 is part of the Santacruz 5010 model. 71 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Santa Cruz 5010 D Plus / Aluminum / 27.5 2020 is the most affordable bike of this model and has a price of 2699$. On the other hand, Santa Cruz 5010 XX1 AXS Reserve Plus / Carbon CC / 27.5 2020, is the most expensive and costs 10299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz 5010 S / Aluminum / 27.5 price was 4099$. Comparing this to the average Trail bike price, we see that the price is 48.41% more expensive.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The 5010 S / Aluminum / 27.5 has a rear shock with a travel of 130mm. The model FOX Float Performance DPS is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Santa Cruz 5010 S / Aluminum / 27.5 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz 5010 S / Aluminum / 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 10 sizes. They vary from 142 cm – 195 cm (4.66 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
