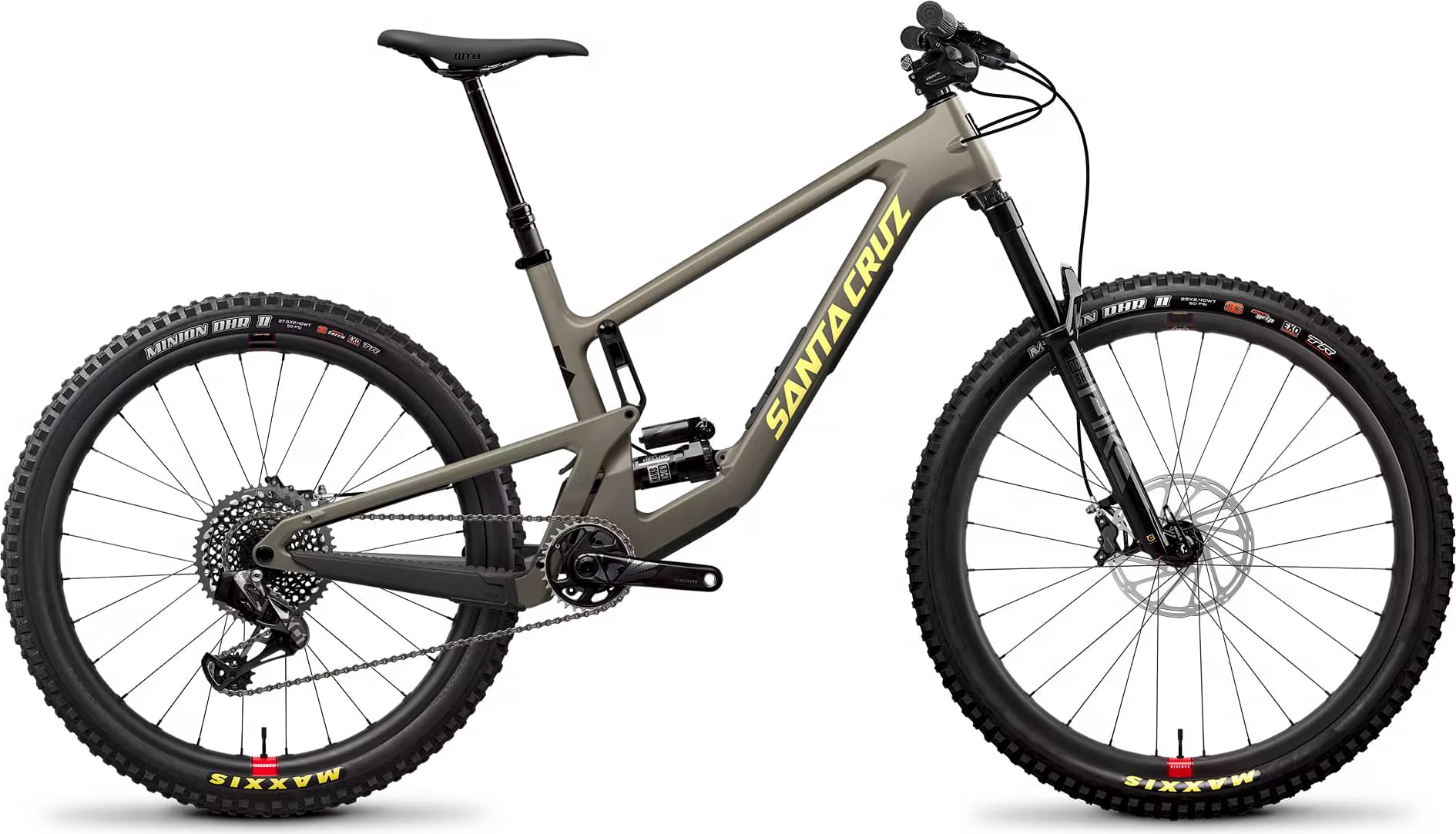

Santa Cruz 5010 X01 AXS RSV / Carbon CC 2023
2023 Mountain
Estimate price |
10,299$
Weight | 13.67 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 X01 AXS RSV / Carbon CC
Suspension Fork
RockShox Pike Ultimate, 140mm
Rear Shock
RockShox Super Deluxe Ultimate, 210x50
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM GX Eagle AXS Controller 2 Button
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: Reserve 30|HD 29", 28h, Rear: Reserve 30|HD 27.5", 28h
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.35 mm | 1.37 mm | 1.31 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 338 mm | 335 mm | 338 mm | 335 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 335 mm |
| Front Center | 719 mm | 718 mm | 748 mm | 748 mm | 779 mm | 779 mm | 803 mm | 803 mm | 832 mm | 832 mm | 863 mm | 863 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm | 46 mm |
| Trail | 123 mm | 126 mm | 122 mm | 126 mm | 122 mm | 126 mm | 123 mm | 126 mm | 122 mm | 126 mm | 124 mm | 125 mm |
| Stack | 603 mm | 605 mm | 612 mm | 614 mm | 626 mm | 628 mm | 635 mm | 637 mm | 653 mm | 655 mm | 666 mm | 668 mm |
| Reach | 414 mm | 410 mm | 438 mm | 435 mm | 463 mm | 460 mm | 483 mm | 480 mm | 503 mm | 500 mm | 528 mm | 525 mm |
| Top Tube Length | 548 mm | 548 mm | 574 mm | 575 mm | 602 mm | 603 mm | 628 mm | 629 mm | 649 mm | 650 | 677 mm | 678 mm |
| Seat Tube Angle | 77.4 ° | 77.1 ° | 77.4 ° | 77.1 ° | 77.4 ° | 77.1 ° | 77.1 ° | 76.8 ° | 77.3 ° | 77 ° | 77.3 ° | 77.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° | 65.1 ° | 64.9 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 125 mm | 125 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 432 mm | 433 mm | 434 mm | 435 mm | 437 mm | 438 mm | 440 mm | 441 mm | 443 mm | 444 mm | 446 mm | 447 mm |
| Wheelbase | 1151 mm | 1151 mm | 1182 mm | 1182 mm | 1216 mm | 1217 mm | 1243 mm | 1244 mm | 1275 mm | 1275 mm | 1309 mm | 1310 mm |
| Bottom Bracket Drop | 35 mm | 38 mm | 35 mm | 38 mm | 35 mm | 38 mm | 35 mm | 38 mm | 35 mm | 38 mm | 35 mm | 38 mm |
| Standover Height | 698 mm | 692 mm | 707 mm | 702 mm | 710 mm | 704 mm | 712 mm | 707 mm | 715 mm | 710 mm | 721 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
5010 X01 AXS RSV / Carbon CC is a Santacruz 5010 model. Santa Cruz released 71 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Santa Cruz 5010 R / Carbon C 2023 is the most economical model, with a starting price of 5299$. Santa Cruz 5010 X01 AXS RSV / Carbon CC 2023 on the other hand costs 10299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2023, its price was 10299$. Doing a quick comparison, we notice that 5010 X01 AXS RSV / Carbon CC price is 272.88% more expensive than the average cost of a Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, 5010 X01 AXS RSV / Carbon CC has a weight of 13.67 kg (30.14 lbs). In conclusion, the average Trail bike weighs 6.13% less than 5010 X01 AXS RSV / Carbon CC.
5010 X01 AXS RSV / Carbon CC components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Ultimate model, with a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Santa Cruz 5010 X01 AXS RSV / Carbon CC 2023, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 5010 X01 AXS RSV / Carbon CC comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 12 sizes. They vary from 142 cm – 201 cm (4.66 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz 5010 X01 AXS RSV / Carbon CC comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
