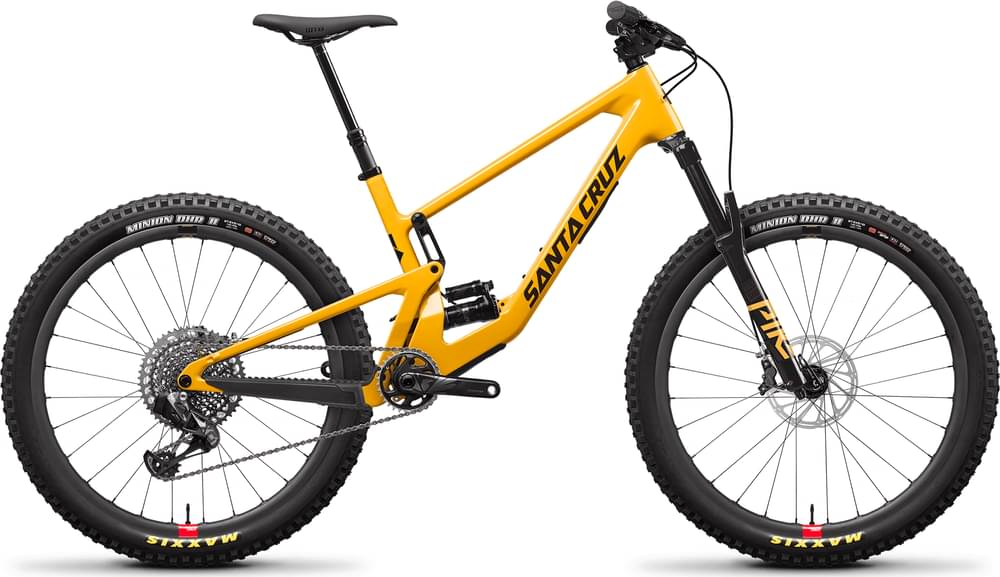

Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 2022
2022 Mountain
Estimate price |
9,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 196cm
XL Low
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
5010 X01 / AXS / RSV / Carbon CC / 27.5
Suspension Fork
RockShox Pike Ultimate 140mm 27.5"
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM GX AXS Shifter
Cassette
SRAM XG1295 Eagle 12spd 10-52t
Crank
SRAM X1 Eagle Carbon DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
Industry Nine 1/1, 110x15, Torque Cap, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
Reserve 30 27.5" Carbon
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHR II 27.5"x2.4", 3C, MaxxGRIP, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4" 3C EXO TR
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.38 mm | 1.4 mm | 1.34 mm | 1.35 mm | 1.3 mm | 1.31 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm |
| Front Center | 699 mm | 699 mm | 733 mm | 733 mm | 764 mm | 764 mm | 795 mm | 795 mm | 826 mm | 826 mm |
| Rake | 49 mm | 44 mm | 50 mm | 44 mm | 47 mm | 45 mm | 44 mm | 44 mm | 42 mm | 44 mm |
| Trail | 107 mm | 114 mm | 106 mm | 114 mm | 109 mm | 113 mm | 112 mm | 114 mm | 114 mm | 114 mm |
| Stack | 576 mm | 578 mm | 594 mm | 597 mm | 608 mm | 610 mm | 622 mm | 624 mm | 635 mm | 638 mm |
| Reach | 404 mm | 401 mm | 429 mm | 426 mm | 454 mm | 451 mm | 479 mm | 476 mm | 504 mm | 501 mm |
| Top Tube Length | 528 mm | 528 mm | 559 mm | 560 mm | 589 mm | 591 mm | 620 mm | 621 mm | 650 | 651 mm |
| Seat Tube Angle | 77.9 ° | 77.5 ° | 77.6 ° | 77.2 ° | 77.4 ° | 77 ° | 77.2 ° | 76.8 ° | 77 ° | 76.6 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 135 mm | 135 mm | 150 mm | 150 mm | 165 mm | 165 mm |
| Chainstay Length | 427 mm | 428 mm | 427 mm | 428 mm | 430 mm | 431 mm | 433 mm | 434 mm | 436 mm | 437 mm |
| Wheelbase | 1132 mm | 1127 mm | 1166 mm | 1160 mm | 1197 mm | 1195 mm | 1228 mm | 1229 mm | 1259 mm | 1263 mm |
| Bottom Bracket Drop | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm |
| Standover Height | 694 mm | 690 mm | 711 mm | 706 mm | 710 mm | 704 mm | 708 mm | 703 mm | 708 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
5010 X01 / AXS / RSV / Carbon CC / 27.5 is part of the Santacruz 5010 model. Santa Cruz launched 71 bikes of this model so far. Take a sneak peek at all Santacruz 5010 bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Santa Cruz 5010 R / Carbon C / 27.5 2022 has a starting price of 4799$. Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 2022 on the other hand is the most expensive at 9599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 price was 9599$. If we compare this with the average Trail bike cost we notice that the price is 247.54% higher.
5010 X01 / AXS / RSV / Carbon CC / 27.5 components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on 5010 X01 / AXS / RSV / Carbon CC / 27.5 are the 27.5″ carbon type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 5010 X01 / AXS / RSV / Carbon CC / 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 bike has 10 sizes, in the range of 142 cm – 196 cm (4.66 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Santa Cruz 5010 X01 / AXS / RSV / Carbon CC / 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
