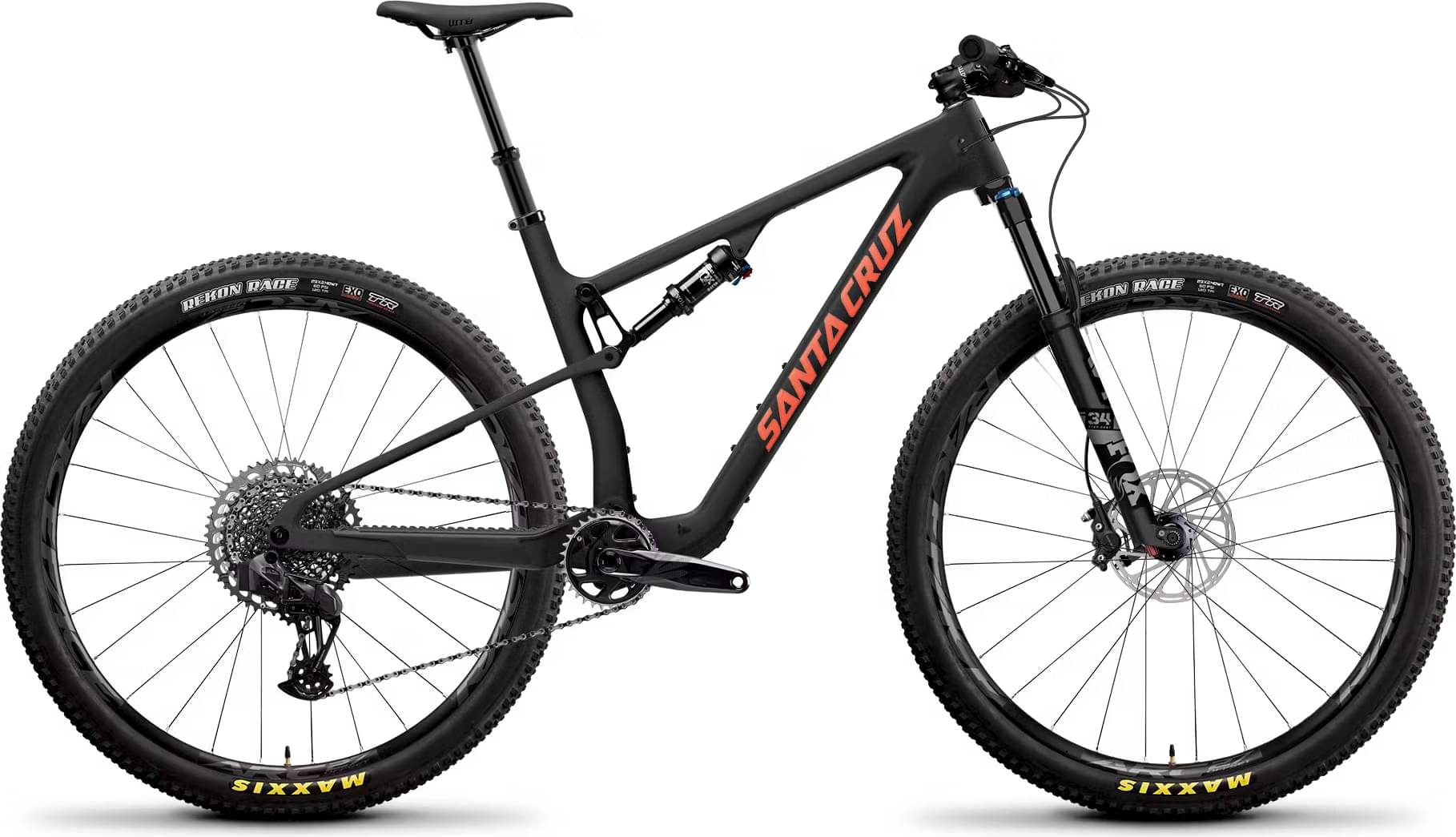

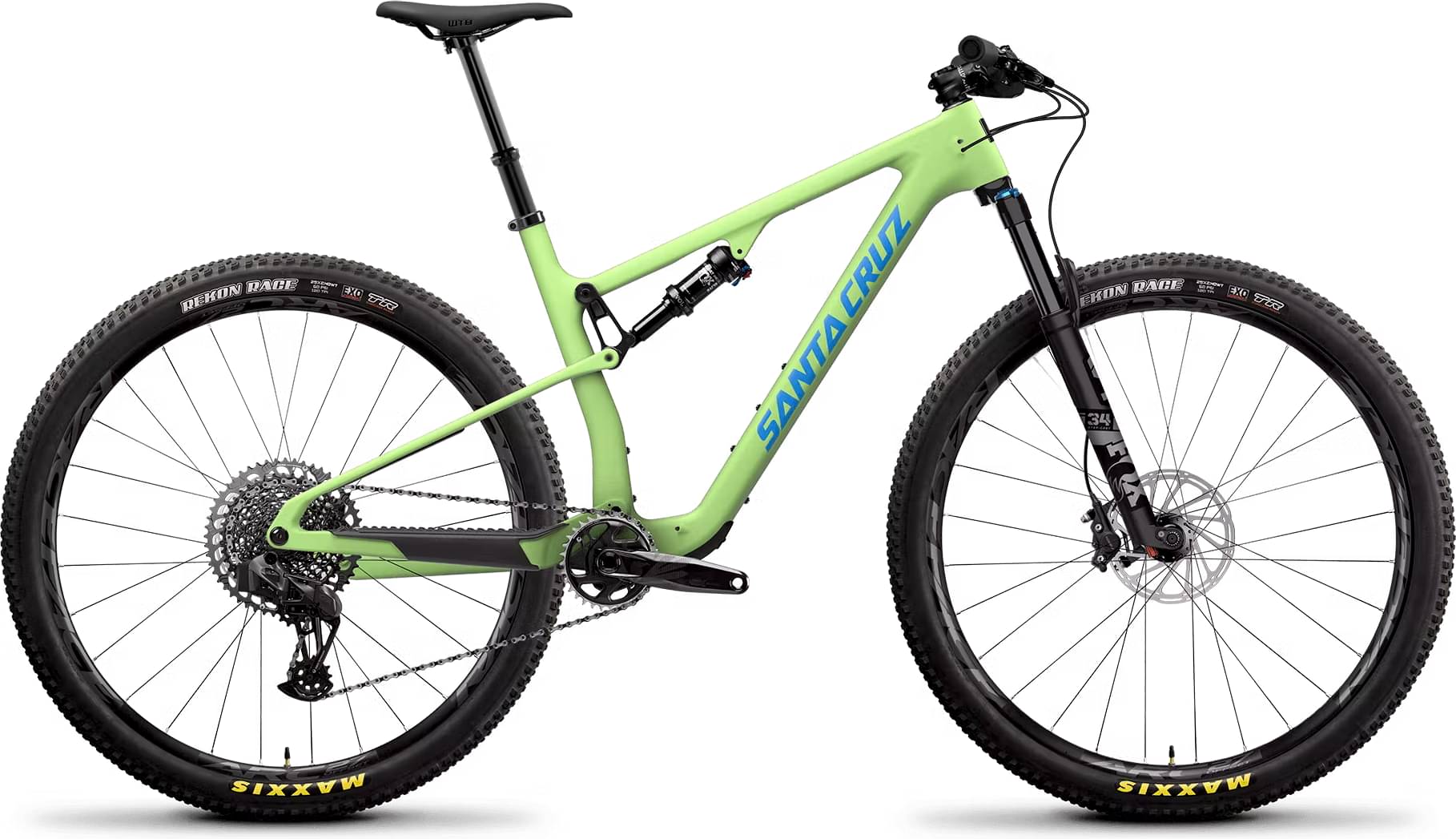

Santa Cruz BLUR GX AXS TR / Carbon C 2023
2023 Mountain
Estimate price |
10,169$
Weight | 11.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
SM
155cm - 166cm
MD
164cm - 176cm
MD
164cm - 176cm
LG
174cm - 186cm
LG
174cm - 186cm
XL
184cm - 196cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR GX AXS TR / Carbon C
Suspension Fork
FOX 34SC Performance Elite, 120mm
Rear Shock
FOX Float Performance Elite DPS 190x45
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Centerlock, 28h, Rear: i9 1/1, 12x148, XD, Centerlock, 28h
Rear Hub
Front: i9 1/1, 15x110, Centerlock, 28h, Rear: i9 1/1, 12x148, XD, Centerlock, 28h
Rims
Front: RaceFace ARC Offset 27 29", Rear: RaceFace ARC Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.4"WT, EXO, TR, Rear: Maxxis Rekon Race 29"x2.4"WT, EXO, TR
Brakes
Brakes
SRAM Level TL
Cockpit
Stem
SRAM Atmos 6k Stem, 60mm
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
FOX Transfer SL Performance Elite, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.3 mm | 1.36 mm | 1.27 mm | 1.32 mm | 1.23 mm | 1.28 mm |
| Bottom Bracket Height | 330.5 mm | 339.9 mm | 330.5 mm | 339.7 mm | 330.5 mm | 339.6 mm | 330.5 mm | 339.4 mm |
| Front Center | 685.8 mm | 695 mm | 714.5 mm | 723.7 mm | 738.2 mm | 747.4 mm | 768.7 mm | 778 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 100 mm | 108 mm | 100 mm | 109 mm | 100 mm | 109 mm | 100 mm | 109 mm |
| Stack | 583.3 mm | 592.4 mm | 592.6 mm | 602 mm | 601.9 mm | 611.5 mm | 615.8 mm | 625.7 mm |
| Reach | 430 mm | 417.3 mm | 455 mm | 442.8 mm | 475 mm | 462.5 mm | 500 mm | 487.5 mm |
| Top Tube Length | 568.9 mm | 573.4 mm | 597.8 mm | 602.3 mm | 621.9 mm | 626.4 mm | 652.2 mm | 656.7 mm |
| Seat Tube Angle | 76.5 ° | 75.1 ° | 76.3 ° | 75 ° | 75.8 ° | 74.9 ° | 75.7 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 470 mm | 470 mm | 520 mm | 520 mm |
| Head Tube Angle | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 437 mm | 438 mm | 440 mm | 440 mm | 442 mm | 443 mm |
| Wheelbase | 1120 mm | 1130 mm | 1152 mm | 1162 mm | 1178 mm | 1188 mm | 1211 mm | 1221 mm |
| Bottom Bracket Drop | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 33 mm |
| Standover Height | 741 mm | 748 mm | 745 mm | 751 mm | 744 mm | 750 mm | 750 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 196 cm | 196 cm |
Model Overview
BLUR GX AXS TR / Carbon C completes the Santacruz Blur model. Santa Cruz launched 80 bikes of this model so far. You can easily view all of the Santacruz Blur bikes models from 2023, here.
Model range prices
Santa Cruz BLUR R / TR / Carbon C / 29 2023 is the most economical model, with a starting price of 4599$. Santa Cruz BLUR XX1 / AXS / TR / RSV / Carbon CC / 29 2023 on the other hand costs 12399$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Santa Cruz BLUR GX AXS TR / Carbon C price was 9243$. If we compare this with the average Crosscountry bike cost we notice that the price is 385.2% higher.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 11.52 kg (25.4 lbs), Santa Cruz bike is a bit lighter than average. In short, the average Crosscountry bike weight is 7.64% higher than this one.
BLUR GX AXS TR / Carbon C components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Performance Elite DPS 190×45 rear shock model, which has a travel of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The BLUR GX AXS TR / Carbon C 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz BLUR GX AXS TR / Carbon C is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 155 cm – 196 cm (5.09 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
