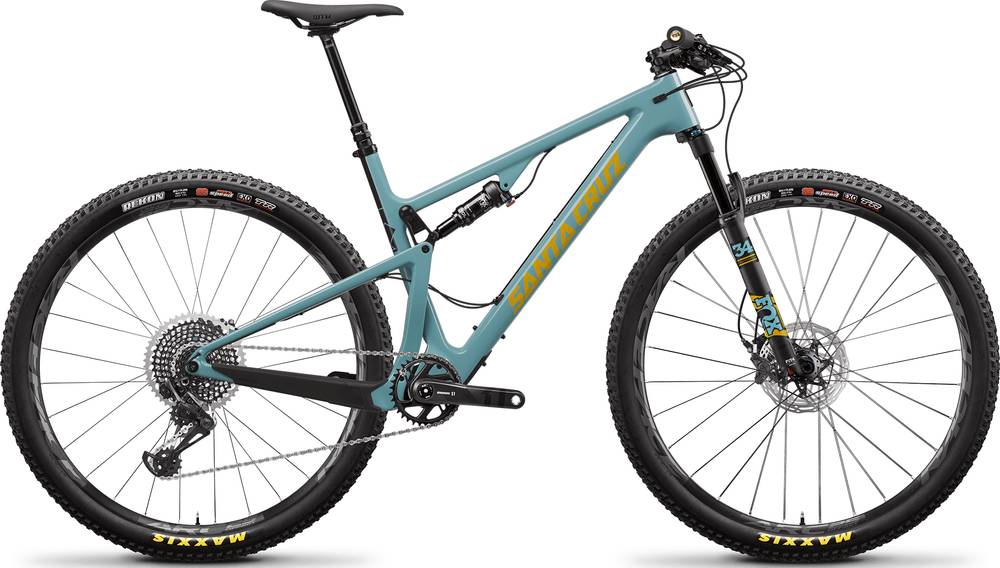

Santa Cruz Blur X01 TR / Carbon CC / 29 2020
2020 Mountain
Estimate price |
6,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork Fox Performance Elite Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Blur X01 TR / Carbon CC / 29
Suspension Fork
FOX Step-Cast 34 Float Performance Elite, 110mm, 29", w/remote
Rear Shock
FOX Float Performance DPS w/Remote
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1275 Eagle 10-50T
Crank
SRAM X1 Eagle Carbon 148 DUB 34T (170mm S, 175mm M-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle 12 SPD
Wheels
Front Hub
DT 350, 15x110, Centerlock, 28h
Rear Hub
DT 350, 12x148, Centerlock, XD, 28h
Rims
Race Face ARC Offset 25 29" Rims
Spokes
DT Competition Race (28)
Tires
Front: Maxxis Rekon, 29"x2.25", 3C EXO TR, Rear: Maxxis Rekon, 29"x2.25", 3C EXO TR
Brakes
Brakes
SRAM Level TLM
Disk Rotors
SRAM CLX Centerlock Rotors, 180mm Front, 160mm Rear
Cockpit
Stem
Syntace LiteForce
Handlebar
Santa Cruz XC Carbon Flat
Grips
SRAM Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 331 mm |
| Front Center | 684 mm | 708 mm | 731 mm | 767 mm |
| Rake | 52 mm | 53 mm | 53 mm | 53 mm |
| Trail | 92 mm | 91 mm | 91 mm | 91 mm |
| Stack | 587 mm | 597 mm | 606 mm | 620 mm |
| Reach | 420 mm | 440 mm | 460 mm | 490 mm |
| Top Tube Length | 581 mm | 604 mm | 628 mm | 663 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1121 mm | 1145 mm | 1169 mm | 1204 mm |
| Bottom Bracket Drop | 38 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 729 mm | 729 mm | 730 mm | 737 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm | 195 cm |
About this model
Blur X01 TR / Carbon CC / 29 completes the Santacruz Blur model. 80 bikes variations carry this model name so far. Take a sneak peek at all Santacruz Blur bikes models from 2020, by clicking here.
Model range prices
Santa Cruz Blur R / Carbon C / 29 2020 is the cheapest bike model and costs 3799$. Santa Cruz Blur XX1 AXS Reserve TR / Carbon CC / 29 2020 is the most expensive one and costs 10299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 6799$. Comparing this to the average Crosscountry bike price, we see that the price is 256.9% higher.
Blur X01 TR / Carbon CC / 29 components
Fork
This bike has the Fox Performance Elite Float 34 fork installed. The fork’s travel is 110mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Float Performance DPS w/Remote, with a travel distance of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Blur X01 TR / Carbon CC / 29 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Blur X01 TR / Carbon CC / 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Blur X01 TR / Carbon CC / 29 comes in 4 sizes, that range from 154 cm – 195 cm (5.05 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
