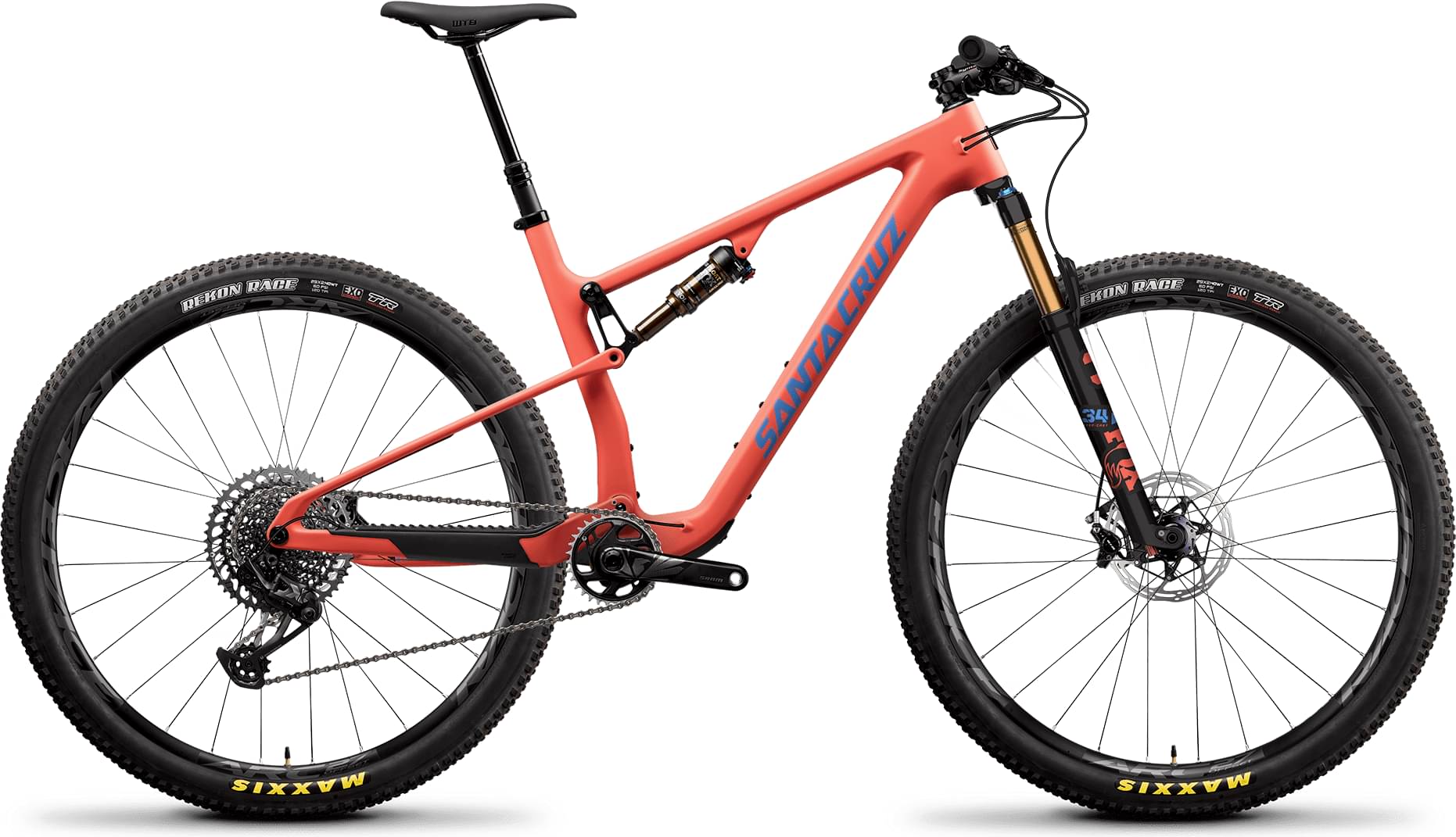

Santa Cruz BLUR X01 / TR / Carbon CC / 29 2023
2023 Mountain
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR X01 / TR / Carbon CC / 29
Suspension Fork
FOX 34 Step Cast Factory, 120mm
Rear Shock
FOX Float Factory DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Industry Nine 1/1, 110x15, Centerlock, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, Centerlock, 28h
Rims
RaceFace ARC Offset 27 29" Rims
Spokes
Sapim D-light
Tires
Front: Maxxis Rekon Race, 29"x2.4WT, 3C, EXO, Rear: Maxxis Rekon Race, 29"x2.4WT, 3C, EXO
Brakes
Brakes
SRAM Level TLM
Cockpit
Stem
Syntace LiteForce
Handlebar
Santa Cruz Bicycles Carbon Flat Bar, 760mm
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti Fusion Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm | 339.4 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm | 778 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm | 109 mm |
| Stack | 592.4 mm | 602 mm | 611.5 mm | 625.7 mm |
| Reach | 417.3 mm | 442.8 mm | 462.5 mm | 487.5 mm |
| Top Tube Length | 573.4 mm | 602.3 mm | 626.4 mm | 656.7 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 435 mm | 438 mm | 440 mm | 443 mm |
| Wheelbase | 1130 mm | 1162 mm | 1188 mm | 1221 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 33 mm |
| Standover Height | 748 mm | 751 mm | 750 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
BLUR X01 / TR / Carbon CC / 29 completes the Santacruz Blur model. 80 bikes variations carry this model name so far. You can easily view all of the Santacruz Blur bikes models from 2023, here.
Model range prices
Santa Cruz BLUR R / TR / Carbon C / 29 2023 is the most affordable bike of this model and has a price of 4599$. On the other hand, Santa Cruz BLUR XX1 / AXS / TR / RSV / Carbon CC / 29 2023, is the most expensive and costs 12399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 8199$. If we compare this with the average Crosscountry bike cost we notice that the price is 330.39% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The BLUR X01 / TR / Carbon CC / 29 has a rear shock with a travel of 115mm. The model FOX Float Factory DPS is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on BLUR X01 / TR / Carbon CC / 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
BLUR X01 / TR / Carbon CC / 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Santa Cruz BLUR X01 / TR / Carbon CC / 29 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
