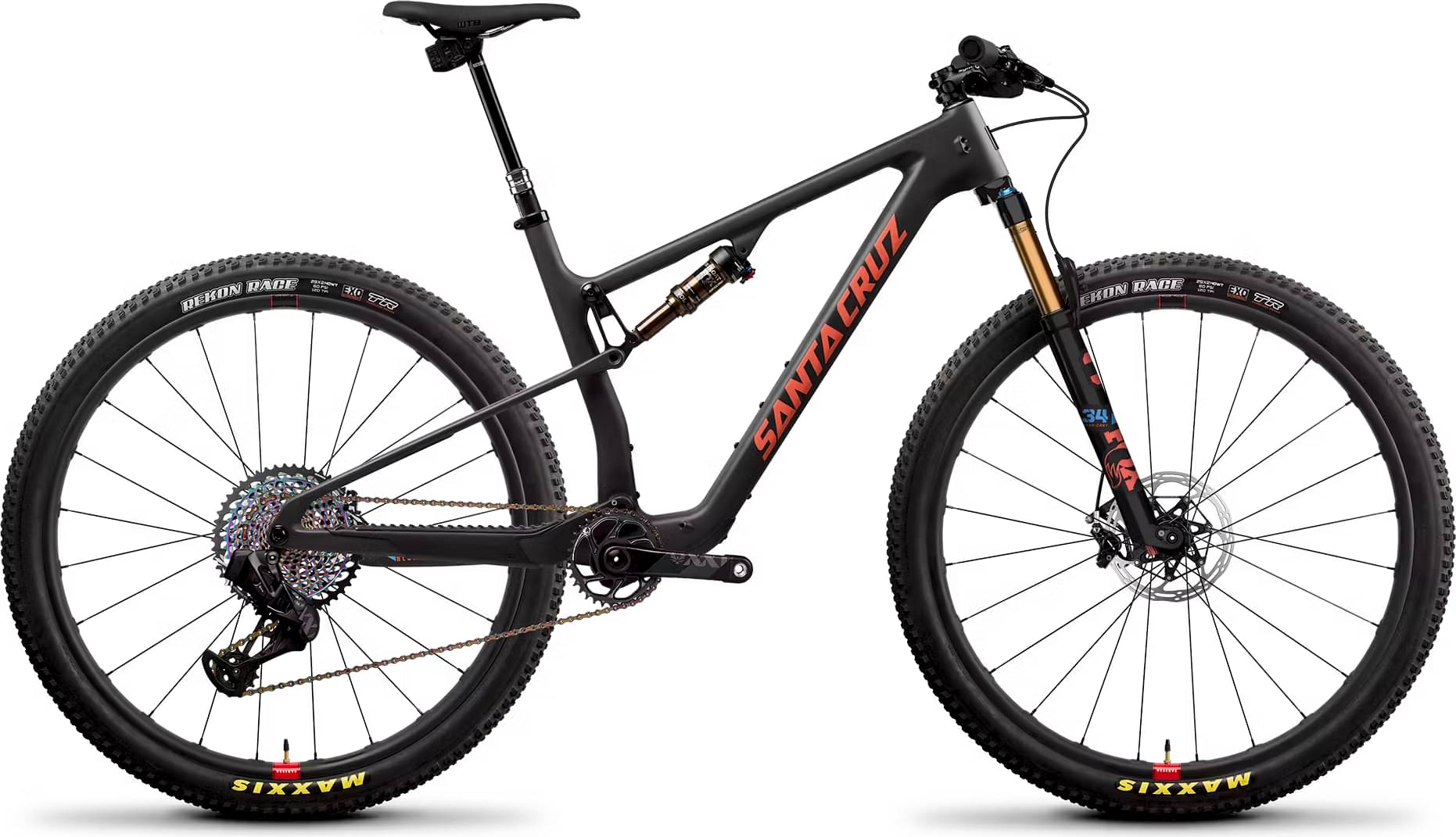

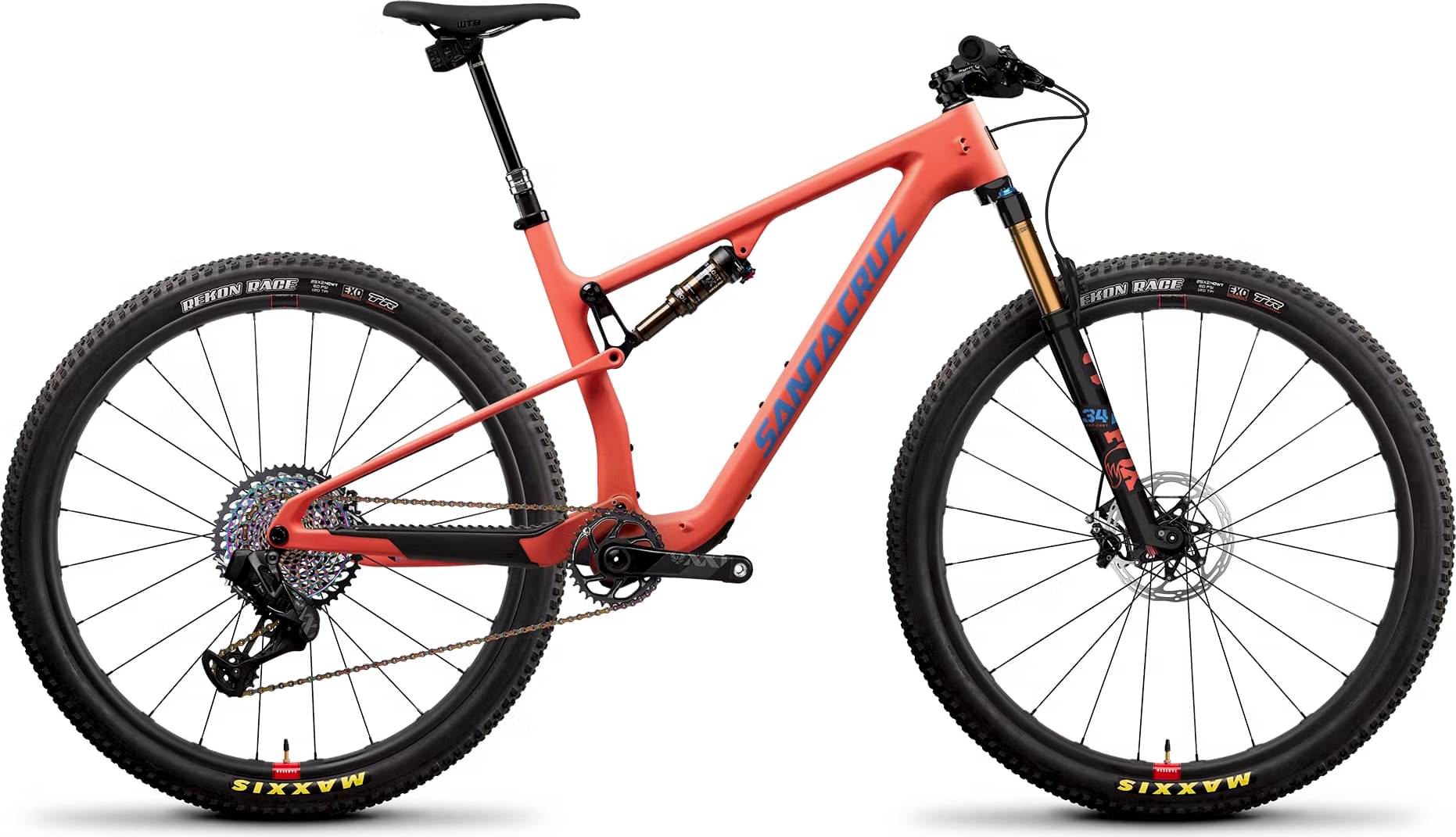

Santa Cruz BLUR XX1 AXS TR RSV / Carbon CC 2023
2023 Mountain
Estimate price |
12,399$
Weight | 10.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
SM
155cm - 166cm
MD
164cm - 176cm
MD
164cm - 176cm
LG
174cm - 186cm
LG
174cm - 186cm
XL
184cm - 196cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BLUR XX1 AXS TR RSV / Carbon CC
Suspension Fork
FOX 34 Step Cast Factory, 120mm
Rear Shock
FOX Float Factory DPS
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12spd
Shift Levers
SRAM AXS Paddle Shifter
Cassette
SRAM XG1295 Eagle Rainbow, 12spd, 10-50t
Crank
SRAM XX1 Eagle AXS 148 DUB 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM XX1 Eagle, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Front: DT Swiss 180 EXP, 110x15, Centerlock, 24h, Rear: DT Swiss 180 EXP, 148x12, XD, Centerlock, 24h
Rear Hub
Front: DT Swiss 180 EXP, 110x15, Centerlock, 24h, Rear: DT Swiss 180 EXP, 148x12, XD, Centerlock, 24h
Rims
Reserve 28 XC 29" Carbon Rims
Spokes
Sapim CX-Ray
Tires
Front: Maxxis Rekon Race, 29"x2.4WT, EXO, TR, Rear: Maxxis Rekon Race, 29"x2.4WT, EXO, TR
Brakes
Brakes
SRAM Level Ultimate
Cockpit
Stem
Syntace LiteForce
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Grips
ESI Chunky Grips
Headset
Cane Creek AER IS Tapered Headset
Seat
Saddle
WTB Silverado Medium Ti Fusion Saddle
Seatpost
RockShox Reverb AXS 31.6, MatchMaker
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.3 mm | 1.36 mm | 1.27 mm | 1.32 mm | 1.23 mm | 1.28 mm |
| Bottom Bracket Height | 330.5 mm | 339.9 mm | 330.5 mm | 339.7 mm | 330.5 mm | 339.6 mm | 330.5 mm | 339.4 mm |
| Front Center | 685.8 mm | 695 mm | 714.5 mm | 723.7 mm | 738.2 mm | 747.4 mm | 768.7 mm | 778 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 100 mm | 108 mm | 100 mm | 109 mm | 100 mm | 109 mm | 100 mm | 109 mm |
| Stack | 583.3 mm | 592.4 mm | 592.6 mm | 602 mm | 601.9 mm | 611.5 mm | 615.8 mm | 625.7 mm |
| Reach | 430 mm | 417.3 mm | 455 mm | 442.8 mm | 475 mm | 462.5 mm | 500 mm | 487.5 mm |
| Top Tube Length | 568.9 mm | 573.4 mm | 597.8 mm | 602.3 mm | 621.9 mm | 626.4 mm | 652.2 mm | 656.7 mm |
| Seat Tube Angle | 76.5 ° | 75.1 ° | 76.3 ° | 75 ° | 75.8 ° | 74.9 ° | 75.7 ° | 74.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 470 mm | 470 mm | 520 mm | 520 mm |
| Head Tube Angle | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° | 68.3 ° | 67.1 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 437 mm | 438 mm | 440 mm | 440 mm | 442 mm | 443 mm |
| Wheelbase | 1120 mm | 1130 mm | 1152 mm | 1162 mm | 1178 mm | 1188 mm | 1211 mm | 1221 mm |
| Bottom Bracket Drop | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 32 mm | 42 mm | 33 mm |
| Standover Height | 741 mm | 748 mm | 745 mm | 751 mm | 744 mm | 750 mm | 750 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
BLUR XX1 AXS TR RSV / Carbon CC is part of the Santacruz Blur model. There are 80 bikes that carry this model name. You can easily view all of the Santacruz Blur bikes models from 2023, here.
Model range prices
Santa Cruz BLUR R / TR / Carbon C / 29 2023 is the most economical model, with a starting price of 4599$. Santa Cruz BLUR XX1 / AXS / TR / RSV / Carbon CC / 29 2023 on the other hand costs 12399$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 12399$. If we compare this with the average Crosscountry bike cost we notice that the price is 550.87% more expensive.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, BLUR XX1 AXS TR RSV / Carbon CC has a weight of 10.69 kg (23.57 lbs). In short, the average Crosscountry bike weight is 16% higher than this one.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Santa Cruz BLUR XX1 AXS TR RSV / Carbon CC bike has the FOX Float Factory DPS model installed, and has a travel of 115mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on BLUR XX1 AXS TR RSV / Carbon CC are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz BLUR XX1 AXS TR RSV / Carbon CC is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 155 cm – 196 cm (5.09 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Santa Cruz BLUR XX1 AXS TR RSV / Carbon CC includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
