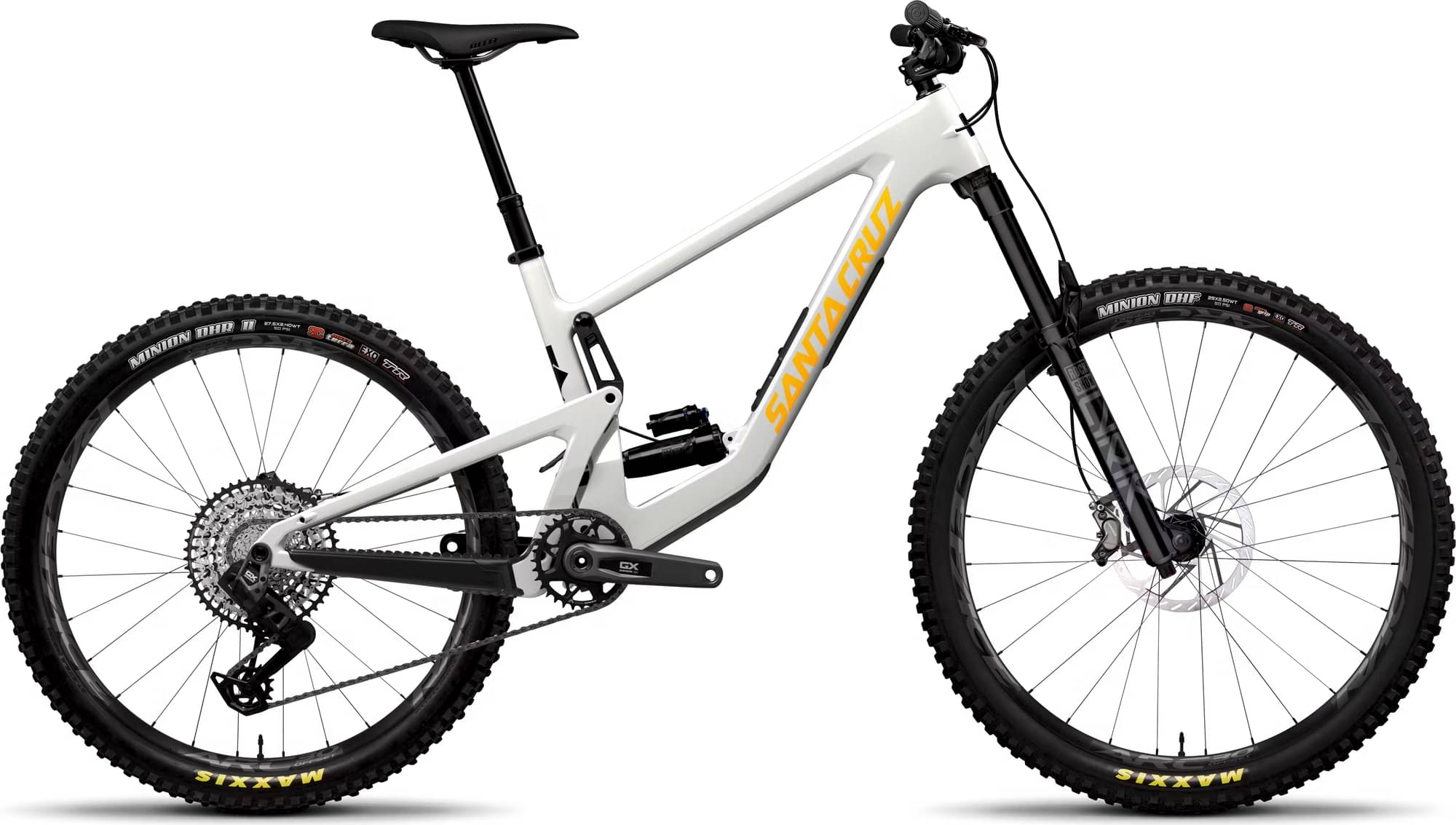

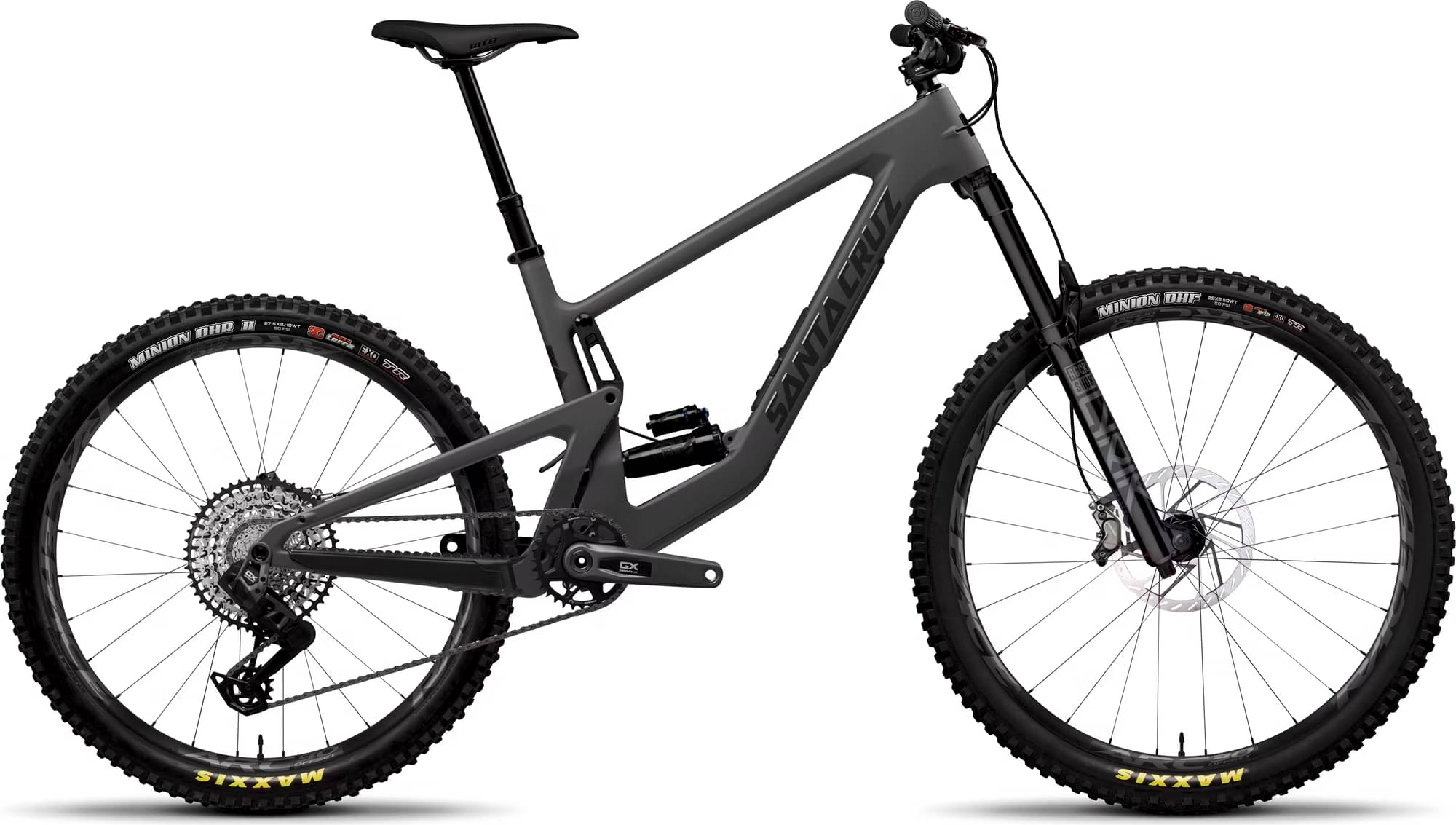

Santa Cruz BRONSON GX AXS / Carbon C 2024
2024 Mountain
Estimate price |
6,999$
Weight | 14.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 196cm
XL Low
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BRONSON GX AXS / Carbon C
Suspension Fork
RockShox Lyrik Select+, 160mm -or- Fox 36 Performance Elite
Rear Shock
RockShox Super Deluxe Select+, 230x60
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
SRAM GX Eagle DUB T-Type Crankset, 32t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM GX Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
DT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Rear Hub
DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 27.5"
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Brakes
Brakes
SRAM Code Bronze Stealth
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz Carbon
Grips
Santa Cruz Bicycles House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.43 mm | 1.45 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm |
| Front Center | 722 mm | 722 mm | 757 mm | 757 mm | 786 mm | 786 mm | 811 mm | 810 mm | 842 mm | 842 mm |
| Rake | 37 mm | 38 mm | 45 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 136 mm | 137 mm | 127 mm | 128 mm | 127 mm | 128 mm | 126 mm | 128 mm | 127 mm | 128 mm |
| Stack | 598 mm | 599 mm | 621 mm | 623 mm | 630 mm | 632 mm | 639 mm | 641 mm | 653 mm | 655 mm |
| Reach | 409 mm | 406 mm | 434 mm | 431 mm | 459 mm | 456 mm | 479 mm | 476 mm | 504 mm | 501 mm |
| Top Tube Length | 540 mm | 546 mm | 574 mm | 579 mm | 603 mm | 608 mm | 627 mm | 631 mm | 657 mm | 661 mm |
| Seat Tube Angle | 77.6 ° | 76.9 ° | 77.2 ° | 76.7 ° | 77.1 ° | 76.6 ° | 76.9 ° | 76.5 ° | 76.7 ° | 76.4 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 436 mm | 435 mm | 436 mm | 439 mm | 440 mm | 442 mm | 443 mm | 446 mm | 447 mm |
| Wheelbase | 1153 mm | 1158 mm | 1192 mm | 1193 mm | 1225 mm | 1226 mm | 1253 mm | 1253 mm | 1288 mm | 1289 mm |
| Bottom Bracket Drop | 10 mm | 13 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm |
| Standover Height | 705 mm | 702 mm | 713 mm | 710 mm | 735 mm | 731 mm | 733 mm | 730 mm | 732 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
BRONSON GX AXS / Carbon C is part of the Santacruz Bronson model. 77 bikes variations carry this model name so far. You can easily view all of the Santacruz Bronson bikes models from 2024, here.
Model range prices
Santa Cruz BRONSON R / Carbon C 2024 is the most economical model, with a starting price of 4999$. Santa Cruz BRONSON X0 AXS RSV / Carbon CC 2024 on the other hand costs 8999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2024 and its price was 6999$. If we compare this with the average Enduro bike cost we notice that the price is 94.47% more expensive.
Enduro bikes average weight
The average weight for Enduro bikes is 14 kg (30.86 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, BRONSON GX AXS / Carbon C has a weight of 14.68 kg (32.36 lbs). In other words, this model is 4.86% heavier than the average Enduro bike.
Overview of components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select+, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the BRONSON GX AXS / Carbon C bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz BRONSON GX AXS / Carbon C has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 142 cm – 196 cm (4.66 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
