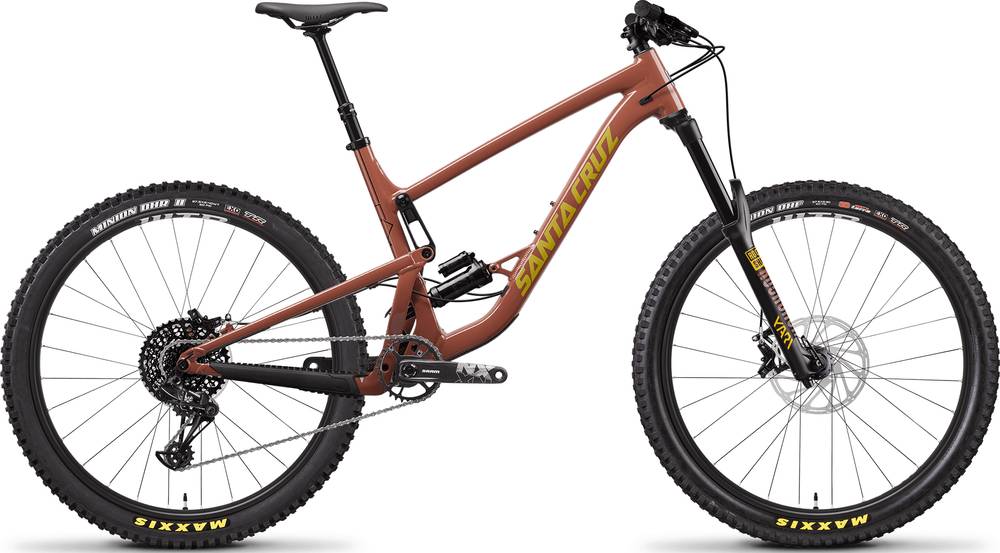

Santa Cruz Bronson R / Aluminum / 27.5 2020
2020 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bronson R / Aluminum / 27.5
Suspension Fork
RockShox Yari RC 160mm 27.5"
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 165 (XS), 170mm (S-M), 175mm (L-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i29 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHF 3C EXO TR 27.5"x2.5", Rear: Maxxis Minion DHR2 EXO TR 27.5"x2.4"
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Aeffect R 35x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.52 mm | 1.41 mm | 1.43 mm | 1.38 mm | 1.41 mm | 1.33 mm | 1.35 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 703 mm | 703 mm | 737 mm | 737 mm | 761 mm | 761 mm | 785 mm | 785 mm | 821 mm | 821 mm |
| Rake | 48 mm | 49 mm | 47 mm | 48 mm | 49 mm | 53 mm | 46 mm | 47 mm | 47 mm | 48 mm |
| Trail | 110 mm | 111 mm | 111 mm | 112 mm | 109 mm | 107 mm | 112 mm | 113 mm | 111 mm | 112 mm |
| Stack | 588 mm | 590 mm | 597 mm | 599 mm | 606 mm | 609 mm | 615 mm | 618 mm | 629 mm | 631 mm |
| Reach | 393 mm | 389 mm | 423 mm | 419 mm | 440 mm | 433 mm | 463 mm | 459 mm | 493 mm | 489 mm |
| Top Tube Length | 545 mm | 545 mm | 578 mm | 578 mm | 602 mm | 602 mm | 625 mm | 625 mm | 660 mm | 660 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1138 mm | 1138 mm | 1171 mm | 1171 mm | 1195 mm | 1195 mm | 1219 mm | 1219 mm | 1256 mm | 1256 mm |
| Bottom Bracket Drop | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm |
| Standover Height | 698 mm | 696 mm | 708 mm | 704 mm | 725 mm | 721 mm | 725 mm | 719 mm | 724 mm | 719 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
About this model
Bronson R / Aluminum / 27.5 belongs to the Santacruz Bronson model. Santa Cruz launched 77 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Santa Cruz Bronson R Plus / Aluminum / 27.5 2020 is the most affordable bike of this model and has a price of 3499$. On the other hand, Santa Cruz Bronson XX1 AXS Reserve / Carbon CC / 27.5 2020, is the most expensive and costs 10499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz Bronson R / Aluminum / 27.5 price was 3499$. Doing a quick comparison, we notice that Bronson R / Aluminum / 27.5 price is 2.86% smaller than the average cost of an Enduro bike.
Bronson R / Aluminum / 27.5 components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Bronson R / Aluminum / 27.5 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bronson R / Aluminum / 27.5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 142 cm – 195 cm (4.66 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz Bronson R / Aluminum / 27.5 comes with a dropper post. Therefore, climbing or descending will be a breeze.
