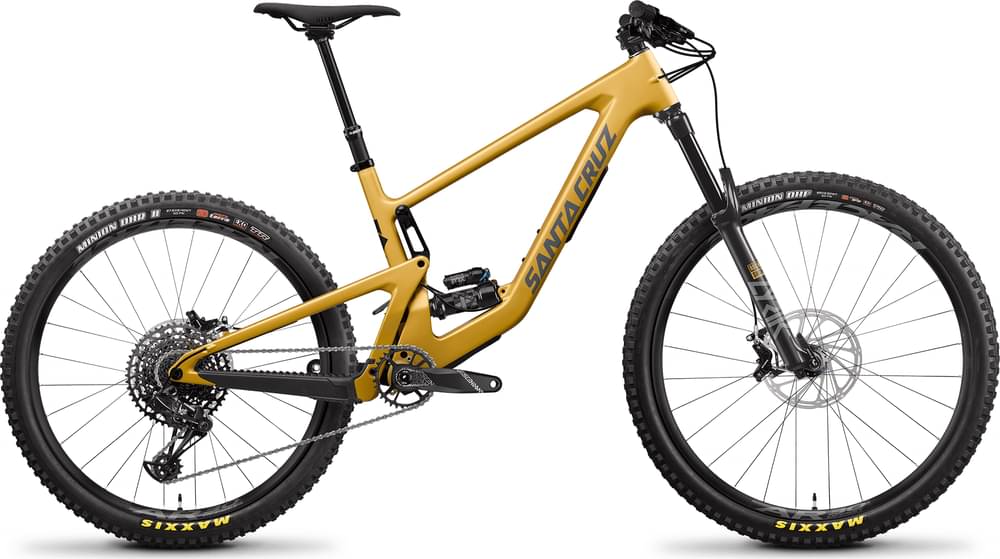

Santa Cruz Bronson R / Carbon C / MX 2022
2022 Mountain
Estimate price |
5,049$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 196cm
XL Low
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bronson R / Carbon C / MX
Suspension Fork
RockShox Lyrik Select, 160mm
Rear Shock
FOX Float X Performance
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM Descendant Eagle 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
RaceFace AR Offset 30 Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, Maxx- Grip, EXO, TR (27.5” tire on size XS), Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO, TR
Brakes
Brakes
SRAM G2 R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Burgtec Alloy Bar
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle or WTB Volt
Seatpost
SDG Tellis Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.43 mm | 1.45 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm |
| Front Center | 722 mm | 722 mm | 757 mm | 757 mm | 786 mm | 786 mm | 811 mm | 810 mm | 842 mm | 842 mm |
| Rake | 37 mm | 38 mm | 45 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 127 mm | 127 mm | 127 mm | 128 mm | 127 mm | 128 mm | 126 mm | 128 mm | 127 mm | 128 mm |
| Stack | 598 mm | 599 mm | 621 mm | 623 mm | 630 mm | 632 mm | 639 mm | 641 mm | 653 mm | 655 mm |
| Reach | 409 mm | 406 mm | 434 mm | 431 mm | 459 mm | 456 mm | 479 mm | 476 mm | 504 mm | 501 mm |
| Top Tube Length | 540 mm | 546 mm | 574 mm | 579 mm | 603 mm | 608 mm | 627 mm | 631 mm | 657 mm | 661 mm |
| Seat Tube Angle | 77.6 ° | 76.9 ° | 77.2 ° | 76.7 ° | 77.1 ° | 76.6 ° | 76.9 ° | 76.5 ° | 76.7 ° | 76.4 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 436 mm | 435 mm | 436 mm | 439 mm | 440 mm | 442 mm | 443 mm | 446 mm | 447 mm |
| Wheelbase | 1153 mm | 1158 mm | 1192 mm | 1193 mm | 1225 mm | 1226 mm | 1253 mm | 1253 mm | 1288 mm | 1289 mm |
| Bottom Bracket Drop | 10 mm | 13 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm |
| Standover Height | 705 mm | 702 mm | 713 mm | 710 mm | 735 mm | 731 mm | 733 mm | 730 mm | 732 mm | 729 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 196 cm | 196 cm |
About this model
Bronson R / Carbon C / MX belongs to the Santacruz Bronson model. 77 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz Bronson R / Carbon C / MX 2022 is the cheapest bike model and costs 5049$. Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022 is the most expensive one and costs 11399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5049$. In conclusion, this bike price is 40.29% higher than the price of the average Enduro bike.
Overview of components
Fork
Santa Cruz Bronson R / Carbon C / MX 2022 bike is equipped with the RockShox Lyrik Select fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Bronson R / Carbon C / MX has a rear shock with a travel of 150mm. The model FOX Float X Performance is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Bronson R / Carbon C / MX 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Bronson R / Carbon C / MX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Santa Cruz Bronson R / Carbon C / MX bike has 10 sizes, in the range of 142 cm – 196 cm (4.66 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz Bronson R / Carbon C / MX comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
