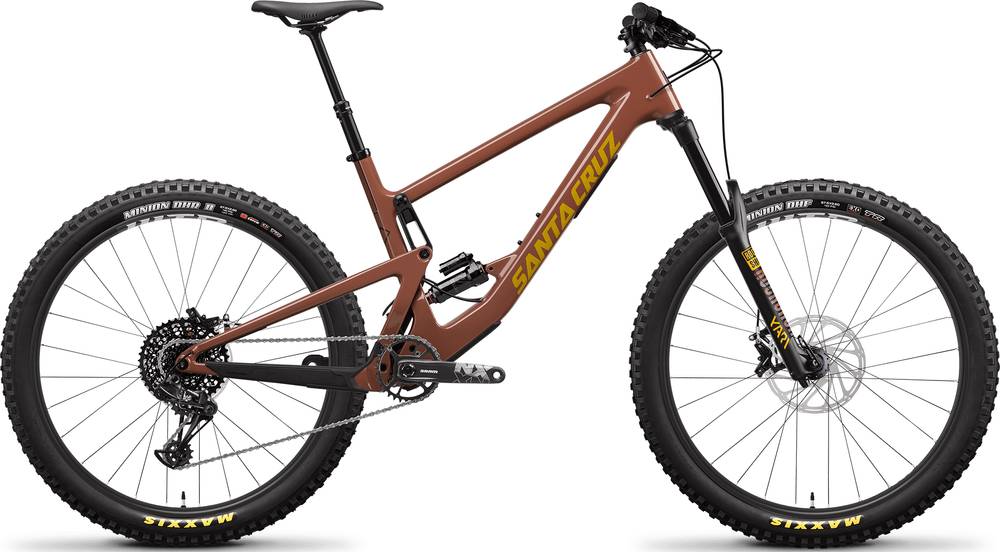

Santa Cruz Bronson R Plus / Carbon C / 27.5 2020
2020 Mountain
Estimate price |
4,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bronson R Plus / Carbon C / 27.5
Suspension Fork
RockShox Yari RC 160mm 27.5"
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 165 (XS), 170mm (S-M), 175mm (L-XL)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i29 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Minion DHF 3C EXO TR 27.5"x2.5", Rear: Maxxis Minion DHR2 EXO TR 27.5"x2.4"
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride 50mm
Handlebar
Race Face Aeffect R 35x780
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.52 mm | 1.41 mm | 1.43 mm | 1.38 mm | 1.41 mm | 1.33 mm | 1.35 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 703 mm | 703 mm | 737 mm | 737 mm | 761 mm | 761 mm | 785 mm | 785 mm | 821 mm | 821 mm |
| Rake | 48 mm | 49 mm | 47 mm | 48 mm | 49 mm | 53 mm | 46 mm | 47 mm | 47 mm | 48 mm |
| Trail | 110 mm | 111 mm | 111 mm | 112 mm | 109 mm | 107 mm | 112 mm | 113 mm | 111 mm | 112 mm |
| Stack | 588 mm | 590 mm | 597 mm | 599 mm | 606 mm | 609 mm | 615 mm | 618 mm | 629 mm | 631 mm |
| Reach | 393 mm | 389 mm | 423 mm | 419 mm | 440 mm | 433 mm | 463 mm | 459 mm | 493 mm | 489 mm |
| Top Tube Length | 545 mm | 545 mm | 578 mm | 578 mm | 602 mm | 602 mm | 625 mm | 625 mm | 660 mm | 660 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1138 mm | 1138 mm | 1171 mm | 1171 mm | 1195 mm | 1195 mm | 1219 mm | 1219 mm | 1256 mm | 1256 mm |
| Bottom Bracket Drop | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm |
| Standover Height | 698 mm | 696 mm | 708 mm | 704 mm | 725 mm | 721 mm | 725 mm | 719 mm | 724 mm | 719 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
Bronson R Plus / Carbon C / 27.5 completes the Santacruz Bronson model. 77 bikes variations carry this model name so far. You can easily view all of the Santacruz Bronson bikes models from 2020, here.
Model range prices
Santa Cruz Bronson R Plus / Aluminum / 27.5 2020 is the most economical model, with a starting price of 3499$. Santa Cruz Bronson XX1 AXS Reserve / Carbon CC / 27.5 2020 on the other hand costs 10499$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Santa Cruz released this model in 2020, its price was 4399$. In conclusion, this bike price is 22.23% more expensive than the price of the average Enduro bike.
Bronson R Plus / Carbon C / 27.5 components
Fork
Santa Cruz Bronson R Plus / Carbon C / 27.5 2020 bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Bronson R Plus / Carbon C / 27.5 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 142 cm – 195 cm (4.66 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Santa Cruz Bronson R Plus / Carbon C / 27.5 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
