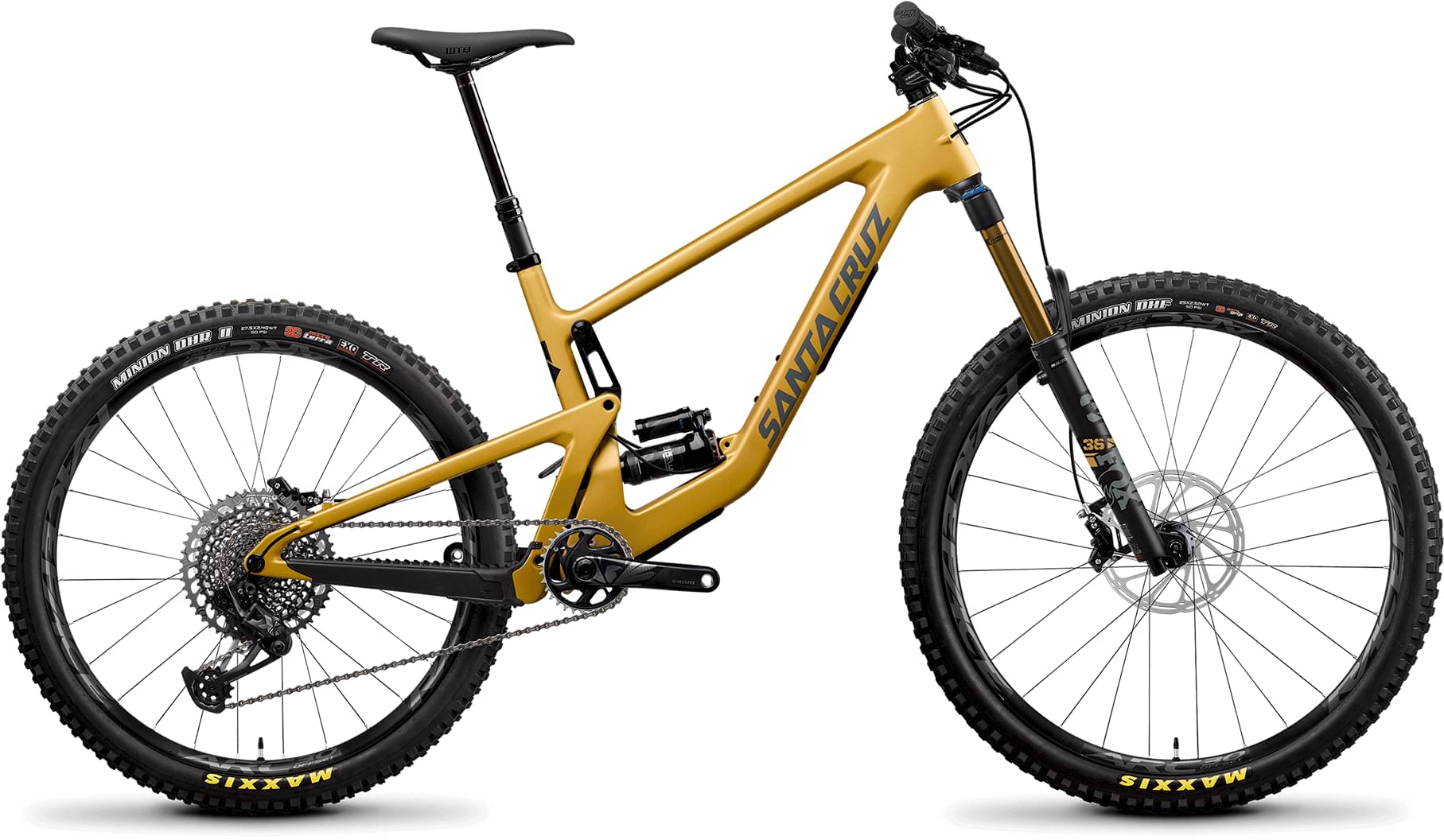

Santa Cruz BRONSON X01 / Carbon CC / MX 2023
2023 Mountain
Estimate price |
8,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BRONSON X01 / Carbon CC / MX
Suspension Fork
FOX 36 Float Factory, 160mm
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
RaceFace ARC Offset 30 Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, Maxx- Grip, EXO, TR (27.5” tire on size XS), Rear: Maxxis Minion DHF 29"x2.5, 3C, Maxx- Grip, EXO, TR (27.5” tire on size XS)
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Stainless Fusion Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.43 mm | 1.45 mm | 1.37 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm | 344 mm | 341 mm |
| Front Center | 722 mm | 722 mm | 757 mm | 757 mm | 786 mm | 786 mm | 811 mm | 810 mm | 842 mm | 842 mm |
| Rake | 37 mm | 38 mm | 45 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 136 mm | 137 mm | 127 mm | 128 mm | 127 mm | 128 mm | 126 mm | 128 mm | 127 mm | 128 mm |
| Stack | 598 mm | 599 mm | 621 mm | 623 mm | 630 mm | 632 mm | 639 mm | 641 mm | 653 mm | 655 mm |
| Reach | 409 mm | 406 mm | 434 mm | 431 mm | 459 mm | 456 mm | 479 mm | 476 mm | 504 mm | 501 mm |
| Top Tube Length | 540 mm | 546 mm | 574 mm | 579 mm | 603 mm | 608 mm | 627 mm | 631 mm | 657 mm | 661 mm |
| Seat Tube Angle | 77.6 ° | 76.9 ° | 77.2 ° | 76.7 ° | 77.1 ° | 76.6 ° | 76.9 ° | 76.5 ° | 76.7 ° | 76.4 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° | 64.7 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 436 mm | 435 mm | 436 mm | 439 mm | 440 mm | 442 mm | 443 mm | 446 mm | 447 mm |
| Wheelbase | 1153 mm | 1158 mm | 1192 mm | 1193 mm | 1225 mm | 1226 mm | 1253 mm | 1253 mm | 1288 mm | 1289 mm |
| Bottom Bracket Drop | 10 mm | 13 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm | 29 mm | 32 mm |
| Standover Height | 705 mm | 702 mm | 713 mm | 710 mm | 735 mm | 731 mm | 733 mm | 730 mm | 732 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
BRONSON X01 / Carbon CC / MX is part of the Santacruz Bronson model. Santa Cruz launched 77 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Santa Cruz BRONSON R / Carbon C 2023 is the most economical model, with a starting price of 5399$. Santa Cruz BRONSON XX1 / AXS / RSV / Carbon CC / MX 2023 on the other hand costs 12199$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 8599$. Comparing the average cost of an Enduro bike to this one, you will see that BRONSON X01 / Carbon CC / MX price is 138.93% more expensive.
Overview of components
Fork
The BRONSON X01 / Carbon CC / MX comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Santa Cruz BRONSON X01 / Carbon CC / MX bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The BRONSON X01 / Carbon CC / MX 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Santa Cruz BRONSON X01 / Carbon CC / MX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
