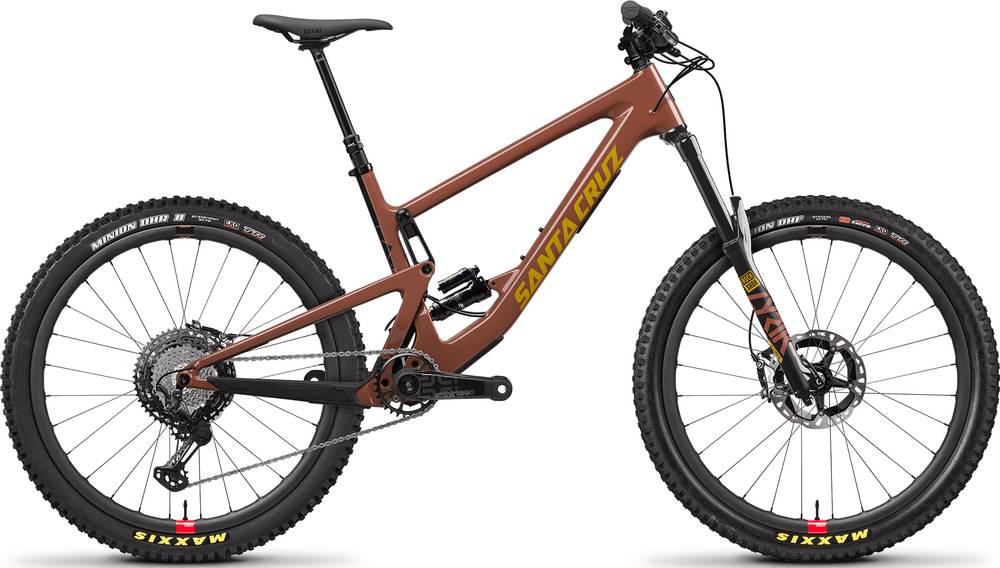

Santa Cruz Bronson XTR Reserve / Carbon CC / 27.5 2020
2020 Mountain
Estimate price |
9,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset XTR, e*thirteen TRS Race -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 195cm
XL Low
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bronson XTR Reserve / Carbon CC / 27.5
Suspension Fork
RockShox Lyrik Ultimate 160mm 27.5
Rear Shock
RockShox Super Deluxe Select Ultimate
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS, 11/12spd
Shift Levers
Shimano XTR M9100 SL, 12spd, I-Spec
Cassette
Shimano XTR, 12spd, 10-51
Crank
E13 TRSr, 32T, Boost, 170mm (XS-M), 175mm (L-XL)
Bottom Bracket
E13 BSA BB
Chain
Shimano XTR, 12spd, w/Quick Link
Wheels
Front Hub
i9 Hydra, 15x110, Torque Cap, Centerlock, 28h
Rear Hub
i9 Hydra, 12x148, MicroSpline, Centerlock, 28h
Rims
Santa Cruz Reserve 30 Carbon Rim - 27.5 28h
Spokes
DT Competition Race (28)
Tires
Front: Maxxis Minion DHF 3C EXO TR 27.5"x2.5", Rear: Maxxis Minion DHR2 EXO TR 27.5"x2.4"
Brakes
Brakes
Shimano XTR M9120
Disk Rotors
Shimano XTR Ice. Tech Rotors, Centerlock, 180mm
Cockpit
Stem
i9 A35
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Chris King DropSet 3 Black
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.52 mm | 1.41 mm | 1.43 mm | 1.38 mm | 1.41 mm | 1.33 mm | 1.35 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 703 mm | 703 mm | 737 mm | 737 mm | 761 mm | 761 mm | 785 mm | 785 mm | 821 mm | 821 mm |
| Rake | 48 mm | 49 mm | 47 mm | 48 mm | 49 mm | 53 mm | 46 mm | 47 mm | 47 mm | 48 mm |
| Trail | 110 mm | 111 mm | 111 mm | 112 mm | 109 mm | 107 mm | 112 mm | 113 mm | 111 mm | 112 mm |
| Stack | 588 mm | 590 mm | 597 mm | 599 mm | 606 mm | 609 mm | 615 mm | 618 mm | 629 mm | 631 mm |
| Reach | 393 mm | 389 mm | 423 mm | 419 mm | 440 mm | 433 mm | 463 mm | 459 mm | 493 mm | 489 mm |
| Top Tube Length | 545 mm | 545 mm | 578 mm | 578 mm | 602 mm | 602 mm | 625 mm | 625 mm | 660 mm | 660 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° | 75.3 ° | 75 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Head Tube Angle | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° | 65.4 ° | 65.1 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1138 mm | 1138 mm | 1171 mm | 1171 mm | 1195 mm | 1195 mm | 1219 mm | 1219 mm | 1256 mm | 1256 mm |
| Bottom Bracket Drop | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm | 10 mm | 14 mm |
| Standover Height | 698 mm | 696 mm | 708 mm | 704 mm | 725 mm | 721 mm | 725 mm | 719 mm | 724 mm | 719 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
Bronson XTR Reserve / Carbon CC / 27.5 is a Santacruz Bronson model. Santa Cruz released 77 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Santa Cruz Bronson R Plus / Aluminum / 27.5 2020 is the cheapest bike model and costs 3499$. Santa Cruz Bronson XX1 AXS Reserve Plus / Carbon CC / 27.5 2020 is the most expensive one and costs 10499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Santa Cruz Bronson XTR Reserve / Carbon CC / 27.5 price was 9899$. Comparing this to the average Enduro bike price, we see that the price is 175.05% more expensive.
Overview of components
Fork
This bike has the RockShox Lyrik Ultimate fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select Ultimate rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Bronson XTR Reserve / Carbon CC / 27.5 bike is equipped with the 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 142 cm – 195 cm (4.66 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz Bronson XTR Reserve / Carbon CC / 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
