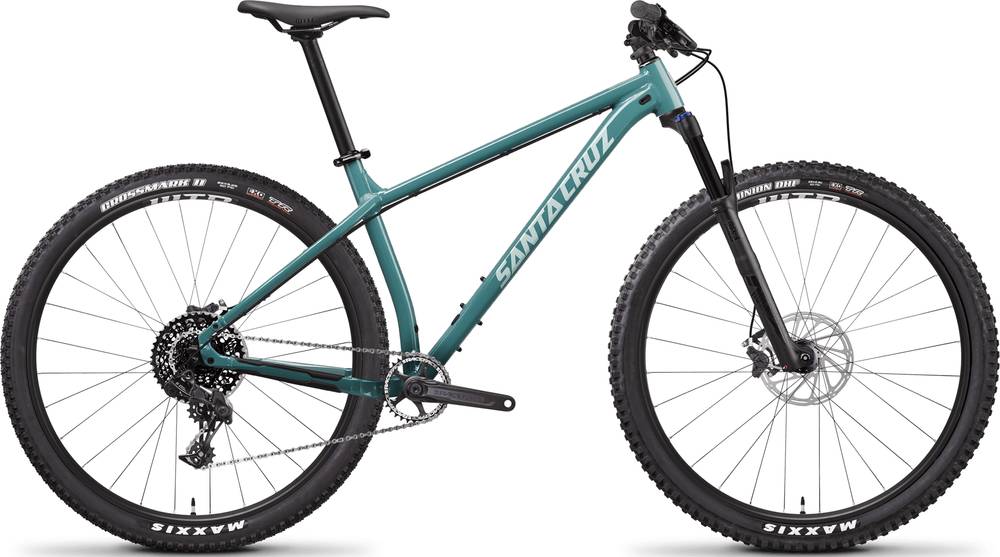

Santa Cruz Chameleon D / Aluminum / 29 2019
2019 Mountain
Estimate price |
1,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chameleon D / Aluminum / 29
Suspension Fork
RockShox Recon RL 130
Drivetrain
Rear Derailleur
SRAM NX Long Cage
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42T
Crank
Race Face Ride, 30t - 170mm (S), 175mm (M-XL)
Chain
SRAM PC1110
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i40 TCS 2.0 27.5 Rims
Spokes
DT Competition (32)
Tires
Maxxis Rekon 27.5x2.8 EXO TR
Brakes
Brakes
SRAM Level
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride Stem
Handlebar
Race Face Ride
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Comp
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.5 mm | 1.41 mm | 1.41 mm | 1.37 mm | 1.37 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 314 mm | 315 mm | 314 mm | 315 mm | 314 mm | 315 mm | 315 mm | 314 mm |
| Front Center | 704 mm | 707 mm | 731 mm | 732 mm | 755 mm | 756 mm | 790 mm | 789 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm | 51 mm | 49 mm | 49 mm | 50 mm |
| Trail | 102 mm | 104 mm | 102 mm | 104 mm | 102 mm | 105 mm | 105 mm | 103 mm |
| Stack | 621 mm | 625 mm | 625 mm | 625 mm | 635 mm | 635 mm | 644 mm | 644 mm |
| Reach | 418 mm | 418 mm | 443 mm | 443 mm | 463 mm | 463 mm | 493 mm | 493 mm |
| Top Tube Length | 603 mm | 605 mm | 630 mm | 630 mm | 653 mm | 654 mm | 687 mm | 691 mm |
| Seat Tube Angle | 72.7 ° | 72.6 ° | 72.7 ° | 72.6 ° | 72.7 ° | 72.6 ° | 72.6 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 490 mm | 490 mm |
| Head Tube Angle | 67.2 ° | 67.1 ° | 67.2 ° | 67.1 ° | 67.2 ° | 67.1 ° | 67.1 ° | 67.2 ° |
| Head Tube Length | 95 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1124 mm | 1126 mm | 1151 mm | 1151 mm | 1175 mm | 1174 mm | 1208 mm | 1208 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 700 | 693 mm | 716 mm | 709 mm | 738 mm | 726 mm | 745 mm | 753 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Chameleon D / Aluminum / 29 is part of the Santacruz Chameleon model. 57 bikes variations carry this model name so far. You can easily view all of the Santacruz Chameleon bikes models from 2019, here.
Model range prices
Santa Cruz Chameleon D Plus / Aluminum / 27.5 2019 is the most affordable bike of this model and has a price of 1799$. On the other hand, Santa Cruz Chameleon SE Plus / Carbon C / 27.5+ 2019, is the most expensive and costs 5699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz Chameleon D / Aluminum / 29 price was 1799$. In conclusion, this bike price is 53.53% smaller than the price of the average Trail bike.
Chameleon D / Aluminum / 29 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Chameleon D / Aluminum / 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Chameleon D / Aluminum / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
