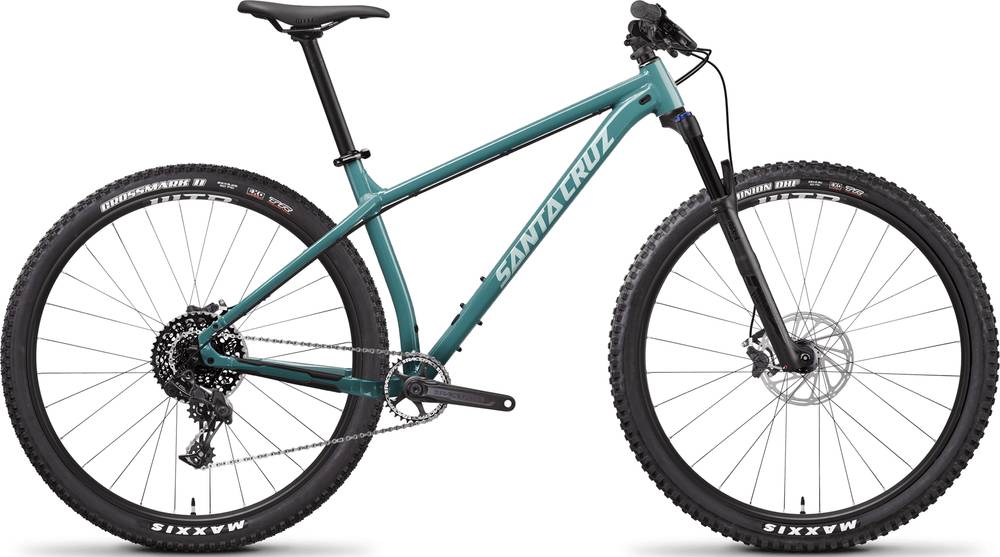

Santa Cruz Chameleon D / Aluminum / 29 2020
2020 Mountain
Estimate price |
1,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 179cm
LG
176cm - 187cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chameleon D / Aluminum / 29
Suspension Fork
RockShox Recon RL 130
Drivetrain
Rear Derailleur
SRAM NX Long Cage
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42T
Crank
Race Face Ride, 30t - 170mm (S), 175mm (M-XL)
Chain
SRAM PC1110
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i40 TCS 2.0 27.5 Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Rekon 27.5x2.8 EXO TR, Rear: Maxxis Rekon 27.5x2.8 EXO TR
Brakes
Brakes
SRAM Level
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride Stem
Handlebar
Race Face Ride
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Comp
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 703 mm | 730 mm | 754 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm |
| Stack | 620 mm | 625 mm | 634 mm | 643 mm |
| Reach | 419 mm | 444 mm | 464 mm | 494 mm |
| Top Tube Length | 603 mm | 629 mm | 653 mm | 691 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1119 mm | 1146 mm | 1170 mm | 1204 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 702 mm | 718 mm | 740 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 176 cm | 184 cm |
| Rider Max Height | 167 cm | 179 cm | 187 cm | 198 cm |
About this model
Chameleon D / Aluminum / 29 belongs to the Santacruz Chameleon model. Santa Cruz launched 57 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Santa Cruz Chameleon D Plus / Aluminum / 27.5 2020 is the most affordable bike of this model and has a price of 1799$. On the other hand, Santa Cruz Chameleon SE / Carbon C / 29 2020, is the most expensive and costs 4799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz Chameleon D / Aluminum / 29 price was 1799$. Comparing this to the average Trail bike price, we see that the price is 53.53% lower.
Chameleon D / Aluminum / 29 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Chameleon D / Aluminum / 29 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Chameleon D / Aluminum / 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 198 cm (4.99 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
