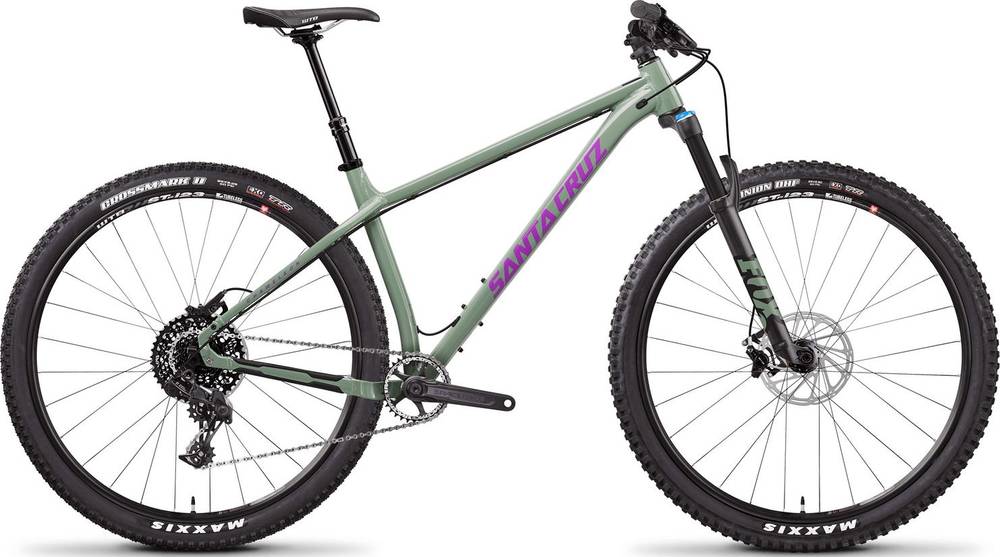

Santa Cruz Chameleon R 29 2018
2018 Mountain
Estimate price |
2,349$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Rhythm 34
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM XG1150, 10-42 tooth, 11-speed
Crank
Race Face Aeffect
Bottom Bracket
Standard, threaded
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, XD driver
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, XD driver
Rims
WTB ST i23 TCS, 28 hole
Spokes
DT Swiss Champion (28)
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Crossmark II, 2.25", DC, EXO, TR
Brakes
Brakes
SRAM Level T with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm width
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 10, IS
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Aeffect
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Stack | 624 mm | 624 mm | 624 mm | 634 mm |
| Reach | 419 mm | 444 mm | 464 mm | 494 mm |
| Top Tube Length | 608 mm | 633 mm | 728 mm | 747 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1122 mm | 1147 mm | 1167 mm | 1201 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 696 mm | 703 mm | 728 mm | 747 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chameleon R 29 is a Santacruz Chameleon model. 57 bikes variations carry this model name so far. Take a sneak peek at all Santacruz Chameleon bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Santa Cruz Chameleon D 27.5 + 2018 has a starting price of 1699$. Santa Cruz Chameleon R 29 2018 on the other hand is the most expensive at 2349$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz Chameleon R 29 price was 2349$. Comparing the average cost of a Trail bike to this one, you will see that Chameleon R 29 price is 17.58% smaller.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Chameleon R 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Chameleon R 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Chameleon R 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
