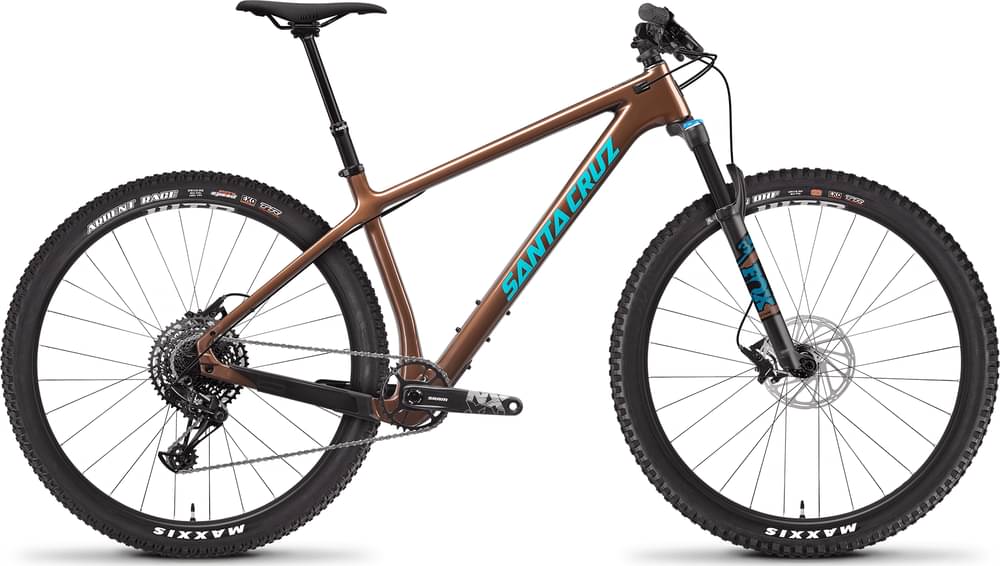

Santa Cruz Chameleon R / Carbon C / 29 2021
2021 Mountain
Estimate price |
2,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 179cm
LG
176cm - 187cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chameleon R / Carbon C / 29
Suspension Fork
FOX Rhythm 34, 120mm, 29"
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM NX Eagle 148 DUB, 30t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i25 TCS 2.0 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF, 29"x2.3", 3C EXO TR, Rear: Maxxis Ardent Race 29"x2.35", EXO, TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Ride Stem
Handlebar
Race Face Ride
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 703 mm | 730 mm | 754 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm |
| Stack | 620 mm | 625 mm | 634 mm | 643 mm |
| Reach | 419 mm | 444 mm | 464 mm | 494 mm |
| Top Tube Length | 603 mm | 629 mm | 653 mm | 691 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1119 mm | 1146 mm | 1170 mm | 1204 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 702 mm | 718 mm | 740 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 176 cm | 184 cm |
| Rider Max Height | 167 cm | 179 cm | 187 cm | 198 cm |
Model Overview
Chameleon R / Carbon C / 29 is a Santacruz Chameleon model. 57 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Santa Cruz Chameleon D Plus / Aluminum / 27+ 2021 is the most economical model, with a starting price of 2149$. Santa Cruz Chameleon R Plus / Carbon C / 27+ 2021 on the other hand costs 2999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 2999$. Doing a quick comparison, we notice that Chameleon R / Carbon C / 29 price is 8.58% more expensive than the average cost of a Trail bike.
Chameleon R / Carbon C / 29 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Chameleon R / Carbon C / 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Chameleon R / Carbon C / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Santa Cruz Chameleon R / Carbon C / 29 bike has 4 sizes, in the range of 152 cm – 198 cm (4.99 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Chameleon R / Carbon C / 29. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
