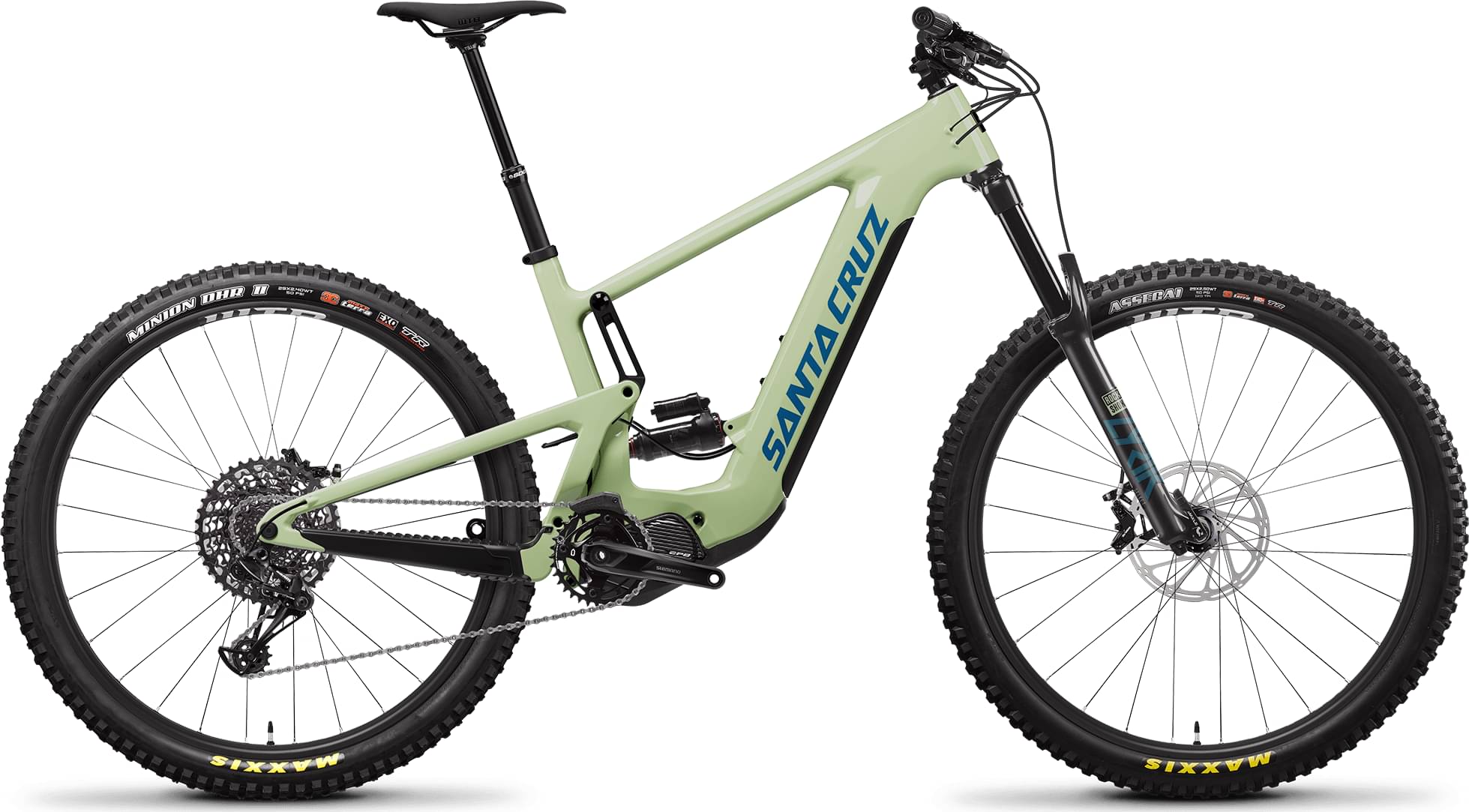

Santa Cruz HECKLER R / Carbon C / 29 2023
2023 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset NX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh Integrated, removable -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER R / Carbon C / 29
Suspension Fork
RockShox Lyrik Select, 160mm
Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle Single Click, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
Shimano EM600 Crank Arms 165mm
Chain
SRAM NX Eagle, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i30 TCS 2.0 29"
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, EXO+, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+, TR
Brakes
Brakes
SRAM G2 RE
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
e13 TRS Base
Handlebar
E13 TRS Base
Grips
Santa Cruz House Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle or WTB Volt
Seatpost
SDG Tellis
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
720Wh Integrated, removable
Remote
Shimano Display Unit SC-E7000
Charger
Smart-Plus 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.32 mm | 1.34 mm | 1.31 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm |
| Front Center | 781 mm | 781 mm | 807 mm | 807 mm | 836 mm | 836 mm | 869 mm | 869 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 129 mm | 128 mm | 130 mm | 128 mm | 130 mm | 128 mm | 130 mm |
| Stack | 621 mm | 623 mm | 634 mm | 637 mm | 653 mm | 655 mm | 671 mm | 673 mm |
| Reach | 460 mm | 457 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 604 mm | 605 mm | 629 mm | 630 mm | 650 | 651 mm | 679 mm | 680 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.7 ° | 76.4 ° | 77 ° | 76.7 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 155 mm | 155 mm |
| Chainstay Length | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm |
| Wheelbase | 1246 mm | 1247 mm | 1272 mm | 1273 mm | 1301 mm | 1302 mm | 1334 mm | 1335 mm |
| Bottom Bracket Drop | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm |
| Standover Height | 750 mm | 746 mm | 748 mm | 745 mm | 746 mm | 742 mm | 746 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
HECKLER R / Carbon C / 29 is part of the Santacruz E Heckler model. Santa Cruz released 48 e-bikes variations of this model so far. You can easily view all of the Santacruz E Heckler e-bikes models from 2023, here.
Model range prices
The most economical model, the Santa Cruz HECKLER R / Carbon C / 29 2023 has a starting price of 8493$. Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2023 on the other hand is the most expensive at 13899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Santa Cruz HECKLER R / Carbon C / 29 price was 8493$. Doing a quick comparison, we notice that HECKLER R / Carbon C / 29 price is 77.49% more expensive than the average cost of an Enduro e-bike.
HECKLER R / Carbon C / 29 components
Fork
This e-bike has the RockShox Lyrik Select fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the HECKLER R / Carbon C / 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The HECKLER R / Carbon C / 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Santa Cruz HECKLER R / Carbon C / 29 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
