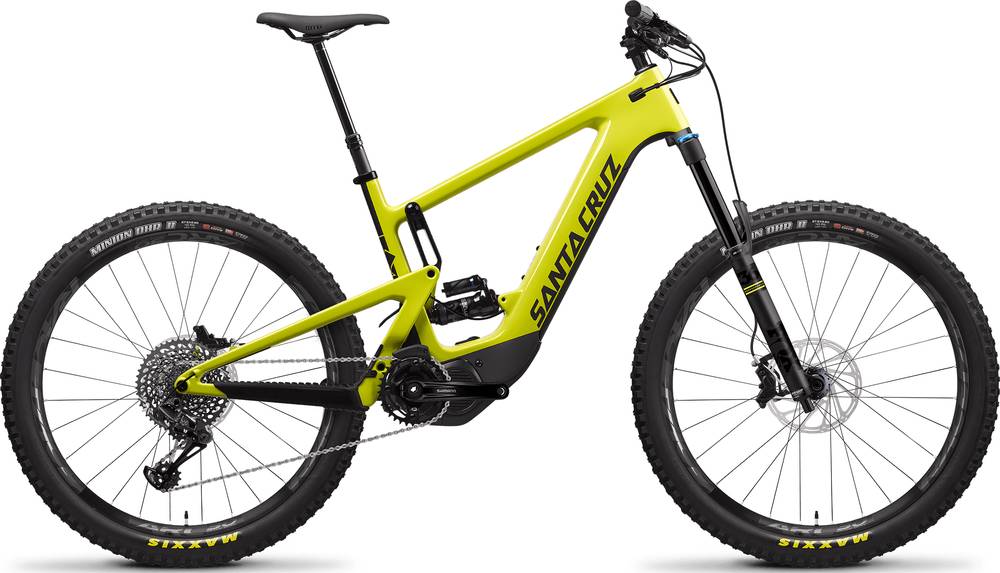

Santa Cruz Heckler S / Carbon CC / 27.5 2020
2020 E-bike
Estimate price |
8,399$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler S / Carbon CC / 27.5
Suspension Fork
FOX 36-E Float Performance, 160mm, 27.5"
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle Single Click, 12spd
Cassette
SRAM XG1275 Eagle 10-50T
Crank
Shimano E8000 Crank Arms 165mm
Chain
SRAM GX Eagle 12 SPD
Chain Guide
E13 LG1+ 34t Shimano STEPS Specific
Wheels
Front Hub
DT 370 15x110 32H
Rear Hub
DT Swiss 370, 12x148, XD, 32h
Rims
Race Face ARC HD 30 27.5" Rims
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR, Rear: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Race Face Aeffect R
Handlebar
Santa Cruz Di2 Carbon, 25mm rise
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth, 1X Lever, MatchMaker, 31.6
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit E7000
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 742 mm | 766 mm | 792 mm | 823 mm | 859 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 604 mm | 613 mm | 627 mm | 641 mm | 662 mm |
| Reach | 432 mm | 452 mm | 472 mm | 497 mm | 522 mm |
| Top Tube Length | 579 mm | 602 mm | 626 mm | 657 mm | 689 mm |
| Seat Tube Angle | 76.2 ° | 76.1 ° | 76 ° | 75.9 ° | 75.4 ° |
| Seat Tube Length | 390 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1194 mm | 1218 mm | 1244 mm | 1275 mm | 1311 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 727 mm | 752 mm | 750 mm | 748 mm | 748 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
Heckler S / Carbon CC / 27.5 completes the Santacruz E Heckler model. Santa Cruz launched 48 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Heckler R / Carbon CC / 27.5 2020 has a starting price of 7399$. Santa Cruz Heckler XX1 AXS RSV / Carbon CC / 27.5 2020 on the other hand is the most expensive at 13099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz Heckler S / Carbon CC / 27.5 price was 8399$. In conclusion, this e-bike price is 75.53% more expensive than the price of the average Enduro e-bike.
Overview of components
Fork
Santa Cruz Heckler S / Carbon CC / 27.5 2020 e-bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select+ model, with a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Heckler S / Carbon CC / 27.5 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Heckler S / Carbon CC / 27.5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Heckler S / Carbon CC / 27.5. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
