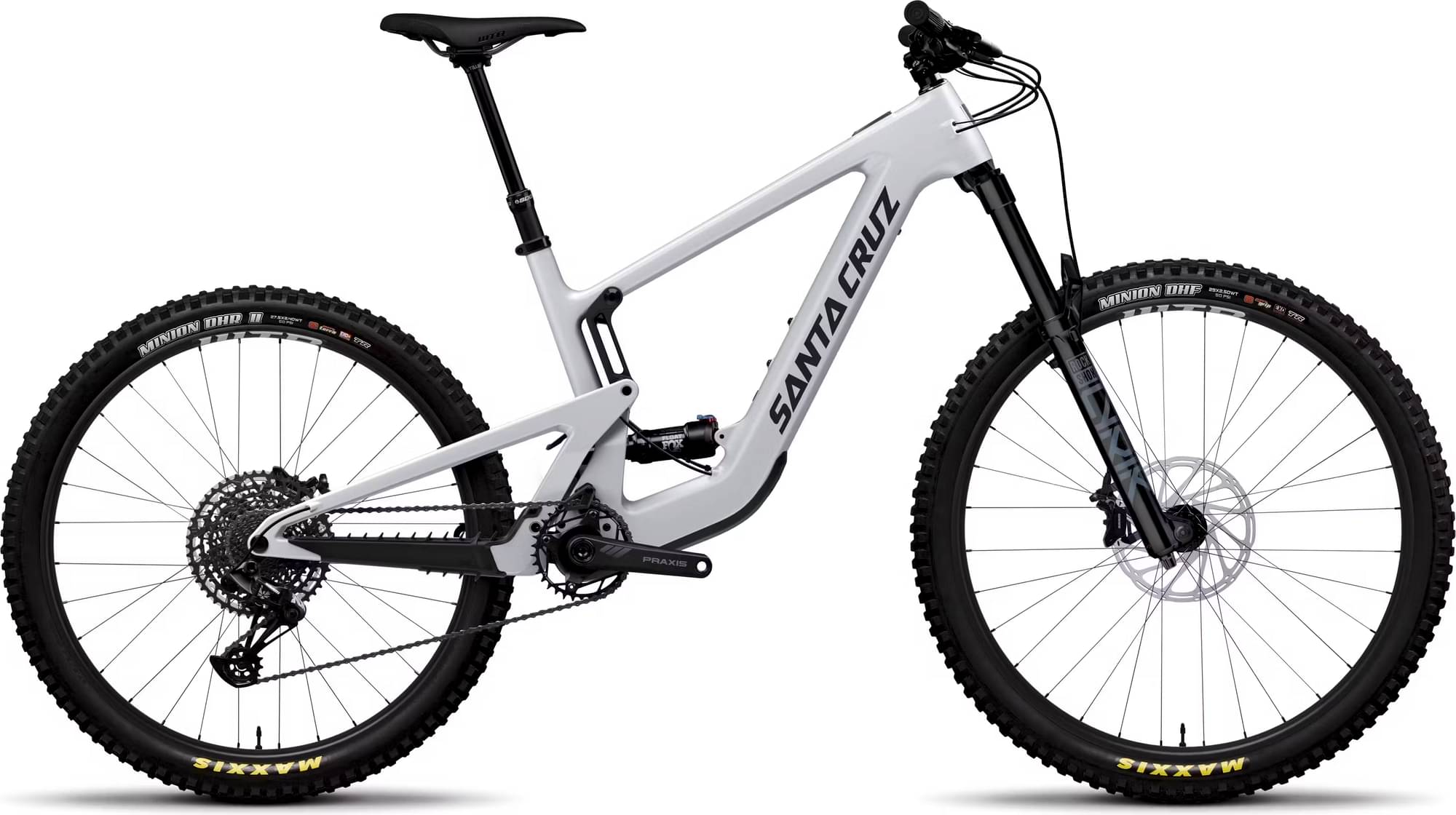

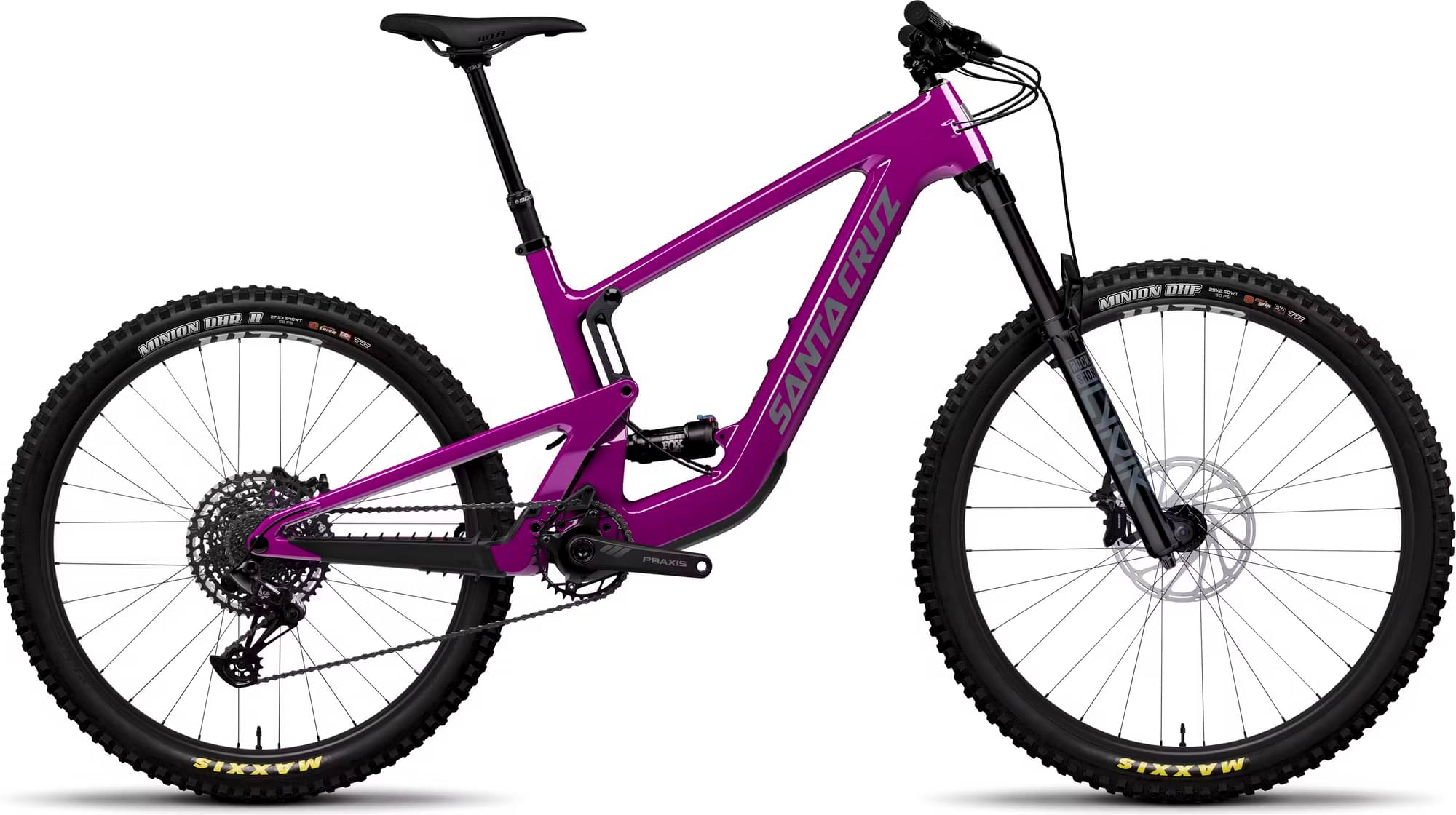

Santa Cruz HECKLER SL R / Carbon C 2024
2024 E-bike
Estimate price |
7,299$
Weight | 19.55 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset NX Eagle, Praxis -
Suspension Full -
Motor Fazua mid-drive -
Battery FAZUA 430 Wh Integrated Battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER SL R / Carbon C
Suspension Fork
RockShox Lyrik Base, 160mm
Rear Shock
FOX Float Performance, 210x55 or Fox Float DPS Performance, 210x55
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
Praxis eTor AL, 104BCD, 165mm
Chain
SRAM NX Eagle, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
Rear Hub
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims
Front: WTB ST i30 TCS 2.0 29", Rear: WTB ST i30 TCS 2.0 27.5"
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Brakes
Brakes
SRAM DB8
Cockpit
Stem
e.13 Base
Handlebar
e13 TRS Base
Grips
Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Headset
FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
SDG Tellis Dropper, 31.6
Motor & Battery
Motor
FAZUA RIDE60
Battery
FAZUA 430 Wh Integrated Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm |
| Front Center | 766.1 mm | 765.9 mm | 795.4 mm | 795.3 mm | 819.7 mm | 819.6 mm | 848.4 mm | 848.3 mm | 879.9 mm | 879.8 mm |
| Rake | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm |
| Stack | 611.9 mm | 613.8 mm | 621 mm | 622.8 mm | 630 mm | 631.9 mm | 648 mm | 650 | 661.5 mm | 663.5 mm |
| Reach | 432 mm | 429.4 mm | 457 mm | 454.4 mm | 477 mm | 474.5 mm | 497 mm | 494.4 mm | 522 mm | 519.5 mm |
| Top Tube Length | 566.2 mm | 576.6 mm | 599.7 mm | 599.9 mm | 617.6 mm | 618.5 mm | 638.8 mm | 639.7 mm | 666.1 mm | 667 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 77.1 ° | 76.9 ° | 77.5 ° | 77.2 ° | 77.7 ° | 77.5 ° | 77.8 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 155 mm | 155 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1206 mm | 1206 mm | 1235 mm | 1236 mm | 1259 mm | 1260 mm | 1291 mm | 1292 mm | 1326 mm | 1327 mm |
| Bottom Bracket Drop | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm |
| Standover Height | 717 mm | 713 mm | 730 mm | 725 mm | 730 mm | 726 mm | 728 mm | 728 mm | 738 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
HECKLER SL R / Carbon C is a Santacruz E Heckler Sl model. 5 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Santa Cruz HECKLER SL R / Carbon C 2024 is the cheapest e-bike model and costs 7299$. Santa Cruz HECKLER SL XX AXS RSV / Carbon CC 2024 is the most expensive one and costs 12999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz HECKLER SL R / Carbon C price was 7299$. If we compare this with the average Enduro e-bike cost we notice that the price is 52.54% more expensive.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.3 kg (51.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Santa Cruz HECKLER SL R / Carbon C it’s weighing 19.55 kg (43.1 lbs). At this weight, is much lighter than average. In other words, this model is 19.18% lighter than the average Enduro e-bike.
Overview of components
Fork
The HECKLER SL R / Carbon C comes factory-installed with the RockShox Lyrik fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float Performance rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on HECKLER SL R / Carbon C are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The HECKLER SL R / Carbon C has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz HECKLER SL R / Carbon C e-bike has 10 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
