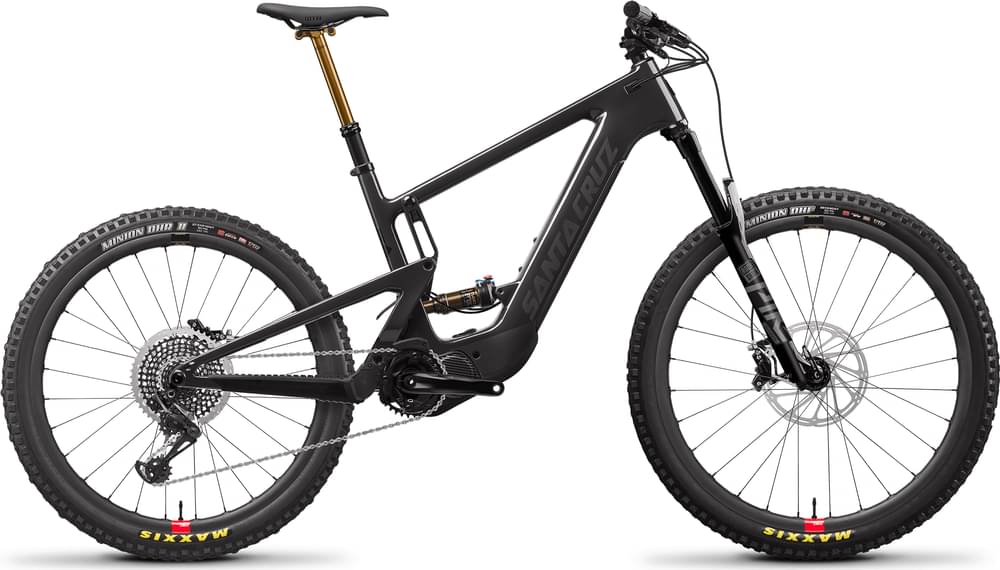

Santa Cruz Heckler X01 RSV / Carbon CC / MX 2022
2022 E-bike
Estimate price |
12,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 186cm
XL
184cm - 194cm
XXL
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler X01 RSV / Carbon CC / MX
Suspension Fork
RockShox Pike Ultimate, 140mm, 29"
Rear Shock
FOX Float Factory DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle Single Click, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
Shimano EM900 HollowTech Crank Arms, 165mm
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT Swiss 350, 12x148, XD, 28h
Rims
Santa Cruz Reserve 30 V2 29" Carbon Rims / Santa Cruz Reserve 30 V2 27.5" Carbon Rims
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO+
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Fox Transfer Factory
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit SC-EM800
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 763 mm | 790 mm | 821 mm | 865 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 129 mm | 129 mm | 130 mm | 130 mm |
| Stack | 618 mm | 632 mm | 646 mm | 669 mm |
| Reach | 441 mm | 461 mm | 486 mm | 510 mm |
| Top Tube Length | 603 mm | 628 mm | 657 mm | 690 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1240 mm | 1271 mm | 1306 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Standover Height | 749 mm | 747 mm | 762 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 176 cm | 186 cm | 194 cm | 201 cm |
About this model
Heckler X01 RSV / Carbon CC / MX completes the Santacruz E Heckler model. 48 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Santa Cruz Heckler R / Carbon CC / MX 2022 is the most affordable e-bike of this model and has a price of 7699$. On the other hand, Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022, is the most expensive and costs 12099$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2022, its price was 12099$. If we compare this with the average Trail e-bike cost we notice that the price is 259.55% more expensive.
Heckler X01 RSV / Carbon CC / MX components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX Float Factory DPS, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Heckler X01 RSV / Carbon CC / MX e-bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Heckler X01 RSV / Carbon CC / MX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz Heckler X01 RSV / Carbon CC / MX e-bike has 4 sizes, in the range of 165 cm – 201 cm (5.41 ft – 6.59 ft). In short, you can easily find one that suits you.
Dropper post
Santa Cruz Heckler X01 RSV / Carbon CC / MX includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
