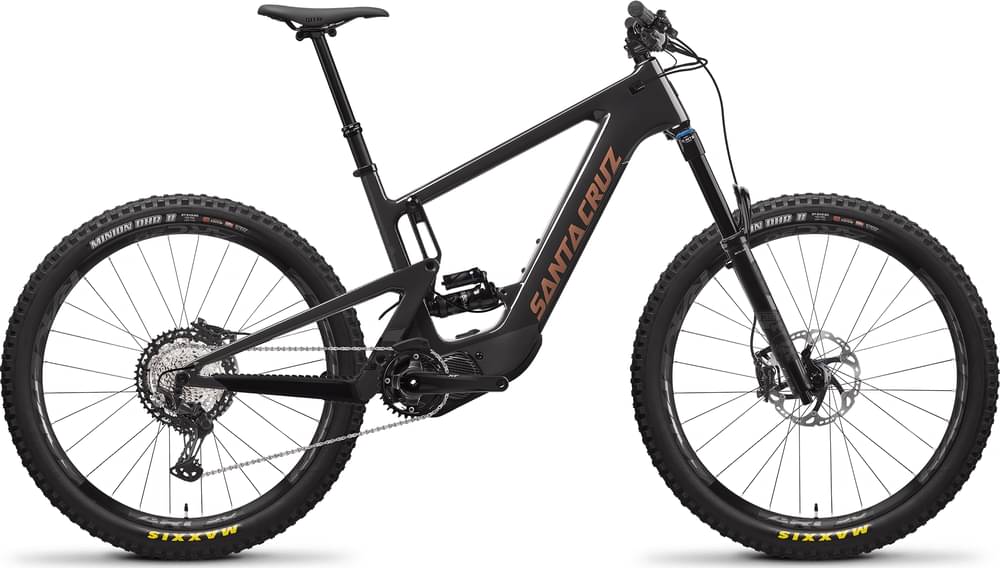

Santa Cruz Heckler XT / Carbon CC / 27.5 2022
2022 E-bike
Estimate price |
9,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 194cm
XXL
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler XT / Carbon CC / 27.5
Suspension Fork
FOX 36 Float Performance Elite, 160mm, 27.5"
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
Shimano XT M8100, 12spd
Shift Levers
Shimano XT M8100, 12spd
Cassette
Shimano XT M8100, 12spd, 10-51t
Crank
Shimano XT M8150 Crank Arms, 165mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT 350, 12x148, MicroSpline, 32h
Rims
RaceFace ARC HD 30 27.5"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR, Rear: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR
Brakes
Brakes
Shimano XT 8120
Disk Rotors
Shimano XT, Ice Tech, Centerlock, 203mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Fox Transfer Performance Elite
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit SC-EM800
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 742 mm | 766 mm | 792 mm | 823 mm | 859 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 604 mm | 613 mm | 627 mm | 641 mm | 662 mm |
| Reach | 432 mm | 452 mm | 472 mm | 497 mm | 522 mm |
| Top Tube Length | 579 mm | 602 mm | 626 mm | 657 mm | 689 mm |
| Seat Tube Angle | 76.2 ° | 76.1 ° | 76 ° | 75.9 ° | 75.4 ° |
| Seat Tube Length | 390 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1194 mm | 1218 mm | 1244 mm | 1275 mm | 1311 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 727 mm | 752 mm | 750 mm | 748 mm | 748 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 194 cm | 201 cm |
About this model
Heckler XT / Carbon CC / 27.5 belongs to the Santacruz E Heckler model. Santa Cruz launched 48 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Santa Cruz Heckler R / Carbon CC / MX 2022 is the cheapest e-bike model and costs 7699$. Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022 is the most expensive one and costs 12099$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2022, its price was 9899$. In conclusion, this e-bike price is 194.18% more expensive than the price of the average Trail e-bike.
Heckler XT / Carbon CC / 27.5 components
Fork
The Fox Performance Elite Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select+ rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Heckler XT / Carbon CC / 27.5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Heckler XT / Carbon CC / 27.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz Heckler XT / Carbon CC / 27.5 e-bike has 5 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
