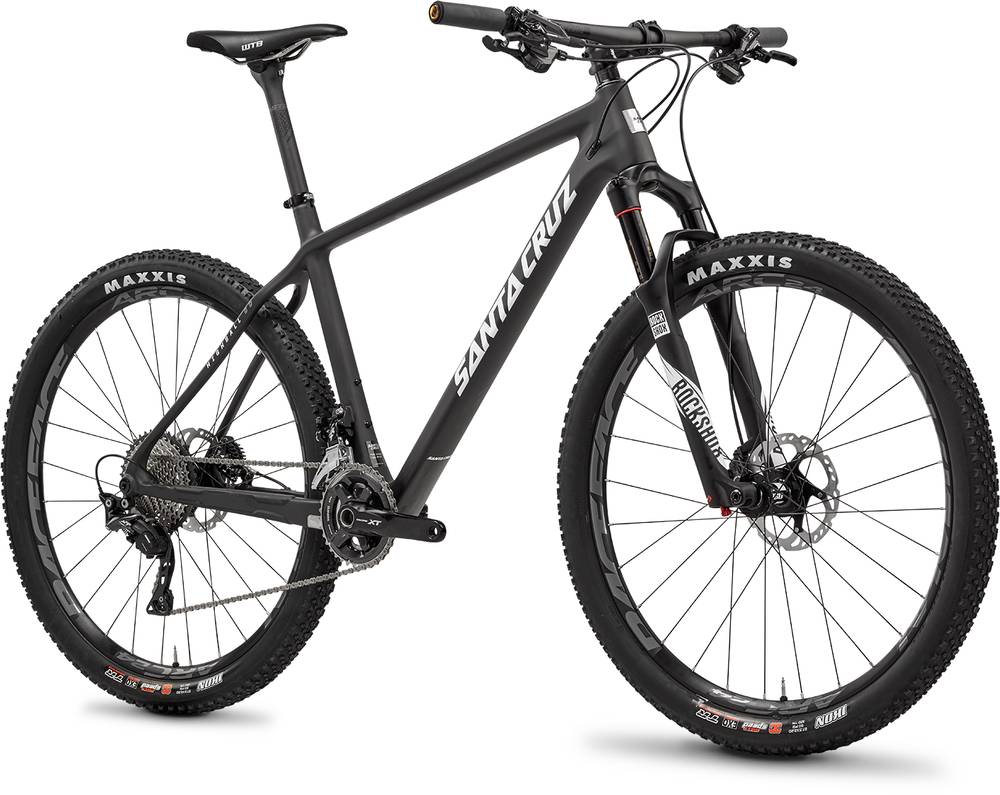

Santa Cruz Highball 27.5 C R2x 2017
2017 Mountain
Estimate price |
7,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle, XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Rock Shox SID RLC 100
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
Shimano XT M8025
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295; 10-50t
Crank
SRAM XX1 Eagle, 32 Tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM XX1 Eagle Powerlock
Wheels
Front Hub
Industry Nine Torch 110x15
Rear Hub
Industry Nine Torch; 142x12mm
Rims
Race Face ARC 24; 28h
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis Ikon 27.5x2.2, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate
Disk Rotors
Avid Centerline; 160mm
Cockpit
Stem
Syntace F109
Handlebar
Santa Cruz Carbon Flat Bar; 31.8mm clamp, 750mm
Grips
ESI Racer's Edge
Headset
Cane Creek 110, Integrated
Seat
Saddle
WTB Silverado SLT
Seatpost
Syntace P6, 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 647 mm | 673 mm | 699 mm | 725 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 582 mm | 591 mm | 601 mm | 610 mm |
| Reach | 399 mm | 421 mm | 444 mm | 466 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm | 657 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1075 mm | 1101 mm | 1127 mm | 1153 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 725 mm | 741 mm | 765 mm | 802 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Highball 27.5 C R2x is part of the Santacruz Highball model. Santa Cruz released 49 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Santa Cruz Highball 29 D 2017 is the most affordable bike of this model and has a price of 1649$. On the other hand, Santa Cruz Highball 29 CC XT 2017, is the most expensive and costs 8000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 7000$. Comparing this to the average Crosscountry bike price, we see that the price is 267.45% higher.
Overview of components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Highball 27.5 C R2x model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Highball 27.5 C R2x has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Santa Cruz Highball 27.5 C R2x bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
