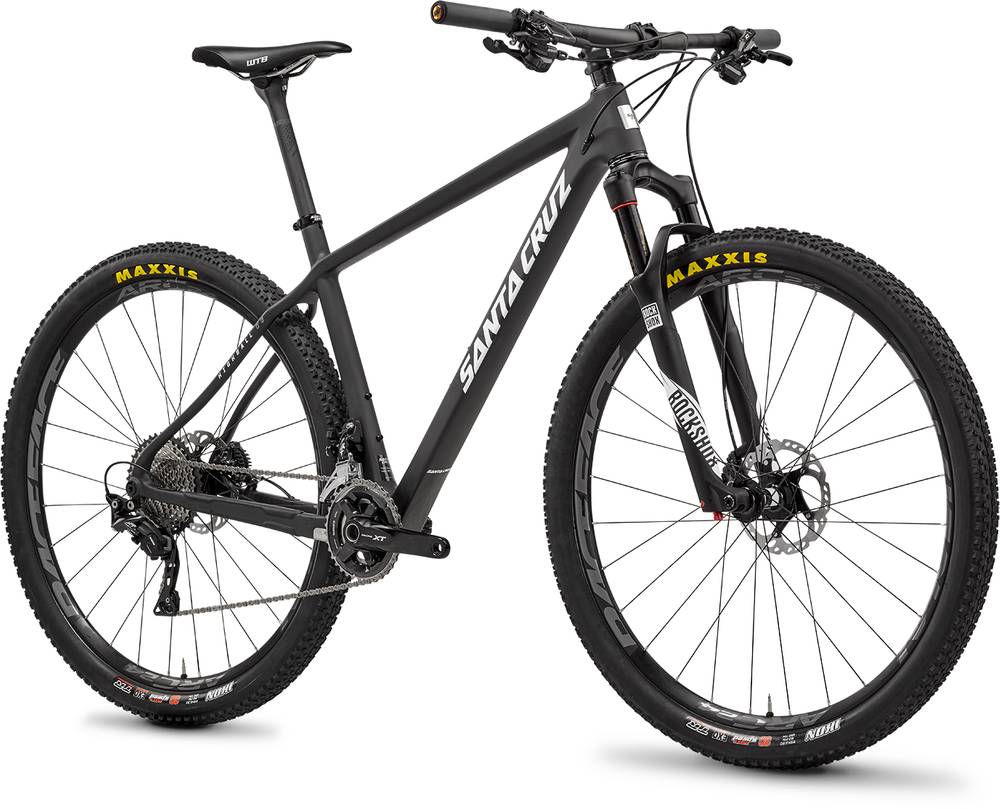

Santa Cruz Highball 29 C R1x 2017
2017 Mountain
Estimate price |
2,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle, XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Rock Shox SID RLC 100
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
Shimano XT M8025
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295; 10-50t
Crank
SRAM XX1 Eagle, 32 Tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM XX1 Eagle Powerlock
Wheels
Front Hub
Industry Nine Torch 110x15
Rear Hub
Industry Nine Torch; 142x12mm
Rims
Race Face ARC 24; 28h
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis Ikon 29x2.2, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate
Disk Rotors
Avid Centerline; 160mm
Cockpit
Stem
Syntace F109
Handlebar
Santa Cruz Carbon Flat Bar; 31.8mm clamp, 750mm
Grips
ESI Racer's Edge
Headset
Cane Creek 110 series tapered, cartridge bearing
Seat
Saddle
WTB Silverado SLT
Seatpost
Syntace P6, 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.5 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 630 mm | 655 mm | 676 mm | 706 mm | 731 mm |
| Rake | 42 mm | 46 mm | 41 mm | 47 mm | 45 mm |
| Trail | 92 mm | 84 mm | 89 mm | 83 mm | 85 mm |
| Stack | 618 mm | 620 mm | 629 mm | 639 mm | 648 mm |
| Reach | 387 mm | 412 mm | 435 mm | 456 mm | 479 mm |
| Top Tube Length | 580 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 476 mm | 533 mm | 572 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1065 mm | 1085 mm | 1106 mm | 1136 mm | 1161 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 737 mm | 740 mm | 762 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Highball 29 C R1x is a Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz Highball 29 D 2017 has a starting price of 1649$. Santa Cruz Highball 29 CC XT 2017 on the other hand is the most expensive at 8000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 2599$. In conclusion, this bike price is 36.43% more expensive than the price of the average Crosscountry bike.
Highball 29 C R1x components
Fork
Santa Cruz Highball 29 C R1x 2017 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Santa Cruz Highball 29 C R1x 2017, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Highball 29 C R1x is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
