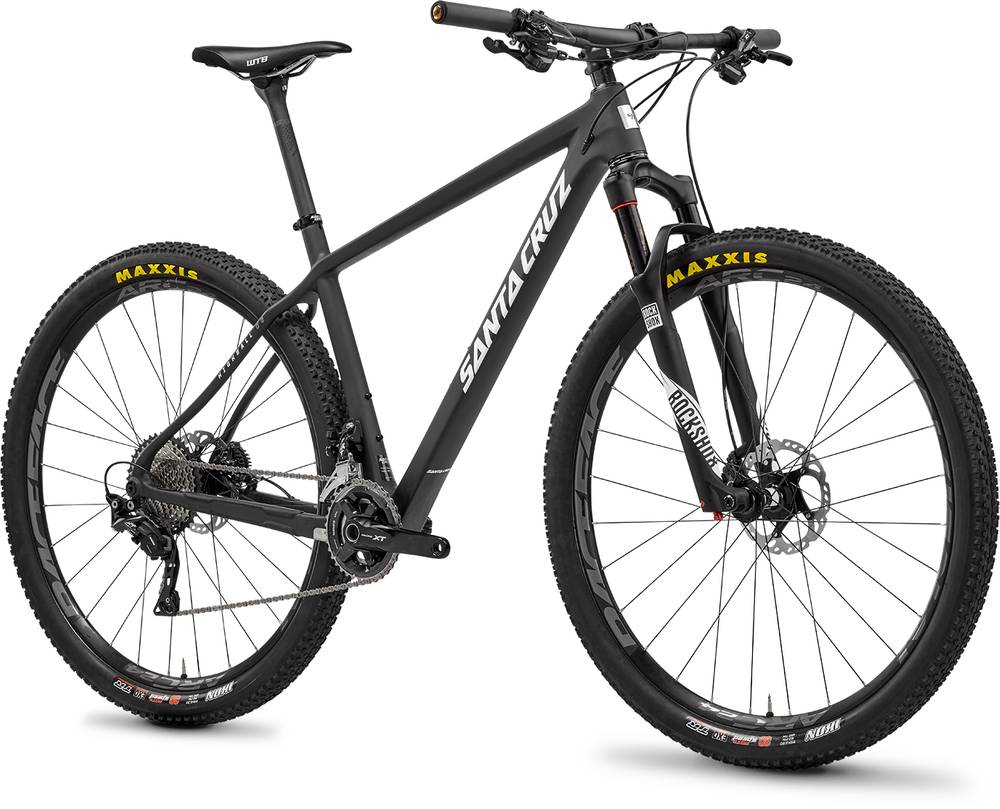

Santa Cruz Highball 29 R2x 2017
2017 Mountain
Estimate price |
7,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle, XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon CC
Suspension Fork
Rock Shox SID RLC 100
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
Shimano XT M8025
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295; 10-50t
Crank
SRAM XX1 Eagle, 32 Tooth
Bottom Bracket
Included w/ crankset
Chain
SRAM XX1 Eagle Powerlock
Wheels
Front Hub
Industry Nine Torch 110x15
Rear Hub
Industry Nine Torch; 142x12mm
Rims
Race Face ARC 24; 28h
Spokes
DT Swiss Competition Double-Butted
Tires
Maxxis Ikon 29x2.2, Tubeless Ready
Brakes
Brakes
SRAM Level Ultimate
Disk Rotors
Avid Centerline; 160mm
Cockpit
Stem
Syntace F109
Handlebar
Santa Cruz Carbon Flat Bar; 31.8mm clamp, 750mm
Grips
ESI Racer's Edge
Headset
Cane Creek 110 series tapered, cartridge bearing
Seat
Saddle
WTB Silverado SLT
Seatpost
Syntace P6, 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.5 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 630 mm | 655 mm | 676 mm | 706 mm | 731 mm |
| Rake | 42 mm | 46 mm | 41 mm | 47 mm | 45 mm |
| Trail | 92 mm | 84 mm | 89 mm | 83 mm | 85 mm |
| Stack | 618 mm | 620 mm | 629 mm | 639 mm | 648 mm |
| Reach | 387 mm | 412 mm | 435 mm | 456 mm | 479 mm |
| Top Tube Length | 580 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 476 mm | 533 mm | 572 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 441 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1065 mm | 1085 mm | 1106 mm | 1136 mm | 1161 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 737 mm | 740 mm | 762 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Highball 29 R2x is part of the Santacruz Highball model. There are 49 bikes that carry this model name. You can easily view all of the Santacruz Highball bikes models from 2017, here.
Model range prices
Santa Cruz Highball 29 D 2017 is the most affordable bike of this model and has a price of 1649$. On the other hand, Santa Cruz Highball 29 CC XT 2017, is the most expensive and costs 8000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 7000$. In conclusion, this bike price is 267.45% more expensive than the price of the average Crosscountry bike.
Overview of components
Fork
The Highball 29 R2x comes factory-installed with the RockShox SID fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Highball 29 R2x are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Highball 29 R2x comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
