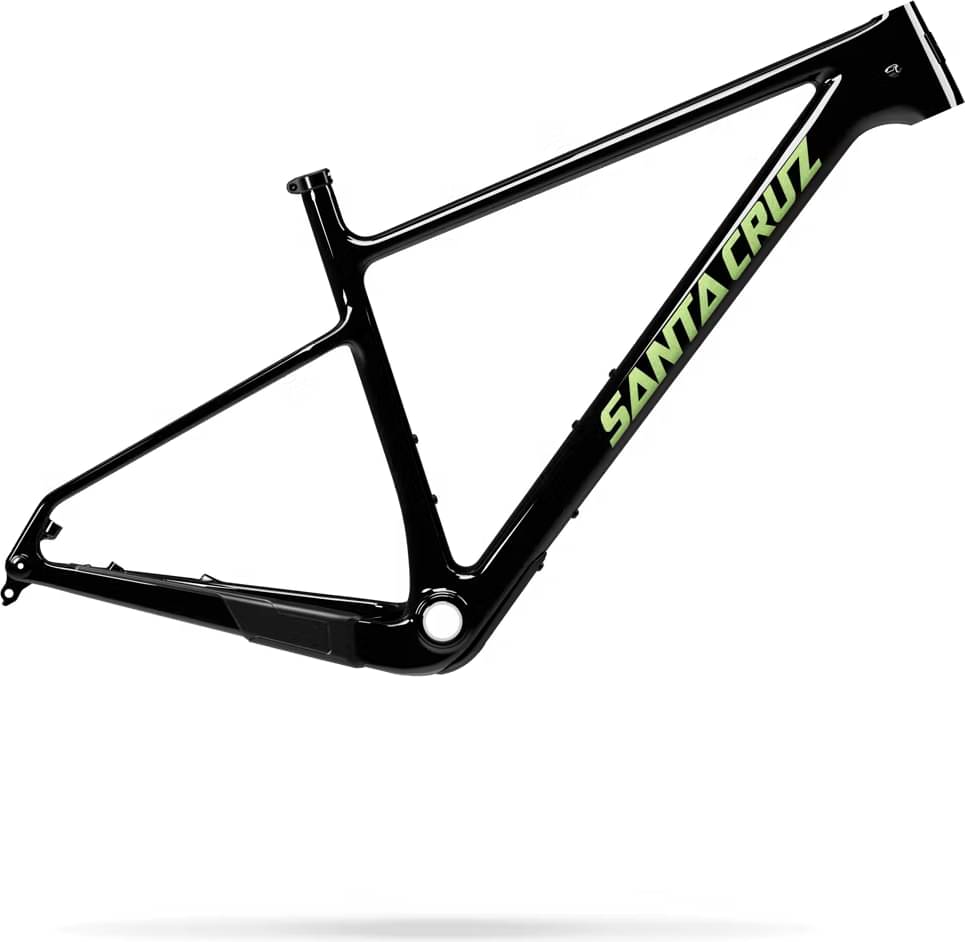

Santa Cruz HIGHBALL Frame / Carbon CC 2024
2024 Mountain
Estimate price |
2,149$
Weight | 1.17 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29"
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL Frame / Carbon CC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 601 mm | 610 mm | 619 mm | 638 mm |
| Reach | 420 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 600 mm | 624 mm | 647 mm | 682 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1124 mm | 1150 mm | 1174 mm | 1212 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 709 mm | 744 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
About this model
HIGHBALL Frame / Carbon CC completes the Santacruz Highball model. Santa Cruz launched 49 frames of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry frames average price
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2149$. If we compare this with the average Crosscountry frame cost we notice that the price is 27.24% higher.
Crosscountry frames average weight
If we make a quick analysis of the average weight of a Crosscountry frame, we get 1.98 kg (4.37 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 1.17 kg (2.58 lbs), Santa Cruz frame is much lighter than average. To sum up, it’s 69.23% lighter than the average weight of Crosscountry frames.
HIGHBALL Frame / Carbon CC components
Sizes
Santa Cruz HIGHBALL Frame / Carbon CC frame has 4 sizes, in the range of 152 cm – 198 cm (4.99 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
