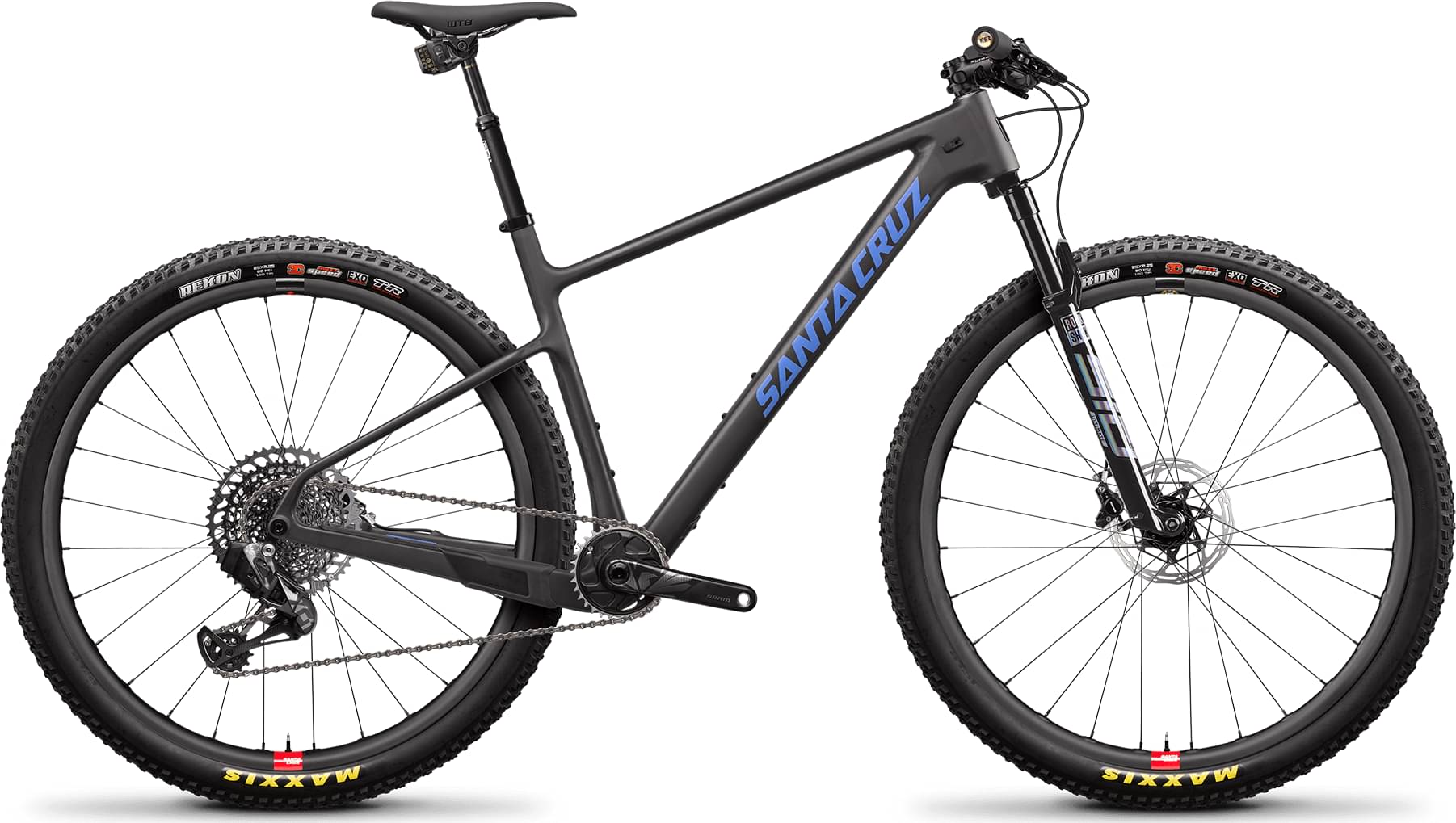

Santa Cruz HIGHBALL X01 AXS / RSV / Carbon CC / 29 2022
2022 Mountain
Estimate price |
9,887$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset X01 Eagle AXS, SRAM -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL X01 AXS / RSV / Carbon CC / 29
Suspension Fork
RockShox Sid SL Ultimate, 100mm, 29" w/Remote
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Front Derailleur
SRAM TwistLoc Remote
Shift Levers
SRAM GX AXS Controller
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM X1 Eagle Carbon 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
Industry Nine 1/1, 110x15, Centerlock, 24h
Rear Hub
Industry Nine 1/1, 148x12, XD, Centerlock, 24h
Rims
Reserve 28|XC Carbon Rim
Spokes
Sapim D-light
Tires
Front: Maxxis Aspen, 29"x2.4WT, EXO, TR, Rear: Maxxis Aspen, 29"x2.35, EXO, TR
Brakes
Brakes
SRAM Level TLM
Disk Rotors
SRAM CLX Center Lock 160mm
Cockpit
Stem
Syntace LiteForce
Handlebar
Santa Cruz Bicycles Carbon Flat
Grips
ESI Chunky
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
Rockshox Reverb AXS Xplr, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 662 mm | 690 mm | 714 mm | 751 mm |
| Rake | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 81 mm | 82 mm | 81 mm | 81 mm |
| Stack | 601 mm | 611 mm | 620 mm | 639 mm |
| Reach | 410 mm | 435 mm | 455 mm | 485 mm |
| Top Tube Length | 592 mm | 620 mm | 643 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1093 mm | 1121 mm | 1145 mm | 1182 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 713 mm | 720 mm | 745 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
HIGHBALL X01 AXS / RSV / Carbon CC / 29 is part of the Santacruz Highball model. Santa Cruz released 49 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Highball R / Carbon C / 29 2022 has a starting price of 3299$. Santa Cruz HIGHBALL X01 AXS / RSV / Carbon CC / 29 2022 on the other hand is the most expensive at 9024$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz HIGHBALL X01 AXS / RSV / Carbon CC / 29 price was 9024$. If we compare this with the average Crosscountry bike cost we notice that the price is 373.7% higher.
Overview of components
Fork
This bike has the RockShox SID SL Ultimate fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the HIGHBALL X01 AXS / RSV / Carbon CC / 29 bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HIGHBALL X01 AXS / RSV / Carbon CC / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
HIGHBALL X01 AXS / RSV / Carbon CC / 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
