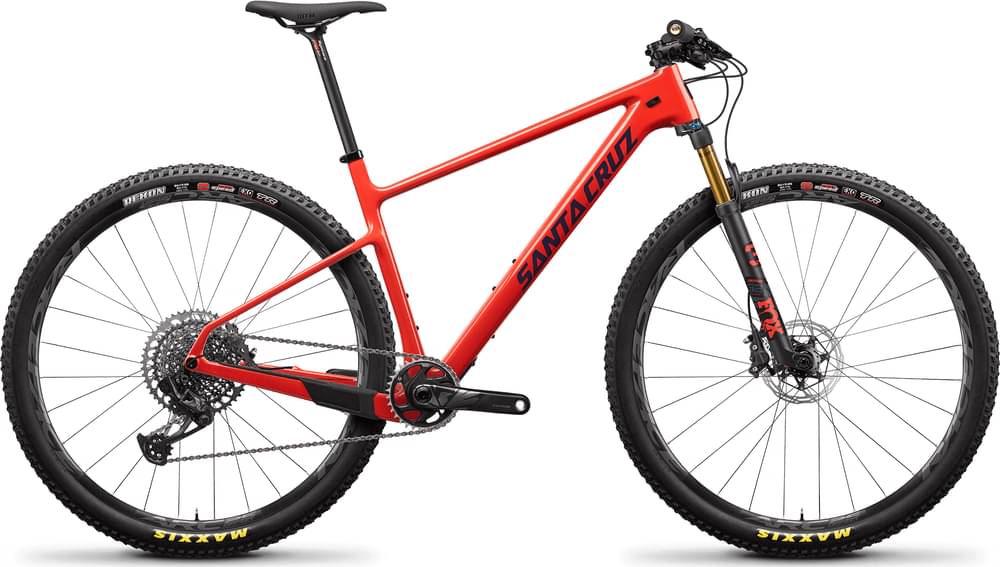

Santa Cruz Highball X01 / Carbon CC / 29 2021
2021 Mountain
Estimate price |
5,649$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Highball X01 / Carbon CC / 29
Suspension Fork
FOX SC 32 Float Factory, 100mm, 29", w/ Remote
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
SRAM X1 Eagle Carbon 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
DT Swiss 350, 15x110, Centerlock, 28h
Rear Hub
DT Swiss 350, 12x148, Centerlock, XD, 28h
Rims
RaceFace ARC Offset 25 29"
Spokes
Sapim Race
Tires
Front: Maxxis Rekon 29"x2.25", 3C, EXO, TR, Rear: Maxxis Rekon 29"x2.25", 3C, EXO, TR
Brakes
Brakes
SRAM Level TLM
Disk Rotors
SRAM CLX Center Lock 160mm
Cockpit
Stem
Syntace LiteForce
Handlebar
Santa Cruz Bicycles Carbon Flat
Grips
ESI Chunky
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team
Seatpost
Syntace P6 Carbon HiFlex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 662 mm | 690 mm | 714 mm | 751 mm |
| Rake | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 81 mm | 82 mm | 81 mm | 81 mm |
| Stack | 601 mm | 611 mm | 620 mm | 639 mm |
| Reach | 410 mm | 435 mm | 455 mm | 485 mm |
| Top Tube Length | 592 mm | 620 mm | 643 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1093 mm | 1121 mm | 1145 mm | 1182 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 713 mm | 720 mm | 745 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Highball X01 / Carbon CC / 29 is part of the Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Santa Cruz Highball R / Carbon C / 29 2021 is the most affordable bike of this model and has a price of 3099$. On the other hand, Santa Cruz Highball X01 / Carbon CC / 29 2021, is the most expensive and costs 5649$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 5649$. Doing a quick comparison, we notice that Highball X01 / Carbon CC / 29 price is 196.54% higher than the average cost of a Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Highball X01 / Carbon CC / 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Highball X01 / Carbon CC / 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Highball X01 / Carbon CC / 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
