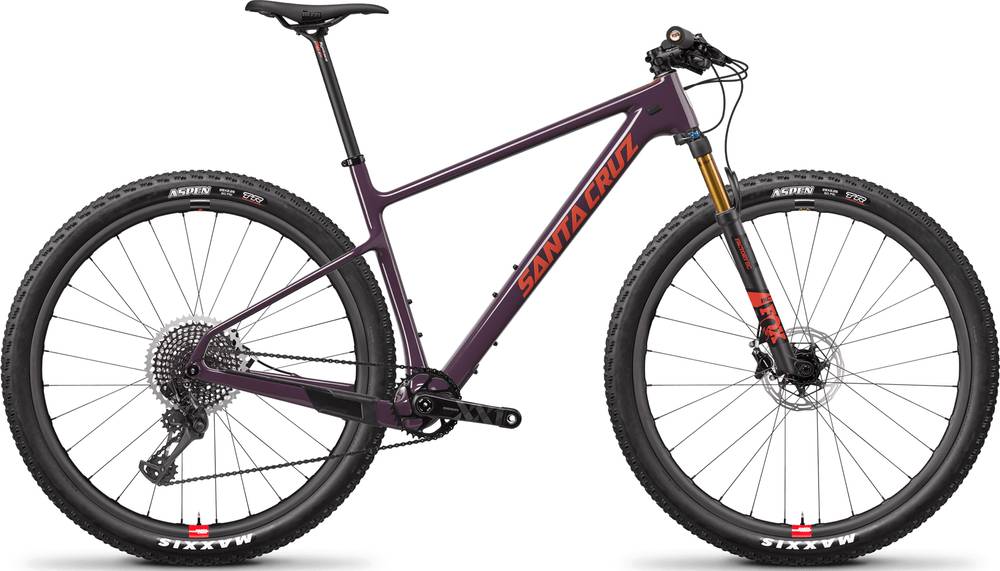

Santa Cruz Highball XX1 Reserve / Carbon CC / 29 2019
2019 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Highball XX1 Reserve / Carbon CC / 29
Suspension Fork
FOX Step-Cast 32 Factory, 100mm, 29", w/Remote
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM XX1 Eagle DUB 34T (170mm S, 175mm M-XL)
Chain
SRAM X01 Eagle 12 SPD
Wheels
Front Hub
DT Swiss 240, 15x110, Centerlock, 28h
Rear Hub
DT Swiss 240, 12x148, Centerlock, XD, 28h
Rims
Santa Cruz Reserve 25 29" Carbon Rims
Spokes
DT Competition Race (28)
Tires
Maxxis Aspen, 29"x2.25", EXO TR
Brakes
Brakes
SRAM Level Ultimate
Disk Rotors
SRAM CLX Center Lock, 160mm
Cockpit
Stem
Syntace LiteForce
Handlebar
SCB XC Carbon Flat
Grips
ESI Chunky
Headset
Cane Creek AER IS Integrated Headset
Seat
Saddle
WTB Silverado Carbon
Seatpost
Syntace P6 Carbon HiFlex 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 662 mm | 690 mm | 714 mm | 751 mm |
| Rake | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 81 mm | 82 mm | 81 mm | 81 mm |
| Stack | 601 mm | 611 mm | 620 mm | 639 mm |
| Reach | 410 mm | 435 mm | 455 mm | 485 mm |
| Top Tube Length | 592 mm | 620 mm | 643 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1093 mm | 1121 mm | 1145 mm | 1182 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 713 mm | 720 mm | 745 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Highball XX1 Reserve / Carbon CC / 29 is a Santacruz Highball model. 49 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Highball R / Carbon C / 29 2019 has a starting price of 2799$. Santa Cruz Highball XTR Reserve / Carbon CC / 29 2019 on the other hand is the most expensive at 8299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. Doing a quick comparison, we notice that Highball XX1 Reserve / Carbon CC / 29 price is 319.9% higher than the average cost of a Crosscountry bike.
Highball XX1 Reserve / Carbon CC / 29 components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Highball XX1 Reserve / Carbon CC / 29 2019 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Highball XX1 Reserve / Carbon CC / 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
