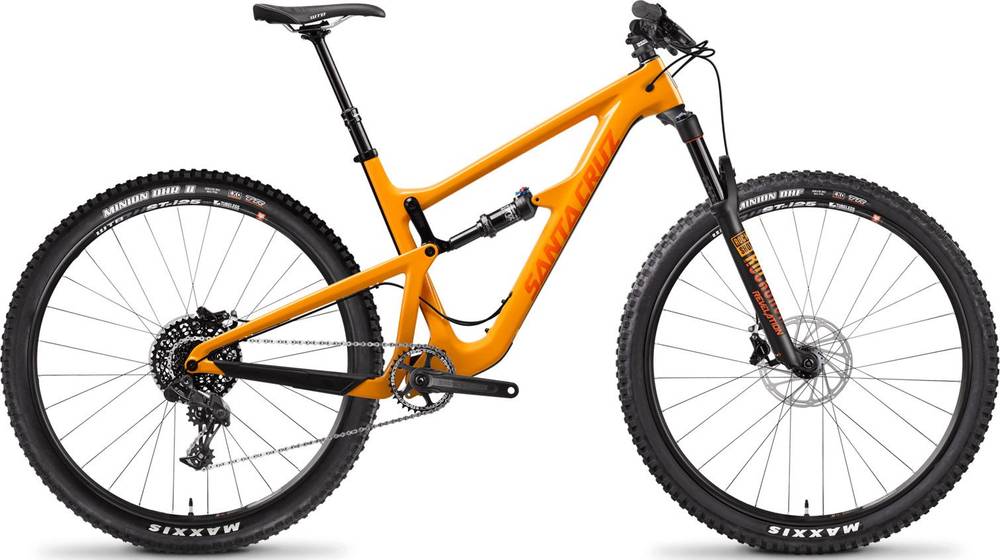

Santa Cruz Hightower C R 2018
2018 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 135mm -
Fork RockShox Revelation RC
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Revelation RC
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11 speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM XG1150 CS, 10-42 tooth
Crank
Race Face Aeffect (170mm XS-S, 175mm M-XXL)
Bottom Bracket
Standard threaded
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 32 hole, Rear: Novatec D462, 12mm x 148mm, 32 hole
Rear Hub
Front: Novatec D711, 15mm x 110mm, 32 hole, Rear: Novatec D462, 12mm x 148mm, 32 hole
Rims
WTB STP i29 TCS 29
Spokes
DT Competition with Sapim Secure Lock 14mm brass nipples
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Minion DHR2, 2.3", EXO, TR
Brakes
Brakes
SRAM Level T with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Aeffect R, 35mm diameter, 780mm wide, 20mm rise
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 10 IS Integrated
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Aeffect
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 611 mm | 616 mm | 620 mm | 630 mm | 648 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 608 mm | 629 mm | 657 mm | 692 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1145 mm | 1172 mm | 1194 mm | 1222 mm | 1262 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 717 mm | 717 mm | 720 mm | 727 mm | 734 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Hightower C R belongs to the Santacruz Hightower model. There are 66 bikes that carry this model name. Take a sneak peek at all Santacruz Hightower bikes models from 2018, by clicking here.
Model range prices
Santa Cruz Hightower LT C R 2018 is the most affordable bike of this model and has a price of 3949$. On the other hand, Santa Cruz Hightower LT Carbon CC XX1 Reserve 2018, is the most expensive and costs 9299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3999$. Doing a quick comparison, we notice that Hightower C R price is 44.79% higher than the average cost of a Trail bike.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Santa Cruz Hightower C R bike has the FOX Float Performance DPS model installed, and has a travel of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Hightower C R bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Hightower C R is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The Santa Cruz model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
